Building High-Throughput Pipelines in C# with TPL Dataflow

While building modern applications, we often need to deal with streaming data, batch pipelines, and parallel processing. For building ETL jobs, background processors, or event-driven systems, we need a way to:

  • Efficient data processing

  • Concurrency control

  • Maintain clean, readable architecture

In this article, we’ll build a parallel-processing pipeline using System.Threading.Tasks.Dataflow.

What is TPL Dataflow?

Task Parallel Library (TPL) Dataflow is a library that helps you build data processing pipelines using blocks.

Each block will receive input, process it, and pass it to the next block like an assembly line in a factory.

Real-world example: Car Manufacturing Pipeline

We’ll simulate a car production pipeline, where each step represents a stage:

  1. Build frame

  2. Install engine

  3. Add interior

  4. Paint

  5. Deliver

Each stage can run in parallel, but the order of operations is preserved per item.

public class DataflowHandsOn
{
    public static async Task Run()
    {
        // Configure options for parallelism
        var parallelOptions = new ExecutionDataflowBlockOptions
        {
            MaxDegreeOfParallelism = 5
        };

        // Step 1: Create cars
        var carList = new TransformManyBlock<string, string>(_ =>
        {
            var cars = new List<string> { "Suzuki", "Tata", "BYD", "BMW", "Tesla" };
            return cars;
        }, parallelOptions);

        // Step 2: Create frame
        var createFrame = new TransformBlock<string, string>(car =>
        {
            Console.WriteLine($"Creating frame for {car}");
            Task.Delay(300).Wait();
            return car;
        }, parallelOptions);

        // Step 3: Put engine
        var configureEngine = new TransformBlock<string, string>(car =>
        {
            Console.WriteLine($"Installing engine for {car}");
            Task.Delay(300).Wait();
            return car;
        }, parallelOptions);

        // Step 4: Add interior
        var addInterior = new TransformBlock<string, string>(car =>
        {
            Console.WriteLine($"Adding interior for {car}");
            Task.Delay(300).Wait();
            return car;
        }, parallelOptions);

        // Step 5: Paint
        var addPaint = new TransformBlock<string, string>(car =>
        {
            Console.WriteLine($"Painting {car}");
            Task.Delay(300).Wait();
            return car;
        }, parallelOptions);

        // Step 6: Delivery
        var delivery = new ActionBlock<string>(car =>
        {
            Console.WriteLine($"Delivering {car}");
            Task.Delay(200).Wait();
        }, parallelOptions);

        // Link the blocks in order
        var linkOptions = new DataflowLinkOptions { PropagateCompletion = true };
        carList.LinkTo(createFrame, linkOptions);
        createFrame.LinkTo(configureEngine, linkOptions);
        configureEngine.LinkTo(addInterior, linkOptions);
        addInterior.LinkTo(addPaint, linkOptions);
        addPaint.LinkTo(delivery, linkOptions);

        // Start the workflow
        carList.Post("Start");

        // Mark completion for the head block
        carList.Complete();

        // Wait for completion of the entire pipeline
        await delivery.Completion;

        Console.WriteLine("All cars processed and delivered!");
    }
}

Understanding the Pipeline

1. TransformManyBlock

var carList = new TransformManyBlock<string, string>(...)

This is data source or ingestion stage.

2. TransformBlock

This is independent processing units. Each stage transforms input to output.

var createFrame = new TransformBlock<string, string>(car => ...)

In our example pipeline stages are Frame creation, Engine installation, Interior setup, Painting etc.

3. ActionBlock

var delivery = new ActionBlock<string>(car => ...)

This is final stage. It only performs action with no return value.

Here, MaxDegreeOfParallelism = 5, we can process 5 requests simultaneously per stage.

LinkTo is connecting blocks together for creating a pipeline chain.

Here, PropagateCompletion = true represents when first block completes, all downstream blocks complete automatically.

Let’s call this function from program.cs

await DataflowHandsOn.Run();

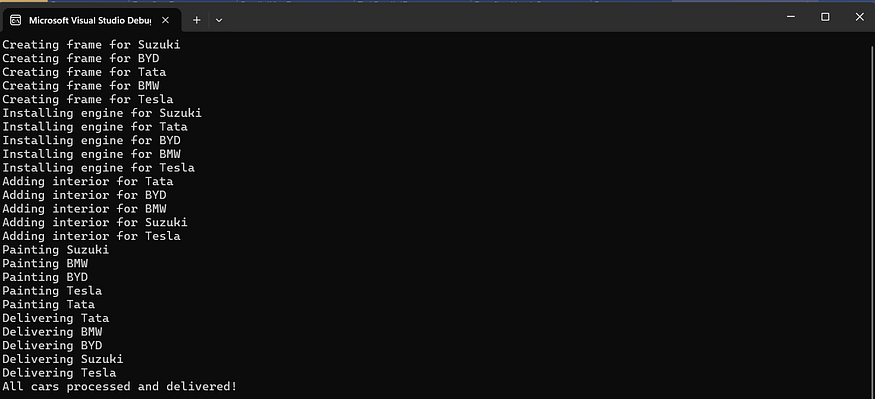

The output is like this:

Conclusions

This output highlights how TPL Dataflow enables the design of high-throughput, parallel pipelines where each item flows independently through ordered stages, closely mirroring real-world processing systems. This approach is especially important in ETL (Extract, Transform, Load) scenarios, where large volumes of data must be ingested, transformed, and loaded efficiently, as it maximizes performance, ensures scalability, and provides a clean, maintainable architecture for handling complex data workflows without bottlenecks.
