Building LangGraph with LangChain: A Complete Developer Guide

Abstract / Overview

LangGraph is a framework built on top of LangChain that enables developers to design and execute agentic workflows as structured graphs. Instead of chaining language models linearly, LangGraph uses nodes (representing functions or agents) and edges (representing logic flow) to manage multi-agent reasoning, memory, and state transitions in complex AI applications.

This article provides a full, step-by-step tutorial for building LangGraph applications.

Conceptual Background

LangGraph extends LangChain’s composability model by allowing developers to define directed graphs that describe how agents and tools interact dynamically.

Key concepts:

• Node: Represents a unit of computation, such as a model call or a tool.

• Edge: Defines how outputs flow between nodes.

• GraphState: The evolving memory of the system during execution.

• Supervision: Nodes can modify future execution paths based on results.

• Concurrency: Multiple nodes can run in parallel when independent.

Compared to sequential LangChain chains, LangGraph supports adaptive, non-linear workflows, ideal for applications like dialogue systems, planning agents, and retrieval-augmented generation (RAG).

Step-by-Step Walkthrough

Step 1. Install Dependencies

pip install langgraph langchain openai

Set up your environment key:

export OPENAI_API_KEY=YOUR_API_KEY

Step 2. Import Core Components

from langgraph.graph import StateGraph, END, START
from langchain.chat_models import ChatOpenAI

Step 3. Define Graph State

Each node can read from and write to a shared state.

class GraphState:
    def __init__(self, query, context=None):
        self.query = query
        self.context = context or []

Step 4. Create Nodes

Define two example nodes — one for answering questions and another for summarizing.

llm = ChatOpenAI(model="gpt-4o-mini")

def answer_node(state):
    response = llm.invoke(f"Answer the query: {state.query}")
    state.context.append({"answer": response})
    return state

def summary_node(state):
    summary = llm.invoke(f"Summarize the conversation: {state.context}")
    state.context.append({"summary": summary})
    return state

Step 5. Construct the Graph

graph = StateGraph(GraphState)
graph.add_node("answer", answer_node)
graph.add_node("summary", summary_node)
graph.add_edge(START, "answer")
graph.add_edge("answer", "summary")
graph.add_edge("summary", END)

Step 6. Compile and Run

app = graph.compile()
result = app.invoke(GraphState("What is LangGraph?"))
print(result.context[-1]["summary"])

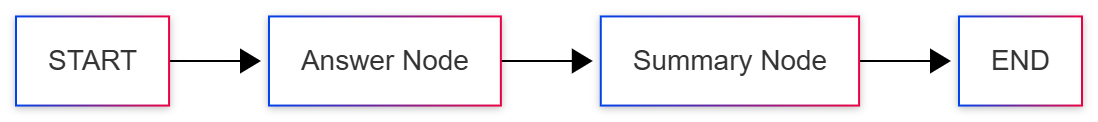

Mermaid Diagram: LangGraph Flow

Use Cases / Scenarios

• Conversational Agents: Manage multi-turn dialogue while maintaining memory.

• Tool-Using Agents: Dynamically decide which tools to call (e.g., calculators, web search).

• Multi-Agent Systems: Coordinate specialized sub-agents (e.g., planner, executor, summarizer).

• RAG Pipelines: Combine retrieval nodes with generation nodes.

• Data Processing: Create deterministic pipelines mixing ML models and logic nodes.

Limitations / Considerations

• Debugging complexity: Graph execution makes debugging harder than sequential chains.

• Latency: Parallelism can improve speed, but may cause unpredictable timing.

• State consistency: Improper updates can corrupt shared memory.

• Scalability: Large graphs require resource orchestration.

Fixes and Troubleshooting

Issue	Cause	Solution
Node not executing	Missing edge definition	Check for unconnected nodes
Incorrect state propagation	Mutable object overwriting	Deep copy the state before updates
Model rate limit	Excessive parallel LLM calls	Add throttling or caching
Unexpected results	Missing control edges	Verify directional logic between nodes

Sample Workflow JSON

{
  "workflow": {
    "nodes": [
      {"id": "answer", "function": "answer_node"},
      {"id": "summary", "function": "summary_node"}
    ],
    "edges": [
      {"from": "START", "to": "answer"},
      {"from": "answer", "to": "summary"},
      {"from": "summary", "to": "END"}
    ],
    "state": {
      "query": "Explain LangGraph",
      "context": []
    }
  }
}

FAQs

Q1: Is LangGraph part of LangChain?
Yes. LangGraph is developed by the LangChain team as an extension library for graph-based orchestration.

Q2: Can I run LangGraph asynchronously?
Yes. The invoke_async() method allows concurrent graph node execution.

Q3: Does LangGraph support external APIs or tools?
Yes. You can integrate any LangChain Tool or external function as a node.

Q4: What is the difference between LangGraph and LangChain Expression Language (LCEL)?
LCEL is for linear chaining, while LangGraph supports branching, merging, and looping workflows.

References

• LangChain Official Blog on Building LangGraph

Conclusion

LangGraph transforms the way developers build AI systems by introducing a graph-based paradigm for agentic workflows. It extends LangChain’s modular power with memory, concurrency, and control flow, making it ideal for advanced AI applications like planning agents and retrieval-augmented systems.
