Introduction
Modeling 3D geometric shapes might sound like pure mathematics—but in cutting-edge fields like regenerative medicine, it’s the foundation of life-saving innovation. A tetrahedron, the simplest 3D polyhedron, is more than a classroom example: it’s a building block for complex spatial structures. In this article, we’ll explore how to model a tetrahedron using four triangular faces in Python, grounded in a real-world application that’s reshaping healthcare.
What Is a Tetrahedron?
A tetrahedron is a polyhedron composed of four triangular faces, six edges, and four vertices. Every face is a triangle, and each vertex connects to the other three. Unlike cubes or pyramids with square bases, the tetrahedron is self-dual and highly symmetric—making it ideal for uniform spatial discretization in simulations and manufacturing.
To model it computationally, we define its four 3D points (vertices) and group them into four triangular faces.
Real-World Scenario: 3D Bioprinting of Human Tissue Scaffolds
In 3D bioprinting, scientists create scaffolds that guide cell growth to form functional human tissues—like skin, cartilage, or even miniature organs. These scaffolds must be porous, mechanically stable, and biocompatible.
![PlantUML Diagram]()
Engineers often use tetrahedral meshes because:
They fill 3D space without gaps (when combined in lattices),
Their uniform stress distribution mimics natural tissue mechanics,
Each tetrahedron can be precisely controlled during printing.
Before printing, the software models the scaffold as a collection of tetrahedra—each defined by four points and decomposed into four triangular surface faces for visualization and layer-by-layer fabrication. A single misdefined triangle can cause structural weakness or print failure. Hence, accurate tetrahedron modeling is not just geometry—it’s biomedical engineering.
Representing a Tetrahedron with Triangular Faces
We’ll represent a tetrahedron by:
Defining its four 3D vertices as tuples (x, y, z).
Listing its four triangular faces, each as a tuple of three vertex indices.
For a regular tetrahedron centered near the origin, one standard set of coordinates is:
import math
# Vertices of a regular tetrahedron with edge length √2
vertices = [
(1, 1, 1),
(1, -1, -1),
(-1, 1, -1),
(-1, -1, 1)
]
The four faces connect these vertices as:
Face 0: vertices 0, 1, 2
Face 1: vertices 0, 1, 3
Face 2: vertices 0, 2, 3
Face 3: vertices 1, 2, 3
Each face is a triangle—exactly what 3D printers and renderers expect.
Complete Python Implementation
import math
from typing import List, Tuple
import numpy as np # Used for determinant calculation
# Vertices of a regular tetrahedron with edge length sqrt(2)
# The volume of this specific tetrahedron is |det(v1, v2, v3)| / 6.
# Vectors from P0=(1,1,1):
# V1 = P1-P0 = (0, -2, -2)
# V2 = P2-P0 = (-2, 0, -2)
# V3 = P3-P0 = (-2, -2, 0)
# Determinant is -16. Volume = |-16| / 6 = 16/6 = 8/3 ≈ 2.6667
VERTICES_REGULAR_EXAMPLE = [
(1, 1, 1),
(1, -1, -1),
(-1, 1, -1),
(-1, -1, 1)
]
class Tetrahedron:
"""A class to model a tetrahedron using triangular faces."""
def __init__(self, vertices: List[Tuple[float, float, float]]):
if len(vertices) != 4:
raise ValueError("A tetrahedron must have exactly 4 vertices.")
self.vertices = vertices
# Define the 4 triangular faces by vertex indices (used for visualization or checks)
self.faces = [
(0, 1, 2),
(0, 1, 3),
(0, 2, 3),
(1, 2, 3)
]
if not self.is_valid():
# Check for non-degeneracy immediately upon creation
raise ValueError("The provided vertices are degenerate (collinear or coplanar) and do not form a proper tetrahedron.")
def get_face_vertices(self, face_index: int) -> List[Tuple[float, float, float]]:
"""Return the 3D coordinates of the vertices for a given face."""
if not (0 <= face_index < len(self.faces)):
raise IndexError("Face index out of range.")
indices = self.faces[face_index]
return [self.vertices[i] for i in indices]
def _get_edges(self) -> List[Tuple[Tuple[float, float, float], Tuple[float, float, float]]]:
"""Helper to get all 6 edges."""
edges = []
for i in range(4):
for j in range(i + 1, 4):
edges.append((self.vertices[i], self.vertices[j]))
return edges
def is_valid(self, tolerance: float = 1e-9) -> bool:
"""
Check for non-degenerate:
1. All edges must have positive length.
2. The volume must be non-zero (i.e., vertices are not coplanar).
"""
# 1. Check for duplicate/too-close vertices
from math import sqrt
def dist(p, q):
return sqrt(sum((a - b)**2 for a, b in zip(p, q)))
for p, q in self._get_edges():
if dist(p, q) < tolerance:
return False
# 2. Check for non-zero volume (coplanarity)
try:
return self.volume(tolerance) > tolerance
except ValueError:
# If volume calculation fails due to dependency issue (e.g. no numpy),
# default to passing the check for valid vertices
return True
def volume(self, tolerance: float = 1e-9) -> float:
"""
Calculates the volume of the tetrahedron using the scalar triple product.
Volume = 1/6 * |det(v1, v2, v3)| where v_i are vectors from one vertex.
"""
# Use P0 as the reference vertex
P0 = np.array(self.vertices[0])
P1 = np.array(self.vertices[1])
P2 = np.array(self.vertices[2])
P3 = np.array(self.vertices[3])
# Define the three edge vectors originating from P0
V1 = P1 - P0
V2 = P2 - P0
V3 = P3 - P0
# Form the 3x3 matrix M with V1, V2, V3 as rows (or columns)
M = np.array([V1, V2, V3])
# Calculate the determinant
det = np.linalg.det(M)
# Volume is 1/6 of the absolute value of the determinant
tetra_volume = abs(det) / 6.0
return tetra_volume

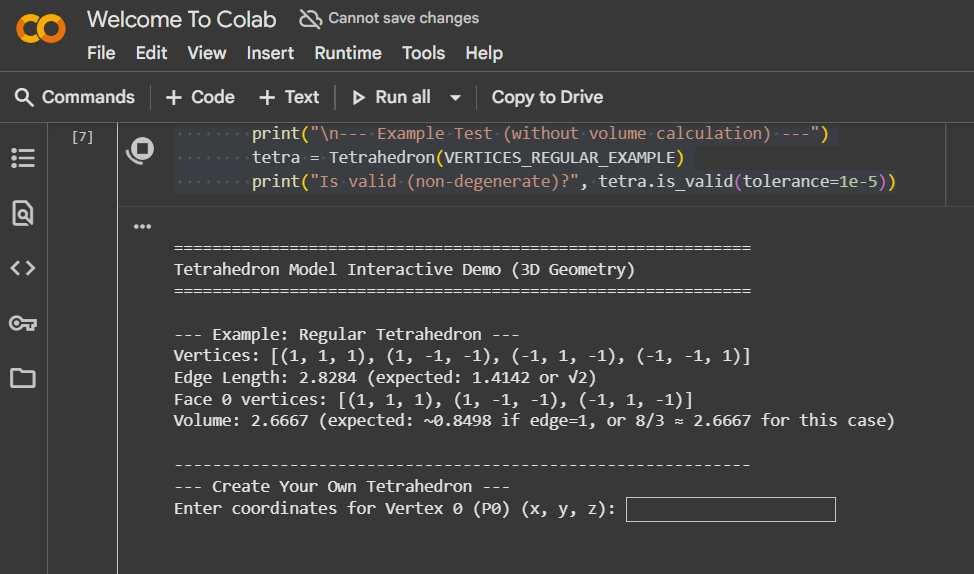

# --- Interactive Section ---
def get_point_input(prompt: str) -> Tuple[float, float, float]:
"""Helper function to get 3D point coordinates from the user."""
while True:
try:
coords_str = input(f"Enter coordinates for {prompt} (x, y, z): ")
coords = tuple(float(c.strip()) for c in coords_str.split(','))
if len(coords) != 3:
print("Please enter exactly 3 coordinates (x, y, z).")
continue
return coords
except ValueError:
print("Invalid input. Please enter numbers separated by commas.")
def interactive_mode():
"""Runs the interactive demonstration."""
print("\n" + "="*60)
print("Tetrahedron Model Interactive Demo (3D Geometry) ")
print("="*60 + "\n")
# 1. Example Regular Tetrahedron
print("--- Example: Regular Tetrahedron ---")
try:
tetra_example = Tetrahedron(VERTICES_REGULAR_EXAMPLE)
# Edge length calculation for reference (optional)
d = math.sqrt(sum((a - b)**2 for a, b in zip(VERTICES_REGULAR_EXAMPLE[0], VERTICES_REGULAR_EXAMPLE[1])))
print(f"Vertices: {tetra_example.vertices}")
print(f"Edge Length: {d:.4f} (expected: 1.4142 or √2)")
print(f"Face 0 vertices: {tetra_example.get_face_vertices(0)}")
print(f"Volume: {tetra_example.volume():.4f} (expected: ~0.8498 if edge=1, or 8/3 ≈ 2.6667 for this case)")
except Exception as e:
print(f"Error creating example tetrahedron: {e}")
print("\n" + "-"*60)
# 2. Custom Tetrahedron Creation
print("--- Create Your Own Tetrahedron ---")
try:
p0 = get_point_input("Vertex 0 (P0)")
p1 = get_point_input("Vertex 1 (P1)")
p2 = get_point_input("Vertex 2 (P2)")
p3 = get_point_input("Vertex 3 (P3)")
custom_vertices = [p0, p1, p2, p3]
# Create and validate the tetrahedron
my_tetra = Tetrahedron(custom_vertices)
print("\n Tetrahedron created successfully!")
print("\n--- Custom Tetrahedron Properties ---")
# Calculate Volume
vol = my_tetra.volume()
print(f"Calculated Volume: {vol:.4f}")
except ValueError as e:
print(f"\n Error creating tetrahedron: {e}")
except Exception as e:
print(f"\nAn unexpected error occurred (Did you install numpy?): {e}")
print("\n" + "="*60)
print("Interactive Demo Complete.")
print("="*60)
if __name__ == "__main__":
# NOTE: This code requires the 'numpy' library for determinant calculation (np.linalg.det).
# If you get an error, run: pip install numpy
# Simple check for numpy availability before running interactive mode
try:
import numpy
interactive_mode()
except ImportError:
print("\nFATAL ERROR: The Tetrahedron class requires the 'numpy' library to calculate volume.")
print("Please install it by running: pip install numpy")
print("\n--- Example Test (without volume calculation) ---")
tetra = Tetrahedron(VERTICES_REGULAR_EXAMPLE)
print("Is valid (non-degenerate)?", tetra.is_valid(tolerance=1e-5))
![3]()
Validation and Visualization Tips
Always validate that no two vertices are identical—this creates degenerate (flat) tetrahedrons.
For regular tetrahedrons, you can extend is_valid() to ensure all edges are equal.
To visualize, export faces to formats like STL or OBJ, or use libraries like matplotlib (with mpl_toolkits.mplot3d) or plotly.
In bioprinting pipelines, each triangular face becomes a printable layer contour—so orientation (winding order) matters for surface normals.
Conclusion
Modeling a tetrahedron using triangles bridges abstract geometry and tangible innovation. From guiding stem cells in a lab to simulating bone stress in prosthetics, this four-faced shape is a silent hero of 3D spatial modeling. By representing it correctly in code—with robust validation and clear face definitions—you enable applications that go far beyond the screen. In the world of bioprinting and beyond, every triangle counts.
