Introduction
What Is a Regular Polygon?
The Mathematical Formula
Real-World Scenario: Automated Solar Panel Array Design
Step-by-Step Implementation in Python
Complete Code with Validation and Edge Cases
Best Practices for Engineering Applications
Conclusion

Introduction

A regular polygon—equilateral and equiangular—is more than a geometry textbook concept. In renewable energy, solar farms are increasingly laid out in hexagonal, octagonal, or even dodecagonal patterns to maximize land use and minimize shading between panels.

Knowing how to compute the area of any regular polygon instantly enables engineers to optimize energy yield per square meter—a critical factor in making solar power cost-competitive.

This article explains the universal formula and shows how it’s used in real-time solar farm planning software.

What Is a Regular Polygon?

A regular polygon has:

All sides are equal in length
All interior angles are equal
Examples: equilateral triangle (3 sides), square (4), pentagon (5), hexagon (6), etc.

Unlike irregular shapes, its symmetry allows a single formula to compute area from just two inputs: number of sides and side length (or apothem/radius).

The Mathematical Formula

Given:

n : number of sides (n≥3 )
s : length of each side

The area A is:

This comes from dividing the polygon into n congruent isosceles triangles and summing their areas.

Why not just use rectangles? Hexagonal layouts reduce wasted space between circular trackers and improve wind resistance—critical in desert installations.

Real-World Scenario: Automated Solar Farm Layout Design

A solar startup uses drones to survey unused farmland. Their software must:

Propose optimal regular-polygon clusters (often hexagons for packing efficiency)
Compute the total area covered by each cluster
Ensure the layout fits within property boundaries
Maximize panel count without self-shading

For a hexagonal cluster with 10-meter sides, the system calculates area in milliseconds to compare against land availability. A wrong area = overdesign = costly rework.

This isn’t theoretical—it’s deployed in real projects across Arizona and Australia.

Step-by-Step Implementation in Python

import math

def regular_polygon_area(n: int, side_length: float) -> float:
    """
    Calculate the area of a regular polygon.

    Args:
        n: Number of sides (must be >= 3)
        side_length: Length of each side (must be > 0)

    Returns:
        Area as a positive float.

    Raises:
        ValueError: If inputs are invalid.
    """
    if n < 3:
        raise ValueError("A polygon must have at least 3 sides.")
    if side_length <= 0:
        raise ValueError("Side length must be positive.")

    return (n * side_length ** 2) / (4 * math.tan(math.pi / n))

Complete Code

import math
from typing import Optional, Any

def regular_polygon_area(n: int, side_length: float) -> float:
    """
    Calculate the area of a regular polygon using the formula:
    Area = (n * s^2) / (4 * tan(π/n))

    Args:
        n: Number of sides (must be >= 3)
        side_length: Length of each side (must be > 0)

    Returns:
        Area as a positive float.

    Raises:
        ValueError: If inputs are invalid.
    """
    if n < 3:
        raise ValueError("A polygon must have at least 3 sides (n >= 3).")
    if side_length <= 0:
        raise ValueError("Side length must be positive.")

    # Calculate the area
    return (n * side_length ** 2) / (4 * math.tan(math.pi / n))

# ----------------------------------------------------------------------
## Test Suite
# ----------------------------------------------------------------------

def run_tests():
    """Runs a series of tests to validate the regular_polygon_area function."""
    print("--- Running Validation Tests ---")

    # Test 1: Square (n=4, s=2) → area = 4
    area = regular_polygon_area(4, 2)
    assert abs(area - 4.0) < 1e-9
    print(" Test 1 (Square): Area = 4.0")

    # Test 2: Equilateral triangle (n=3, s=2) → area = √3 ≈ 1.732
    area = regular_polygon_area(3, 2)
    expected = math.sqrt(3)
    assert abs(area - expected) < 1e-9
    print(f" Test 2 (Triangle): Area ≈ {area:.3f}")

    # Test 3: Hexagon (n=6, s=12) → area = (3√3/2) * 144 ≈ 374.12
    area = regular_polygon_area(6, 12)
    expected = (3 * math.sqrt(3) / 2) * 12**2
    assert abs(area - expected) < 1e-9
    print(f" Test 3 (Hexagon): Area ≈ {area:.3f}")

    # Test 4: Invalid inputs
    try:
        regular_polygon_area(2, 1)
        assert False
    except ValueError:
        print(" Test 4: Caught n < 3")

    try:
        regular_polygon_area(5, -1)
        assert False
    except ValueError:
        print(" Test 5: Caught negative side length")

    print("\n--- All tests passed! ---")

    # Real-world example from prompt
    hex_sides = 12.0  # meters
    hex_area = regular_polygon_area(6, hex_sides)
    # The panels calculation in the prompt is specific: 80% coverage, 2m² per panel
    panels = int(hex_area * 0.8 / 2.0)
    print(f"\n  Solar Hex Cluster (side={hex_sides}m):")
    print(f"   Total area: {hex_area:.1f} m²")
    print(f"   Estimated panels: {panels}")

# ----------------------------------------------------------------------
## Interactive Mode
# ----------------------------------------------------------------------

def get_numeric_input(prompt: str, is_int: bool = False) -> Optional[Any]:
    """Helper function to safely get numeric input from the user."""
    while True:
        try:
            value = input(prompt).strip()
            if not value:
                return None  # Allow user to hit enter to break the loop

            if is_int:
                return int(value)
            else:
                return float(value)
        except ValueError:
            print(" Invalid input. Please enter a valid number.")

def interactive_mode():
    """Allows the user to input polygon parameters and get the area."""
    print("\n\n--- Interactive Regular Polygon Area Calculator ---")
    print("Enter the polygon details. (Hit ENTER to exit at any prompt.)")

    while True:
        # Get number of sides (n)
        n = get_numeric_input("Enter the number of sides (n >= 3): ", is_int=True)
        if n is None:
            break

        # Get side length
        s = get_numeric_input("Enter the side length (s > 0): ")
        if s is None:
            break

        try:
            area = regular_polygon_area(n, s)
            print("\n **Calculation Result** ")
            print(f"Polygon Area (n={n}, s={s}): **{area:.4f}**")

        except ValueError as e:
            print(f"\n Validation Error: {e}")

        print("-" * 30)

if __name__ == "__main__":
    # 1. Run tests to confirm function correctness
    run_tests()

    # 2. Run interactive mode for user input
    interactive_mode()

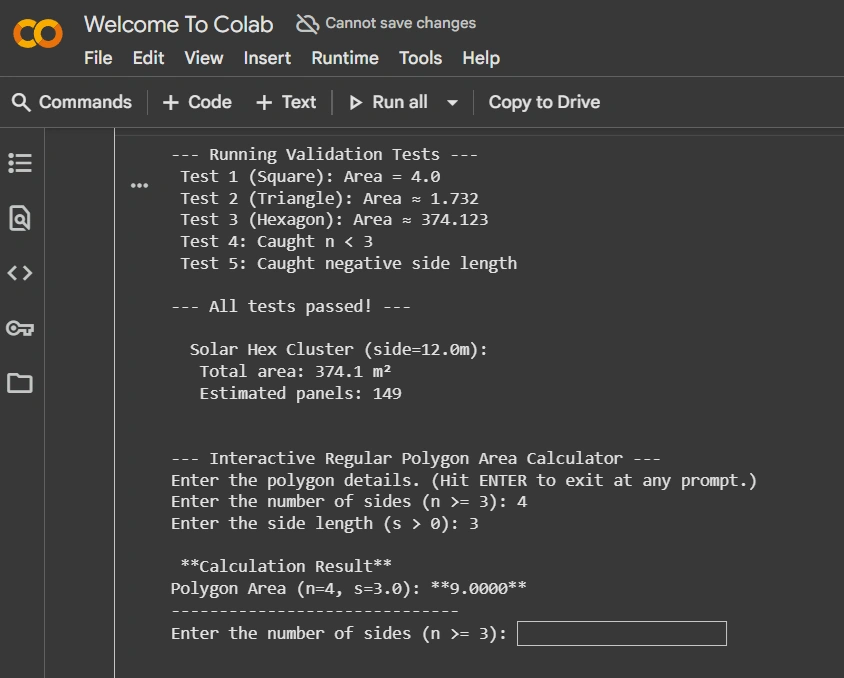

Output

Best Practices for Engineering Applications

Always validate n >= 3 and side_length > 0—garbage input breaks simulations.
Use radians (math.pi / n)—Python’s math.tan expects radians.
Prefer this formula over triangulation—it’s faster and more accurate.
For very large n, consider floating-point precision limits.
Cache math.tan(math.pi / n) if computing many polygons with the same n.
Log units (e.g., square meters) to avoid costly unit mismatches.

In production solar software, this function runs thousands of times per design iteration—efficiency and correctness are non-negotiable.

Conclusion

The area of a regular polygon is a small formula with a massive real-world impact. In the race to deploy clean energy faster and cheaper, every square meter counts. By implementing this calculation correctly—with validation, testing, and domain awareness—you turn abstract math into actionable engineering insight. Next time you see a solar farm from a plane, remember: behind those gleaming panels is geometry, code, and a commitment to precision that powers our sustainable future.
