Call HTTP Web Service Using SharePoint Designer 2013 (SPD)

Let's start with SharePoint Designer workflow which accesses the SharePoint List data using REST call i.e Web Service Call

SharePoint List

The following is a list structure which we are referencing for our application.



Figure 1: SharePoint

Step 1: Create Site Workflow

Using SharePoint Designer create site workflow. Make sure you select SharePoint 2013 Workflow as the platform type.



Figure 2: Workflow

Step 2: Create Workflow Stage.

Let’s start by creating a new stage.



Figure 3: Stage

Workflow Stages

Stage 1: Workflow Initialization: The following variables get initialized at this stage:

ServiceURL: Here's the URL.



Figure 4: Initialized

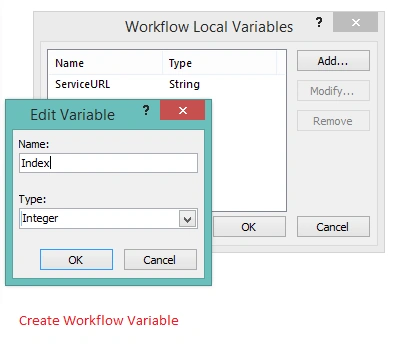

Index: Create Index variable of type Integer & set it to 0.


Figure 5: Index

Service Call Header: Next, we add a Dictionary variable (Build a Dictionary action), call it requestHeaders and initialize it as this:



Figure 6: Header

Both “Accept” and “Content-Type” entries are of the String type and they both contain the value “application/json;odata=verbose”. SharePoint REST API understands this and sets the response content type appropriately as JSON. If we don’t pass these values, the output would come as XML.



Figure 7: Accept

Stage 2: Web Service Call

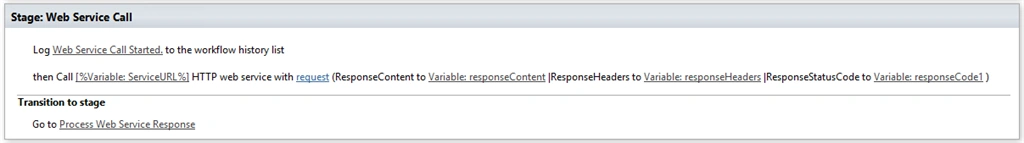

Add a Call as HTTP Web Service action and set its properties. The request will be the url variable:



Figure 8: Webservice

Set workflow variable "ServiceURL" as Web Service URL.

HTTP method as "GET".



Figure 9: Get

Response content will go to a new variable called responseContent.(type - Dictionary).

Response headers will go to a new variable called responseHeaders.(type - Dictionary).

Response code will go to a new variable called responseCode.(type - Dictionary ).

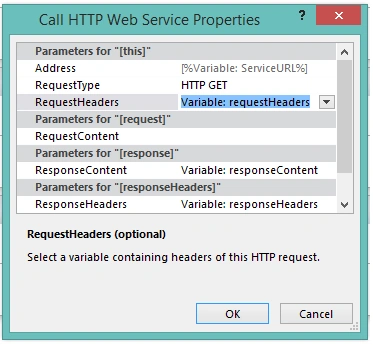

Then we set the request headers to be the requestHeaders variable we created just now, by clicking on the properties for the Call on HTTP Web Service action:



Figure 10: Call set variable as needed.



Figure 11: Variable

Process Web Service Response

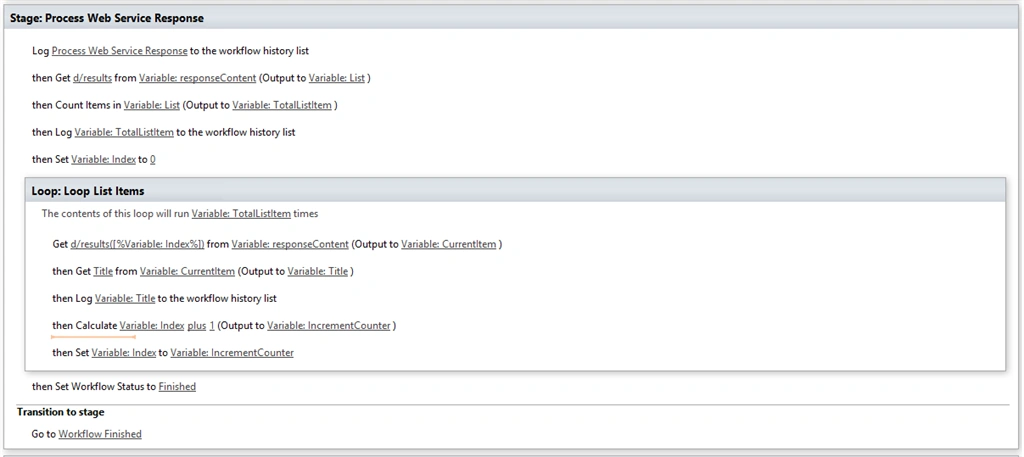

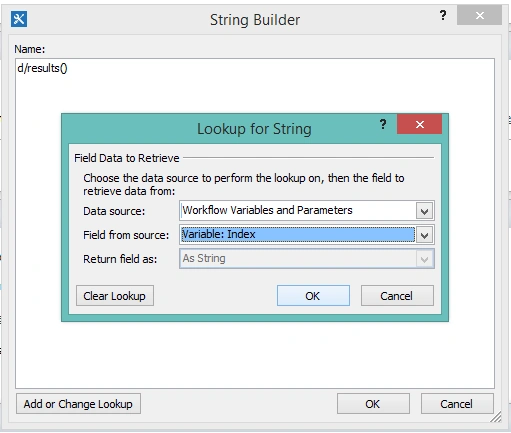

Now, create a new stage, call it " Process Web Service Response".

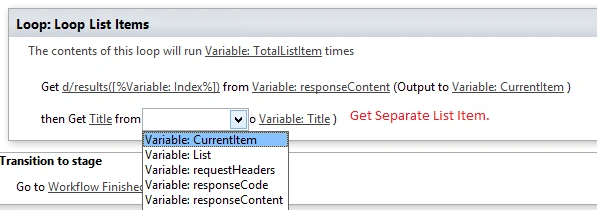

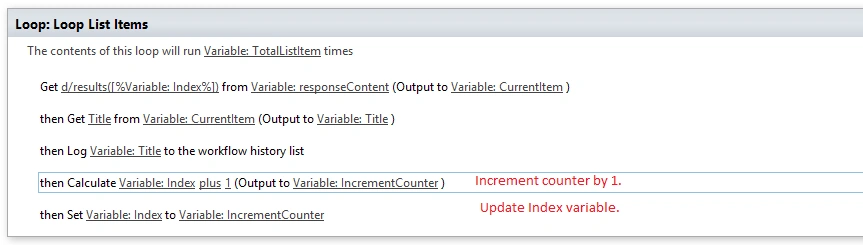

At the end of the " Web Service Call" add a Go to Process Web Service Response stage.
