Cascading Drop-Down List in SharePoint 2010 List Using jQuery

Introduction

In this article we will learn how to implement Cascading Drop-Down List in SharePoint 2010 List using jQuery and Sp services.

For Implementing Cascading Drop-Down List in SharePoint 2010 List using jQuery and Sp services follow below steps:-

Object

Create Country custom list

onject

Create State Custom list: with Country lookup column

Create State Custom list

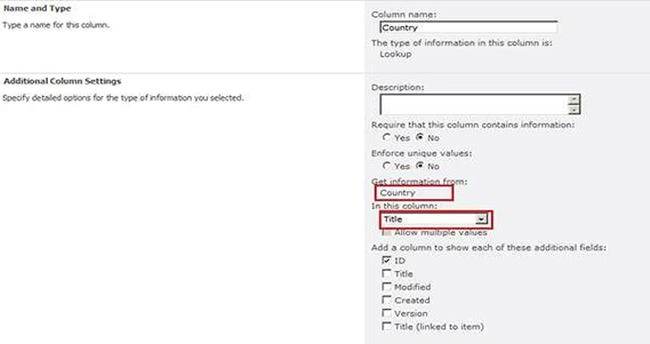

Look up Column Setting

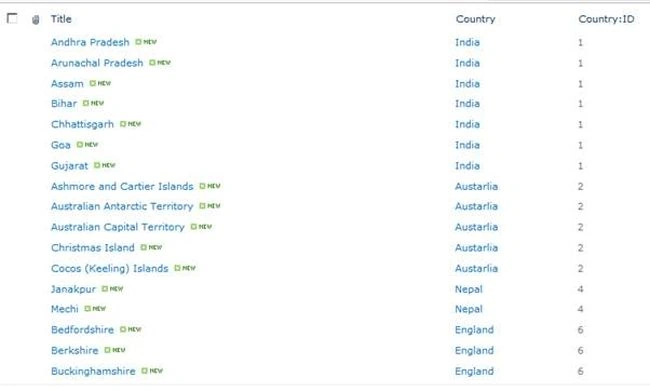

State List

state list

Create CascadeDropDownList with Country, State lookup columns

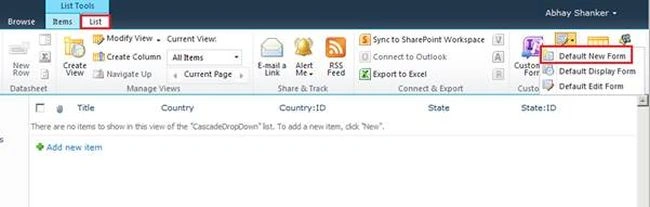

Select Default New Form under List tab of newly created List CascadeDropDownList

/CascadeDropDownList

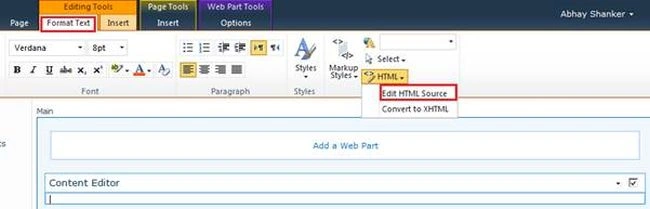

Add content Editor Web part and Select Edit HTML Source under Format Text Tab

Format Text Tab

Copy and Paste the below Code in HTML Editor

<script language="javascript" src="/JSLibrary/jquery-1.4.2.min.js" type="text/javascript"></script><script language="javascript" src="/JSLibrary/jquery.SPServices-0.5.7.min.js" type="text/javascript"></script><script type="text/javascript">
$(document).ready(function() {
$().SPServices.SPCascadeDropdowns({
relationshipList: "State",
relationshipListParentColumn: "Country",
relationshipListChildColumn: "Title",
relationshipListSortColumn: "ID",
parentColumn: "Country",
childColumn: "State",
promptText: "Choose State...",
debug: true
});
});
</script>

HTML Editor

Summary: - In some scenario we need to implement cascading type of concept in OOB forms as for example by selecting Countries respective states or cities. It's not easier in SharePoint.
