App That Changes Background And Audio Player In Android, Using Android Studio

In this article, I will show you how to change background and audio player Android App using android studio.

Introduction

In this article, I will show you how to create an app that changes the background and default audio player of your Android phone. We will be using Android Studio to build the application.

Requirements

Steps to be followed

Follow these steps to create an app that changes the background and audio player in Android phone. I have included the source code below.

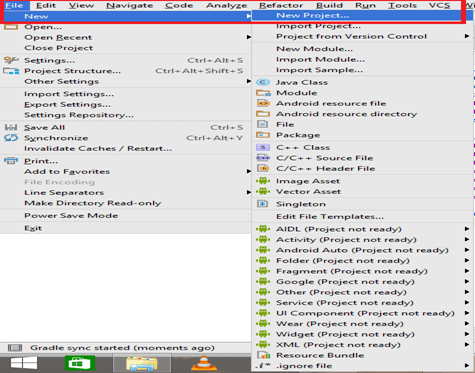

Step 1

Open Android Studio and start a new Android Studio Project.

Audio Player Android App

Step 2

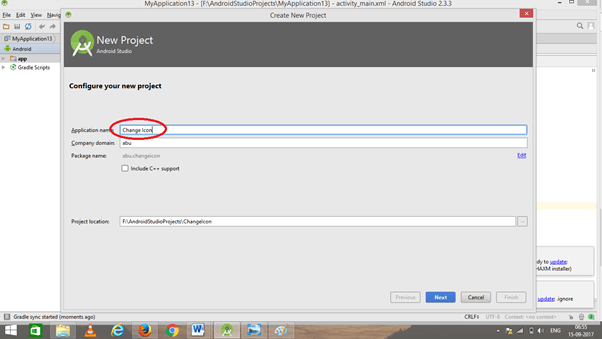

You can choose your application name and choose the location where your project is stored. If you wish to use C++ for coding the project, mark the "Include C++ support", and click "Next" button.

Audio Player Android App

Step 3

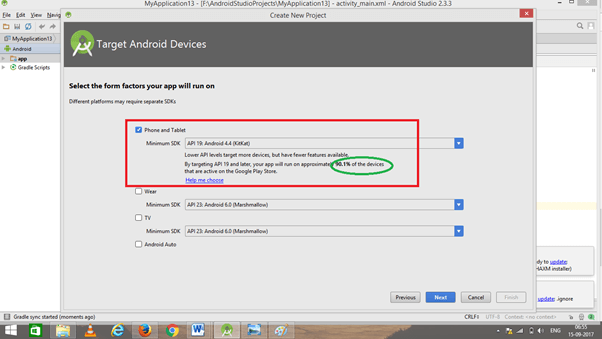

Now, select the version of Android and select the target Android devices. We need to choose the SDK level which plays an important role to run the application.

Audio Player Android App

Step 4

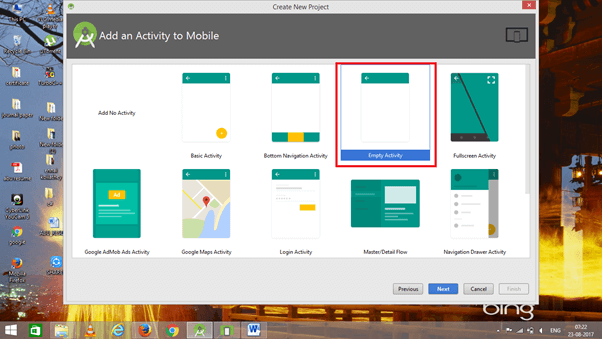

Now, add the activity and click "Next" button.

Audio Player Android App

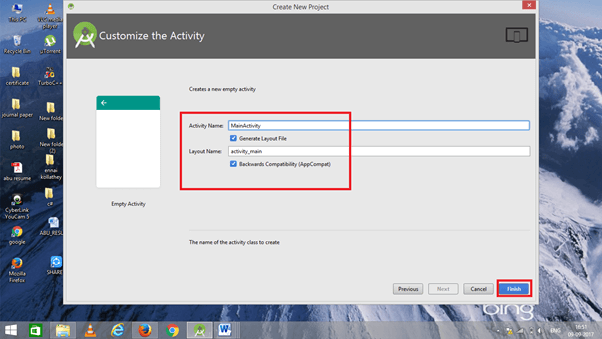

Step 5

Add Activity name and click "Finish".

Audio Player Android App

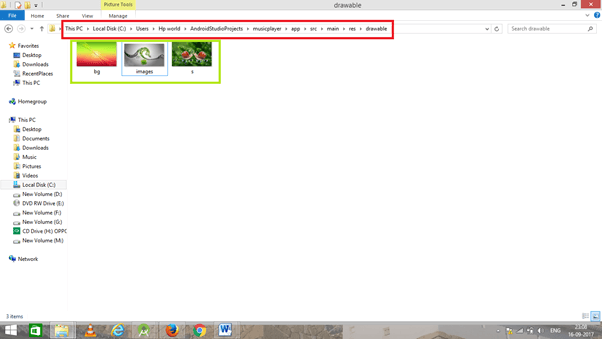

Step 6

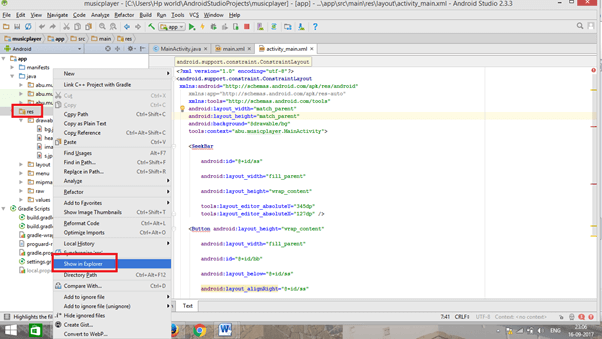

Add images in Drawable file. The below template shows how to add the image file. Go to the app and right click. “Show in Explorer” will appear. Then, click on the path and the image in the main folder.

Audio Player Android App

Audio Player Android App

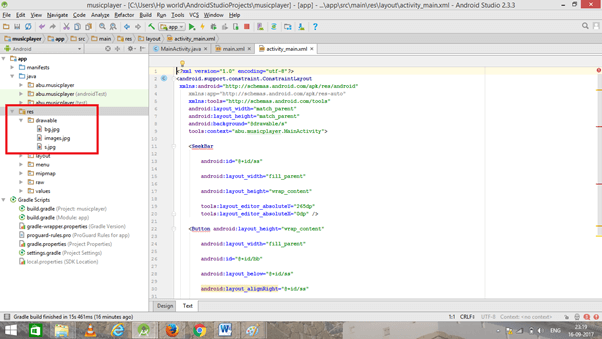

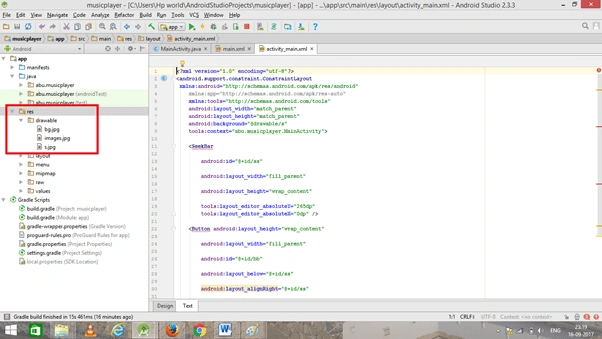

Step 7

The below template is shown after adding the image file.

Audio Player Android App

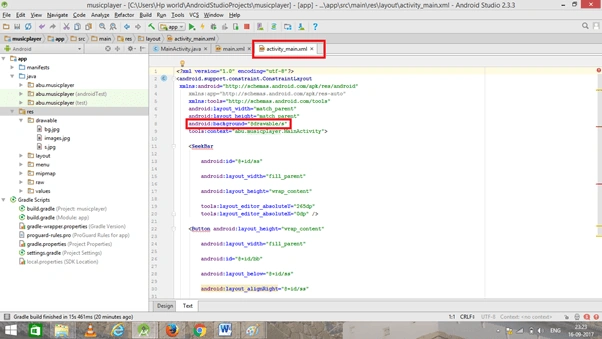

Step 8

Go to activity_main.xml. This XML file contains the designing code for your Android app.

Audio Player Android App

The XML code is given below.

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout
  3.  xmlns:android="http://schemas.android.com/apk/res/android"
  4.     xmlns:app="http://schemas.android.com/apk/res-auto"
  5.     xmlns:tools="http://schemas.android.com/tools"
  6.     android:layout_width="match_parent"
  7.     android:layout_height="match_parent"
  8.     android:background="@drawable/s"
  9.     tools:context="abu.musicplayer.MainActivity">
  10.
  11.     <SeekBar
  12.
  13.         android:id="@+id/ss"
  14.         android:layout_width="fill_parent"
  15.         android:layout_height="wrap_content"
  16.         tools:layout_editor_absoluteY="265dp"
  17.         tools:layout_editor_absoluteX="0dp" />
  18.
  19.     <Button android:layout_height="wrap_content"
  20.
  21.         android:layout_width="fill_parent"
  22.         android:id="@+id/bb"
  23.         android:layout_below="@+id/ss"
  24.         android:layout_alignRight="@+id/ss"
  25.         android:text="Play"
  26.         tools:layout_editor_absoluteY="290dp"
  27.         tools:layout_editor_absoluteX="0dp" />
  28.
  29. </android.support.constraint.ConstraintLayout>

Step 9

Go to Main Activity.java. This Java program is the backend language for Android.

Audio Player Android App

The Java code is given below.

  1. package abu.musicplayer;
  2. import android.media.MediaPlayer;
  3. import android.os.Bundle;
  4. import android.os.Handler;
  5. import android.app.Activity;
  6. import android.view.Menu;
  7. import android.view.MotionEvent;
  8. import android.view.View;
  9. import android.view.View.OnClickListener;
  10. import android.view.View.OnTouchListener;
  11. import android.widget.Button;
  12. import android.widget.SeekBar;
  13. public class MainActivity extends Activity implements OnClickListener {
  14.     SeekBar ss;
  15.     Button b;
  16.     MediaPlayer mp;
  17.     Handler h1=new Handler();
  18.     int i=0;
  19.     @Override
  20.     protected void onCreate(Bundle savedInstanceState) {
  21.         super.onCreate(savedInstanceState);
  22.         setContentView(R.layout.activity_main);
  23.         ss=(SeekBar)findViewById(R.id.ss);
  24.         b=(Button)findViewById(R.id.bb);
  25.         mp=MediaPlayer.create(getApplicationContext(), R.raw.song);
  26.         ss.setMax(mp.getDuration());
  27.
  28.         b.setOnClickListener(this)
  29.         ss.setOnTouchListener(new OnTouchListener() {
  30.             @Override
  31.             public boolean onTouch(View v, MotionEvent event) {
  32.                 // TODO Auto-generated method stub
  33.                 SeekBar s=(SeekBar) v;
  34.                 mp.seekTo(s.getProgress());
  35.                 return false;
  36.             }
  37.         });
  38.     }
  39.
  40.     @Override
  41.     public boolean onCreateOptionsMenu(Menu menu) {
  42.         // Inflate the menu; this adds items to the action bar if it is present.
  43.         getMenuInflater().inflate(R.menu.main, menu);
  44.         return true;
  45.     }
  46.     @Override
  47.     public void onClick(View v) {
  48.         // TODO Auto-generated method stub
  49.         if (i==0
  50.         {
  51.             mp.start();
  52.           add();
  53.             b.setText("pause");
  54.             i++;
  55.         }
  56.         else if(i==1)
  57.         {
  58.             mp.pause();
  59.           b.setText("Resume");
  60.            i++;
  61.         }
  62.         else if(i==2)
  63.         {
  64.             mp.start();
  65.             add();
  66.             b.setText("Pause");
  67.             i=1;
  68.         }
  69.     }
  70.     public void add()
  71.     {
  72.         ss.setProgress(mp.getCurrentPosition());
  73.         Runnable r1=new Runnable() {
  74.             @Override
  75.             public void run() {
  76.                 // TODO Auto-generated method stub
  77.                 add();
  78.             }
  79.         };
  80.         h1.postDelayed(r1, 4000);
  81.     }
  82.
  83. }

Step 10

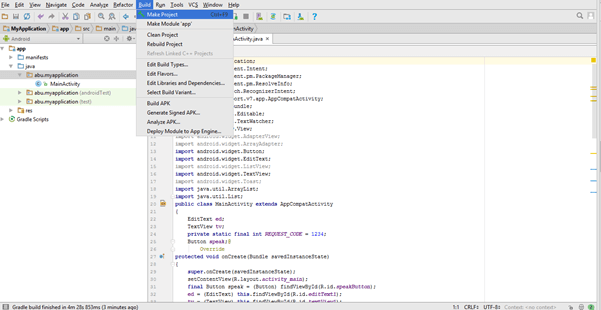

Now, go to menu bar and click "Make Project" or press ctrl+f9 to debug the error.

Audio Player Android App

Step 11

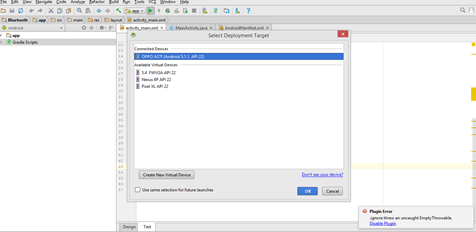

Then, click "Run" button or press shift+f10 to run the project. And choose the "virtual machine" option and click OK.

Audio Player Android App

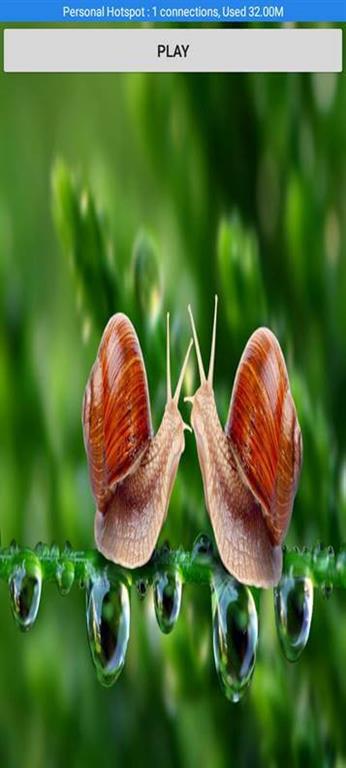

Conclusion

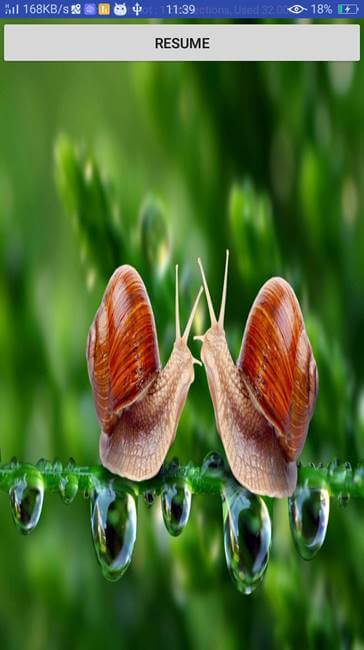

We have successfully changed the background and audio player in our Android app.
