Configuring Storage Account In Azure

Introduction


Azure File Storage is one of the storage features in Microsoft Azure. Azure File Storage provides highly available, durable, scalable and redundant storage.

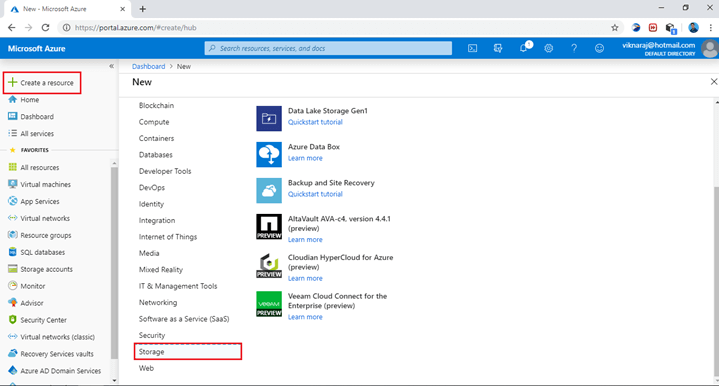

Step 1 - Creating a Storage

In the Azure portal, click on the “+ Create a Resource”, and then click the “Storage” under New.

Configuring Storage Account In Azure

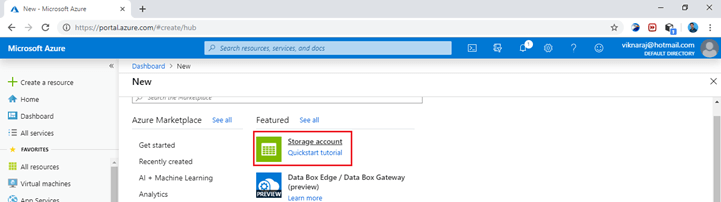

Step 2 - Creating Storage Account

After we select the Storage, click the “Storage Account” to create the storage account progress.

Configuring Storage Account In Azure

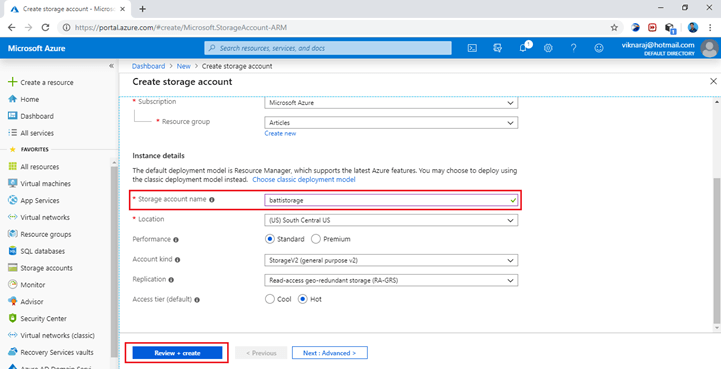

Step 3 - Creating Storage Account

In the Instance details, we need to enter the “Storage Account Name”, in this demo our storage account name is “BattiStorage”, If we need to change Disk performance, Account kind and Access tier, after changing this configuration Click “Create+Review”, and then click “Create”.

Configuring Storage Account In Azure

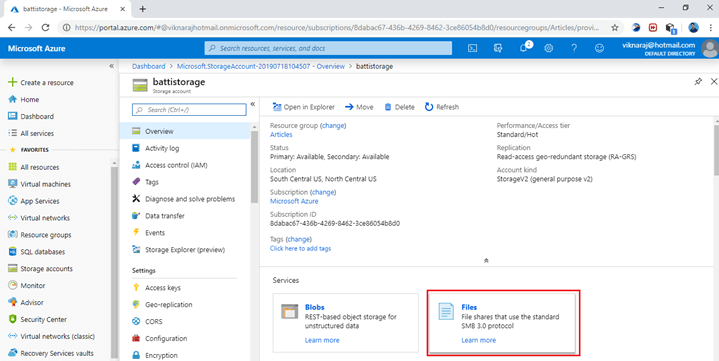

Step 4 - Creating File Share

After successfully creating the Storage Account, open the storage account and click “Files”.

Configuring Storage Account In Azure

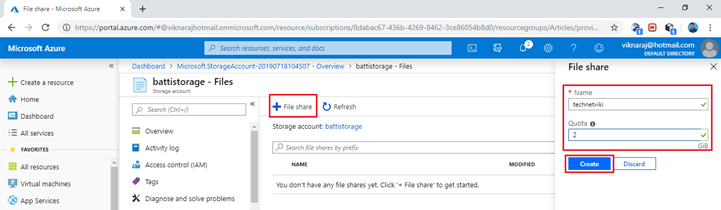

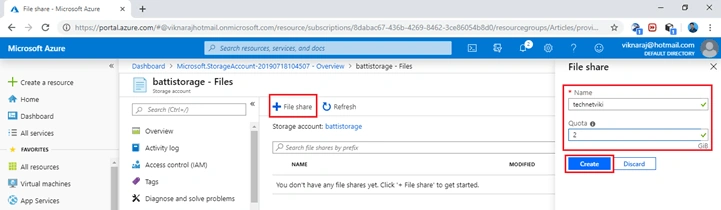

Step 5 - Creating File Share

In Files, click “+ File share”, and then enter the File share Name and Size. In this demo, our Name is “technetviki” and the Quota size is “2 GiB”. Click the “Create” button to create the File share.

Configuring Storage Account In Azure

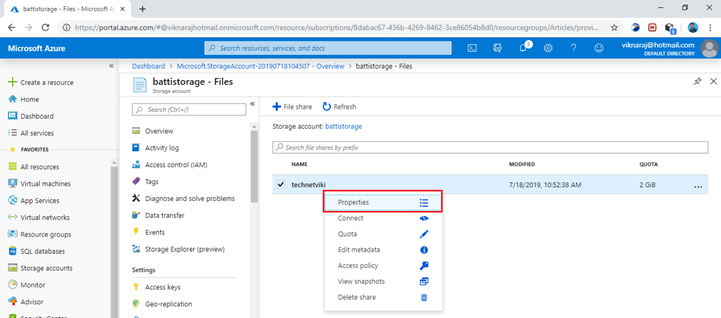

Step 6 - Files Properties

After successfully creating the file share named “technetviki”, right click the Files “technetviki” and then select “Properties”.

Configuring Storage Account In Azure

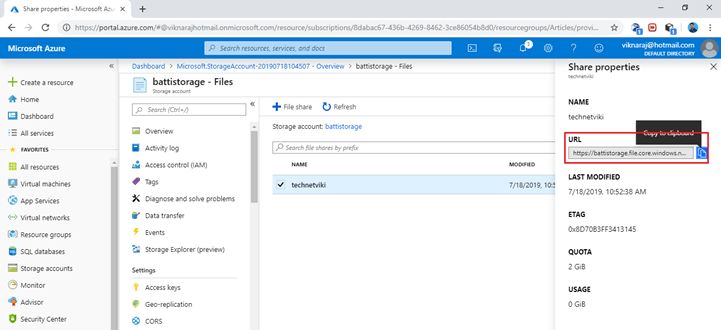

Step 7 - File Share URL

In the Share properties, we can find our Disk path under the “URL”, so copy the URL.

Configuring Storage Account In Azure

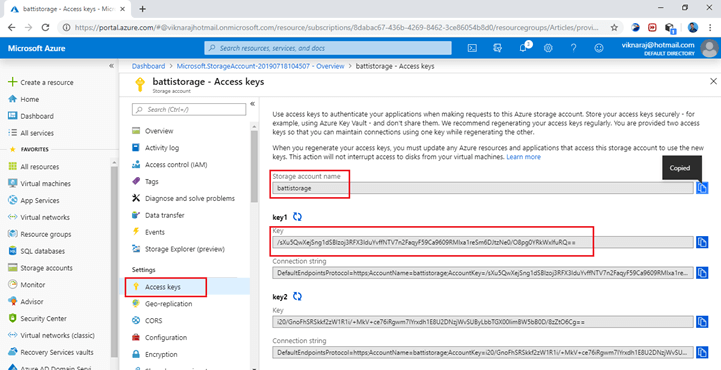

Step 8 - Access Keys

Under "Settings", we need to select “Access keys”. After clicking the Access keys, we can find the “Storage Account Name” and the “Key”, so copy the keys.

Configuring Storage Account In Azure

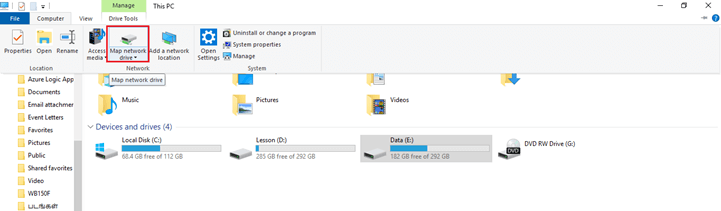

Step 9 - Map Network Drive

Now, we need to add our Azure File Share to our local PC, so open the “File Explorer” and then click “Map Network Drive”. It’s in the “Computer” tab.

Configuring Storage Account In Azure

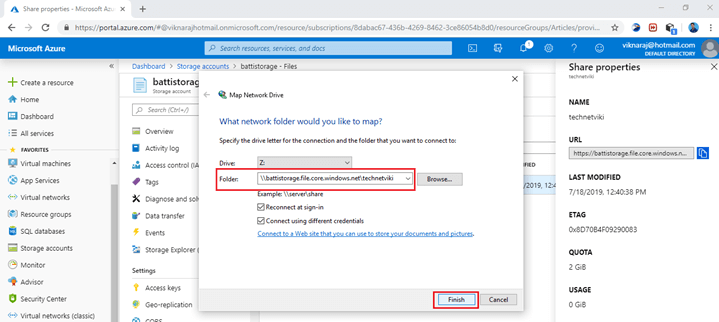

Step 10 - Changing the Folder location URL

Now, we need to select the Drive Letter, and then paste the URL in the Folder Text box. Now, you need to remove “https// to \\” and change the “/technetviki to \ technetviki”, select the Checkboxes and click “Finish”.

Configuring Storage Account In Azure

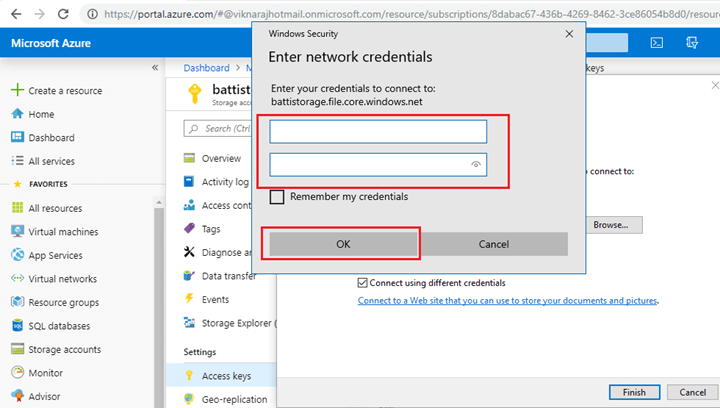

Step 11 - Entering the Network Credentials

After clicking the Finish button, we need to enter the Azure User Name and Password for accessing the Drive. We already checked our credentials in Step 8, so enter the information and click “Ok”

Configuring Storage Account In Azure

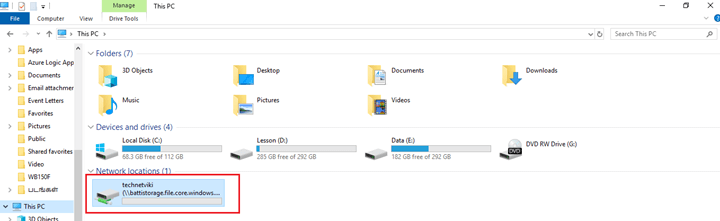

Step 12 - Finding our Network Drive

Now, we have successfully added our Azure Share to our local PC.

Configuring Storage Account In Azure

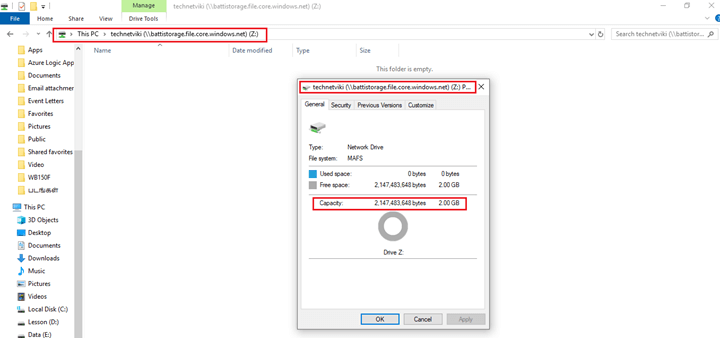

Step 13 - Verifying the Disk Information

Open the Network drive, and check the Properties. It will show our Disk capacity and the File System - it’s MAFS (Microsoft Azure File System).

Configuring Storage Account In Azure

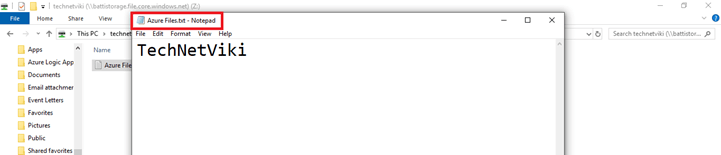

Step 14 - Creating the File in the Azure Drive

Now, we can create some files or copy some files in the Azure Drive. In this demo we create a Text file names “Azure Files”.

Configuring Storage Account In Azure

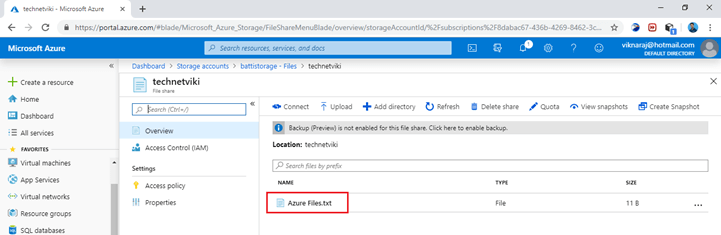

Step 15 - Verifying the File

Now we can open our File Share named “technetviki”, we can find our Azure Files.txt, that we have created in the local PC.

Configuring Storage Account In Azure


Summary


In this article, we learned how to create Azure Share and how to access the Azure Share Drive into our Local PC. If you have any questions, feel free to comment under the comment box.
