Building truly intelligent copilots requires more than basic keyword recognition. It demands a strategic approach to managing conversational context, adapting to user needs, and guiding users through complex interaction flows. In this article, we explore the sophisticated techniques that transform your Copilot Studio implementations from simple chatbots into intelligent, context-aware AI assistants that understand, remember, and respond meaningfully.
Whether you're designing copilots for customer service, internal processes, or knowledge management, mastering the following four pillars will elevate your conversational AI capabilities to production-grade quality.
➡️ Variables in Conversation: The Memory of Your Copilot
Imagine a conversation where your copilot constantly forgets what users just said. That's what a copilot without variables would experience. Variables are essential tools that provide your copilot with memory—enabling it to store, manage, and retrieve information dynamically throughout an interaction.
Why Variables Matter
Variables serve as the backbone of meaningful conversations by:
Preventing Errors: By storing user inputs and system-generated data, variables eliminate the need for repetitive re-prompts and minimize misinterpretations.
Maintaining Data Integrity: Ensuring collected information remains consistent and accessible across the appropriate contexts.
Promoting Maintainability: Well-structured variables create modular, update-friendly designs that scale as requirements evolve.
Variable Scopes in Copilot Studio
Effective variable management requires understanding scope—the context where a variable is accessible:
Topic Scope: Variables confined to a particular topic or conversational flow. Use these for information relevant only within a specific context—for example, storing a user's selected department within a "Benefits Inquiry" topic.
Global Scope: Variables accessible across the entire copilot. Perfect for universal information like user ID, authentication status, or customer tier. A globally-scoped user_id variable, for instance, enables personalization across all topics.
Practical Application
Consider an HR copilot handling vacation requests:
Store employee_role as a topic-scoped variable within the "Vacation Policy" topic
Store employee_id as a global variable for use across all company policies
Use these variables to retrieve role-specific policies and maintain context through the entire conversation
By strategically defining variable scope, you ensure efficient data flow while maintaining clear separation of concerns.
📏 The Power of Conditions and Conditional Logic
At the heart of an adaptive copilot lies conditional logic—the set of rules that dictate how your copilot responds and which conversational path to follow based on specific criteria. Conditions enable your copilot to "think" and make intelligent decisions, moving beyond linear dialogues to truly dynamic interactions.
How Conditional Logic Works?
Conditions evaluate specific criteria at decision points in your conversation. Common triggers include:
User Selection: "When a user selects 'Manager'"
Variable State: "If user_role == 'Manager'"
System State: "If a customer record exists in Dataverse"
Creating Dynamic Branching Flows
The power of conditional logic becomes apparent when combined with variables:
Scenario: A benefits inquiry copilot needs to ask different questions based on employment status.
Implementation

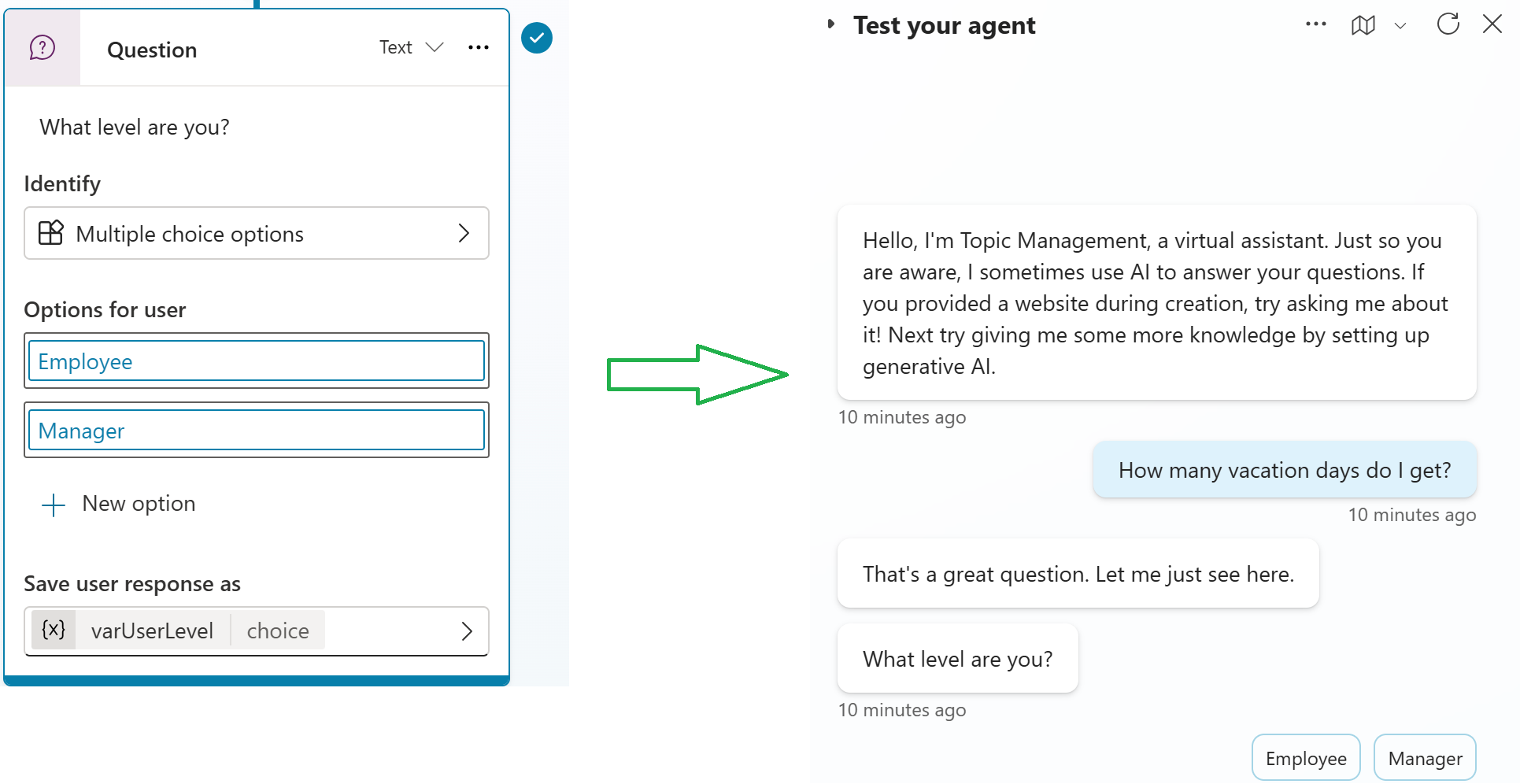

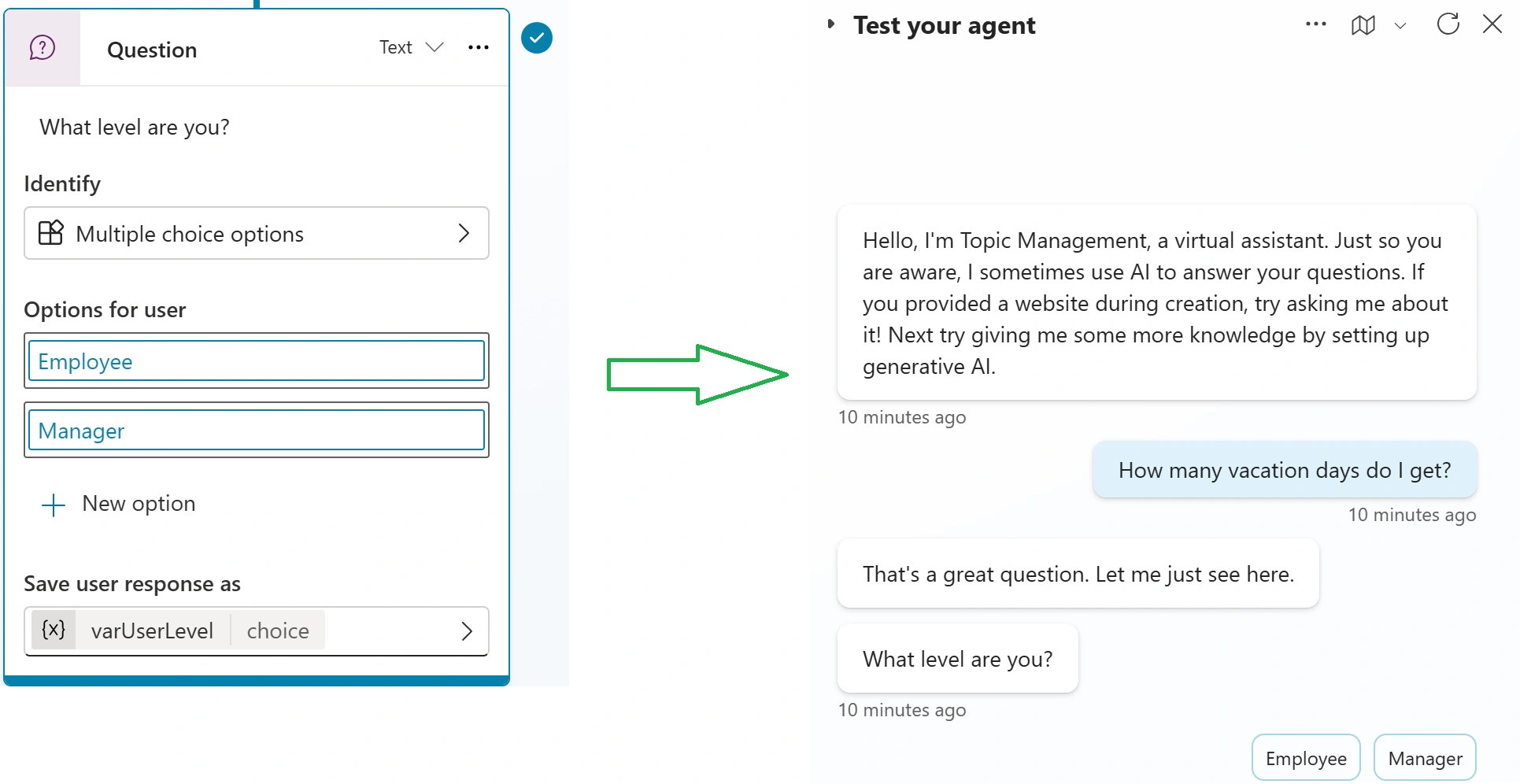

Dynamic Questioning: "Are you a Manager or an Employee?"
Variable Assignment: Store the user's selection in user_role
Conditional Content Delivery:
Real-World Application
This branching enables:
Personalized Responses: Each user receives information relevant to their role, reducing cognitive load
Efficient Navigation: Users aren't presented with irrelevant options
Contextual Accuracy: Information is always tailored to the user's specific situation

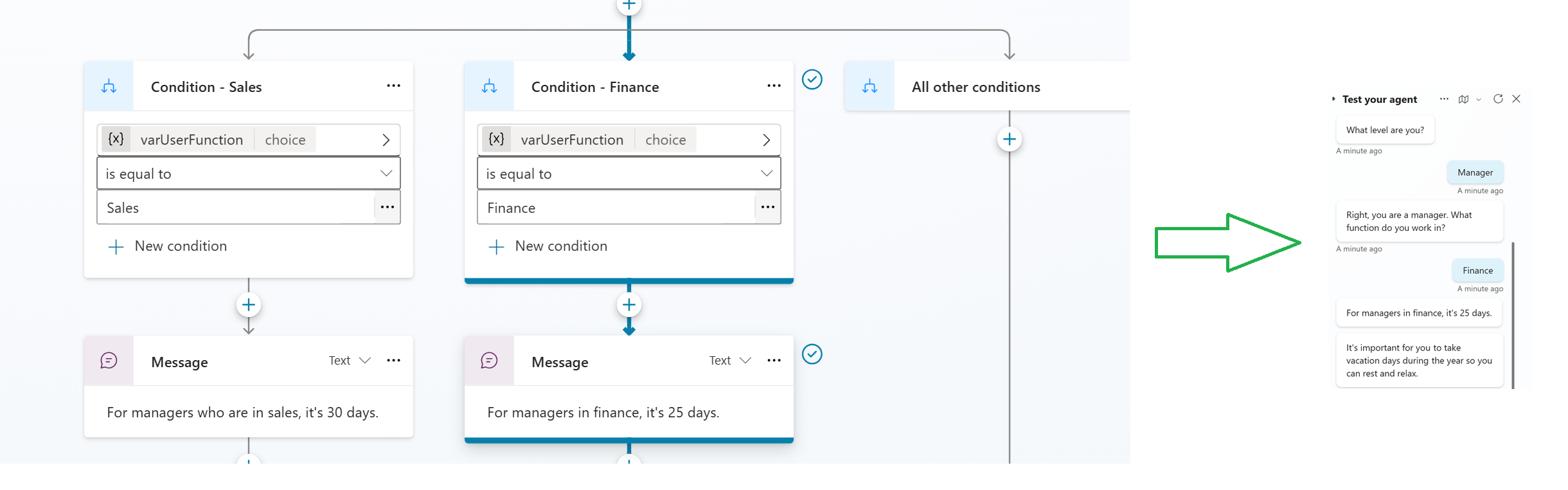

Advanced Conditional Patterns
Combine multiple conditions for sophisticated logic:
IF user_role = "Manager" AND department = "Sales"
THEN: Show sales-specific management resources
ELSE IF user_role = "Manager" AND department = "Finance"
THEN: Show finance-specific management resources
ELSE: Show general employee resources
This ensures your copilot's responses are always relevant, contextual, and highly personalized.
➡️ Working Smarter with Entities
To truly understand user input, your copilot needs to identify and extract key pieces of information from natural language. Entities are the mechanism that makes this possible. Entities are predefined or custom-defined categories of information—such as dates, person names, countries, product IDs, or department names. When your copilot recognizes an entity in a user's utterance, it extracts and stores that information for actionable use.
Pre-Built Entities
Copilot Studio provides standard entities that cover common scenarios:
Location: Country, Continent, City
Communication: Email, Phone Number
Demographics: Age, Gender
Commerce: Money, Product Category
Temporal: Date, Time
These pre-built entities dramatically simplify design by recognizing these data types automatically. For example, when a user says "I'm 28 years old," the Age entity automatically extracts "28" without additional configuration.
Custom Entities: Domain-Specific Intelligence
For domain-specific information, create custom entities. A support copilot for a SaaS platform might define:
Example: Department Entity
Type: List
Values: Sales, Finance, Engineering, Marketing, Support
Usage: Extract department from "I work in the Finance department"
Example: Product Code Entity (Regex-based)
The Impact of Entity Recognition
Without Entities
User: "I need a service center in China"
Copilot Response: Fails to recognize "China" as a country, considers the entire input as invalid
With Entities
User: "I need a service center in China"
Copilot: Recognizes "China" as a Country entity, extracts it, and queries available service centers
Copilot Response: "We don't currently have a service center in China. Would you like information about our nearest locations?"
By effectively implementing entities, you empower your copilot to accurately interpret queries, reduce ambiguities, and significantly enhance understanding precision. This is critical for delivering relevant and efficient responses.

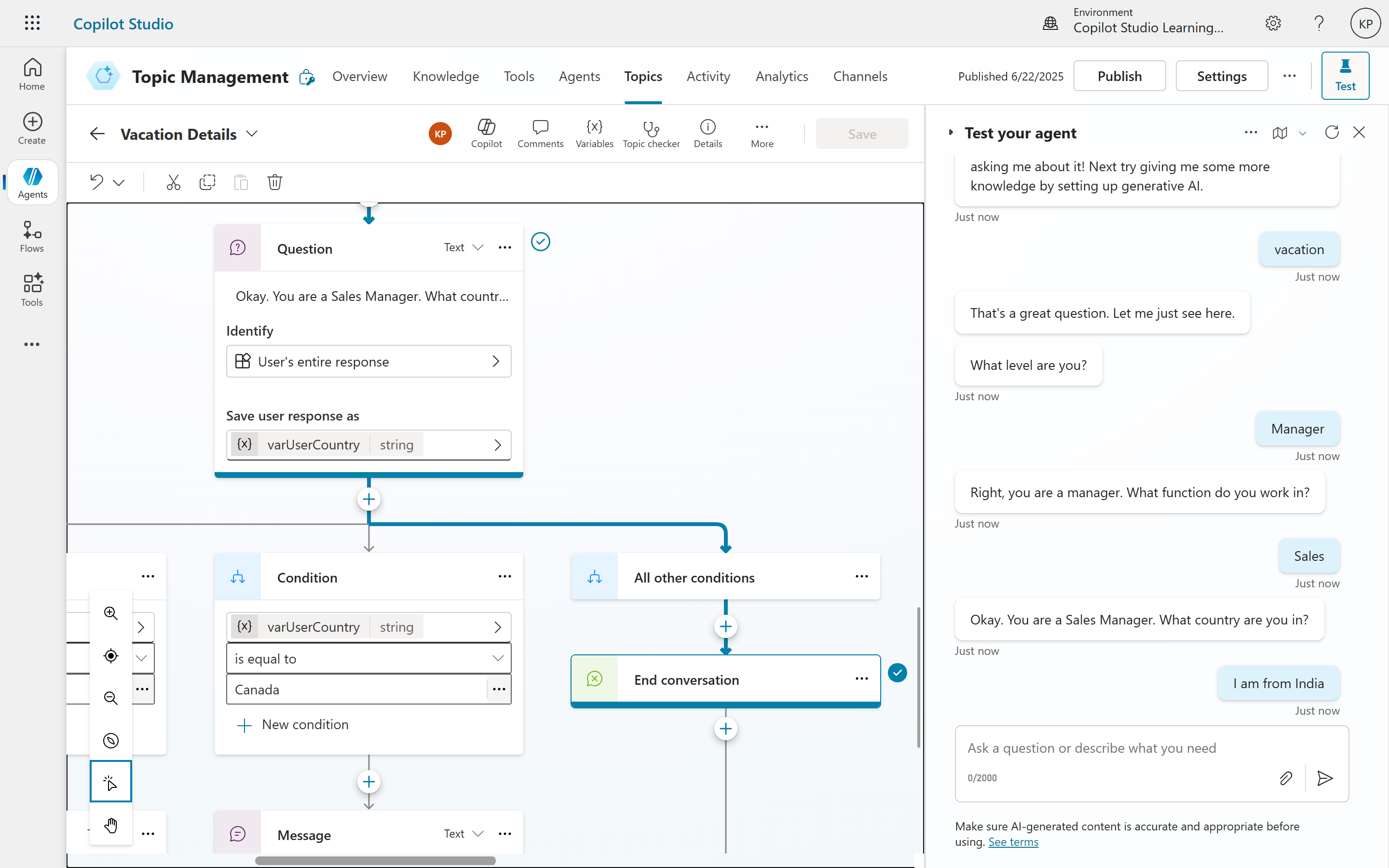

Without using Entities - bot stops responding as it doesn not able to extract country name from the input and it consider enter input as country name.

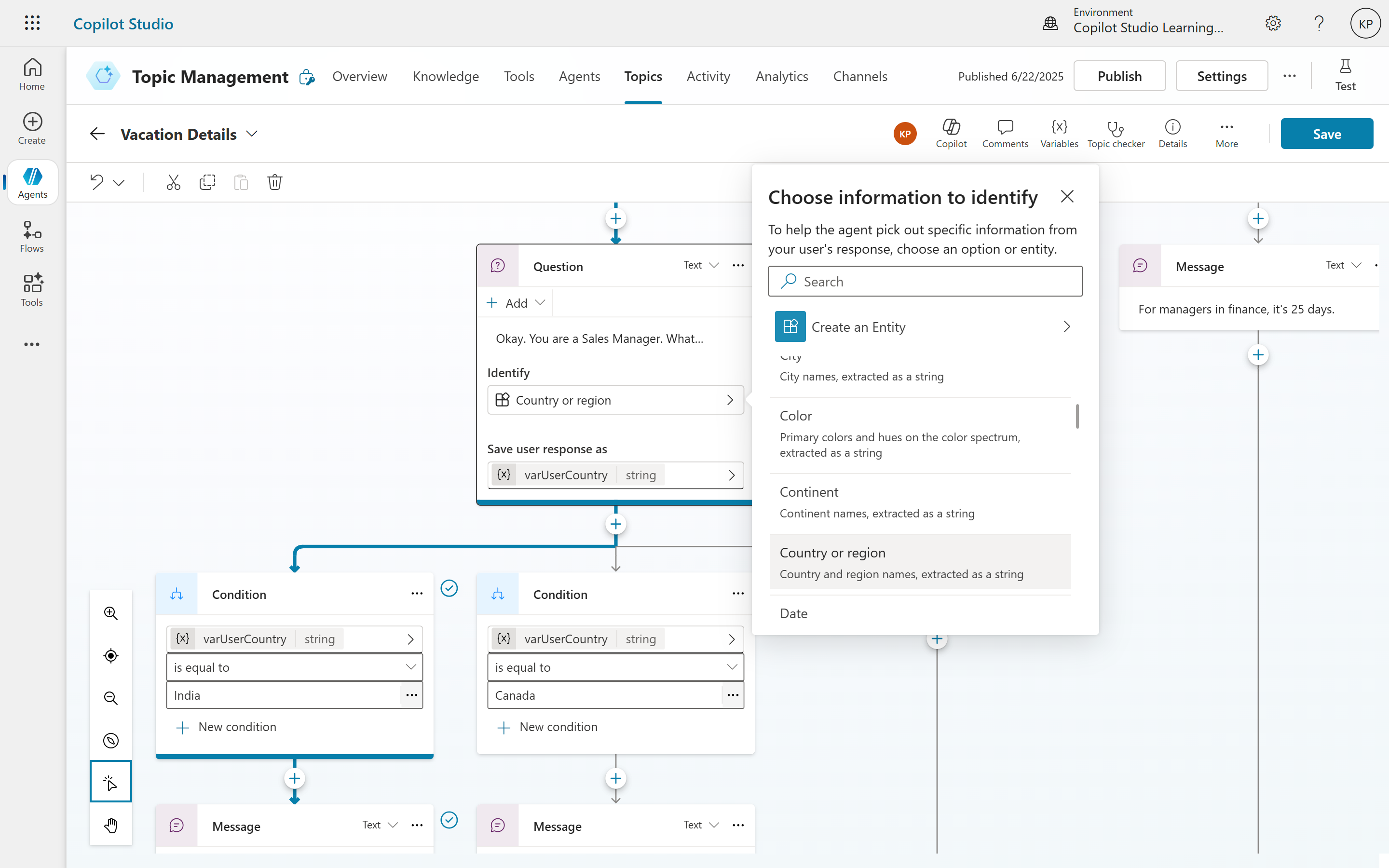

How we can add entities in our conversation

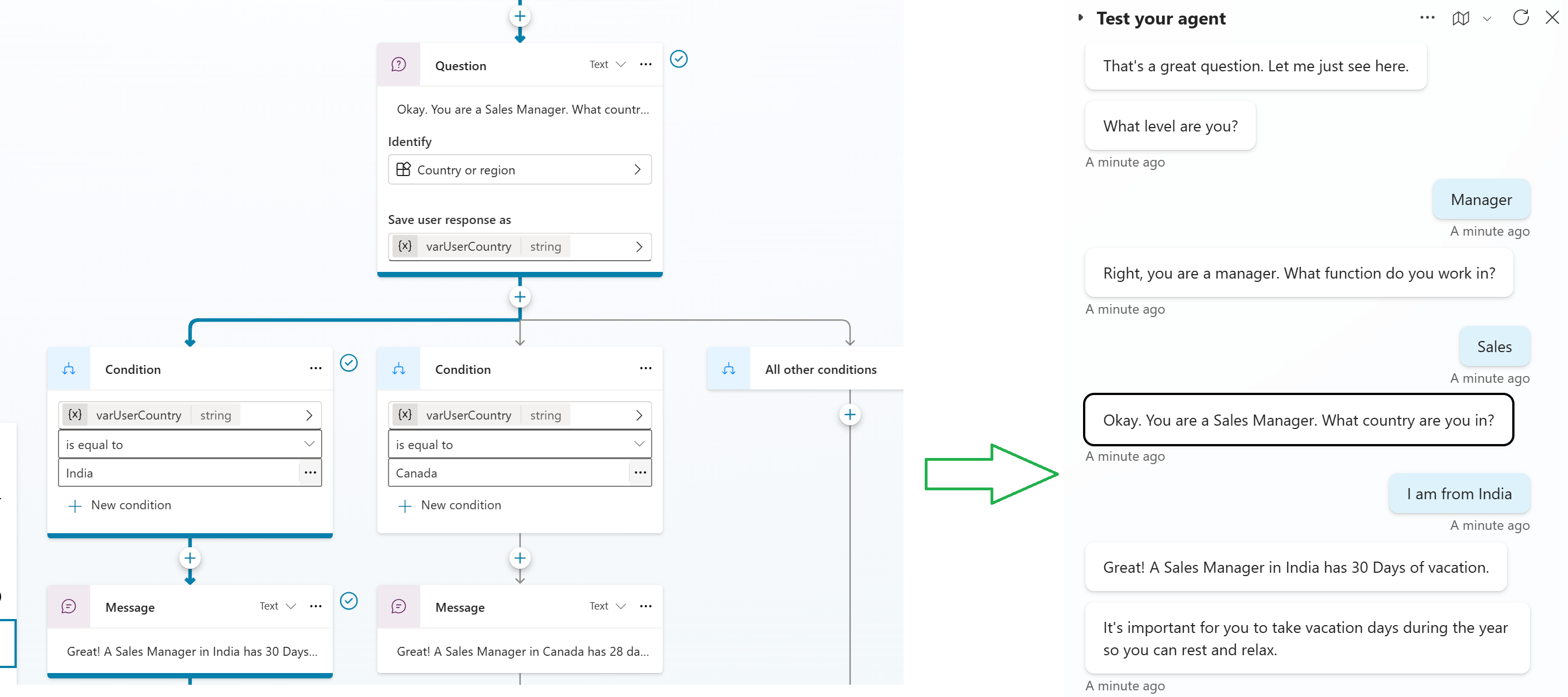

With the help of Entities, bot can smartly respond by extracting country name from the user input.
By effectively working with entities, you empower your copilot to accurately interpret user queries, reduce ambiguities, and enhance the overall quality of understanding. This precision is critical for delivering relevant and efficient responses.
🧭 Navigating Complex Flows: Looped and Redirected Conversations
Real-world conversations are rarely perfectly linear. Users provide incomplete information, make mistakes, or need guidance toward a different conversation path. Looped and redirected conversations are advanced techniques that enable your copilot to handle these complexities gracefully while maintaining a smooth, intuitive user experience.
Looped Conversations: Handling Invalid Input Gracefully
When a user provides invalid or insufficient input, a simple error message creates frustration. Instead, implement a loop-and-retry mechanism:
Pattern: Counter-Based Loop with Fallback
Attempt 1: User provides invalid input (e.g., unsupported country)
Attempt 2: Copilot asks for clarification: "I didn't recognize that country. Could you try again?"
Attempt 3: Rephrases the question: "Please select from our available regions..."
Fallback (after 3 attempts): "It seems I'm having trouble understanding. Would you like to connect with a specialist?"
This prevents conversation breakdown and ensures controlled recovery.
Implementation Approach:
Create a counter variable: validation_attempt_count
In each loop, increment the counter
Use conditional logic: IF validation_attempt_count < 3 THEN retry ELSE fallback
Redirected Conversations: Seamless Topic Transitions
When a user's intent shifts during a conversation, redirects guide them to the most relevant topic. This is especially valuable in complex copilots handling multiple domains.
Scenario: A copilot handles both vacation policies and payment support.
User Journey:
User starts in "Vacation Policy" topic
User asks: "How do I dispute a payment from my last paycheck?"
Copilot detects intent shift and redirects: "I see you have a payment question. Let me transfer you to our Payment Support topic where I can help better."
Conversation seamlessly continues in the Payment Support context.
Benefits
Improved UX: Users always reach the right information quickly.
Reduced Frustration: No dead ends or circular conversations.
Higher Resolution Rates: Specialized topics handle their specific domains effectively.
🏢 Building It All Together
The true power emerges when you integrate all four pillars:
Variables store the context of each conversation, Conditions make decisions based on that context, Entities extract and understand user input, and Loops/Redirects gracefully handle complexity.
Example: Complete Benefits Inquiry Flow
User Input: "I'm a manager in Sales and need to know my vacation policy"
Entity Extraction: Country entity, Role entity (Manager), Department entity (Sales)
Variable Assignment: Store user_role = "Manager", department = "Sales"
Conditional Logic: Query relevant policies based on role and department
Response: "As a Sales Manager, you're eligible for 18 days of vacation annually, with advance notice required..."
Follow-up Flow: If user has a related payment question, redirect to appropriate topic
Loop Handling: If user provides unclear follow-up, retry with clarification
Each element reinforces the others, creating a cohesive, intelligent conversation experience.
🧩 Final Words : Empowering Your Conversational AI Journey
Mastering variables, conditions, entities, and advanced conversational flows is fundamental to building production-grade conversational AI. These concepts empower you to create experiences that are personalized, robust, and authentically human-like.
As you implement these patterns in your Copilot Studio projects, focus on:
Clear variable scoping to prevent conflicts and maintain data integrity
Well-designed conditional logic for intuitive branching
Comprehensive entity definitions for accurate user input interpretation
Graceful error handling through loops and redirects
The difference between a frustrating chatbot and a valuable copilot lies in these details. By mastering these four pillars, you'll build conversational AI that truly understands and serves its users.
Share your experiences and insights—what patterns have worked best in your copilot implementations? The community learns best through shared knowledge.
Join the conversation! Your thoughts help the community grow.
