Create Text To Speech Conversion Android Application Using Android Studio

Introduction


Android is one of the most popular operating systems for mobile. In this article, I will show you how to create Text to Speech conversion Android application using Android Studio.

Requirements
Steps should be followed

Follow these steps to create a Text to Speech conversion Android application using Android Studio and I have included the source code below.

Step 1

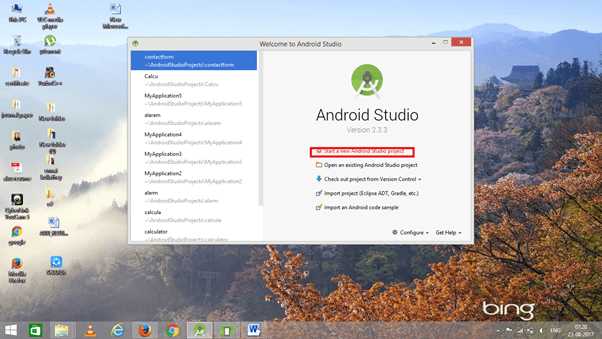

Open Android Studio and Start a New Android Studio Project.

Android

Step 2

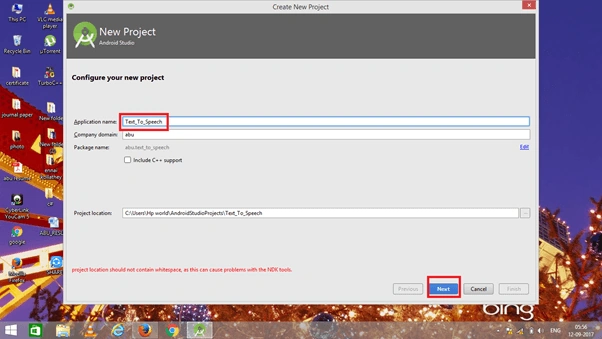

You can choose your application name and choose where your project is stored on the location. If you wish to use C++ for coding the project, mark the "Include C++ support", and click the "Next" button.

Android

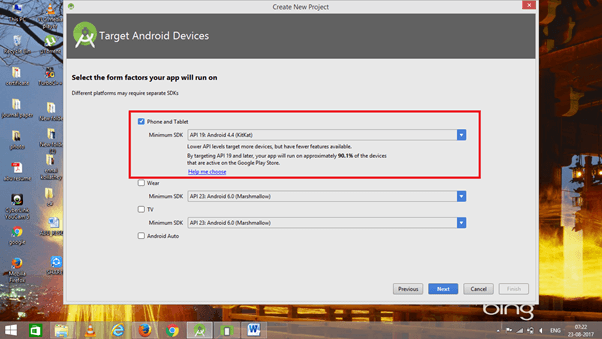

Now, select the version of Android and select the target Android devices.

Android

Step 3

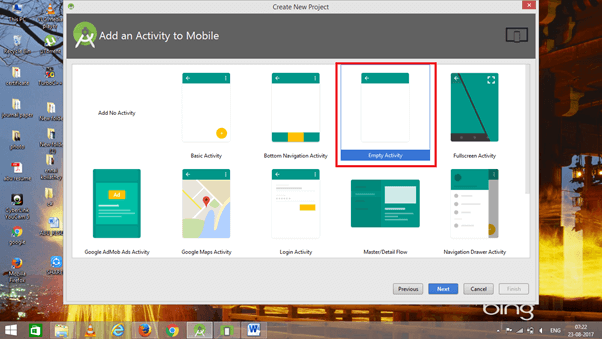

Now, add the activity and click the "Next" button.

Android

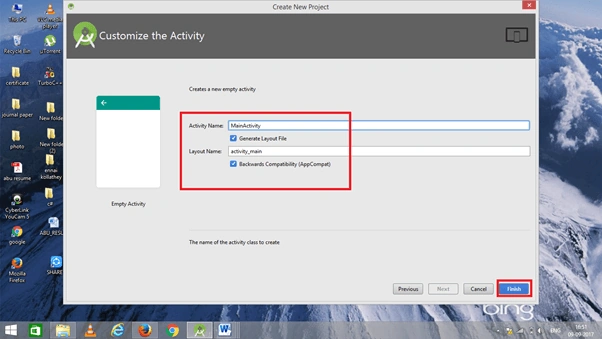

Add Activity name and click "Finish".

Android

Step 4

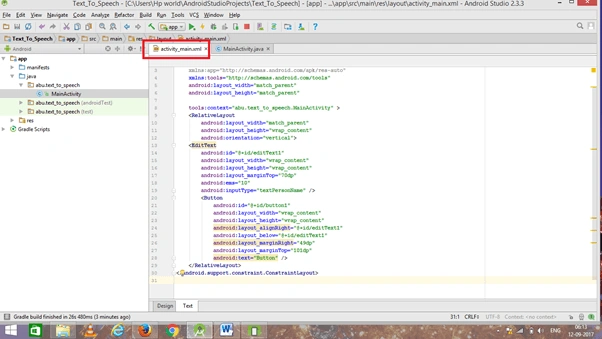

Go to activity_main.xml, This XML file contains the designing code for an Android app in the activity_main.xml;

Android

The XML code given below.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:app="http://schemas.android.com/apk/res-auto"
  4.     xmlns:tools="http://schemas.android.com/tools"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent"
  7.
  8.     tools:context="abu.text_to_speech.MainActivity" >
  9.     <RelativeLayout
  10.         android:layout_width="match_parent"
  11.         android:layout_height="wrap_content"
  12.         android:orientation="vertical">
  13.     <EditText
  14.         android:id="@+id/editText1"
  15.         android:layout_width="wrap_content"
  16.         android:layout_height="wrap_content"
  17.         android:layout_marginTop="70dp"
  18.         android:ems="10"
  19.         android:inputType="textPersonName" />
  20.         <Button
  21.             android:id="@+id/button1"
  22.             android:layout_width="wrap_content"
  23.             android:layout_height="wrap_content"
  24.             android:layout_alignRight="@+id/editText1"
  25.             android:layout_below="@+id/editText1"
  26.             android:layout_marginRight="49dp"
  27.             android:layout_marginTop="101dp"
  28.             android:text="Button" />
  29.     </RelativeLayout>
  30. </android.support.constraint.ConstraintLayout>
Step 5

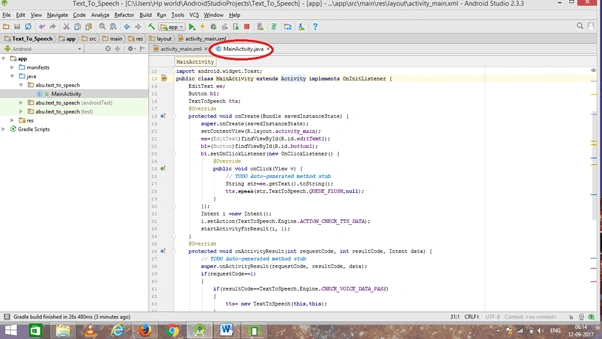

Go to  Main Activity.java, This Java program is the backend language for an Android.

Android

The java code is given below
  1. package abu.text_to_speech;
  2. import android.os.Bundle;
  3. import android.app.Activity;
  4. import android.content.Intent;
  5. import android.speech.tts.TextToSpeech;
  6. import android.speech.tts.TextToSpeech.OnInitListener;
  7. import android.view.Menu;
  8. import android.view.View;
  9. import android.view.View.OnClickListener;
  10. import android.widget.Button;
  11. import android.widget.EditText;
  12. import android.widget.Toast;
  13. public class MainActivity extends Activity implements OnInitListener {
  14.     EditText ee;
  15.     Button b1;
  16.     TextToSpeech tts;
  17.     @Override
  18.     protected void onCreate(Bundle savedInstanceState) {
  19.         super.onCreate(savedInstanceState);
  20.         setContentView(R.layout.activity_main);
  21.         ee=(EditText)findViewById(R.id.editText1);
  22.         b1=(Button)findViewById(R.id.button1);
  23.         b1.setOnClickListener(new OnClickListener() {
  24.             @Override
  25.             public void onClick(View v) {
  26.                 // TODO Auto-generated method stub
  27.                 String str=ee.getText().toString();
  28.                 tts.speak(str,TextToSpeech.QUEUE_FLUSH,null);
  29.             }
  30.         });
  31.         Intent i =new Intent();
  32.         i.setAction(TextToSpeech.Engine.ACTION_CHECK_TTS_DATA);
  33.         startActivityForResult(i, 1);
  34.     }
  35.     @Override
  36.     protected void onActivityResult(int requestCode, int resultCode, Intent data) {
  37.         // TODO Auto-generated method stub
  38.         super.onActivityResult(requestCode, resultCode, data);
  39.         if(requestCode==1)
  40.         {
  41.             if(resultCode==TextToSpeech.Engine.CHECK_VOICE_DATA_PASS)
  42.             {
  43.                 tts= new TextToSpeech(this,this);
  44.             }
  45.             else
  46.             {
  47.                 Intent i=new Intent();
  48.                 i.setAction(TextToSpeech.Engine.ACTION_INSTALL_TTS_DATA);
  49.                 startActivity(i);
  50.             }
  51.         }
  52.     }
  53.
  54.     @Override
  55.     public void onInit(int status) {
  56.         // TODO Auto-generated method stub
  57.         if(status==TextToSpeech.SUCCESS)
  58.         {
  59.             Toast.makeText(getApplicationContext(), "engine installed",1000).show();
  60.         }
  61.         if(status==TextToSpeech.ERROR)
  62.         {
  63.             Toast.makeText(getApplicationContext(), "engine not installed", 1000).show();
  64.         }
  65.     }
  66. }
Step 6

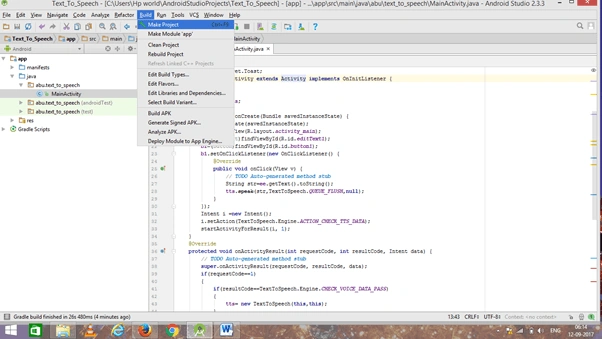

Now, go to the menu bar and click make a project or press ctrl+f9 to debug the error.

Android

Step 7

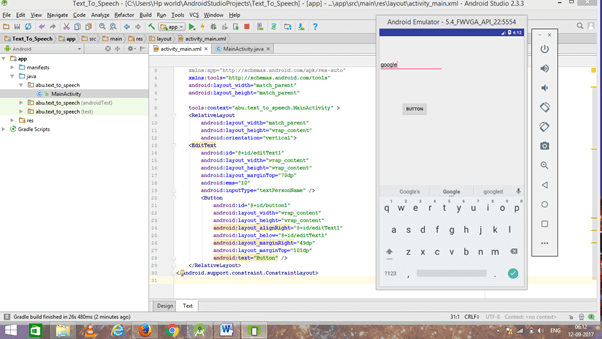

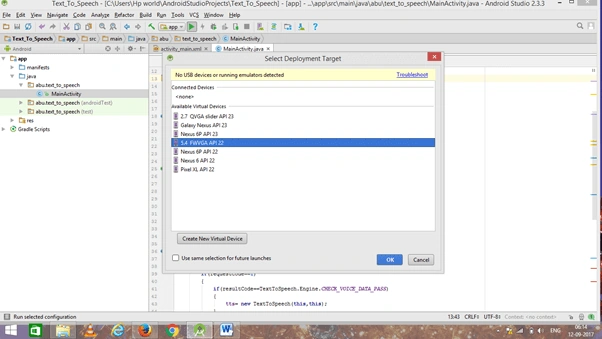

Then click Run button or press shift+f10 To run the project. And choose the virtual machine and click OK.

Android


Conclusion


We have successfully created a text to speech conversion Android application using the Android studio.
