Create Voice Search Android Application Using Android Studio

Android is one of the most popular operating systems for mobile. In this article, I will show you how to create Voice Search android application using android studio

Introduction

Android is one of the most popular operating systems for mobile. In this article, I will show you how to create Voice Search android application using android studio

Requirements

Steps should be followed

These steps create a Voice Search Android application using Android studio and I have included the source code below.

Step 1

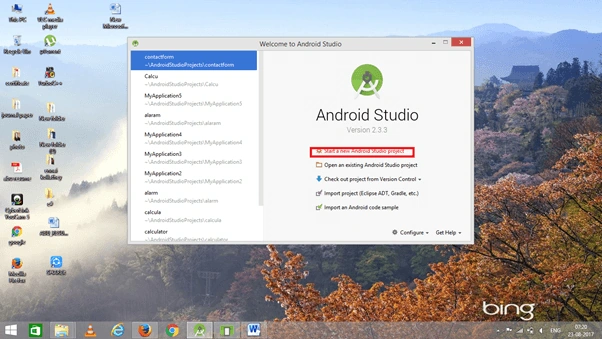

Open Android Studio and Start a New Android Studio Project.

Android

Step 2

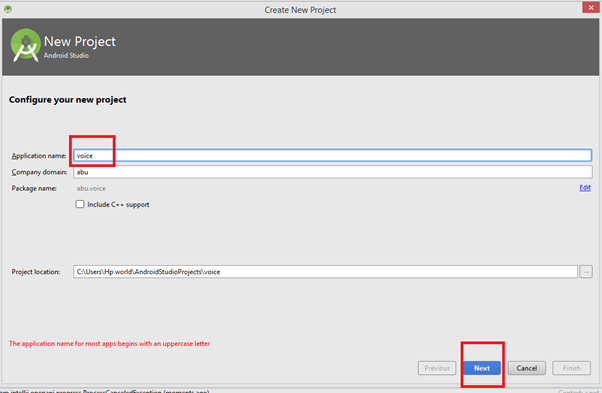

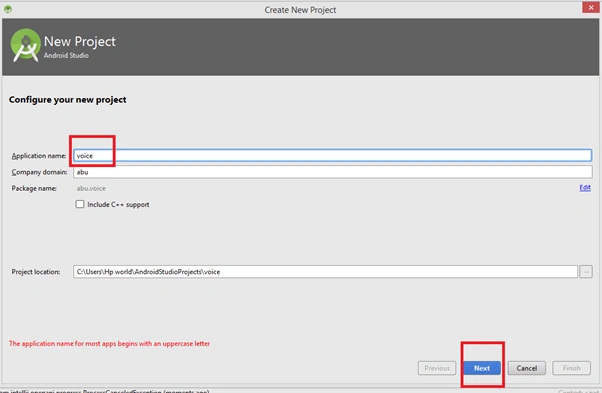

You can choose your application name and choose where your project is stored on the location. If you wish to use C++ for coding the project, mark the "Include C++ support", and click "Next" button.

Android

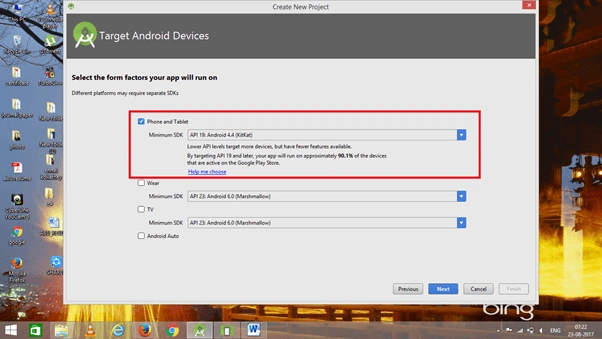

Now, select the version of Android and select the target Android devices.

Android

Step 3

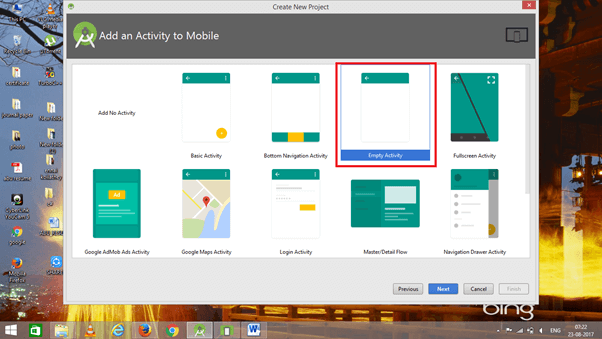

Now, add the activity and click "Next" button.

Android

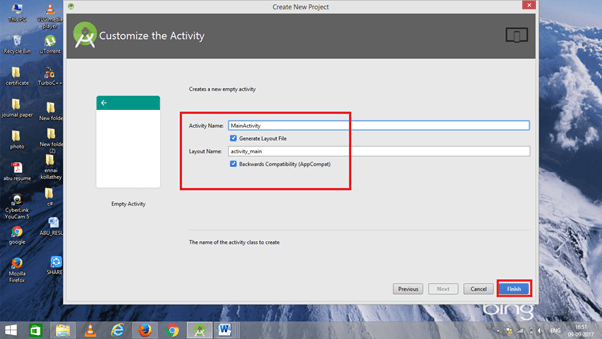

Add Activity name and click "Finish".

Android

Step 4

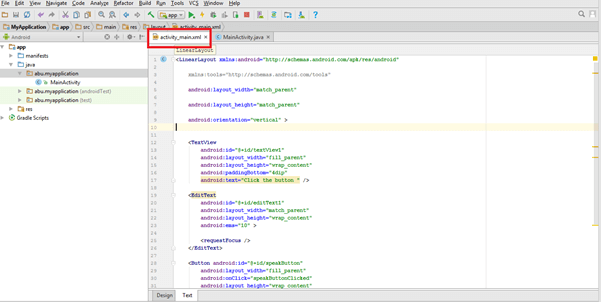

Go to activity_main.xml, This XML file contains the designing code for an Android app in the activity_main.xml;

Android

 The XML code given below.

  1. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.
  3.     xmlns:tools="http://schemas.android.com/tools"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent"
  6.     android:orientation="vertical" >
  7.
  8.     <TextView
  9.         android:id="@+id/textView1"
  10.         android:layout_width="fill_parent"
  11.         android:layout_height="wrap_content"
  12.         android:paddingBottom="4dip"
  13.         android:text="Click the button " />
  14.
  15.     <EditText
  16.         android:id="@+id/editText1"
  17.         android:layout_width="match_parent"
  18.         android:layout_height="wrap_content"
  19.         android:ems="10" >
  20.
  21.         <requestFocus />
  22.     </EditText>
  23.
  24.     <Button android:id="@+id/speakButton"
  25.         android:layout_width="fill_parent"
  26.         android:onClick="speakButtonClicked"
  27.         android:layout_height="wrap_content"
  28.         android:text="Click here!" />
  29.
  30. </LinearLayout>

Step 5

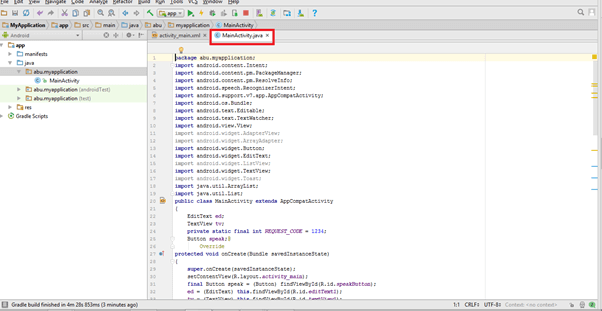

Go to  Main Activity.java, This Java program is the backend language for an Android.

Android

The java code is given below

  1.  package abu.myapplication;
  2. import android.content.Intent;
  3. import android.content.pm.PackageManager;
  4. import android.content.pm.ResolveInfo;
  5. import android.speech.RecognizerIntent;
  6. import android.support.v7.app.AppCompatActivity;
  7. import android.os.Bundle;
  8. import android.text.Editable;
  9. import android.text.TextWatcher;
  10. import android.view.View;
  11. import android.widget.AdapterView;
  12. import android.widget.ArrayAdapter;
  13. import android.widget.Button;
  14. import android.widget.EditText;
  15. import android.widget.ListView;
  16. import android.widget.TextView;
  17. import android.widget.Toast;
  18. import java.util.ArrayList;
  19. import java.util.List;
  20. public class MainActivity extends AppCompatActivity
  21. {
  22.     EditText ed;
  23.     TextView tv;
  24.     private static final int REQUEST_CODE = 1234;
  25.     Button speak;@
  26.         Override
  27. protected void onCreate(Bundle savedInstanceState)
  28. {
  29.     super.onCreate(savedInstanceState);
  30.     setContentView(R.layout.activity_main);
  31.     final Button speak = (Button) findViewById(R.id.speakButton);
  32.     ed = (EditText) this.findViewById(R.id.editText1);
  33.     tv = (TextView) this.findViewById(R.id.textView1);
  34.     // Disable button if no recognition service is present
  35.     PackageManager pm = getPackageManager();
  36.     List < ResolveInfo > activities = pm.queryIntentActivities(new Intent(RecognizerIntent.ACTION_RECOGNIZE_SPEECH), 0);
  37.     if (activities.size() == 0)
  38.     {
  39.         speak.setEnabled(false);
  40.         speak.setText("Recognizer not present");
  41.     }
  42.     ed.addTextChangedListener(new TextWatcher()
  43.     {@
  44.             Override
  45.     public void beforeTextChanged(CharSequence s, int start, int count, int after)
  46.     {
  47.         // TODO Auto-generated method stub
  48.     }@
  49.             Override
  50.     public void onTextChanged(CharSequence s, int start, int before, int count)
  51.     {
  52.         // TODO Auto-generated method stub
  53.     }@
  54.             Override
  55.     public void afterTextChanged(Editable s)
  56.     {
  57.         // TODO Auto-generated method stub
  58.         speak.setEnabled(false);
  59.     }
  60.     });
  61. }
  62.     /**
  63.      * Handle the action of the button being clicked
  64.      */
  65.     public void speakButtonClicked(View v)
  66.     {
  67.         startVoiceRecognitionActivity();
  68.     }
  69.     /**
  70.      * Fire an intent to start the voice recognition activity.
  71.      */
  72.     private void startVoiceRecognitionActivity()
  73.     {
  74.         Intent intent = new Intent(RecognizerIntent.ACTION_RECOGNIZE_SPEECH);
  75.         intent.putExtra(RecognizerIntent.EXTRA_LANGUAGE_MODEL, RecognizerIntent.LANGUAGE_MODEL_FREE_FORM);
  76.         intent.putExtra(RecognizerIntent.EXTRA_PROMPT, "Voice searching...");
  77.         startActivityForResult(intent, REQUEST_CODE);
  78.     }
  79.     /**
  80.      * Handle the results from the voice recognition activity.
  81.      */
  82.     @
  83.             Override
  84.     protected void onActivityResult(int requestCode, int resultCode, Intent data)
  85.     {
  86.         if (requestCode == REQUEST_CODE && resultCode == RESULT_OK)
  87.         {
  88.             // Populate the wordsList with the String values the recognition engine thought it heard
  89.             final ArrayList < String > matches = data.getStringArrayListExtra(RecognizerIntent.EXTRA_RESULTS);
  90.             if (!matches.isEmpty())
  91.             {
  92.                 String Query = matches.get(0);
  93.                 ed.setText(Query);
  94.                 speak.setEnabled(false);
  95.             }
  96.         }
  97.         super.onActivityResult(requestCode, resultCode, data);
  98.     }
  99.
  100. }

Step 6

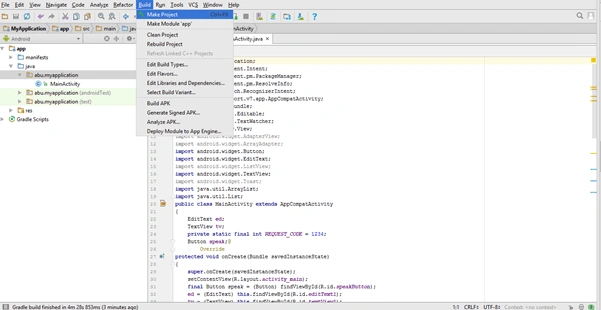

Now, go to menu bar and click make project or press ctrl+f9. To debug the error.

Android

Step 7

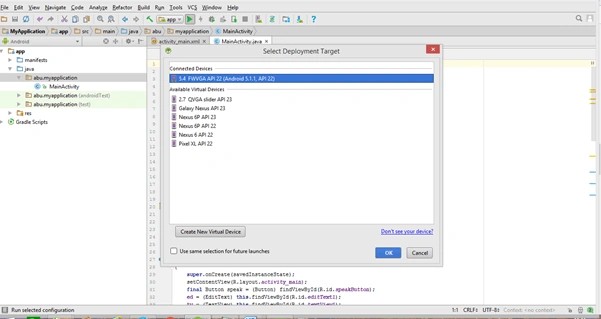

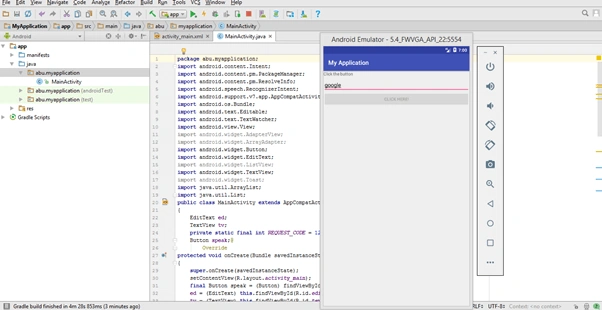

Then click Run button or press shift+f10 To run the project. And choose the virtual machine and click OK.

Android

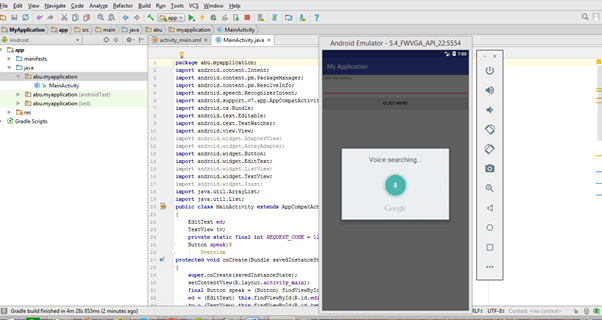

Conclusion

We have successfully created a Voice Search Android application using Android studio.
