Creating Voice Recorder in Windows Store Apps

private AudioEncodingQuality SelectedQuality;

public MainPage()

{

this.InitializeComponent();

}

protected async override void OnNavigatedTo(NavigationEventArgs e)

{

await InitMediaCapture();

LoadAudioEncodings();

LoadAudioQualities();

UpdateRecordingControls(RecordingMode.Initializing);

InitTimer();

}

private async Task InitMediaCapture()

{

CaptureMedia = new MediaCapture();

var captureInitSettings = new MediaCaptureInitializationSettings();

captureInitSettings.StreamingCaptureMode = StreamingCaptureMode.Audio;

await CaptureMedia.InitializeAsync(captureInitSettings);

CaptureMedia.Failed += MediaCaptureOnFailed;

CaptureMedia.RecordLimitationExceeded += MediaCaptureOnRecordLimitationExceeded;

}

private void LoadAudioEncodings()

{

var audioEncodingFormats = Enum.GetValues(typeof(AudioEncodingFormat)).Cast<AudioEncodingFormat>();

AudioFormat.ItemsSource = audioEncodingFormats;

AudioFormat.SelectedItem = AudioEncodingFormat.Mp3;

}

private void LoadAudioQualities()

{

var audioQualities = Enum.GetValues(typeof(AudioEncodingQuality)).Cast<AudioEncodingQuality>();

AudioQuality.ItemsSource = audioQualities;

AudioQuality.SelectedItem = AudioEncodingQuality.Auto;

}

private void UpdateRecordingControls(RecordingMode recordingMode)

{

switch (recordingMode)

{

case RecordingMode.Initializing:

RecordBtn.IsEnabled = true;

StopBtn.IsEnabled = false;

SaveBtn.IsEnabled = false;

break;

case RecordingMode.Recording:

RecordBtn.IsEnabled = false;

StopBtn.IsEnabled = true;

SaveBtn.IsEnabled = false;

break;

case RecordingMode.Stopped:

RecordBtn.IsEnabled = true;

StopBtn.IsEnabled = false;

SaveBtn.IsEnabled = true;

break;

default:

throw new ArgumentOutOfRangeException("recordingMode");

}

}

private void InitTimer()

{

DishTimer = new DispatcherTimer();

DishTimer.Interval = new TimeSpan(0, 0, 0, 0, 100);

DishTimer.Tick += TimerOnTick;

}

private void TimerOnTick(object sender, object o)

{

SpanTime = SpanTime.Add(DishTimer.Interval);

Duration.DataContext = SpanTime;

}

private async void MediaCaptureOnRecordLimitationExceeded(MediaCapture sender)

{

await Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, async () =>

{

await sender.StopRecordAsync();

var warningMessage = new MessageDialog("The media recording has been stopped because you exceeded the maximum recording length.", "Recording Stoppped");

await warningMessage.ShowAsync();

});

}

private async void MediaCaptureOnFailed(MediaCapture sender, MediaCaptureFailedEventArgs errorEventArgs)

{

await Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, async () =>

{

var warningMessage = new MessageDialog(String.Format("The media capture failed: {0}", errorEventArgs.Message), "Capture Failed");

await warningMessage.ShowAsync();

});

}

private async void RecordBtn_Click(object sender, RoutedEventArgs e)

{

MediaEncodingProfile encodingProfile = null;

switch (SelectedFormat)

{

case AudioEncodingFormat.Mp3:

encodingProfile = MediaEncodingProfile.CreateMp3(SelectedQuality);

break;

case AudioEncodingFormat.Mp4:

encodingProfile = MediaEncodingProfile.CreateM4a(SelectedQuality);

break;

case AudioEncodingFormat.Wma:

encodingProfile = MediaEncodingProfile.CreateWma(SelectedQuality);

break;

default:

throw new ArgumentOutOfRangeException();

}

AudioStream = new InMemoryRandomAccessStream();

await CaptureMedia.StartRecordToStreamAsync(encodingProfile, AudioStream);

UpdateRecordingControls(RecordingMode.Recording);

DishTimer.Start();

}

private async void StopBtn_Click(object sender, RoutedEventArgs e)

{

await CaptureMedia.StopRecordAsync();

UpdateRecordingControls(RecordingMode.Stopped);

DishTimer.Stop();

}

private async void SaveBtn_Click(object sender, RoutedEventArgs e)

{

var mediaFile = await FileSave.PickSaveFileAsync();

if (mediaFile != null)

{

using (var dataReader = new DataReader(AudioStream.GetInputStreamAt(0)))

{

await dataReader.LoadAsync((uint)AudioStream.Size);

byte[] buffer = new byte[(int)AudioStream.Size];

dataReader.ReadBytes(buffer);

await FileIO.WriteBytesAsync(mediaFile, buffer);

UpdateRecordingControls(RecordingMode.Initializing);

}

}

}

private void AudioFormat_SelectionChanged(object sender, SelectionChangedEventArgs e)

{

SelectedFormat = (AudioEncodingFormat)AudioFormat.SelectedItem;

InitFileSavePicker();

}

private void InitFileSavePicker()

{

FileSave = new FileSavePicker();

FileSave.FileTypeChoices.Add("Encoding", new List<string>() { SelectedFormat.ToFileExtension() });

FileSave.SuggestedStartLocation = PickerLocationId.MusicLibrary;

}

private void AudioQuality_SelectionChanged(object sender, SelectionChangedEventArgs e)

{

SelectedQuality = (AudioEncodingQuality)AudioQuality.SelectedItem;

}

}

}

Step 7

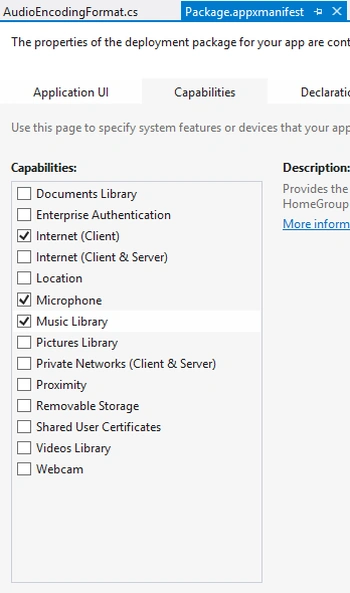

Now run you application. The first time it will ask for permission to access the microphone. Click on "Allow".

Step 8

Select the media format and quality and click on "Record" voice. After recording voice you can save it on your system by clicking on "Save".
