Cropping or Clipping in Silverlight

The Clip property takes a Geometry type that can be a line, rectangle, ellipse, or group geometry.

The following XAML code snippet uses an Image object to display an image.

<Image Source="Waterfall.jpg"

Width="300" Height="300">

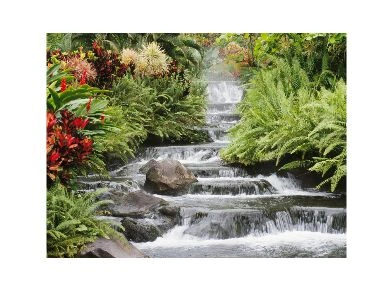

The output looks like Figure 1.

Figure 1

The XAML code in Listing 1 sets the Image.Clip property to an EllipseGeometry and sets the RadiusX, RadiusY, and Center properties of the geometry.

<Image Source="Waterfall.jpg"

Width="300" Height="300">

<Image.Clip>

<EllipseGeometry

RadiusX="100"

RadiusY="100"

Center="200,150"/>

</Image.Clip>

</Image>

Listing 1.

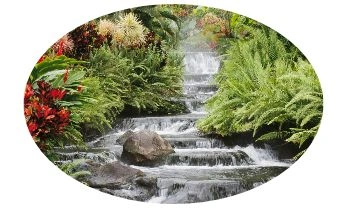

The new output looks like Figure 2.

Figure 2. A clipped image

Since the Clip property is defined in the UIElement, it can be applied to any element. For example, the following code generates a rectangle looks like Figure 3.
