CRUD Operations Using Web API 2 And Knockout.js

In this article, you will learn about CRUD operations, using Web API 2 and Knockout.js.

Introduction

In this article, I will demonstrate how we can perform simple CRUD (Create, Read, Update, Delete) operations using ASP.NET Web API 2 and Knockout.js library. Here, the purpose is to give you an idea of how to use knockout.js with Web API 2. I hope you will like this.

Prerequisites

As I said before, to achieve our requirement, you must have Visual Studio 2015 (.NET Framework 4.5.2) and SQL Server.

In this post, we are going to

  • Create MVC application.
  • Configuring Entity framework ORM to connect to database.
  • Implementing all http Services needed.
  • Calling Services using Knockout.js library.

So, let’s understand a bit about knockout.js

What’s Knockout.js?

Knockout is a JavaScript library that helps you to create a rich, responsive display and editor user interfaces with a clean underlying data model. Any time you have sections of UI that update dynamically (e.g., changing depending on the user’s actions or when an external data source changes), KO can help you implement it more simply and maintainably.

Headline features,

  • Elegant dependency tracking - automatically updates the right parts of your UI whenever your data model changes.
  • Declarative bindings - a simple and obvious way to connect parts of your UI to your data model. You can construct complex dynamic UIs easily using arbitrarily nested binding contexts.
  • Trivially extensible - implement custom behaviors as new declarative bindings for easy reuse in just a few lines of code.

SQL Database part

Here, find the script to create database and table.

  1. Create Database
  2. USE [master]
  3. GO
  4.
  5. /****** Object  Database [DBCustomer]    Script Date 3/4/2017 32357 PM ******/
  6. CREATE DATABASE [DBCustomer]
  7.  CONTAINMENT = NONE
  8.  ON  PRIMARY
  9. NAME = N'DBCustomer', FILENAME = N'c\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\DBCustomer.mdf' , SIZE = 3072KB , MAXSIZE = UNLIMITED, FILEGROWTH = 1024KB )
  10.  LOG ON
  11. NAME = N'DBCustomer_log', FILENAME = N'c\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\DBCustomer_log.ldf' , SIZE = 1024KB , MAXSIZE = 2048GB , FILEGROWTH = 10%)
  12. GO
  13.
  14. ALTER DATABASE [DBCustomer] SET COMPATIBILITY_LEVEL = 110
  15. GO
  16.
  17. IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))
  18. begin
  19. EXEC [DBCustomer].[dbo].[sp_fulltext_database] @action = 'enable'
  20. end
  21. GO
  22.
  23. ALTER DATABASE [DBCustomer] SET ANSI_NULL_DEFAULT OFF
  24. GO
  25.
  26. ALTER DATABASE [DBCustomer] SET ANSI_NULLS OFF
  27. GO
  28.
  29. ALTER DATABASE [DBCustomer] SET ANSI_PADDING OFF
  30. GO
  31.
  32. ALTER DATABASE [DBCustomer] SET ANSI_WARNINGS OFF
  33. GO
  34.
  35. ALTER DATABASE [DBCustomer] SET ARITHABORT OFF
  36. GO
  37.
  38. ALTER DATABASE [DBCustomer] SET AUTO_CLOSE OFF
  39. GO
  40.
  41. ALTER DATABASE [DBCustomer] SET AUTO_CREATE_STATISTICS ON
  42. GO
  43.
  44. ALTER DATABASE [DBCustomer] SET AUTO_SHRINK OFF
  45. GO
  46.
  47. ALTER DATABASE [DBCustomer] SET AUTO_UPDATE_STATISTICS ON
  48. GO
  49.
  50. ALTER DATABASE [DBCustomer] SET CURSOR_CLOSE_ON_COMMIT OFF
  51. GO
  52.
  53. ALTER DATABASE [DBCustomer] SET CURSOR_DEFAULT  GLOBAL
  54. GO
  55.
  56. ALTER DATABASE [DBCustomer] SET CONCAT_NULL_YIELDS_NULL OFF
  57. GO
  58.
  59. ALTER DATABASE [DBCustomer] SET NUMERIC_ROUNDABORT OFF
  60. GO
  61.
  62. ALTER DATABASE [DBCustomer] SET QUOTED_IDENTIFIER OFF
  63. GO
  64.
  65. ALTER DATABASE [DBCustomer] SET RECURSIVE_TRIGGERS OFF
  66. GO
  67.
  68. ALTER DATABASE [DBCustomer] SET  DISABLE_BROKER
  69. GO
  70.
  71. ALTER DATABASE [DBCustomer] SET AUTO_UPDATE_STATISTICS_ASYNC OFF
  72. GO
  73.
  74. ALTER DATABASE [DBCustomer] SET DATE_CORRELATION_OPTIMIZATION OFF
  75. GO
  76.
  77. ALTER DATABASE [DBCustomer] SET TRUSTWORTHY OFF
  78. GO
  79.
  80. ALTER DATABASE [DBCustomer] SET ALLOW_SNAPSHOT_ISOLATION OFF
  81. GO
  82.
  83. ALTER DATABASE [DBCustomer] SET PARAMETERIZATION SIMPLE
  84. GO
  85.
  86. ALTER DATABASE [DBCustomer] SET READ_COMMITTED_SNAPSHOT OFF
  87. GO
  88.
  89. ALTER DATABASE [DBCustomer] SET HONOR_BROKER_PRIORITY OFF
  90. GO
  91.
  92. ALTER DATABASE [DBCustomer] SET RECOVERY SIMPLE
  93. GO
  94.
  95. ALTER DATABASE [DBCustomer] SET  MULTI_USER
  96. GO
  97.
  98. ALTER DATABASE [DBCustomer] SET PAGE_VERIFY CHECKSUM
  99. GO
  100.
  101. ALTER DATABASE [DBCustomer] SET DB_CHAINING OFF
  102. GO
  103.
  104. ALTER DATABASE [DBCustomer] SET FILESTREAM( NON_TRANSACTED_ACCESS = OFF )
  105. GO
  106.
  107. ALTER DATABASE [DBCustomer] SET TARGET_RECOVERY_TIME = 0 SECONDS
  108. GO
  109.
  110. ALTER DATABASE [DBCustomer] SET  READ_WRITE
  111. GO
  112.
  113.
  114. Create Table
  115. USE [DBCustomer]
  116. GO
  117.
  118. /****** Object  Table [dbo].[Customer]    Script Date 3/4/2017 32449 PM ******/
  119. SET ANSI_NULLS ON
  120. GO
  121.
  122. SET QUOTED_IDENTIFIER ON
  123. GO
  124.
  125. SET ANSI_PADDING ON
  126. GO
  127.
  128. CREATE TABLE [dbo].[Customer](
  129.     [CustID] [int] IDENTITY(1,1) NOT NULL,
  130.     [FirstName] [varchar](50) NULL,
  131.     [LastName] [varchar](50) NULL,
  132.     [Email] [varchar](50) NULL,
  133.     [Country] [varchar](50) NULL,
  134.  CONSTRAINT [PK_Customer] PRIMARY KEY CLUSTERED
  135. (
  136.     [CustID] ASC
  137. )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ONON [PRIMARY]
  138. ON [PRIMARY]
  139.
  140. GO
  141.
  142. SET ANSI_PADDING OFF
  143. GO

Create your MVC application

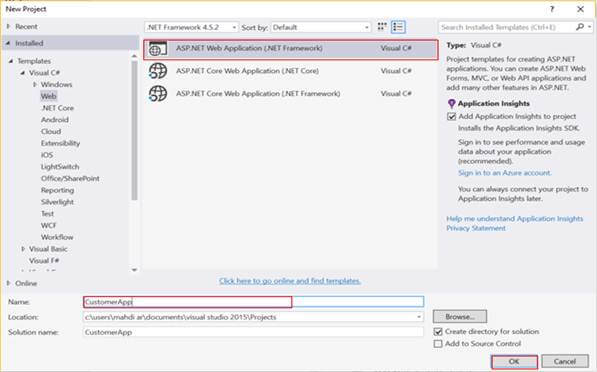

Open Visual Studio and select File >> New Project.

The "New Project" window will pop up. Select ASP.NET Web Application (.NET Framework), name your project, and click OK.

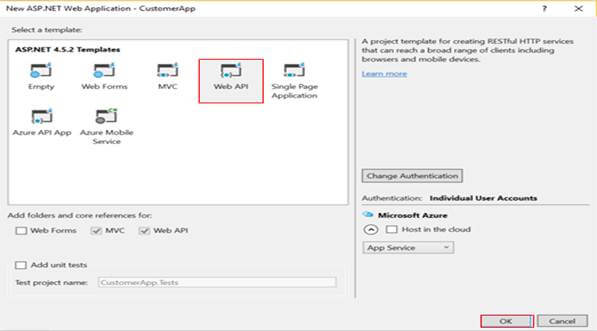

Next, new dialog will pop up for selecting the template. We are going choose Web API template and click Ok button.


After creating our project, we are going to add ADO.NET Entity Data Model.

Adding ADO.NET Entity Data Model

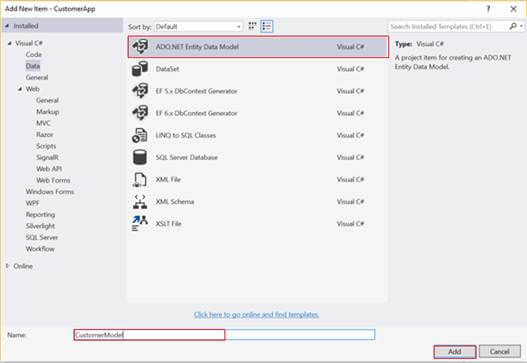

For adding ADO.NET Entity Framework, right click on the project name, click Add > Add New Item. Dialog box will pop up. Inside Visual C#, select Data >> ADO.NET Entity Data Model, and enter a name for your Dbcontext model as CustomerModel.

Finally,  click Add.

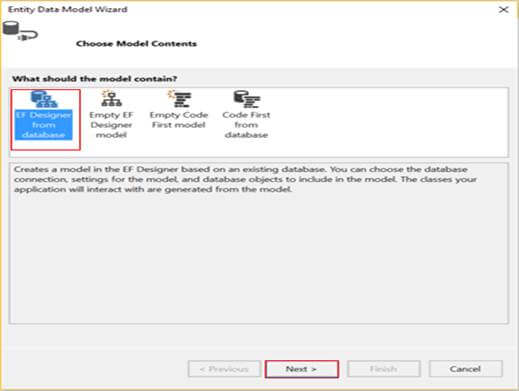

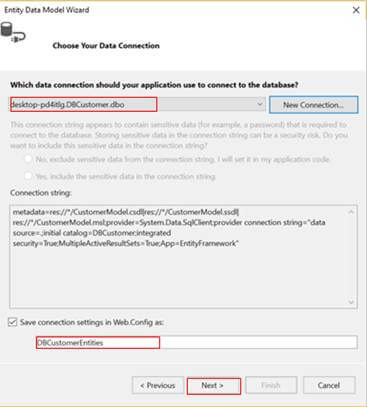

Next, we need to choose EF Designer from database as model container.

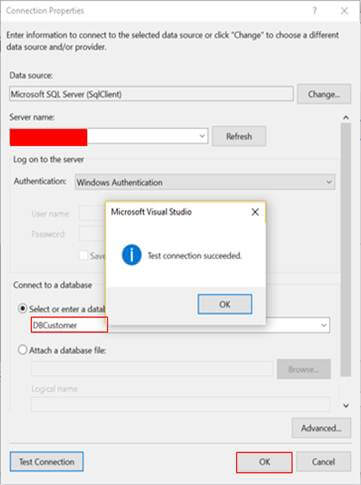

As you can see below, we need to select Server name, then via drop down list, connect to a database panel. You should choose your database name. Finally, click OK.

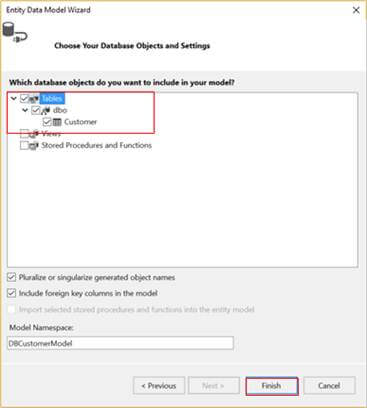

Now, the dialog Entity Data Model Wizard will pop up for choosing the object which we need to use. In our case, we are going to choose Customers table and click "Finish" button.

Finally, we see that EDMX model generates a Customer class.




Create a Controller

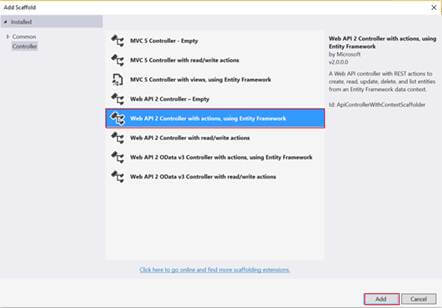

Now, we are going to create a Controller. Right click on the Controllers folder and go to Add > Controller> selecting Web API 2 Controller with actions using Entity Framework > click Add.

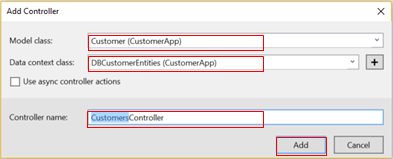

In the snapshot given below, we are providing three important parameters

  • Model class Customer represents the entity that should be used for CRUD operations.
  • Data context class used to establish connection with database.
  • Finally, we need to name our Controller (in this case Customers Controller).


As we already know, Web API is a framework that makes it easy to build HTTP services that reach a broad range of clients including browsers and mobile devices.

It has four methods where

  • Get is used to select data.
  • Post is used to create or insert data.
  • Put is used to update data.
  • Delete is used to delete data.

CustomersController.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data;
  4. using System.Data.Entity;
  5. using System.Data.Entity.Infrastructure;
  6. using System.Linq;
  7. using System.Net;
  8. using System.Net.Http;
  9. using System.Web.Http;
  10. using System.Web.Http.Description;
  11. using CustomerApp;
  12. using CustomerApp.Models;
  13.
  14. namespace CustomerApp.Controllers
  15. {
  16.     public class CustomersController  ApiController
  17.     {
  18.         //DbContext
  19.         private DBCustomerEntities db = new DBCustomerEntities();
  20.
  21.         // GET api/Customers
  22.         public IQueryable<Customer> GetCustomers()
  23.         {
  24.             return db.Customers;
  25.         }
  26.
  27.
  28.
  29.         // PUT api/Customers/5
  30.         [ResponseType(typeof(void))]
  31.         public IHttpActionResult PutCustomer(int id, Customer customer)
  32.         {
  33.             if (!ModelState.IsValid)
  34.             {
  35.                 return BadRequest(ModelState);
  36.             }
  37.
  38.             if (id != customer.CustID)
  39.             {
  40.                 return BadRequest();
  41.             }
  42.
  43.             db.Entry(customer).State = EntityState.Modified;
  44.
  45.             try
  46.             {
  47.                 db.SaveChanges();
  48.             }
  49.             catch (DbUpdateConcurrencyException)
  50.             {
  51.                 if (!CustomerExists(id))
  52.                 {
  53.                     return NotFound();
  54.                 }
  55.                 else
  56.                 {
  57.                     throw;
  58.                 }
  59.             }
  60.
  61.             return StatusCode(HttpStatusCode.NoContent);
  62.         }
  63.
  64.         // POST api/Customers
  65.         [ResponseType(typeof(Customer))]
  66.         public IHttpActionResult PostCustomer(Customer customer)
  67.         {
  68.             if (!ModelState.IsValid)
  69.             {
  70.                 return BadRequest(ModelState);
  71.             }
  72.
  73.             db.Customers.Add(customer);
  74.             db.SaveChanges();
  75.
  76.             return CreatedAtRoute("DefaultApi"new { id = customer.CustID }, customer);
  77.         }
  78.
  79.         // DELETE api/Customers/5
  80.         [ResponseType(typeof(Customer))]
  81.         public IHttpActionResult DeleteCustomer(int id)
  82.         {
  83.             Customer customer = db.Customers.Find(id);
  84.             if (customer == null)
  85.             {
  86.                 return NotFound();
  87.             }
  88.
  89.             db.Customers.Remove(customer);
  90.             db.SaveChanges();
  91.
  92.             return Ok(customer);
  93.         }
  94.         //GetCustomerByCountry returns list of nb customers by country
  95.        [Route("Customers/GetCustomerByCountry")]
  96.         public IList<CustomerData> GetCustomerByCountry()
  97.         {
  98.             List<string> countryList = new List<string>() { "Morocco""India""USA""Spain" };
  99.             IEnumerable<Customer> customerList = db.Customers;
  100.             List <CustomerData> result = new List<CustomerData>();
  101.
  102.             foreach (var item in countryList)
  103.             {
  104.                 int nbCustomer = customerList.Where(c => c.Country == item).Count();
  105.                 result.Add(new CustomerData()
  106.                 {
  107.                     CountryName = item,
  108.                     value = nbCustomer
  109.                 });
  110.             }
  111.
  112.             if(result != null)
  113.             {
  114.                 return result;
  115.             }
  116.
  117.             return null;
  118.
  119.
  120.
  121.         }
  122.
  123.         protected override void Dispose(bool disposing)
  124.         {
  125.             if (disposing)
  126.             {
  127.                 db.Dispose();
  128.             }
  129.             base.Dispose(disposing);
  130.         }
  131.
  132.         private bool CustomerExists(int id)
  133.         {
  134.             return db.Customers.Count(e => e.CustID == id) > 0;
  135.         }
  136.     }
  137. }

Calling Services using Knockout.js library

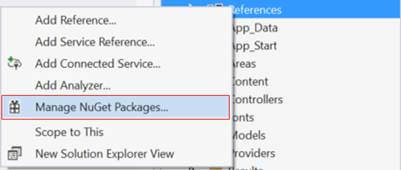

First of all, we are installing knockout.js library. From solution explorer panel, right click on references > Manage NuGet Packages…

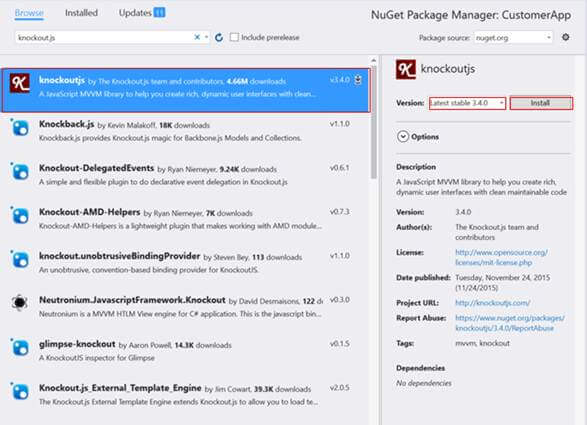

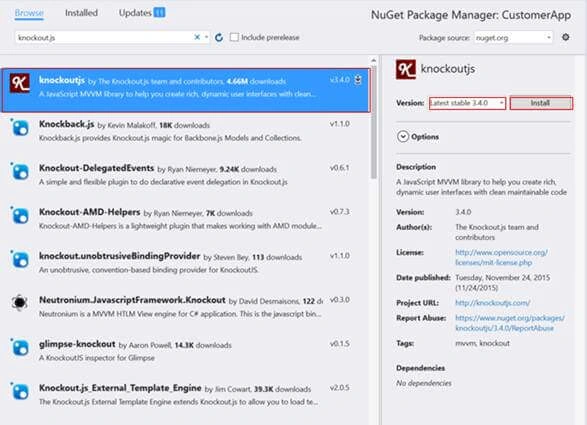

Next, type Knockout.js in search text box, select the first line as below, and click on Install button.


Now, we need to add new js file. Right click on scripts folder > Add > JavaScript File.


App.js

Here, we create our View Model that contains all the business logic, and then, we bind it with ko.applyBindings(new viewModel()) which is enabled to activate knockout for the current HTML document.

As you can see in the below code, ko provides observables to bind to the Model.

  • observable() is used to define Model properties which can notify the changes and update the Model automatically.
  • observableArray([]) is used to bind list of elements.
    1. var ViewModel = function () {
    2.
    3.     var self = this;
    4.     self.CustID = ko.observable();
    5.     self.FirstName = ko.observable();
    6.     self.LastName = ko.observable();
    7.     self.Email = ko.observable();
    8.     self.CountryList = ko.observableArray(['Morocco''India''USA''Spain']);
    9.     self.Country = ko.observable();
    10.
    11.     self.customerList = ko.observableArray([]);
    12.
    13.     var CustomerUri = '/api/Customers/';
    14.
    15.
    16.
    17.     function ajaxFunction(uri, method, data) {
    18.
    19.         //self.errorMessage('');
    20.
    21.         return $.ajax({
    22.
    23.             type method,
    24.             url uri,
    25.             dataType 'json',
    26.             contentType 'application/json',
    27.             data data ? JSON.stringify(data)  null
    28.
    29.         }).fail(function (jqXHR, textStatus, errorThrown) {
    30.             alert('Error  ' + errorThrown);
    31.         });
    32.     }
    33.
    34.
    35.     // Clear Fields
    36.     self.clearFields = function clearFields() {
    37.         self.FirstName('');
    38.         self.LastName('');
    39.         self.Email('');
    40.         self.Country('');
    41.     }
    42.
    43.     //Add new Customer
    44.     self.addNewCustomer = function addNewCustomer(newCustomer) {
    45.
    46.         var CustObject = {
    47.             CustID self.CustID(),
    48.             FirstName: self.FirstName(),
    49.             LastName self.LastName(),
    50.             Email self.Email(),
    51.             Country self.Country()
    52.         };
    53.         ajaxFunction(CustomerUri, 'POST', CustObject).done(function () {
    54.
    55.             self.clearFields();
    56.             alert('Customer Added Successfully !');
    57.             getCustomerList()
    58.         });
    59.     }
    60.
    61.     //Get Customer List
    62.     function getCustomerList() {
    63.         $("div.loadingZone").show();
    64.         ajaxFunction(CustomerUri, 'GET').done(function (data) {
    65.             $("div.loadingZone").hide();
    66.             self.customerList(data);
    67.         });
    68.
    69.     }
    70.
    71.     //Get Detail Customer

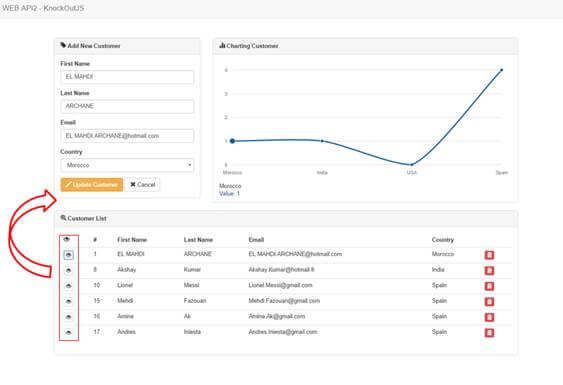

    72.     self.detailCustomer = function (selectedCustomer) {
    73.
    74.         self.CustID(selectedCustomer.CustID);
    75.         self.FirstName(selectedCustomer.FirstName);
    76.         self.LastName(selectedCustomer.LastName);
    77.         self.Email(selectedCustomer.Email);
    78.         self.Country(selectedCustomer.Country);
    79.
    80.         $('#Save').hide();
    81.         $('#Clear').hide();
    82.
    83.         $('#Update').show();
    84.         $('#Cancel').show();
    85.
    86.     };
    87.
    88.     self.cancel = function () {
    89.
    90.         self.clearFields();
    91.
    92.         $('#Save').show();
    93.         $('#Clear').show();
    94.
    95.         $('#Update').hide();
    96.         $('#Cancel').hide();
    97.     }
    98.
    99.     //Update Customer
    100.     self.updateCustomer = function () {
    101.
    102.         var CustObject = {
    103.             CustID self.CustID(),
    104.             FirstName self.FirstName(),
    105.             LastName self.LastName(),
    106.             Email self.Email(),
    107.             Country self.Country()
    108.         };
    109.
    110.         ajaxFunction(CustomerUri + self.CustID(), 'PUT', CustObject).done(function () {
    111.             alert('Customer Updated Successfully !');
    112.             getCustomerList();
    113.             self.cancel();
    114.         });
    115.     }
    116.
    117.     //Delete Customer
    118.     self.deleteCustomer = function (customer) {
    119.
    120.         ajaxFunction(CustomerUri + customer.CustID, 'DELETE').done(function () {
    121.
    122.             alert('Customer Deleted Successfully');
    123.             getCustomerList();
    124.         })
    125.
    126.     }
    127.
    128.     //Chart Line function used to display a chart which represents nb of customers by country
    129.     function chartLine() {
    130.
    131.         ajaxFunction('http//localhost50706/Customers/GetCustomerByCountry''GET').done(function (result) {
    132.             console.log(result);
    133.             Morris.Line({
    134.                 element 'line-chart',
    135.                 data result,
    136.                 xkey 'CountryName',
    137.                 // A list of names of data record attributes that contain y-values.
    138.                 ykeys ['value'],
    139.                 // Labels for the ykeys -- will be displayed when you hover over the
    140.                 // chart.
    141.                 labels ['Value'],
    142.
    143.                 parseTime false
    144.             });
    145.
    146.
    147.         });
    148.
    149.     };
    150.
    151.     chartLine();
    152.     getCustomerList();
    153.
    154. };
    155.
    156. ko.applyBindings(new ViewModel());

Now, from Solution Explorer panel, we are going to add index.html file as shown below.


Index.html

  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.
  5.     <meta charset="utf-8">
  6.     <meta http-equiv="X-UA-Compatible" content="IE=edge">
  7.     <meta name="viewport" content="width=device-width, initial-scale=1">
  8.
  9.     <title>. Customer App . Web API2 Á KnockOutJS</title>
  10.     <meta charset="utf-8" />
  11.
  12.     <!-- CSS -->
  13.     <link href="Content/bootstrap.min.css" rel="stylesheet" />
  14.     <link href="https//cdn.oesmith.co.uk/morris-0.5.1.css" rel="stylesheet" />
  15.
  16.
  17.
  18. </head>
  19. <body>
  20.
  21.     <nav class="navbar navbar-default navbar-fixed-top">
  22.
  23.         <div class="container-fluid">
  24.
  25.             <div class="navbar-header">
  26.                 <button type="button" class="navbar-toggle collapsed" data-toggle="collapse" data-target="#bs-example-navbar-collapse-1" aria-expanded="false">
  27.                     <span class="sr-only">Toggle navigation</span>
  28.                     <span class="icon-bar"></span>
  29.                     <span class="icon-bar"></span>
  30.                     <span class="icon-bar"></span>
  31.                 </button>
  32.                 <a class="navbar-brand" href="#">WEB API2 - KnockOutJS</a>
  33.             </div> <!-- END HEADER NAV -->
  34.
  35.         </div> <!-- END CONTAINER -->
  36.
  37.     </nav><!-- END NAV-->
  38.
  39.     <div class="container" style="margin-top 7%;">
  40.
  41.
  42.         <div class="row">
  43.
  44.             <div class="col-md-4">
  45.
  46.                 <!-- FORM -->
  47.                 <div class="panel panel-default">
  48.
  49.                     <div class="panel-heading"> <span class="glyphicon glyphicon glyphicon-tag" aria-hidden="true"></span> <b>Add New Customer</b></div>
  50.                     <div class="panel-body">
  51.
  52.                         <form>
  53.
  54.                             <div class="form-group" style="displaynone;">
  55.                                 <label for="CustomerID">Customer ID</label>
  56.                                 <input type="text" id="CustomerID" class="form-control" data-bind="valueCustID" placeholder="Customer ID" />
  57.                             </div><!-- END CUSTOMER ID -->
  58.
  59.                             <div class="form-group">
  60.                                 <label for="FirstName">First Name</label>
  61.                                 <input type="text" id="FirstName" class="form-control" data-bind="valueFirstName" placeholder="First Name" />
  62.                             </div><!-- END FIRST NAME -->
  63.
  64.                             <div class="form-group">
  65.                                 <label for="LastName">Last Name</label>
  66.                                 <input type="text" id="LastName" class="form-control" data-bind="value LastName" placeholder="Last Name" />
  67.                             </div><!-- END LAST NAME -->
  68.
  69.                             <div class="form-group">
  70.                                 <label for="Email">Email</label>
  71.                                 <input type="email" id="Email" class="form-control" data-bind="value Email" placeholder="Email" />
  72.                             </div> <!-- END EMAIL -->
  73.
  74.                             <div class="form-group">
  75.                                 <label for="Country">Country</label>
  76.                                 <select class="form-control" data-bind="options CountryList, value Country, optionsCaption 'Select your Country ...' " ></select>
  77.                             </div> <!-- END COUNTRY -->
  78.
  79.
  80.                             <button type="button" class="btn btn-success" data-bind="click addNewCustomer" id="Save">
  81.                                 <span class="glyphicon  glyphicon glyphicon-floppy-disk" aria-hidden="true"></span> Save
  82.                             </button>
  83.
  84.                             <button type="button" class="btn btn-info" data-bind="click clearFields" id="Clear">
  85.                                 <span class="glyphicon  glyphicon glyphicon-refresh" aria-hidden="true"></span> Clear
  86.                             </button>
  87.
  88.                             <button type="button" class="btn btn-warning" data-bind="clickupdateCustomer " style="display:none;" id="Update">
  89.                                 <span class="glyphicon  glyphicon glyphicon-pencil" aria-hidden="true"></span> Update Customer
  90.                             </button>
  91.
  92.                             <button type="button" class="btn btn-default" data-bind="clickcancel " style="displaynone;" id="Cancel">
  93.                                 <span class="glyphicon  glyphicon glyphicon-remove" aria-hidden="true"></span> Cancel
  94.                             </button>
  95.
  96.                         </form> <!-- END FORM -->
  97.
  98.
  99.                     </div> <!-- END PANEL BODY-->
  100.
  101.                 </div><!-- END PANEL-->
  102.
  103.             </div> <!-- END  col-md-4 -->
  104.
  105.             <div class="col-md-8">
  106.
  107.                 <div class="panel panel-default">
  108.
  109.                     <div class="panel-heading"><span class="glyphicon  glyphicon glyphicon-stats" aria-hidden="true"></span><b> Charting Customer</b>   </div>
  110.
  111.                     <div class="panel-body">
  112.
  113.
  114.                         <!-- <img src="images/Chart.png" style="width60%; margin6px 70px;" /> -->
  115.
  116.                         <div id="line-chart" style="height 300px;"></div><br/><br/>
  117.
  118.                     </div> <!-- END PANEL-BODY-->
  119.
  120.                 </div> <!-- END PANEL-->
  121.
  122.             </div> <!-- END col-md-8-->
  123.
  124.         </div>
  125.
  126.         <div class="row">
  127.
  128.             <div class="col-md-12">
  129.
  130.                 <div class="panel panel-default">
  131.
  132.                     <div class="panel-heading">
  133.                         <span class="glyphicon  glyphicon glyphicon-zoom-in" aria-hidden="true"></span>  <b>Customer List </b>
  134.                         <div class="loadingZone" style="color #000; displayblock; floatright; displaynone;"> <img src="images/ajax-loader.gif" /> Refresh Data ...</div>
  135.                     </div>
  136.
  137.                     <div class="panel-body">
  138.
  139.                         <table class="table table-hover">
  140.
  141.                             <thead>
  142.                                 <tr>
  143.                                     <th><span class="glyphicon glyphicon glyphicon-eye-open" aria-hidden="true"></span></th>
  144.                                     <th>#</th>
  145.                                     <th>First Name</th>
  146.                                     <th>Last Name</th>
  147.                                     <th>Email</th>
  148.                                     <th>Country</th>
  149.                                     <th></th>
  150.                                 </tr>
  151.                             </thead> <!-- END THEAD -->
  152.
  153.                             <tbody data-bind="foreach customerList">
  154.
  155.                                 <tr>
  156.
  157.                                     <td> <button type="button" class="btn btn-default btn-xs" data-bind="click $root.detailCustomer"> <span class="glyphicon glyphicon glyphicon-eye-open" aria-hidden="true"></span></button> </td>
  158.                                     <td> <span data-bind="text CustID"></span> </td>
  159.                                     <td> <span data-bind="text FirstName"></span></td>
  160.                                     <td> <span data-bind="text LastName"></span></td>
  161.                                     <td> <span data-bind="text Email"></span> </td>
  162.                                     <td> <span data-bind="text Country"></span> </td>
  163.
  164.                                     <td>
  165.
  166.                                         <button type="button" class="btn btn-danger btn-xs">
  167.                                             <span class="glyphicon glyphicon glyphicon-trash" aria-hidden="true" data-bind="click $root.deleteCustomer"></span>
  168.                                         </button>
  169.                                     </td>
  170.
  171.                                 </tr>
  172.
  173.
  174.
  175.                             </tbody> <!-- END TBODY -->
  176.
  177.                         </table> <!-- END TABLE -->
  178.
  179.
  180.                     </div>
  181.
  182.                 </div>
  183.
  184.             </div>
  185.
  186.         </div>
  187.     </div> <!-- END CONTAINER-->
  188.
  189.     <!-- JS -->
  190.     <!-- jQuery (necessary for Bootstrap's JavaScript plugins) -->
  191.     <script src="Scripts/jquery-1.10.2.min.js"></script>
  192.     <!-- Include all compiled plugins (below), or include individual files as needed -->
  193.     <script src="Scripts/bootstrap.min.js"></script>
  194.     <script src="Scripts/knockout-3.4.0.js"></script>
  195.
  196.     <script src="https//cdnjs.cloudflare.com/ajax/libs/raphael/2.1.0/raphael-min.js"></script>
  197.     <script src="https//cdnjs.cloudflare.com/ajax/libs/morris.js/0.5.1/morris.min.js"></script>
  198.     <!-- app.js-->
  199.     <script src="Scripts/app.js"></script>
  200.
  201. </body>
  202. </html>

In order to exchange the data between HTML page and JavaScript file, knockout.js offers various types of bindings that should be used within data-bind attribute.

  • Click represents a click event handler to call JavaScript function.
  • Value represents the value binding with UI element’s to the property defined into view Model.
  • Text represents the text value to the UI element.
  • Foreach used to fetch an array.

Now, you can run your application. Don’t forget to change the URL address as below.

http//localhost55192/index.html

Let’s see the output.




That’s all, Please send your feedback and queries in comments box.
