DDoS Attacks and Prevention using .NET Core

builder.Services.AddRateLimiter(options =>
{
    options.GlobalLimiter = PartitionedRateLimiter.Create<HttpContext, string>(
        httpContext => RateLimitPartition.GetFixedWindowLimiter(
            partitionKey: httpContext.User.Identity?.Name ?? httpContext.Request.Headers.Host.ToString(),
            factory: partition => new FixedWindowRateLimiterOptions
            {
                AutoReplenishment = true,
                PermitLimit = 20,
                QueueLimit = 0,
                Window = TimeSpan.FromMinutes(1)
            }
        )
    );
});
var app = builder.Build();
// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}
app.UseHttpsRedirection();
app.UseAuthorization();
app.UseRateLimiter();
app.MapControllers();
app.Run();

// See https://aka.ms/new-console-template for more information
using System.Text.Json;
Console.WriteLine("Making connections....!");
var apiUrl = "https://localhost:44316/WeatherForecast"; // Example API endpoint
using var client = new HttpClient();
try
{
    for (int i = 0; i < 21; i++)
    {
        // Making the GET request
        var response = await client.GetAsync(apiUrl);
        // Ensure the request was successful
        response.EnsureSuccessStatusCode();
        // Read the response content as a string
        var content = await response.Content.ReadAsStringAsync();
        if (content != null && content.Length > 0)
        {
            Console.WriteLine("Getting response from server -> " + i.ToString());
        }
    }
}
catch (Exception e)
{
    Console.WriteLine($"Request error: {e.Message}");
    Console.ReadKey();
}

1. The above code contains a loop for making api calls for 21 times.
2. We are logging Console.WriteLine(“Getting response from server ->” + i.ToString());

The above code is making http calls api.

var apiUrl = "https://localhost:44316/WeatherForecast"; // Example API endpoint

Running the application.

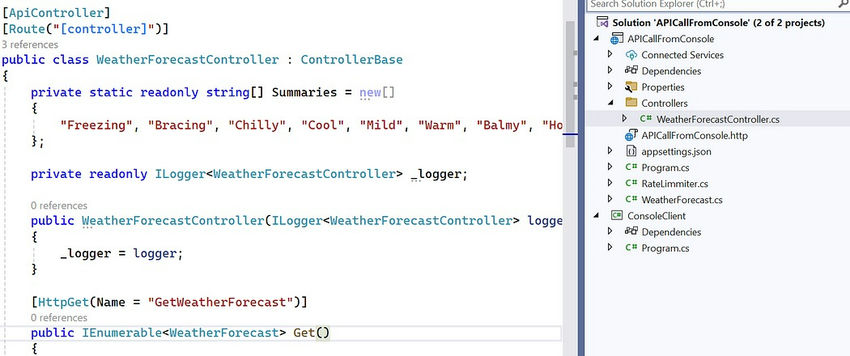

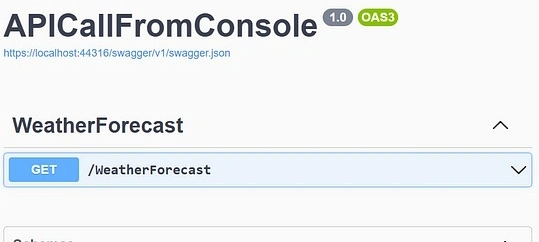

• API

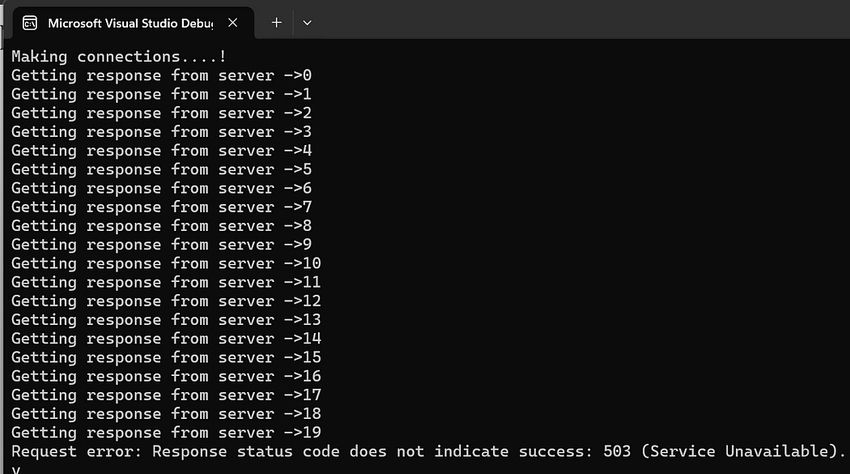

• Console: we can see requests are getting responses till 19 and get exceptions after 19.

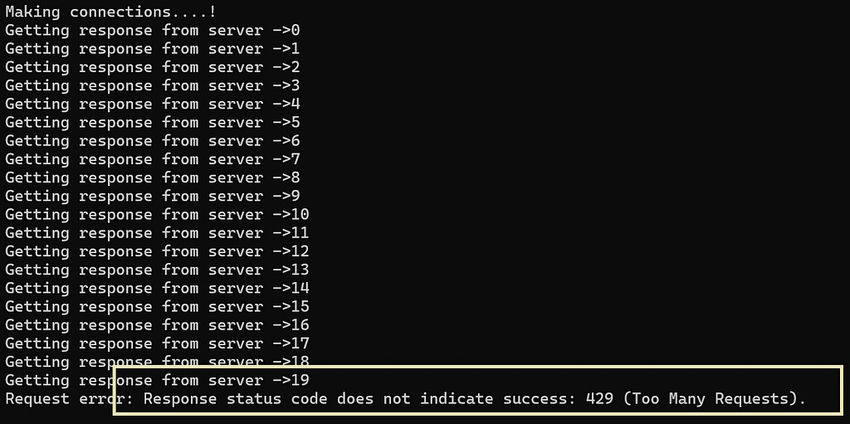

• Specific error code: we can add the code below and get specific exceptions.

  options.RejectionStatusCode = 429;

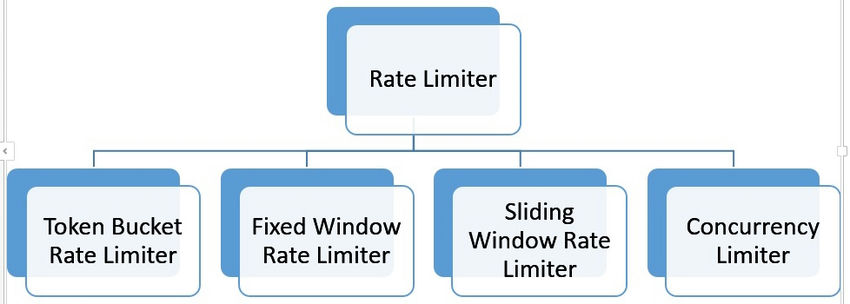

• We have multiple ways to implement rate limiters and have the below types, but I will be explaining them in a separate article.


2. Prevention Technique. IP Blocking and Geo-Blocking

If we know the range of IPs from where we are getting attacks, we can restrict specific IP addresses. We can use the below approach in the .net core.

public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
    app.Use(async (context, next) =>
    {
        var ipAddress = context.Connection.RemoteIpAddress.ToString();
        if (ipAddress == "blocked_ip")
        {
            context.Response.StatusCode = 403;
            await context.Response.WriteAsync("Forbidden");
        }
        else
        {
            await next.Invoke();
        }
    });
    app.UseMvc();
}

3. Prevention Technique. Monitoring and Alerting

• We should keep tracing logs using Application Insights to see if we have a lot of requests coming from suspicious IPs.
• Set up alerts for unusual traffic patterns.

4. Prevention Technique. Throttling and Circuit Breaker Patterns

• Implement throttling to control the usage of resources.
• Use libraries like Polly for resilience and transient fault handling.

var circuitBreaker = Policy
    .Handle<Exception>()
    .CircuitBreakerAsync(2, TimeSpan.FromMinutes(1));

5. Prevention Technique. Caching

DDoS can also happen in the case of real traffic, in the case of e-commerce sites like Flipkart, Amazon has huge traffic during the sale and if we keep posting a request to servers then servers can be busy resulting in DDoS.

In this case, we can at least apply cache for frequently used data or data from master tables we can limit the number of requests to the server.

public void ConfigureServices(IServiceCollection services)
{
    services.AddResponseCaching();
    services.AddMvc();
}
public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
    app.UseResponseCaching();
    app.UseMvc();
}
[HttpGet]
[ResponseCache(Duration = 60)]
public IActionResult Get()
{
    return Ok("This response is cached for 60 seconds.");
}

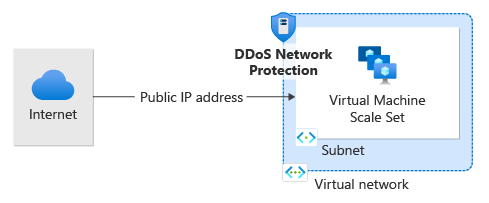

6. Prevention Technique. Network Level, Load Balancers, and Firewall's

DDoS can also happen in the case of real traffic, in the case of e-commerce sites like Flipkart, Amazon has huge traffic during sales and if we keep posting requests to servers then servers can be busy resulting in DDoS.

We can use Azure Load Balancer or AWS Elastic Load Balancing (ELB) to distribute load to multiple servers.

In case of false traffic or malicious traffic, we can implement rules at the network level. Here, we can add rules that can filter the range of IPs and also divert IP addresses to multiple servers.

Conclusion

We have covered what DDoS is and the multiple ways to prevent it.

Thanks!
