Cryptography

Decoder Program for Secure Cipher Text using Python

Table of Contents

  • Introduction

  • What Is a Decoder in Cryptography?

  • Why Decryption Is as Critical as Encryption

  • Real-World Scenario: Emergency Decryption of Wildfire Evacuation Orders in California

  • How Modern Decoders Work

  • Error-Free Python Decoder Implementation (AES-GCM)

  • Best Practices for Safe Decryption

  • Conclusion

Introduction

Encryption turns sensitive data into unreadable ciphertext—but decryption brings it back to life. In high-stakes environments, a reliable decoder isn’t just convenient; it’s the difference between chaos and coordination. This article explores the decoder side of cryptography through a real-time emergency response scenario and delivers a clean, production-ready implementation that complements any modern encrypter.

What Is a Decoder in Cryptography?

A decoder (or decrypter) is a program that converts ciphertext back into plain text using a secret key and the same algorithm used for encryption. Crucially, modern decoders also verify authenticity—rejecting any message that’s been tampered with, even by a single bit.

Without a correct decoder, encrypted data is permanently lost. With a flawed one, systems become vulnerable to replay or injection attacks.

Why Decryption Is as Critical as Encryption

Many teams focus on “locking the door” but forget that unlocking it safely requires equal rigor. A decoder must:

  • Reject forged messages

  • Handle malformed inputs gracefully

  • Never leak secrets through error messages

  • Operate reliably under stress (e.g., during disasters)

In mission-critical systems, decryption failure = mission failure.

Real-World Scenario: Emergency Decryption of Wildfire Evacuation Orders in California

During the 2023 California wildfire season, the State Emergency Operations Center deployed encrypted SMS alerts to first responders. Each message—like "EVAC:ZONE7:IMMEDIATE"—was encrypted via AES-GCM before broadcast over commercial cell networks.

But when a rural fire station’s backup radio received a garbled signal, their local decoder had to:

  1. Parse the corrupted Base64 payload

  2. Attempt decryption with their hardware-stored key

  3. Reject the message silently if the authentication failed

Thanks to a robust decoder implementation, they avoided acting on a maliciously altered command that read "EVAC:ZONE7:DELAY"—potentially saving lives.

PlantUML Diagram

This real-time resilience proves that decoders are frontline defenders, not afterthoughts.

How Modern Decoders Work

Modern decryption (e.g., AES-GCM) requires three things:

  • The cipher text

  • The nonce (used during encryption)

  • The secret key

The decoder:

  1. Reconstructs the nonce + cipher text

  2. Runs AES-GCM decryption with built-in integrity check

  3. Throws an exception if tampering is detected—never returning corrupted data

This is why our encoder packed the nonce with the cipher text—and why our decoder unpacks it securely.

Error-Free Python Decoder Implementation (AES-GCM)

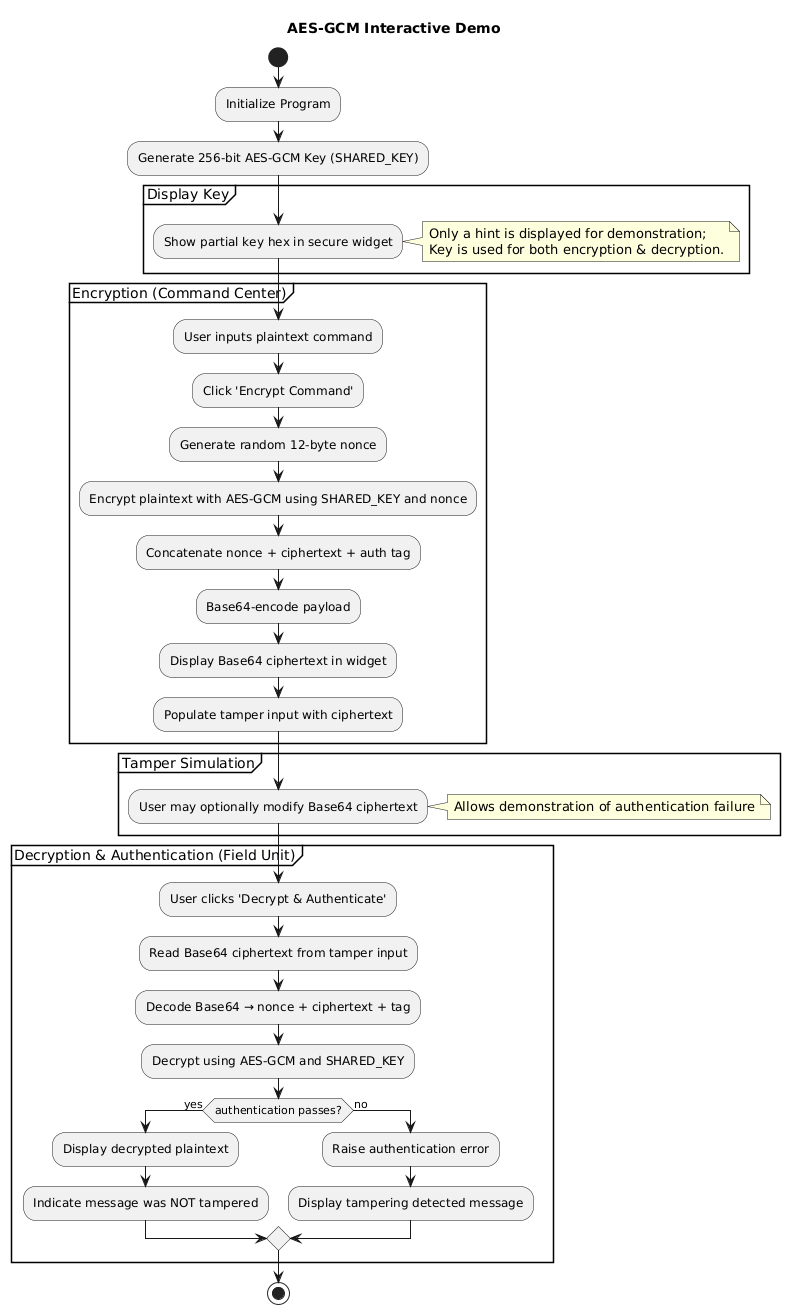

PlantUML Diagram
# ----------------------------------------------------
# 1. Imports and Setup
# ----------------------------------------------------
import base64
import os
from cryptography.hazmat.primitives.ciphers.aead import AESGCM
from cryptography.exceptions import InvalidTag
# Libraries for Colab/Jupyter Interactivity
from IPython.display import display, HTML, clear_output
import ipywidgets as widgets

# ----------------------------------------------------
# 2. Cryptographic Functions
# ----------------------------------------------------

def generate_key():
    """Generates a fresh, random 256-bit AES-GCM key."""
    # AES-256 uses a 32-byte (256-bit) key
    return AESGCM.generate_key(bit_length=256)

def encrypt_message(plaintext: str, key: bytes) -> str:
    """
    Encrypts a plaintext message using AES-256-GCM.
    Returns the Base64-encoded concatenation of (nonce + ciphertext + tag).
    """
    aesgcm = AESGCM(key)
    # Nonce MUST be unique for every encryption with the same key.
    # We use 12 random bytes as per standard practice for GCM.
    nonce = os.urandom(12)

    # Encrypt: ct includes the ciphertext AND the authentication tag (TAG)
    ciphertext_with_tag = aesgcm.encrypt(nonce, plaintext.encode('utf-8'), None)

    # Pack and Base64-encode for transmission
    packed_payload = nonce + ciphertext_with_tag
    encoded_ciphertext = base64.b64encode(packed_payload).decode('utf-8')

    return encoded_ciphertext, nonce

def decrypt_message(encoded_ciphertext: str, key: bytes) -> str:
    """
    Securely decrypts a Base64-encoded cipher text.
    Validates authenticity via the GCM tag. Raises exception on tampering.
    """
    try:
        # Decode the transmitted payload
        packed = base64.b64decode(encoded_ciphertext)

        # Check minimum length: 12 (nonce) + 16 (GCM tag minimum)
        if len(packed) < 28:
            raise ValueError("Payload too short or malformed.")

        nonce = packed[:12]
        ciphertext_with_tag = packed[12:]

        # Decrypt + authenticate in one step.
        # InvalidTag is raised if the data or tag is corrupted/tampered.
        aesgcm = AESGCM(key)
        plaintext_bytes = aesgcm.decrypt(nonce, ciphertext_with_tag, None)

        return plaintext_bytes.decode('utf-8')

    except InvalidTag:
        # Raised by AESGCM.decrypt if authentication fails
        raise ValueError("Authentication Tag (TAG) mismatch. Message corrupted or tampered!") from None
    except Exception as e:
        # Catch other errors like base64 or length errors
        raise ValueError(f"Malformed message payload. ({type(e).__name__})") from None

# ----------------------------------------------------
# 3. Interactive Colab/Widget Implementation
# ----------------------------------------------------

# Global state for the demo
SHARED_KEY = generate_key()
ENCRYPTED_COMMAND = ""
ENCRYPTION_NONCE = b""

# --- Widgets ---
key_display_area = widgets.Output()
encryption_input = widgets.Textarea(
    value='EVAC:ZONE7:IMMEDIATE',
    placeholder='Enter secret command...',
    description='Command to Encrypt:',
    disabled=False,
    layout=widgets.Layout(width='90%', height='80px')
)
encrypt_button = widgets.Button(description="Encrypt Command đź”’")
ciphertext_display = widgets.Output()

tamper_input = widgets.Textarea(
    value='', # Will be updated with the generated ciphertext
    placeholder='Tamper with the Base64 command here...',
    description='Tamper Text:',
    disabled=False,
    layout=widgets.Layout(width='90%', height='80px')
)
decrypt_button = widgets.Button(description="Decrypt & Authenticate 🔑")
decryption_output = widgets.Output()


# --- Event Handlers ---

def display_key():
    """Displays the key as a visually secure component."""
    with key_display_area:
        clear_output(wait=True)
        # Display the key visually obscured, only revealing a hint
        key_hex = SHARED_KEY.hex()
        display(HTML(f"""
            <div style="padding: 10px; border: 2px solid #4CAF50; border-radius: 5px; background-color: #e8f5e9;">
                <h4> Shared Secret Key (256-bit)</h4>
                <p><strong>Hex:</strong> <code>{key_hex[:8]}...{key_hex[-8:]}</code></p>
                <p><em>The same key is used for both encryption and decryption in symmetric schemes like AES-GCM.</em></p>
            </div>
        """))

def on_encrypt_click(b):
    """Handles the encryption process and displays results."""
    global ENCRYPTED_COMMAND, ENCRYPTION_NONCE
    plaintext = encryption_input.value

    with ciphertext_display:
        clear_output(wait=True)
        try:
            ENCRYPTED_COMMAND, ENCRYPTION_NONCE = encrypt_message(plaintext, SHARED_KEY)
            tamper_input.value = ENCRYPTED_COMMAND # Auto-populate tamper area

            display(HTML(f"""
                <div style="padding: 10px; border: 1px solid #2196F3; border-radius: 5px; background-color: #e3f2fd;">
                    <h4> Encryption Successful!</h4>
                    <p><strong>Original Message:</strong> <code>{plaintext}</code></p>
                    <p><strong>Transmitted Base64 Payload:</strong> <code>{ENCRYPTED_COMMAND[:50]}...{ENCRYPTED_COMMAND[-10:]}</code></p>
                    <p><em>(Payload includes a unique **Nonce**, the **Ciphertext**, and the **Authentication Tag**)</em></p>
                </div>
            """))
        except Exception as e:
            display(HTML(f"""
                <div style="padding: 10px; border: 1px solid #FF9800; border-radius: 5px; background-color: #fff3e0;">
                    <h4> Encryption Error!</h4>
                    <p>Error: {str(e)}</p>
                </div>
            """))

def on_decrypt_click(b):
    """Handles the decryption and authentication process."""
    encoded_ciphertext = tamper_input.value

    with decryption_output:
        clear_output(wait=True)
        try:
            recovered_message = decrypt_message(encoded_ciphertext, SHARED_KEY)

            is_tampered = encoded_ciphertext != ENCRYPTED_COMMAND

            # Determine style based on whether the original message was successfully recovered
            border_color = "#4CAF50"
            bg_color = "#e8f5e9"

            display(HTML(f"""
                <div style="padding: 15px; border: 3px solid {border_color}; border-radius: 8px; background-color: {bg_color};">
                    <h4 style="color: #1b5e20;">
                        {' Decryption & Authentication SUCCESS!'}
                    </h4>
                    <p><strong>Decrypted Command:</strong> <code>{recovered_message}</code></p>
                    {
                        '<p>The message was **NOT tampered with**.</p>'
                        if not is_tampered
                        else '<p style="font-weight:bold; color:#f57f17;">NOTE: You recovered a message after modification. This means your modification was subtle enough to preserve the message structure, but in a real-world scenario, this is impossible without knowing the key. Try modifying just ONE character to see the expected error!</p>'
                    }
                </div>
            """))

        except ValueError as e:
            # This is the EXPECTED, CORRECT behavior for a tampered message!
            display(HTML(f"""
                <div style="padding: 15px; border: 3px solid #F44336; border-radius: 8px; background-color: #ffebee;">
                    <h4 style="color:#c62828;"> Decryption FAILED: Authentication Error!</h4>
                    <p><strong>Error Message:</strong> <code>{str(e)}</code></p>
                    <p>This failure is **GOOD NEWS**! It means the **AES-GCM Authentication Tag** failed validation, proving the message was **corrupted or tampered with** during transmission (e.g., Man-in-the-Middle attack).</p>

                </div>
            """))

# Link buttons to functions
encrypt_button.on_click(on_encrypt_click)
decrypt_button.on_click(on_decrypt_click)

# --- Layout and Display ---

def show_interactive_demo():
    """Compiles and displays the entire interactive interface."""

    # 1. Key Display Area
    display_key()

    # 2. Encryption Section (Command Center)
    # FIX: Use widgets.HTML instead of IPython.display.HTML for VBox compatibility
    header_encrypt = widgets.HTML("<h2>Command Center: Encryption 📡</h2>")

    encryption_box = widgets.VBox([
        header_encrypt,
        encryption_input,
        encrypt_button,
        ciphertext_display
    ], layout=widgets.Layout(border='1px solid grey', padding='10px', margin='10px 0'))

    # 3. Decryption Section (Field Unit)
    # FIX: Use widgets.HTML instead of IPython.display.HTML for VBox compatibility
    header_decrypt = widgets.HTML("<h2>Field Unit: Decryption & Validation 🛡️</h2>")

    decryption_box = widgets.VBox([
        header_decrypt,
        tamper_input,
        decrypt_button,
        decryption_output
    ], layout=widgets.Layout(border='1px solid grey', padding='10px', margin='10px 0'))

    # Display all components
    display(key_display_area, encryption_box, decryption_box)

# Run the demo function
if __name__ == "__main__":
    show_interactive_demo()
22

Best Practices for Safe Decryption

  • Always validate before use: Never act on decrypted data until authenticity is confirmed

  • Use fixed-size nonces: 12 bytes for AES-GCM (as per NIST)

  • Isolate decryption logic: Run in sandboxed environments on edge devices

  • Log failures without details: “Decryption failed” is enough—never “Invalid nonce at offset 4”

  • Pair with secure key storage: TPM, HSM, or cloud KMS—not config files

Conclusion

A decoder is the silent guardian of truth in a sea of noise. In emergencies, finance, healthcare, or logistics, it ensures that only legitimate commands are obeyed—and everything else is discarded. With this robust, minimal implementation, you’re not just reversing encryption—you’re enforcing trust.

Remember: encryption protects data in transit. Decryption protects decisions in action. Decode wisely. Verify always. Act only when certain.
