Azure

Differences between Data Center, Zone, Region, and Geo Location in Microsoft Azure

Let’s clarify the differences between data center, zone, region, and geo location in Microsoft Azure, as these terms often overlap or get confused. I’ll provide an easy definition, a detailed explanation, a real-world example tied to MediaWorld or GlobalEdu, and an analogy for a student. This builds on our prior discussion but refines it by explicitly including region as a distinct concept (since "geo location" and "region" were conflated earlier). These distinctions are crucial for topics like storage redundancy, compute deployment, and understanding Azure’s global infrastructure.

Azure Location Hierarchy: A Quick Overview

Azure’s infrastructure is a network of physical and logical locations:

  • Data Center: The smallest unit—a single building with servers.
  • Zone (Availability Zone): A group of data centers within a region, isolated but nearby.
  • Region: A specific area (e.g., East US) with one or more zones or data centers.
  • Geo Location (Geography): A broad area (e.g., United States) containing multiple regions. Think of it as a school system: a classroom (data center), a school building with multiple classrooms (zone), a city with several schools (region), and a country with many cities (geo location).

1. Data Center

  • Easy Definition: A single building packed with computers that store and run your stuff, like a classroom full of servers.
  • Detailed Explanation: A data center is a physical facility with servers, storage, networking gear, power, cooling, and security. It’s where your Azure resources (e.g., blobs, VMs) physically live. Multiple data centers can exist in one Azure region, but you don’t choose the exact one—Azure manages placement within a region you select (e.g., East US). Risk: If the data center fails (e.g., hardware crash, fire), your data or app could go offline unless replicated elsewhere (e.g., with LRS, 3 copies stay in one data center). Use: Basic hosting for storage, VMs, or apps with minimal redundancy.
  • Real-World Example (MediaWorld): MediaWorld stores script.docx in a data center in East US with LRS. Three copies are on different servers in that building. If a server fails, it’s fine—but if the data center loses power, all copies are inaccessible.
  • Analogy: A classroom with three desks holding your homework. If a desk breaks, you’re safe, but if the room floods, all copies are lost.

2. Zone (Availability Zone)

  • Easy Definition: A group of data centers close together in the same region, like separate school buildings on one campus, each independent but connected.
  • Detailed Explanation: An availability zone is one or more data centers within a region, physically separated (e.g., different buildings miles apart) with independent power, cooling, and networking. Zones are designed to survive failures in other zones (e.g., a blackout in Zone 1 doesn’t affect Zone 2), offering high availability within a region. Not all regions have zones—only “zone-enabled” ones like East US, West Europe, or Southeast Asia (check Azure’s list). Risk: Protects against data center or zone-level failures, but not region-wide disasters (e.g., a hurricane hitting all of the East US). Use: Zone-Redundant Storage (ZRS) or zoned VMs for apps needing uptime within a region.
  • Real-World Example (MediaWorld): MediaWorld uses ZRS for interview.mp4 in East US, spreading three copies across Zone 1, Zone 2, and Zone 3 (e.g., different facilities in Virginia). If Zone 1 floods, Zones 2 and 3 keep the video available.
  • Analogy: Three school buildings on a campus, each with a copy of your homework. If one building loses power, the others save you—but if the campus sinks, all are gone.

3. Region

  • Easy Definition: A specific area (like a city) with one or more data centers or zones, like a school district with multiple campuses.
  • Detailed Explanation: A region is a defined geographical area in Azure (e.g., East US, West Europe, Japan East) containing at least one data center, often with multiple zones if zone-enabled. Each region is isolated but paired with another region (e.g., East US ↔ West US) for redundancy, and is located hundreds of miles apart to survive disasters. You choose a region when creating resources (e.g., storage accounts, VMs) based on latency (closer to users = faster) or compliance (e.g., data in Germany for GDPR). Risk: A region can fail (e.g., earthquake in the East US), but paired regions enable recovery with GRS/RA-GRS. Use: Primary location for resources, balancing performance and compliance.
  • Real-World Example (GlobalEdu): GlobalEdu deploys Entra ID users ([email protected]) in East US. Logins are fast for U.S. students, but if East US fails, a geo-redundant backup (e.g., West US) is needed for recovery.
  • Analogy: A city with multiple schools holds your homework. If one school burns down, others might help—but if the city floods, you need a backup elsewhere.

4. Geo Location (Geography)

  • Easy Definition: A big area (like a country or continent) with multiple regions, like a nation full of school districts.
  • Detailed Explanation: A geo location (or geography) is a large geographical boundary (e.g., United States, Europe, Asia Pacific) containing several regions (e.g., US has East US, West US, Central US). It’s the broadest scope—Azure uses it to organize regions and ensure data sovereignty (e.g., keeping data in Europe for EU laws). Geo-redundancy (GRS/RA-GRS) copies data between regions in different geo locations (e.g., East US to West US in the U.S.) for disaster recovery. Risk: Protects against massive regional failures (e.g., a U.S.-wide outage), but replication to another geo location (e.g., Europe) is rare unless specified (special setups like sovereign regions). Use: Global apps, compliance, or extreme disaster recovery.
  • Real-World Example (MediaWorld): MediaWorld uses RA-GRS for global-podcast.mp3, with three copies in East US (United States geo) and three in West US (same geo). If East US is hit by a storm, West US serves listeners—no need to leave the U.S. geo unless compliance demands it (e.g., Europe).
  • Analogy: A country with many cities, each with schools holding your homework. If one city floods, another city’s copy saves you—perfect for big emergencies.

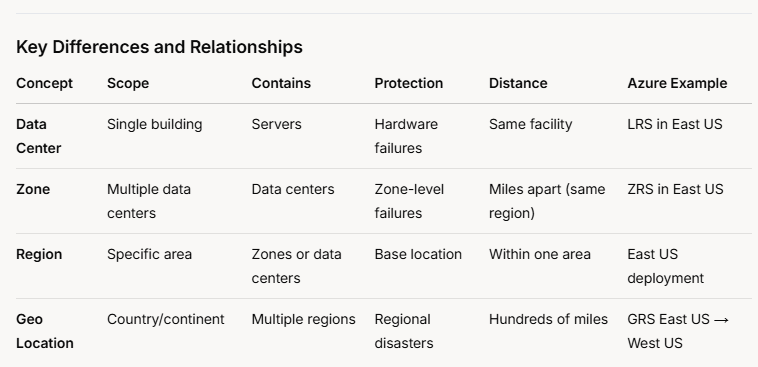

    Differences
  • Hierarchy: Data Center → Zone → Region → Geo Location (smallest to largest).
  • Control: You pick the region (e.g., East US); Azure picks the data center or zones within it unless you specify zones (e.g., VM in Zone 1).
  • Redundancy: LRS (data center), ZRS (zones), GRS/RA-GRS (regions across geo).

How Azure Uses These Locations

  1. Data Center: The physical home of your resources—Azure spreads the load across them in a region.
  2. Zone: Boosts availability within a region—e.g., ZRS splits data across zones for uptime.
  3. Region: Your choice for latency/compliance—e.g., East US for U.S. users, paired with West US for failover.
  4. Geo Location: Organizes regions globally—e.g., United States geo holds East US, West US; Europe geo holds North Europe, West Europe.

Examples in Action

  • Storage: LRS: script.docx in one East US data center. ZRS: interview.mp4 across East US zones. RA-GRS: global-podcast.mp3 in East US (region) and West US (paired region in U.S. geo).
  • Entra ID: User data in an East US data center; MFA policies span East US zones; B2B syncs across U.S. and Europe geo locations.

Paired Regions

  • Each region has a pair (e.g., East US ↔ West US, North Europe ↔ West Europe) for geo-redundancy.
  • Exceptions: Sovereign regions (e.g., Azure China) or single-region geos (e.g., Brazil South) may differ.

Practical Application in Sandbox

  • +Microsoft Learn Sandbox: Data Center: Create a storage account with LRS in East US—data stays in one (unknown) data center. Zone: Switch to ZRS (if available)—visualize zones in East US. Region: Pick “East US” when deploying—Azure assigns data centers/zones. Geo: Set GRS > Imagine failover to West US (sandbox can’t test secondary access).
  • Azure Trial: Full test: Create mediaworldstorage in East US > Set RA-GRS > Access secondary endpoint (mediaworldstorage-secondary.westus.blob.core.windows.net).

Tips

  • Definitions: Data Center = building, Zone = isolated in a region, Region = specific area, Geo = country/continent.
  • Scenarios: “High availability in East US” = ZRS (zones); “Disaster recovery” = GRS/RA-GRS (geo).
  • Choices: Know region selection (e.g., East US) and redundancy options tied to these levels.
  • Lab: Practice creating a storage account, picking a region, and setting redundancy.

Analogy Recap

  • Data Center: A classroom—homework’s safe unless the room fails.
  • Zone: Multiple buildings on a campus—lose one, others help, unless the campus goes down.
  • Region: A city with schools—your base, but a city-wide flood needs a backup.
  • Geo Location: A country with cities—an ultimate safety net for big disasters.

Why This Matters

  • Performance: Pick a region close to users (e.g., East US for the U.S.).
  • Availability: Use zones (ZRS) or geo-redundancy (GRS) for uptime.
  • Compliance: Match geo locations to laws (e.g., Europe geo for GDPR).
