Display Calendar Events Using Graph API in SharePoint Framework

Introduction

In this article, you will see how to display calendar events using Graph API in SharePoint Framework by performing the following tasks.

• Create an SPFx solution
• Implement the SPFx solution
• Deploy the solution
• Approve Graph API Permissions
• Test the web part

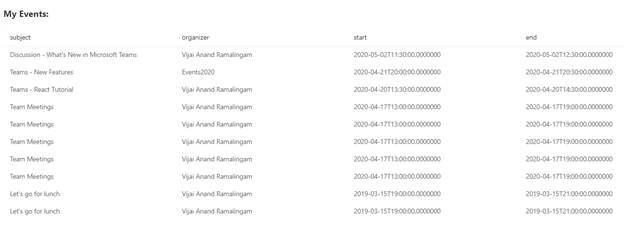

Display calendar events

Calendar events for the logged-in user are displayed below.

Prerequisites

• Set up your Office 365 Tenant
• Set up a development environment

Create a SPFx solution

Open the Node.js command prompt.

Create a new folder.

md spfx-graphAPI-samples

Navigate to the folder.

cd spfx-graphAPI-samples

Execute the following command to create the SPFx web part.

yo @microsoft/sharepoint

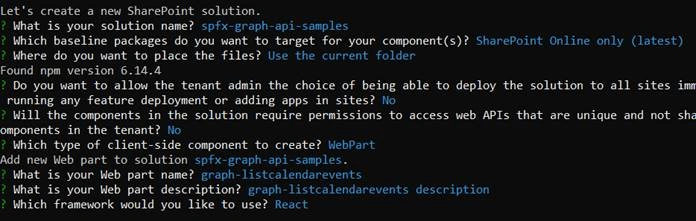

Enter all the required details to create a new solution, as shown below.

A Yeoman generator will perform the scaffolding process. Once it is completed, lock down the version of project dependencies by executing the following command:

Execute the following command to open the solution in the code editor.

code .

Implement the SPFx solution

Execute the following command to install the PnP React Controls NPM package.

npm install @pnp/spfx-controls-react –save

Execute the following command to install Microsoft Graph Typings.

npm install @microsoft/microsoft-graph-types

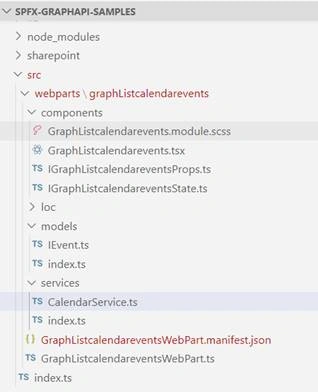

Folder structure

Open package-solution.json “config\package-solution.json” file and update the code, as shown below:

Note. In order to get all the events using Graph API, Calendars.Read permission is required.

{
  "$schema": "https://developer.microsoft.com/json-schemas/spfx-build/package-solution.schema.json",
  "solution": {
    "name": "spfx-graph-api-samples-client-side-solution",
    "id": "a452f2ac-837b-41db-9370-b3c872cbe376",
    "version": "1.0.0.0",
    "includeClientSideAssets": true,
    "isDomainIsolated": false,
    "webApiPermissionRequests": [
      {
        "resource": "Microsoft Graph",
        "scope": "Calendars.Read"
      }
    ]
  },
  "paths": {
    "zippedPackage": "solution/spfx-graph-api-samples.sppkg"
  }
}

Create a new folder named “models” inside src\webparts\graphListcalendarevents folder. Create a new file named IEvent.ts. Open the“src\webparts\graphListcalendarevents\models\IEvent.ts” file and update the code, as shown below.

export interface IEvent {
  subject: string;
  organizer?: string;
  start?: string;
  end?: string;
}
export interface IEventColl {
  value: IEvent[];
}

Create a new file named index.ts under the models folder. Open “src\webparts\graphListcalendarevents\models\index.ts” file and update the code as shown below.

export * from './IEvent';

Create a new file named as IGraphListcalendareventsState.ts under components folder. Open the “src\webparts\graphListcalendarevents\components\IGraphListcalendareventsState.ts” file and update the code, as shown below.

import { IEvent, IEventColl } from '../models/IEvent';
export interface IGraphListCalendarEventsState {
    events?: IEvent[];
}

Create a new folder named as “services” inside src\webparts\graphListcalendarevents folder. Create a new file named CalendarService.ts. Open “src\webparts\graphListcalendarevents\services\CalendarService.ts” file and update the code, as shown below. Import all the required modules and create an getEvents method which will retrieve events from the Calendar using Graph API.

import { MSGraphClient } from "@microsoft/sp-http";
import { WebPartContext } from "@microsoft/sp-webpart-base";
import { IEvent, IEventColl } from "../models";
export class CalendarService {
    public context: WebPartContext;
    public setup(context: WebPartContext): void {
        this.context = context;
    }
    public getEvents(): Promise<IEvent[]> {
        return new Promise<IEvent[]>((resolve, reject) => {
            try {
                // Prepare the output array
                var events: Array<IEvent> = new Array<IEvent>();

                this.context.msGraphClientFactory
                    .getClient()
                    .then((client: MSGraphClient) => {
                        client
                            .api("/me/events")
                            .select('subject,organizer,start,end')
                            .get((error: any, eventColl: IEventColl, rawResponse: any) => {
                                // Map the response to the output array
                                eventColl.value.map((item: any) => {
                                    events.push({
                                        subject: item.subject,
                                        organizer: item.organizer.emailAddress.name,
                                        start: item.start.dateTime,
                                        end: item.end.dateTime
                                    });
                                });
                                resolve(events);
                            });
                    });
            } catch (error) {
                console.error(error);
            }
        });
    }
}
const calendarService = new CalendarService();
export default calendarService;

Create a new file named index.ts under the services folder. Open “src\webparts\graphListcalendarevents\services\index.ts” file and update the code, as shown below.

import calendarService, { CalendarService } from './services/CalendarService';

Open “src\webparts\graphListcalendarevents\GraphListcalendareventsWebPart.ts” file and update the following.

• Import modules
• Update the OnInit method

Import modules

import calendarService, { CalendarService } from './services/CalendarService';

Update the OnInit method

protected onInit(): Promise<void> {
    return super.onInit().then(() => {
        calendarService.setup(this.context);
    });
}

Open “src\webparts\graphListcalendarevents\components\GraphListcalendarevents.tsx” file and import the modules.

import { IGraphListCalendarEventsState } from './IGraphListcalendareventsState';
import { IEvent, IEventColl } from '../models/IEvent';
import CalendarService from '../services/CalendarService';
import { List } from 'office-ui-fabric-react/lib/List';
import { ListView, IViewField, SelectionMode, GroupOrder, IGrouping } from "@pnp/spfx-controls-react/lib/ListView";

Update the render method, as shown below.

public render(): React.ReactElement<IGraphListcalendareventsProps> {
    const { events = [] } = this.state;
    return (
        <div className={styles.graphListcalendarevents}>
            <h1>My Events:</h1>
            <ListView
                items={this.state.events}
                compact={true}
                selectionMode={SelectionMode.none}
            />
        </div>
    );
}

Call the Calendar Service to retrieve the events.

public _getEvents = (): void => {
    CalendarService.getEvents().then(result => {
        this.setState({
            events: result
        });
    });
}

Updated React component (src\webparts\graphListcalendarevents\components\GraphListcalendarevents.tsx).

import * as React from 'react';
import styles from './GraphListcalendarevents.module.scss';
import { IGraphListcalendareventsProps } from './IGraphListcalendareventsProps';
import { IGraphListCalendarEventsState } from './IGraphListcalendareventsState';
import { escape } from '@microsoft/sp-lodash-subset';
import { IEvent, IEventColl } from '../models/IEvent';
import CalendarService from '../services/CalendarService';
import { List } from 'office-ui-fabric-react/lib/List';
import { ListView, IViewField, SelectionMode, GroupOrder, IGrouping } from "@pnp/spfx-controls-react/lib/ListView";
export default class GraphListcalendarevents extends React.Component<IGraphListcalendareventsProps, IGraphListCalendarEventsState> {
    constructor(props: IGraphListcalendareventsProps) {
        super(props);
        this.state = {
            events: []
        };
    }
    public componentDidMount(): void {
        this._getEvents();
    }
    public render(): React.ReactElement<IGraphListcalendareventsProps> {
        const { events = [] } = this.state;
        return (
            <div className={styles.graphListcalendarevents}>
                <h1>My Events:</h1>
                <ListView
                    items={this.state.events}
                    compact={true}
                    selectionMode={SelectionMode.none}
                />
            </div>
        );
    }
    public _getEvents = (): void => {
        CalendarService.getEvents().then(result => {
            this.setState({
                events: result
            });
        });
    }
}

Deploy the solution

Execute the following commands to bundle and package the solution.

gulp bundle --ship
gulp package-solution --ship

Navigate to tenant app catalog – Example - https://c986.sharepoint.com/sites/appcatalog/SitePages/Home.aspx

Upload the package file (sharepoint\solution\spfx-graph-api-samples.sppkg). Click Deploy.

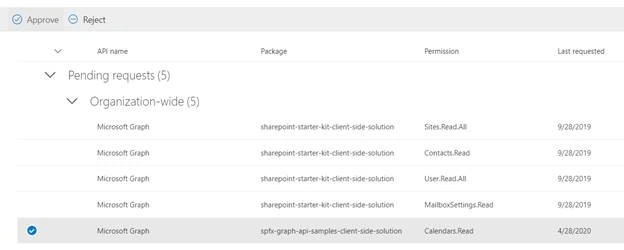

Approve Graph API permissions

Navigate to SharePoint Admin center and click API access in the left navigation. Select the permission requested for this web app and click Approve.

Test the webpart

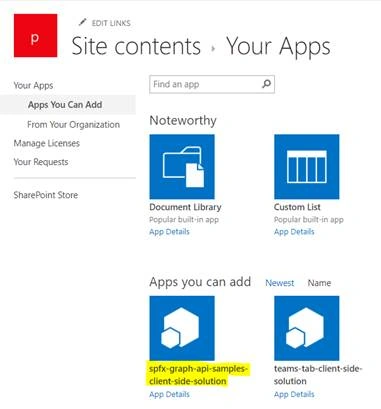

Navigate to the SharePoint site and add the app.

Navigate to the page and add the webpart.

Summary

In this article, you saw how to display calendar events using Graph API in SharePoint Framework.
