Dissecting Default Flutter App Code

In my last article, I dissected the folder structure of the default Flutter app so you could understand how to manage the various resources needed for developing a cross platform app using Flutter. In this final part of the getting started series we will dissect the code of the default flutter app and understand the basic concepts of developing cross platform mobile applications using Flutter

In my last article, I dissected the folder structure of default Flutter app so you could understand how to manage the various resources needed for developing a cross-platform app using Flutter. In this final part of the getting started series, we will dissect the code of the default Flutter app and understand the basic concepts of developing a cross-platform mobile application using Flutter.

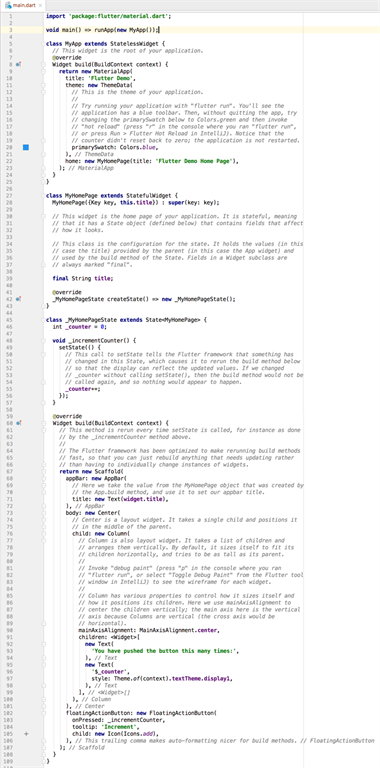

When we create a new flutter application in any IDE, we get the following code,

Flutter

In this article, we will focus on understanding this code along with some core concepts of Flutter Development.

As you can see from the above code most of the things are explained pretty well via the comments (to me it even looks like comment overboard). I will try to explain the things which are not mentioned in comments and are needed for understanding the code.

Some Basic Concepts

  • Dart Language
    Dart is an Object Oriented language which is used to develop Flutter applications. The syntax of Dart is very similar to that of C#, Java or C++ so those of you who have worked on any one these language will be easily able to understand the code.

  • Widgets
    The complete Flutter mobile application development is based on Widgets which, as per Wikipedia, is a small control element in any GUI, similarly in Flutter all the controls are called Widgets.The complete list of Flutter Widgets is given at this official documentation link however these widgets are of primarily two types:
    1. Stateless Widget
      These widgets are used to create the type of user interface which does not depend on anything other than the configuration information in the object itself like application theme which is dependent on some properties and nothing else.

    2. Stateful Widget
      These widgets are used to create the regular user interface of the application where the UI is dynamic and based on the various inputs or actions done by the user.

Explaining Code

  • import ‘package:flutter/material.dart’;
    The very first line of code is quite self explanatory, it’s being used to import the library Material.dart. This library is used to design the UI which follows Google’s Material Design Guideline. If you want to use controls which are based on iOS controls you will have to import cupertino.dart package.

  • void main() => runApp(new MyApp()); :
    This is the main entry point or starting point of the App. When executed the compiler will create an instance of MyApp class and pass it to the runApp function which will execute the application.

  • class MyApp extends StatelessWidget
    This is the main root of the application. It is extended from StatelessWidget and used to initialize the Material App and to set the Theme, color and home screen of the application. Here MyApp is just the name given to default root class, if you want you can change the name of the class as per your requirements.

  • class MyHomePage extends StatefulWidget
    This class contains the code for Homepage/Screen of the application which is invoked in the MyApp class. This class is extended from StatefulWidget widget class because the elements of the HomePage will change on the actions performed by the user. The Last line code ( _MyHomePageState createState() => new _MyHomePageState(); ) of this class is used to create the state of the screen.

  • class _MyHomePageState extends State
    This is the class which is reponsible for changing the state of the Home screen on the basis of user input. This class is Extended from State class by passing MyHomePage as type.

This was a brief explanation of the default Flutter app code. We will get more used to this as we work further on Flutter development. Let me know if I have missed anything or if you want to know about anything in particular related to Flutter development. I will be coming up with more such articles in the near future.
