Distributed Tracing for Developers in AI and Microservices

Abstract / Overview

Distributed tracing is a critical observability technique for developers building microservices and AI-powered applications. It connects logs, metrics, and request flows into a single end-to-end view. This guide focuses on developer implementation: how to instrument code, propagate trace context, visualize spans, and debug issues. You’ll learn to use tools like OpenTelemetry, Jaeger, and CrewAI’s tracing backend.

developer-distributed-tracing-ai-sequence-hero

Conceptual Background

Developer’s Pain Without Tracing

  • You see API latency in metrics, but can’t pinpoint which service is slow.

  • Logs show errors but lack request correlation.

  • Debugging across multiple services becomes guesswork.

Why Developers Need Tracing

  • Precise debugging: Find the exact failing service and method.

  • Performance tuning: Measure AI inference time vs. DB latency.

  • Production readiness: Correlate errors across distributed systems.

  • Team alignment: Shared trace IDs let frontend, backend, and DevOps debug the same request.

Developer Walkthrough: Implementing Tracing

1. Setup Tracing Provider (Python Example with OpenTelemetry)

from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor, ConsoleSpanExporter

# Initialize tracer provider
trace.set_tracer_provider(TracerProvider())
tracer = trace.get_tracer(__name__)

# Add span processor
processor = BatchSpanProcessor(ConsoleSpanExporter())
trace.get_tracer_provider().add_span_processor(processor)

2. Create Spans Around Code Blocks

with tracer.start_as_current_span("generate_summary") as span:
    span.set_attribute("component", "ai-service")

    # Simulate DB query
    with tracer.start_as_current_span("db_query") as db_span:
        db_span.set_attribute("db.system", "postgresql")
        # query execution...

    # Simulate AI inference
    with tracer.start_as_current_span("model_inference") as ml_span:
        ml_span.set_attribute("model.name", "gpt-neo")
        # inference logic...

3. Propagate Trace Context Across Services

For HTTP services, use W3C Trace Context (traceparent header):

traceparent: 00-4bf92f3577b34da6a3ce929d0e0e4736-00f067aa0ba902b7-01

Libraries like opentelemetry-instrumentation-requests automatically attach headers when making requests.

4. Export Traces to a Backend

  • Jaeger → best for local dev and debugging.

  • Grafana Tempo → scalable tracing for production.

  • CrewAI Tracing → AI-specific observability.

Example Jaeger exporter in Python:

from opentelemetry.exporter.jaeger.thrift import JaegerExporter

jaeger_exporter = JaegerExporter(
    agent_host_name="localhost",
    agent_port=6831,
)

trace.get_tracer_provider().add_span_processor(
    BatchSpanProcessor(jaeger_exporter)
)

Sample Workflow JSON for Developers

{
  "trace_id": "a7b9c8d0e1f2",
  "root_span": "user_request",
  "spans": [
    {"id": "1", "name": "Auth Service", "duration_ms": 15, "status": "success"},
    {"id": "2", "name": "Metadata Fetch", "duration_ms": 40, "status": "success"},
    {"id": "3", "name": "AI Model Inference", "duration_ms": 220, "status": "success"},
    {"id": "4", "name": "DB Write", "duration_ms": 8, "status": "success"}
  ]
}

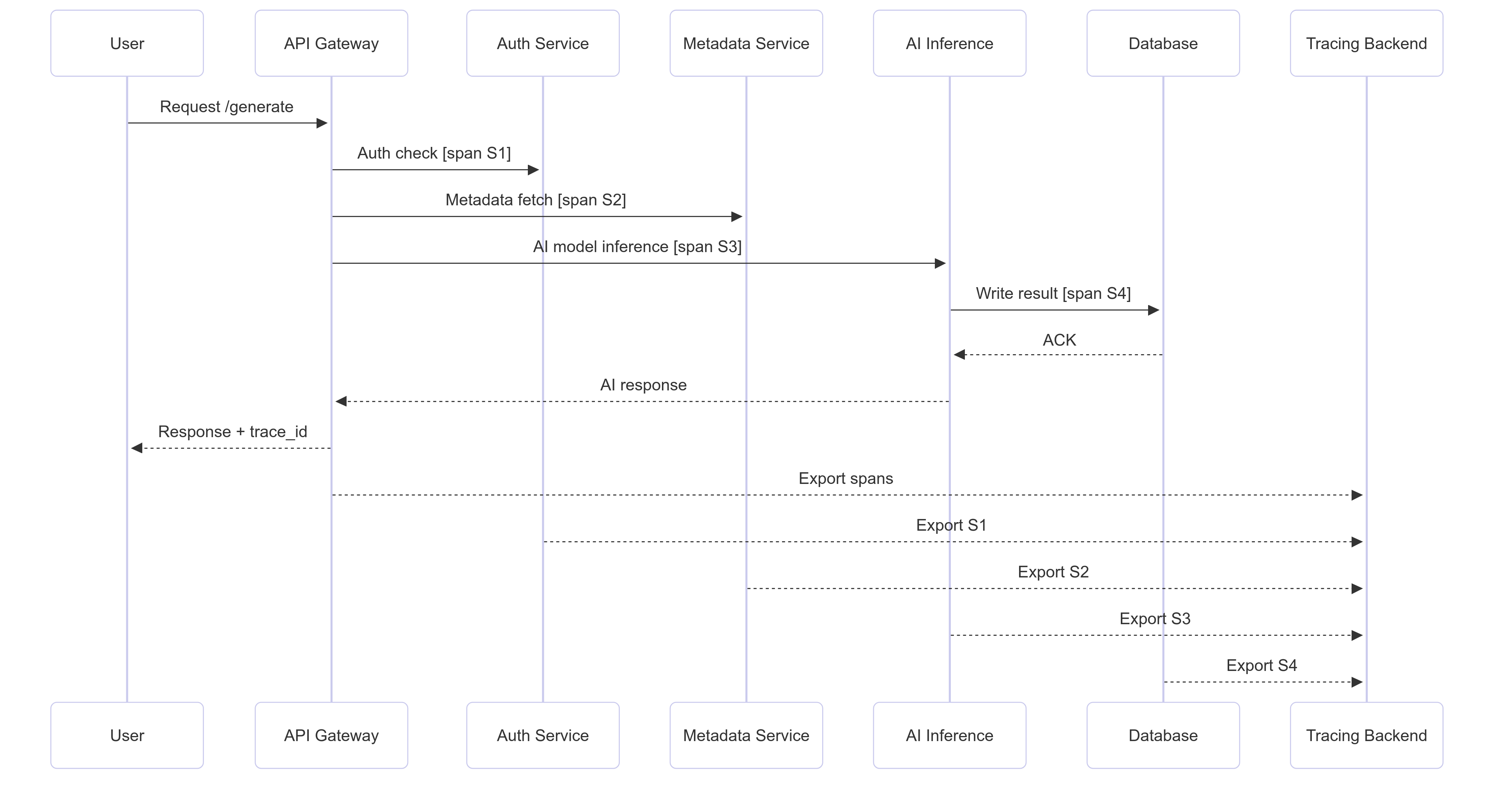

Diagram: Developer View of AI Request Tracing

developer-distributed-tracing-ai-sequence

Developer Use Cases

  • Debugging latency: Spot slow DB queries or AI inference in real traces.

  • Error correlation: Link errors from logs to specific spans.

  • Performance regression testing: Compare traces before/after deployment.

  • CI/CD pipelines: Fail builds if latency exceeds trace thresholds.

  • AI observability: Measure tokens/sec, inference duration, and success rates per trace.

Limitations / Considerations

  • Overhead: Keep tracing lightweight using sampling (e.g., 1% of requests in production).

  • Storage: Traces generate high cardinality data; use scalable backends.

  • Consistency: All services must propagate trace_id.

  • Security: Don’t log sensitive payloads inside spans.

Fixes (Developer Pitfalls)

  • Problem: Traces not connecting → Fix: Ensure traceparent the header is passed downstream.

  • Problem: Too much data → Fix: Enable head/tail-based sampling.

  • Problem: Missing details → Fix: Add attributes (db.system, model.name, user.id).

  • Problem: Visualization is messy → Fix: Use the service name and span kind consistently.

Developer FAQs

Q1. Which language SDKs support tracing?
OpenTelemetry supports Python, Go, Java, Node.js, .NET, and more.

Q2. Can I trace AI-specific workflows?
Yes. Model inference, embedding lookups, and token generation can all be spans.

Q3. Which backend should I choose for dev vs prod?

  • Dev: Jaeger, Zipkin.

  • Prod: Grafana Tempo, Honeycomb, CrewAI Tracing.

Q4. How to test tracing locally?
Run Jaeger in Docker:

docker run -d --name jaeger \
  -e COLLECTOR_ZIPKIN_HTTP_PORT=9411 \
  -p 5775:5775/udp -p 6831:6831/udp \
  -p 16686:16686 jaegertracing/all-in-one:1.35

Access UI at http://localhost:16686.

References

Conclusion

Distributed tracing is one of the most practical tools developers have for debugging and optimizing microservices and AI workflows. By instrumenting code with OpenTelemetry, exporting spans to backends like Jaeger or CrewAI, and analyzing flame graphs, developers gain full-stack visibility. Tracing should be treated as code—not just infrastructure—so that every span reflects meaningful developer context.
