Draw Dynamic ASP.NET Core Blazor Bubble Chart Using Canvas Extensions





Here we have planned to write a series of articles. In each article we will explain in detail about how to draw our own chart for ASP.NET Core Blazor Web Application using HTML5 Canvas Blazor Extensions.



Today in this article we will see on how to draw our own bubble chart using ASP.NET Core Blazor Web Application using HTML5 Canvas.

In this series we will see one by one in detail starting from,

1. Dynamic Bar Chart using Blazor Canvas Extentoins
2. Dynamic Bubble Chart using Blazor Canvas Extentoins
3. Dynamic Line Chart using Blazor Canvas Extentoins
4. Dynamic Bar & Line Chart using Blazor Canvas Extentoins

Prerequisites

• Visual Studio 2019 16.3or later
• .NET Core 3.0 SDK

Create ASP.NET Core Blazor Server Application



After installing all the prerequisites listed above, click Start >> Programs >> Visual Studio 2019 >> Visual Studio 2019 on your desktop. Click New >> Project.

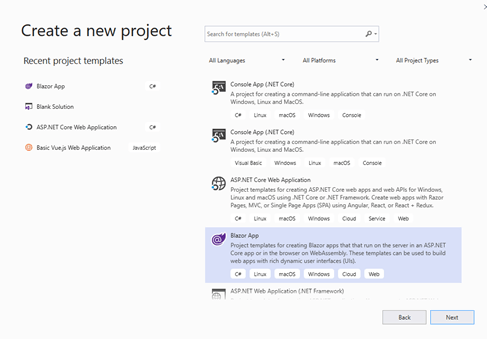

Select Blazor App and click Next button.

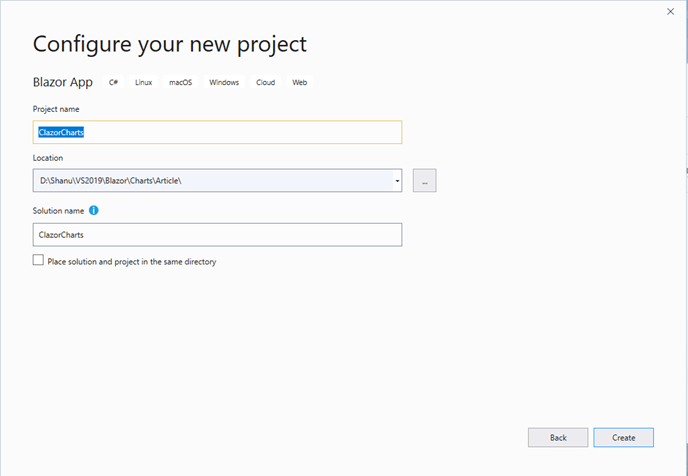

Select your project folder and enter your project name and then click Create button.

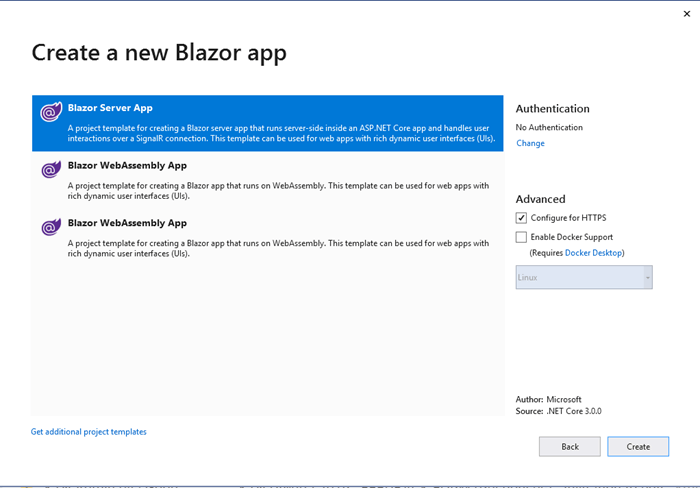

Select Blazor Server App







After creating ASP.NET Core Blazor Server Application, wait for a few seconds. You will see the below structure in Solution Explorer.







In the Data folder we can add all our Model, DBContext Class, Services and Controller. We will see that in this article.



In the Pages folder we can add all our component files. Component files all should have the .razor extension with the file name.



In the Shared folder we can add all left menus from NavMenu.razor file and change the main content from the MainLayout.razor file.



In the _Imports.razor file we can see all sets of imports have been added  to use in all component pages.



In the App.razor file we will add our main component to be displayed by default when run in browser. Appsertings.json can be used to add the connection string.



Startup.cs file is important file where we add all our endpoints for example like Controller end points, HTTP Client, add services and dbcontext to be used in startup Configuration method.



Run to test the application

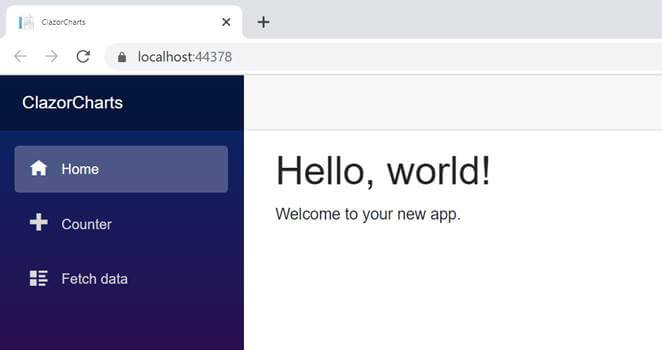

When we run the application, we can see that the left side has navigation and the right side contains the data. We can see as the default sample pages and menus will be displayed in our Blazor web site. We can use the pages or remove it and start with our own page.







Step 2 Install the Packages



To use the Blazor Canvas Extension in our Blazor Application we need to install the below packages



Blazor.Extensions.Canvas

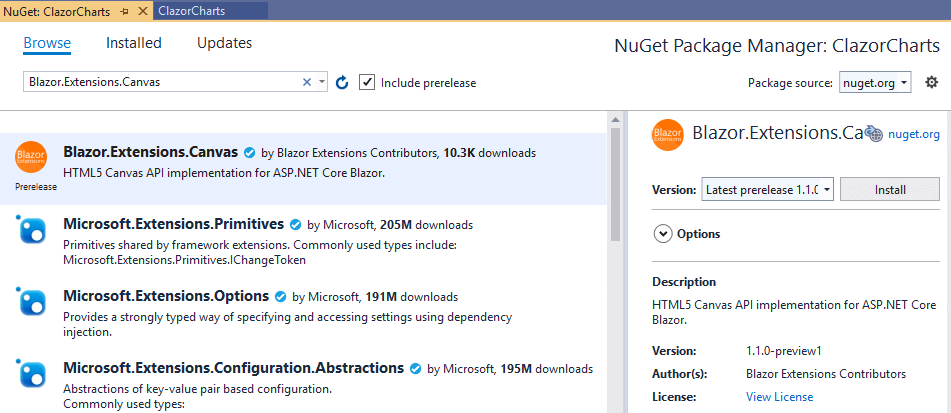

Right click the solution and click on the Manage Nuget package. Search for all the packages and install all the needed packages like the below image.

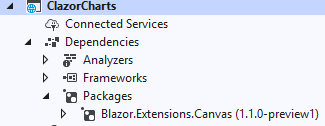

After installing the package, we can confirm it from Dependencies Packages.







Note

Add the blazor.extensions.canvas.js File.



Open the _Host.cshtml file and add the below code inside the head tag.

<script src="_content/Blazor.Extensions.Canvas/blazor.extensions.canvas.js"></script>





Step 3 Create Model Class



Next, we need to create the Model class for using in our application for binding the Item name and Item count in the Bar Chart.

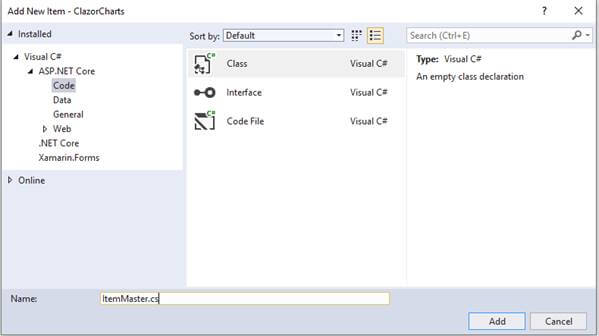

Right Click the Data Folder and create new class file as “ItemMaster.cs”







In the class we add the property field name same as in the below code.

public String ItemName { get; set; }
   public int SaleCount { get; set; }

Creating Service Class

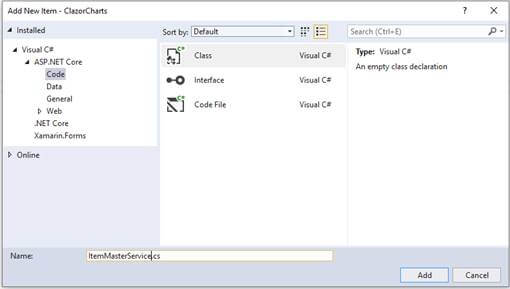

Next we create the ItemMasterService class in order to bind the result in chart with sample Item details with the Item Name and Sale Count per each item. For this we right click on the Data folder and click on Add New Item to add our ItemMasterService class.







In this class we create a method to get the ItemMaster details with a sample 5 records of items with item name and sale count per each item as random values.

public class ItemMasterService
    {
        public Task<ItemMaster[]> GetItemMasters()
        {
            var rng = new Random();
            int ivale = 0;
            return Task.FromResult(Enumerable.Range(1, 5).Select(index => new ItemMaster
            {
                ItemName = "itm" + rng.Next(1, 100),
                SaleCount = rng.Next(20, 100),
            }).ToArray()); ;
        }
    }

Step 4 - Add the Service to the Startup.cs



We need to add the services created by us to the Startup.cs ConfigureServices method.



services.AddSingleton<ItemMasterService>();



Step 5 - Working with Client Project



First, we need to add the Razor Component page



Add Razor Component

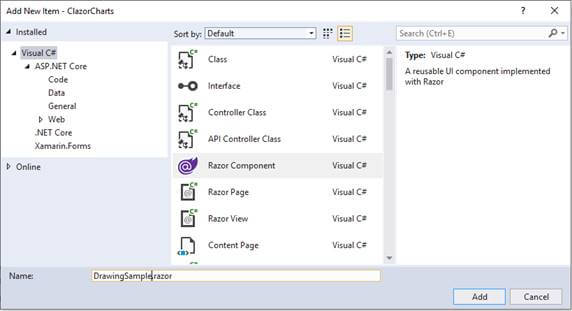

To add the Razor Component page right click the Pages folder from the Client project. Click on Add >> New Item >> Select Razor Component >> Enter your component name. Here we have given the name as DrawingSample.razor.



Note all the component files need to have the extensions as .razor.







In Razor Component Page we have 3 parts of code. First is the Import part where we import all the references and models for using in the component, HTML design and data binding part and finally we have the function part to call all the web API to bind in our HTML page and also to perform client-side business logic to be displayed in component page.



Import part



First, we import all the needed support files and references in our Razor View page. Here we have first imported our Model class to be used in our view and also imported Blazor Canvas Extension for drawing our own chart control for Blazor applications.

@page "/drawingsample"
@using Blazor.Extensions.Canvas
@using Blazor.Extensions;
@using Blazor.Extensions.Canvas.Canvas2D;
@using ClazorCharts.Data
@inject ItemMasterService MasterService

HTML design and data binding part



Next, we design our DrawingSample details page to display the Bar Chart with item name and sales count per each item. Here we have added the Blazor Extension Canvas HTML5 canvas in our Blazor HTML design part for drawing the bar chart.

<h3>Shanu - Draw Bar Chart using Blazor Canvas Extensions</h3>
<hr />
<BECanvas Width="500" Height="500" @ref="_canvasReference"></BECanvas>

Function Part



Function part is to get the Service result and bind the result in array and to draw and plot the values for displaying the bar chart.



Here first we declare the ItemsArray to get bind the result of Item Master in BarChart.



Next, we create a string array as pirChartColor to draw each bar with different color from the array.

In OnInitializedAsync we get the ItemMasterService result and bind the result in the ItemsArrys.



In OnAfterRenderAsync Method we draw the Bar Chart using C# draw objects to the Canvas. we get all item names and values using foreach of Item Array and here we plot all values and draw Bubble charts using the Array values. Using the value, we will draw our Bubble chart on canvas tag from this method.



Bubble Chart



Bubble chart usually has a minimum of 3 variables,  as one is the Bubble Size and X plot value and y plot value. Here in our example the Bubble size is our SaleCount values and x and y values to draw the bubble inside our chart.

@code {
    private Canvas2DContext _context;
    protected BECanvasComponent _canvasReference;
    ItemMaster[] itemsArrys;
    private static readonly string[] pirChartColor = new [] {
        "#3090C7",
        "#BDEDFF",
        "#F9B7FF",
        "#736AFF",
        "#78C7C7",
        "#B048B5",
        "#4E387E",
        "#7FFFD4",
        "#3EA99F",
        "#EBF4FA",
        "#F9B7FF",
        "#8BB381",
        //"#6CBB3C", "#F87217", "#EAC117", "#EDDA74", "#CD7F32", "#CCFB5D", "#FDD017", "#9DC209", "#E67451", "#728C00","#617C58", "#64E986"
    };
    protected override async Task OnInitializedAsync() {
        itemsArrys = await MasterService.GetItemMasters();
    }
    protected override async Task OnAfterRenderAsync(bool firstRender) {
        lastend = 0;
        xSpace = 10;
        XvalPosition = xSpace;
        maxDataVal = itemsArrys.Max(row => row.SaleCount);
        noOfPlots = itemsArrys.Length;
        chartWidth = Convert.ToInt32(_canvasReference.Width);
        chartHeight = Convert.ToInt32(_canvasReference.Height);
        int widthcalculation = (Convert.ToInt32(_canvasReference.Width) - 100) / itemsArrys.Length;
        chartHeight = Convert.ToInt32(_canvasReference.Height) - 40;
        this._context = await this._canvasReference.CreateCanvas2DAsync();
        int colorval = 0;
        // Draw the axises
        await this._context.BeginPathAsync();
        await this._context.MoveToAsync(xSpace, xSpace);
        // first Draw Y Axis
        await this._context.LineToAsync(xSpace, chartHeight);
        // Next draw the X-Axis
        await this._context.LineToAsync(Convert.ToInt32(_canvasReference.Width) - 10, chartHeight);
        await this._context.StrokeAsync();
        int varbubbleSize = 30;
        int ival = 1;
        @foreach(var itemsArry in itemsArrys) {
            // Draw Xaxis Plots Line and Text   ***********
            XvalPosition = XvalPosition + widthcalculation;
            await this._context.MoveToAsync(XvalPosition, chartHeight);
            await this._context.LineToAsync(XvalPosition, chartHeight + 15);
            await this._context.StrokeAsync();
            await this._context.SetFillStyleAsync("#034560");
            await this._context.SetStrokeStyleAsync("#034560");
            await this._context.SetFontAsync("12pt Calibri");
            await this._context.StrokeTextAsync(itemsArry.ItemName, XvalPosition - 40, chartHeight + 24);
            //  EndXval Plotting  ************
            ////Draw Bar Graph  **************==================********************
            await this._context.SetFillStyleAsync(pirChartColor[colorval]);
            await this._context.SetStrokeStyleAsync(pirChartColor[colorval]);
            await this._context.BeginPathAsync();
            varbubbleSize = itemsArry.SaleCount;
            if (itemsArry.SaleCount > 70) {
                varbubbleSize = itemsArry.SaleCount - 10;
            }
            await this._context.ArcAsync(getXPlotvalue(ival) - 6, getYPlotVale(varbubbleSize - 10), varbubbleSize, varbubbleSize, Math.PI * 2, true);
            await this._context.FillAsync();
            await this._context.StrokeAsync();
            await this._context.SetFillStyleAsync("#034560");
            await this._context.SetStrokeStyleAsync("#034560");
            await this._context.SetFontAsync("12pt Calibri");
            await this._context.StrokeTextAsync(itemsArry.SaleCount.ToString(), getXPlotvalue(ival) - 12, getYPlotVale(itemsArry.SaleCount) + 46);
            await this._context.SetStrokeStyleAsync("#C0C0C0");
            colorval = colorval + 1;
            ival = ival + 1;
        }
    }

Method to get X plot and Y Plot Value



Here we calculate drawing our Chart item in the X and in Y Axis.

    // to return the x-Value
private double getXPlotvalue(int val) {

return Convert.ToDouble((chartWidth-40) / noOfPlots) * val + (xSpace * 1.5) - 20;
}

// Return the y value
private double  getYPlotVale(int val) {
   return chartHeight - (((chartHeight - xSpace) / maxDataVal) * val);

}  }

Navigation Menu



Now we need to add this newly added DrawingSample Razor page to our left Navigation. For adding this, open the Shared Folder and open the NavMenu.cshtml page and add the menu.

<li class="nav-item px-3">
            <NavLink class="nav-link" href="DrawingSample">
                <span class="oi oi-list-rich" aria-hidden="true"></span> Bar Chart
            </NavLink>
        </li>

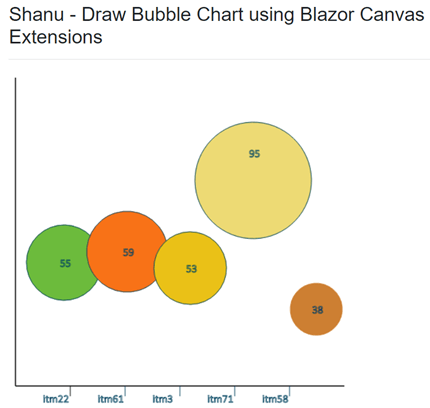

Build and Run the Application







Conclusion



In this sample we have used a simple method to display the Bubble Chart within 0 to 100 range values. In order to use this for many scales, we can extend this chart to draw the Legend and other details. As this is our own Chart we can add any functions as per our need. In the next article we will see in detail on making our own chart using ASP.NET Blazor.
