Encrypt And Decrypt Files In Windows Runtime Apps Using Windows Cryptography Technique

Here are the steps:

Step 1:

Create a simple Windows Runtime Project. Click New Project, Visual C#, Windows 8, Windows, then Blank App (Windows 8.1).


Step 2:

Let's add two buttons in MainPage.xaml with click events:

  • Encrypt Button
  • Decrypt Button
  1. <Page
  2.     x:Class="Encrypt_Decrypt.MainPage"
  3.     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  4.     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  5.     xmlns:local="using:Encrypt_Decrypt"
  6.     xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
  7.     xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  8.     mc:Ignorable="d">
  9.
  10.     <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
  11.         <Button Content="Encrypt" Name="btn_Encrypt" Height="125" Margin="65,365,0,278" Width="225" Click="btn_Encrypt_Click"></Button>
  12.         <Button Content="Decrypt" Name="btn_Decrypt" Margin="350,365,0,278" Height="125" Width="231" Click="btn_Decrypt_Click"></Button>
  13.     </Grid>
  14. </Page>
Step 3:

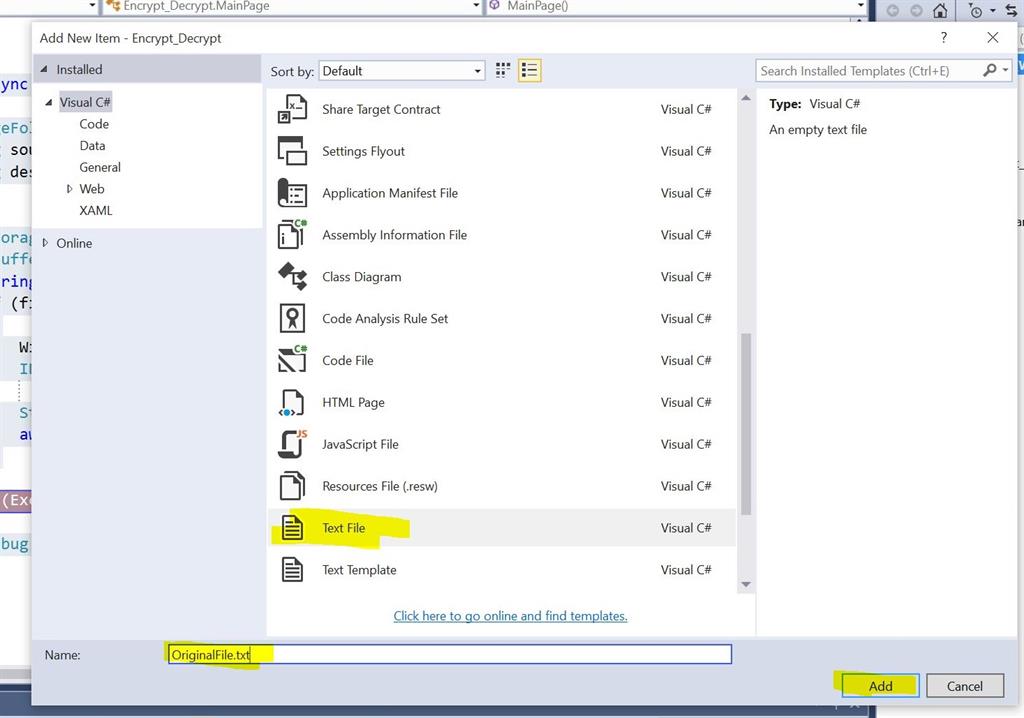

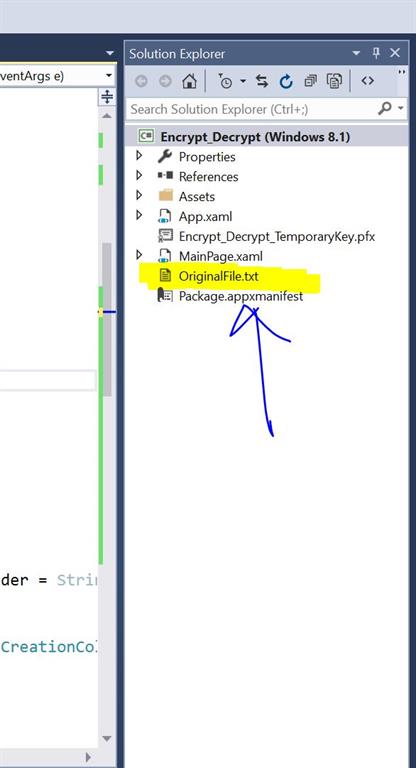

Let's add a text file in Solution Explorer for testing purpose. We will copy that file from Installed Location to Local folder and encrypt it.



Step 4: Name it ‘OriginalFile.txt’


Step 5:Add some text in this text file.



Step 6:

In the code behind: MainPage.xaml.cs, Update your code with this:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Diagnostics;
  4. using System.IO;
  5. using System.Linq;
  6. using System.Runtime.InteropServices.WindowsRuntime;
  7. using Windows.ApplicationModel;
  8. using Windows.Foundation;
  9. using Windows.Foundation.Collections;
  10. using Windows.Storage;
  11. using Windows.Storage.Streams;
  12. using Windows.UI.Xaml;
  13. using Windows.UI.Xaml.Controls;
  14. using Windows.UI.Xaml.Controls.Primitives;
  15. using Windows.UI.Xaml.Data;
  16. using Windows.UI.Xaml.Input;
  17. using Windows.UI.Xaml.Media;
  18. using Windows.UI.Xaml.Navigation;
  19.
  20.
  21. namespace Encrypt_Decrypt
  22. {
  23.
  24.     public sealed partial class MainPage : Page
  25.     {
  26.         public MainPage()
  27.         {
  28.             this.InitializeComponent();
  29.         }
  30.
  31.         private async void btn_Encrypt_Click(object sender, RoutedEventArgs e)
  32.         {
  33.             //For Copying File from Installed Location to Local Folder
  34.             StorageFolder appFolder = ApplicationData.Current.LocalFolder;
  35.             StorageFile stopfile = await StorageFile.GetFileFromApplicationUriAsync(new Uri("ms-appx:///OriginalFile.txt"));
  36.             await stopfile.CopyAsync(ApplicationData.Current.LocalFolder, "OriginalFile.txt", NameCollisionOption.ReplaceExisting);
  37.
  38.             string sourceFileName = "OriginalFile.txt";
  39.             string destinationFileName = "EncryptedFile.txt";
  40.
  41.             try
  42.             {
  43.                 StorageFile file = await appFolder.GetFileAsync(sourceFileName);
  44.                 IBuffer fileStreamBuffer = await FileIO.ReadBufferAsync(file);
  45.                 string protectionDescriptor = "LOCAL=user";
  46.                 if (fileStreamBuffer.Length != 0)
  47.                 {
  48.                     Windows.Security.Cryptography.DataProtection.DataProtectionProvider provider = String.IsNullOrEmpty(protectionDescriptor) ? new Windows.Security.Cryptography.DataProtection.DataProtectionProvider() : new Windows.Security.Cryptography.DataProtection.DataProtectionProvider(protectionDescriptor);
  49.                     IBuffer encryptedBuffer = await provider.ProtectAsync(fileStreamBuffer);
  50.
  51.                     StorageFile encryptedFile = await appFolder.CreateFileAsync(destinationFileName, CreationCollisionOption.ReplaceExisting);
  52.                     await FileIO.WriteBufferAsync(encryptedFile, encryptedBuffer);
  53.                 }
  54.             }
  55.             catch (Exception ex)
  56.             {
  57.                 Debug.WriteLine(ex.ToString());
  58.             }
  59.         }
  60.
  61.
  62.         private async void btn_Decrypt_Click(object sender, RoutedEventArgs e)
  63.         {
  64.             StorageFolder appFolder = ApplicationData.Current.LocalFolder;
  65.             string sourceFileName = "EncryptedFile.txt";
  66.             string destinationFileName = "DecryptedFile.txt";
  67.             try
  68.             {
  69.                 StorageFile file = await appFolder.GetFileAsync(sourceFileName);
  70.                 IBuffer fileStreamBuffer = await FileIO.ReadBufferAsync(file);
  71.                 string protectionDescriptor = "LOCAL=user";
  72.                 if (fileStreamBuffer.Length != 0)
  73.                 {
  74.                     Windows.Security.Cryptography.DataProtection.DataProtectionProvider provider = String.IsNullOrEmpty(protectionDescriptor) ? new Windows.Security.Cryptography.DataProtection.DataProtectionProvider() : new Windows.Security.Cryptography.DataProtection.DataProtectionProvider(protectionDescriptor);
  75.                     IBuffer encryptedBuffer = await provider.UnprotectAsync(fileStreamBuffer);
  76.
  77.                     StorageFile encryptedFile = await appFolder.CreateFileAsync(destinationFileName, CreationCollisionOption.ReplaceExisting);
  78.                     await FileIO.WriteBufferAsync(encryptedFile, encryptedBuffer);
  79.                 }
  80.             }
  81.             catch (Exception ex)
  82.             {
  83.                 Debug.WriteLine(ex.ToString());
  84.             }
  85.         }
  86.     }
  87. }

Step 7:

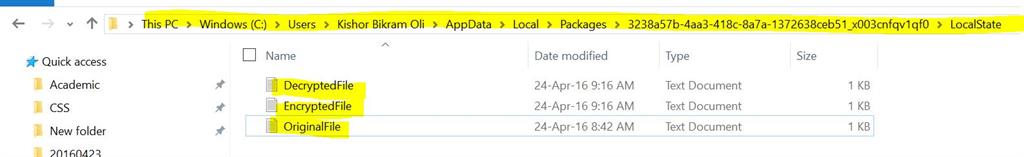

Run the application. Click on Encrypt and Decrypt button. You can see the files being encrypted and decrypted in the Application Local Folder:

This PC, C, Users > [Your User Name] > AppData, Local, Packages > [App package name] > LocalState,


That’s it.
