Event Bubbling And Event Capturing In JavaScript

Introduction

In this article, we are going to see about Event Bubbling and Event Capturing in Javascript. Event propagation is how the events are traveling through the DOM tree to arrive its target. Event Bubbling and Capturing are ways of event propagation in the HTML DOM tree.

Event Bubbling

Consider the element 'A' are present in the other element 'B' and both elements have a handler/listener for the same event (ex. click event). When an event happens on element 'A' then, its event handler runs first, then on its parent's event handler will run. Bubbling is the event that starts from the innermost or target element to its parents, then all its ancestors, which means events are propagated from bottom to top. For all modern browser's default event flow is Event Bubbling.

<!DOCTYPE html>
<html>
<head>
  <title>Event Bubbling Example</title>
</head>
<body>
  <div id="grandparent">
    <div id="parent">
        <button id="child">Child</button>
    </div>
  </div>

  <script>
    <!-- Add click event on grandparent div -->
    var grandParent = document.getElementById('grandparent');
      grandParent.addEventListener('click', function(){
        console.log("GrandParent Clicked");
      });

    <!-- Add click event on parent div -->
    var parent = document.getElementById('parent');
      parent.addEventListener('click', function(){
        console.log("Parent Clicked");
      });

    <!-- Add click event on child button -->
    var child = document.getElementById('child');
      child.addEventListener('click', function(){
        console.log("Child Clicked");
      });
  </script>
</body>
</html>

In the above code,

  1. I have two "div" elements. One "div" element with id "grandparent" and another "div" element with id "parent" which is a child of "grandparent" div.
  2. I have one button with id "child", which is a child of "parent" div.
  3. I have attached the "click" event handler for all the above three elements (2 div and 1 button) using addEventListener(). Inside the "click" event handler, just print the value using console.log().

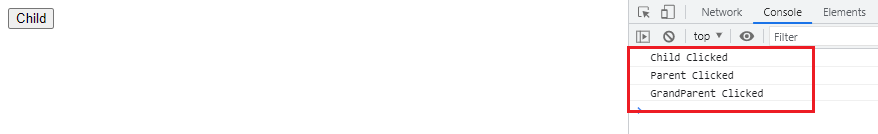

  4. When clicking on the "child" button, first runs the button's "click" event handler then runs the "parent" div's "click" event handler then "grandparent" div's "click" event handler.  The event has propagated from bottom to top.

Event Bubbling and Event Capturing in Javascript

Event Bubbling and Event Capturing in Javascript

Stop Event Bubbling

If you want to stop the event bubbling, use the event.stopPropagation() method in the event handler. If you want to stop the event flow from target to the top element in DOM, event.stopPropagation() method stops the event to travel to the top.

<!DOCTYPE html>
<html>
<head>
  <title>Event Bubbling Example</title>
</head>
<body>
  <div id="grandparent">
    <div id="parent">
        <button id="child">Child</button>
    </div>
  </div>

  <script>
    <!-- Add click event on grandparent div -->
    var grandParent = document.getElementById('grandparent');
      grandParent.addEventListener('click', function(){
        console.log("GrandParent Clicked");
      });

    <!-- Add click event on parent div -->
    var parent = document.getElementById('parent');
      parent.addEventListener('click', function(){
        console.log("Parent Clicked");
      });

    <!-- Add click event on child button -->
    var child = document.getElementById('child');
      child.addEventListener('click', function(event){
        event.stopPropagation();
        console.log("Child Clicked");
      });
  </script>
</body>
</html>

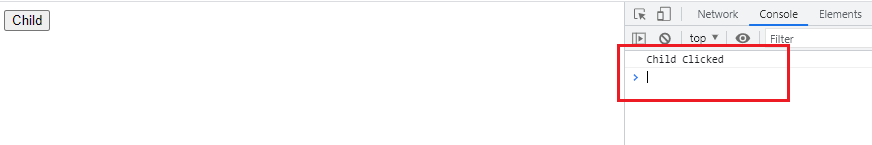

Here I have added an event.stopPropagation() method in the child button's event handler and it prevents the event from propagating to its parent.

Event Bubbling and Event Capturing in Javascript

Event Capturing

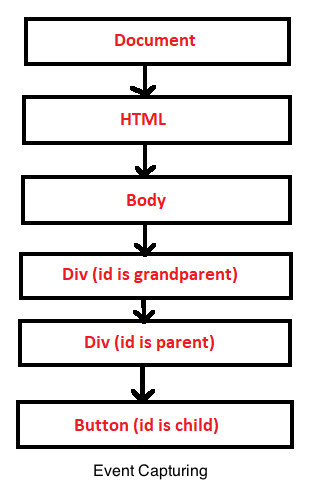

Event Capturing is the event that starts from the topmost element to the target element which means events are propagated from top to bottom. The modern browser doesn’t support event capturing by default but can be done by code in JavaScript.

<!DOCTYPE html>
<html>
<head>
  <title>Event Capturing Example</title>
</head>
<body>
  <div id="grandparent">
	<div id="parent">
		<button id="child">Child</button>
	</div>
  </div>

  <script>
	<!-- Add click event on grandparent div -->
    var grandParent = document.getElementById('grandparent');
      grandParent.addEventListener('click', function(){
        console.log("GrandParent Clicked");
      }, true);

	<!-- Add click event on parent div -->
    var parent = document.getElementById('parent');
      parent.addEventListener('click', function(){
        console.log("Parent Clicked");
      }, true);

	<!-- Add click event on child button -->
    var child = document.getElementById('child');
      child.addEventListener('click', function(){
        console.log("Child Clicked");
      }, true);
  </script>
</body>
</html>

The above example is the same as the Event bubbling example, but the difference is enabling the event capturing flow by adding the third optional argument (boolean value) set to "true" for the "addEventListener()" function. By default it is false.

target.addEventListener(type, listener, useCapture);

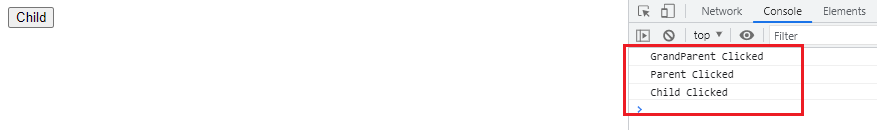

If you set it to "true" then the event flow will be top to bottom(target). When clicking on the "child" button, first runs the button's "click" event handler then runs the "parent" div's "click" event handler then "grandparent" div's "click" event handler.  The event has prophages from bottom to top.

Event Bubbling and Event Capturing in Javascript

Event Bubbling and Event Capturing in Javascript

Hope you liked it and know about Event Bubbling and Event Capturing in JavaScript. Keep Learning !!!!
