What is Elmah

According to Scott Mitchell, Error Logging Modules And Handlers (ELMAH) offers another approach to log runtime errors in a production environment. ELMAH is a free, open source error logging library that includes features like error filtering and the ability to view the error log from a web page, as an RSS feed, or to download it as a comma-delimited file.

What we will achieve through Elmah

Logging of nearly all unhandled exceptions.
Email notification of each error at the time error occurs.
View the error log from a web page.
RSS feed .

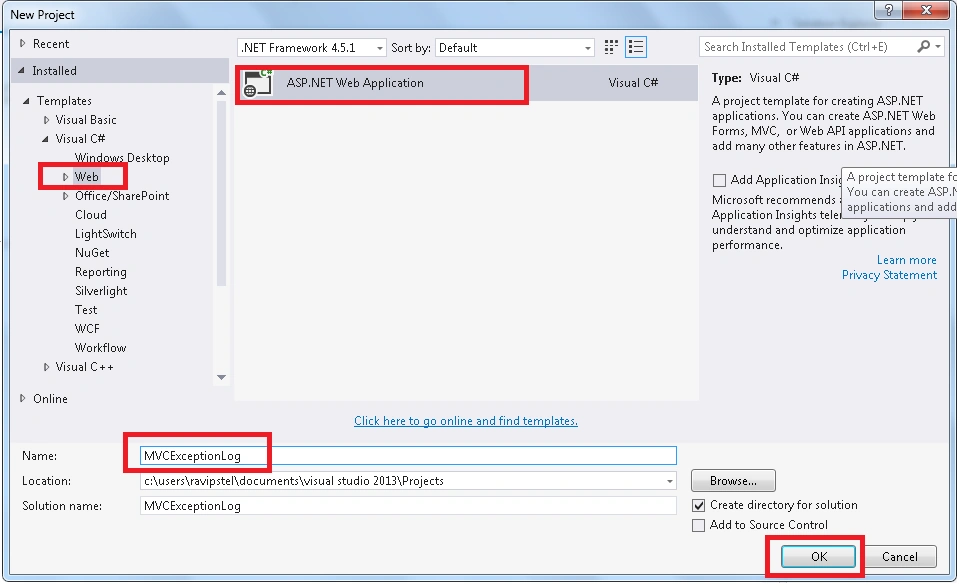

Step 1: Create a MVC web Application

Open Visual Studio create new project or press CTRL +SHIFT +N. Go to Web tab, select ASP.NET Web Application template. Give name as MVCExceptionLog as in the following screenshot,

Step 2: Add Elmah Package from Nuget,

Right click on project solution go to Manage NuGetPackages for Solution, click on it and search elmah and install it,

Step 3: Now open web config file and add the following code inside <system.web> </system.web>,

< httpHandlers >
< add verb = "POST,GET,HEAD"path = "elmah.axd"type = "Elmah.ErrorLogPageFactory, Elmah" / >
< /httpHandlers>

Also, add the following code inside <system.webServer></system.webServer>,

< handlers >
< add name = "Elmah"verb = "POST,GET,HEAD"path = "elmah.axd"type = "Elmah.ErrorLogPageFactory, Elmah" / >
< /handlers>

Step 4: Create table and Stored Procedure,

Here I am using SQL Server database to log the exception. I have already created database SQL Server named ExceptionLog. Open SQL Server Management Studio, run the following code in ExceptionLog database one by one.

For Table

CREATE TABLE[dbo].[ELMAH_Error]
(
[ErrorId][uniqueidentifier] NOT NULL,
[Application][nvarchar](60) NOT NULL,
[Host][nvarchar](50) NOT NULL,
[Type][nvarchar](100) NOT NULL,
[Source][nvarchar](60) NOT NULL,
[Message][nvarchar](500) NOT NULL,
[User][nvarchar](50) NOT NULL,
[StatusCode][int] NOT NULL,
[TimeUtc][datetime] NOT NULL,
[Sequence][int] IDENTITY(1, 1) NOT NULL,
[AllXml][ntext] NOT NULL
)

Stored procedure

1. Create PROCEDURE[dbo].[ELMAH_GetErrorsXml]
3. (
4. @Application NVARCHAR(60),
5. @PageIndex INT = 0,
6. @PageSize INT = 15,
7. @TotalCount INT OUTPUT
9. )
11. AS
13. SET NOCOUNT ON
15. DECLARE @FirstTimeUTC DATETIME
16. DECLARE @FirstSequence INT
17. DECLARE @StartRow INT
18. DECLARE @StartRowIndex INT
19. SELECT
21. @TotalCount = COUNT(1)
23. FROM
25. [ELMAH_Error]
27. WHERE
29. [Application] = @Application
30. SET @StartRowIndex = @PageIndex * @PageSize + 1
31. IF @StartRowIndex <= @TotalCount
33. BEGIN
35. SET ROWCOUNT @StartRowIndex
37. SELECT
39. @FirstTimeUTC = [TimeUtc],
41. @FirstSequence = [Sequence]
43. FROM
45. [ELMAH_Error]
47. WHERE
49. [Application] = @Application
51. ORDER BY
53. [TimeUtc] DESC,
54. [Sequence] DESC
56. END
58. ELSE
60. BEGIN
62. SET @PageSize = 0
64. END
66. SET ROWCOUNT @PageSize
68. SELECT
70. errorId = [ErrorId],
72. application = [Application],
73. host = [Host],
74. type = [Type],
75. source = [Source],
76. message = [Message],
77. [user] = [User],
78. statusCode = [StatusCode],
79. time = CONVERT(VARCHAR(50), [TimeUtc], 126) + 'Z'
81. FROM
83. [ELMAH_Error] error
85. WHERE
87. [Application] = @Application
89. AND
91. [TimeUtc] <= @FirstTimeUTC
93. AND
95. [Sequence] <= @FirstSequence
97. ORDER BY
99. [TimeUtc] DESC,
101. [Sequence] DESC
103. FOR
105. XML AUTO
1. Create PROCEDURE[dbo].[ELMAH_GetErrorXml]
3. (
5. @Application NVARCHAR(60),
6. @ErrorId UNIQUEIDENTIFIER
8. )
10. AS
12. SET NOCOUNT ON
13. SELECT
15. [AllXml]
16. FROM
18. [ELMAH_Error]
19. WHERE
21. [ErrorId] = @ErrorId
22. AND
23. [Application] = @Application
1. Create PROCEDURE[dbo].[ELMAH_LogError]
3. (
5. @ErrorId UNIQUEIDENTIFIER,
6. @Application NVARCHAR(60),
7. @Host NVARCHAR(30),
8. @Type NVARCHAR(100),
9. @Source NVARCHAR(60),
10. @Message NVARCHAR(500),
11. @User NVARCHAR(50),
12. @AllXml NTEXT,
13. @StatusCode INT,
14. @TimeUtc DATETIME
16. )
18. AS
20. SET NOCOUNT ON
22. INSERT
24. INTO
26. [ELMAH_Error]
27. (
29. [ErrorId],
30. [Application],
31. [Host],
32. [Type],
33. [Source],
34. [Message],
35. [User],
36. [AllXml],
37. [StatusCode],
38. [TimeUtc]
40. )
42. VALUES
44. (
46. @ErrorId,
47. @Application,
48. @Host,
49. @Type,
50. @Source,
51. @Message,
52. @User,
53. @AllXml,
54. @StatusCode,
55. @TimeUtc
57. )

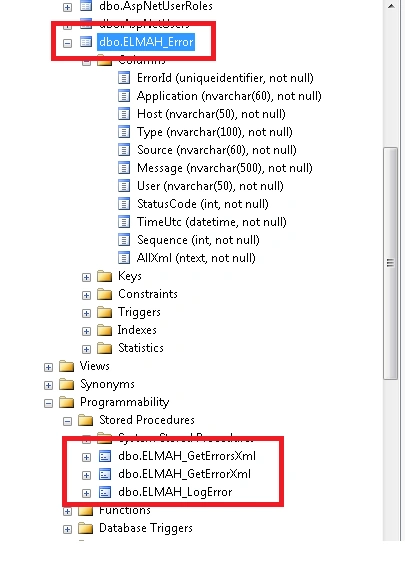

After creating the database table and stored procedure. The schema will look like the following:

Now again open web config file, add the following code inside in <configuration>,

</configuration>
<elmah>
<security allowRemoteAccess="0" />
<errorLog type="Elmah.SqlErrorLog, Elmah" connectionStringName="DefaultConnection" />
</elmah>

Now my final webconfig file look like the following,

<?xml version="1.0" encoding="utf-8"?>
<!--
For more information on how to configure your ASP.NET application, please visit
http://go.microsoft.com/fwlink/?LinkId=301880
-->
<configuration>
<configSections>
<section name="entityFramework" type="System.Data.Entity.Internal.ConfigFile.EntityFrameworkSection, EntityFramework, Version=6.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" requirePermission="false" />
<sectionGroup name="elmah">
<section name="security" requirePermission="false" type="Elmah.SecuritySectionHandler, Elmah" />
<section name="errorLog" requirePermission="false" type="Elmah.ErrorLogSectionHandler, Elmah" />
<section name="errorMail" requirePermission="false" type="Elmah.ErrorMailSectionHandler, Elmah" />
<section name="errorFilter" requirePermission="false" type="Elmah.ErrorFilterSectionHandler, Elmah" />
</sectionGroup>
</configSections>
<connectionStrings>
<add name="DefaultConnection" connectionString="Data Source=.;Initial Catalog=ExceptionLog;Integrated Security=True" providerName="System.Data.SqlClient" />
</connectionStrings>
<appSettings>
<add key="webpages:Version" value="3.0.0.0" />
<add key="webpages:Enabled" value="false" />
<add key="ClientValidationEnabled" value="true" />
<add key="UnobtrusiveJavaScriptEnabled" value="true" />
<add key="elmah.mvc.disableHandler" value="false" />
<add key="elmah.mvc.disableHandleErrorFilter" value="false" />
<add key="elmah.mvc.requiresAuthentication" value="false" />
<add key="elmah.mvc.IgnoreDefaultRoute" value="false" />
<add key="elmah.mvc.allowedRoles" value="*" />
<add key="elmah.mvc.allowedUsers" value="*" />
<add key="elmah.mvc.route" value="elmah" />
<add key="elmah.mvc.UserAuthCaseSensitive" value="true" />
</appSettings>
<system.web>
<authentication mode="None" />
<compilation debug="true" targetFramework="4.5.1" />
<httpRuntime targetFramework="4.5.1" />
<httpHandlers>
<add verb="POST,GET,HEAD" path="elmah.axd" type="Elmah.ErrorLogPageFactory, Elmah" />
</httpHandlers>
<httpModules>
<add name="ErrorLog" type="Elmah.ErrorLogModule, Elmah" />
<add name="ErrorMail" type="Elmah.ErrorMailModule, Elmah" />
<add name="ErrorFilter" type="Elmah.ErrorFilterModule, Elmah" />
</httpModules>
</system.web>
<system.webServer>
<handlers>
<add name="Elmah" verb="POST,GET,HEAD" path="elmah.axd" type="Elmah.ErrorLogPageFactory, Elmah" />
</handlers>
<modules>
<remove name="FormsAuthentication" />
<add name="ErrorLog" type="Elmah.ErrorLogModule, Elmah" preCondition="managedHandler" />
<add name="ErrorMail" type="Elmah.ErrorMailModule, Elmah" preCondition="managedHandler" />
<add name="ErrorFilter" type="Elmah.ErrorFilterModule, Elmah" preCondition="managedHandler" />
</modules>
<validation validateIntegratedModeConfiguration="false" />
</system.webServer>
<runtime>
<assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
<dependentAssembly>
<assemblyIdentity name="Microsoft.Owin" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="0.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="Microsoft.Owin.Security.OAuth" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="0.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="Microsoft.Owin.Security.Cookies" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="0.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="Microsoft.Owin.Security" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="0.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="Newtonsoft.Json" culture="neutral" publicKeyToken="30ad4fe6b2a6aeed" />
<bindingRedirect oldVersion="0.0.0.0-6.0.0.0" newVersion="6.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Web.Helpers" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="1.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Web.Mvc" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="0.0.0.0-5.2.2.0" newVersion="5.2.2.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Web.Optimization" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="1.0.0.0-1.1.0.0" newVersion="1.1.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Web.WebPages" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="1.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="WebGrease" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="0.0.0.0-1.5.2.14234" newVersion="1.5.2.14234" />
</dependentAssembly>
</assemblyBinding>
</runtime>
<entityFramework>
<defaultConnectionFactory type="System.Data.Entity.Infrastructure.LocalDbConnectionFactory, EntityFramework">
<parameters>
<parameter value="mssqllocaldb" />
</parameters>
</defaultConnectionFactory>
<providers>
<provider invariantName="System.Data.SqlClient" type="System.Data.Entity.SqlServer.SqlProviderServices, EntityFramework.SqlServer" />
</providers>
</entityFramework>
<elmah>
<security allowRemoteAccess="0" />
<errorLog type="Elmah.SqlErrorLog, Elmah" connectionStringName="DefaultConnection" />
</elmah>
</configuration>

Step 5: Let us create some exception

Suppose I want to open a page that are not in our application. Let us say About2 page: localhost:55776/Home/About2

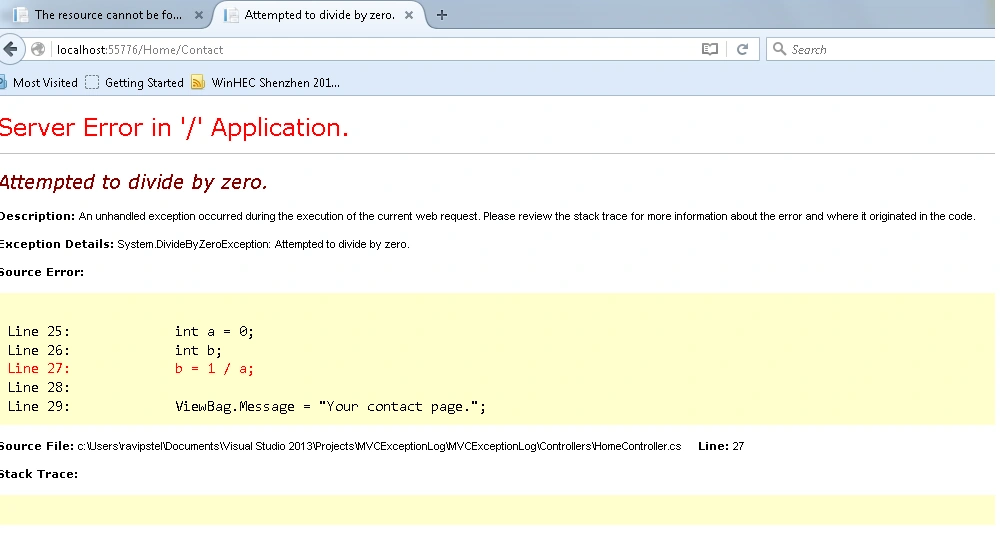

Create divide by zero exception in contact page
