Finding The Location Status In Arduino Mega 2560

In this article you will learn how to find the Location Status in Arduino Mega 2560.

Introduction

In this article I will explain about the correct location of a place where GPS is fixed. After that it will display in the serial monitor and can be very useful for finding location status.

Parts Of List
  • Arduino Mega 2560
  • GPS
  • BreadBoard
  • Hook Up Wires
GPS



   Figure1:
GPS
  • The Global Positioning System (GPS) is a satellite-based navigation system made up of a network of 24 placed satellites.

  • GPS works in any weather conditions, anywhere in the world, 24 hours a day.

  • There are no subscription fees or setup charges to use GPS.
Connection:
  • Connect the Gnd and 2nd pin to the Gnd of the Arduino Mega 2560.
  • Connect the Vcc to the 5V of the Arduino Mega 2560.
  • Connect the 3rd pin to the Digital pin of 3 in the board.
  • Connect the 4th pin to the digital pin of 5 in the board.
Programming

  1. #include
  2. // GPS Setup
  3. # define rxGPS 3# define txGPS 5
  4. SoftwareSerial serialGPS = SoftwareSerial(rxGPS, txGPS);
  5. String stringGPS = "";
  6. void setup() {
  7.     pinMode(rxGPS, INPUT);
  8.     pinMode(txGPS, OUTPUT);
  9.     Serial.begin(9600);
  10.     Serial.println("Started");
  11.     // GPS Setup
  12.     serialGPS.begin(4800);
  13.     digitalWrite(txGPS, HIGH);
  14.     // Cut first gibberish
  15.     while (serialGPS.available())
  16.         if (serialGPS.read() == '\r')
  17.             break;
  18. }
  19. void loop()
  20. {
  21.         String s = checkGPS();
  22.         if (s && s.substring(0, 6) == "$GPGGA")
  23.         {
  24.             Serial.println(s);
  25.         }
  26.     }
  27.     // Check GPS and returns string if full line recorded, else false
  28. String checkGPS()
  29. {
  30.     if (serialGPS.available())
  31.     {
  32.         char c = serialGPS.read();
  33.         if (c != '\n' && c != '\r')
  34.         {
  35.             stringGPS = c;
  36.         } else
  37.         {
  38.             if (stringGPS != "")
  39.             {
  40.                 String tmp = stringGPS;
  41.                 stringGPS = "";
  42.                 return tmp;
  43.             }
  44.         }
  45.     }
  46.     return false;
  47. }
Explanation:

In this I have explained the location where GPS is fixed and then you can get information in the serial monitor.

Output

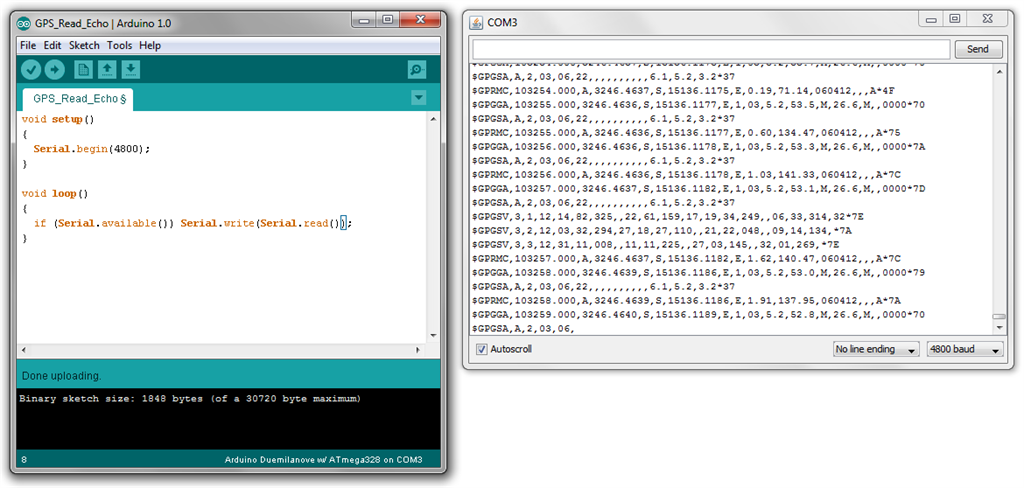

                                             Figure2: Output
