Fixing Exchange Management Shell Connecting to the Wrong Server

When you launch the Exchange Management Shell (EMS) on a server, you’d expect it to connect directly to that same server. However, in many Exchange environments, administrators notice something unexpected: EMS connects to a different server in the environment instead of the target one.

In this blog, we’ll explore why this happens , the role of SSL certificates in EMS connections, and how you can fix the issue by properly assigning an SSL certificate to the Exchange Back End site in IIS.

How the Exchange Management Shell Works

The Exchange Management Shell isn’t just a local PowerShell session—it relies on Remote PowerShell (WinRM) to load Exchange cmdlets from the environment. Here’s the connection flow behind the scenes:

  1. When EMS starts, it uses implicit remoting to connect to Exchange via PowerShell remoting.

  2. The connection request uses AutoDiscover or Exchange configuration to locate the correct Exchange Web Services (EWS) endpoint.

  3. EMS authenticates using Kerberos or Basic Authentication (over HTTPS) .

  4. The session is redirected to the Exchange Back End through IIS, where the Exchange cmdlets are loaded remotely.

If the Exchange Back End site in IIS does not have a valid SSL certificate bound to it, EMS cannot establish a secure session to the target server. As a result, it falls back to connecting through another server in the environment that does have a proper certificate.

Why Assigning a Valid SSL Certificate to the Exchange Back End Matters

The Exchange Back End site in IIS is critical because it handles:

  • OWA (Outlook Web App)

  • ECP (Exchange Control Panel)

  • EWS (Exchange Web Services)

  • PowerShell Remoting (EMS)

Here’s why a valid SSL certificate is required:

  • Secure Connections: EMS uses WinRM over HTTPS . Without SSL, sessions are insecure and vulnerable to interception.

  • Proper Redirection: The frontend IIS (443) proxies requests to the backend IIS (444) . Without a certificate on the backend, connections may redirect incorrectly.

  • Avoid Authentication Errors: Without SSL, you may run into trust errors, failed authentication, or EMS simply connecting to a different server in the DAG.

Fixing the Issue: Bind an SSL Certificate to the Exchange Back End

The fix is straightforward—bind a valid SSL certificate to the Exchange Back End site in IIS.

Steps

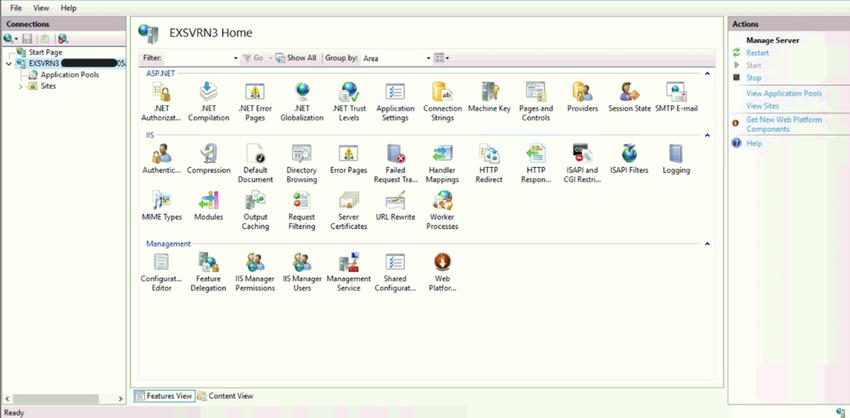

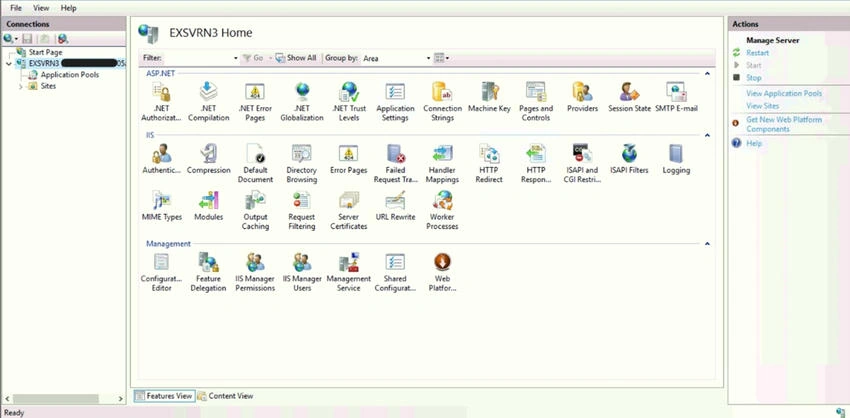

Open Internet Information Services (IIS) Manager on the affected Exchange server.

IIS

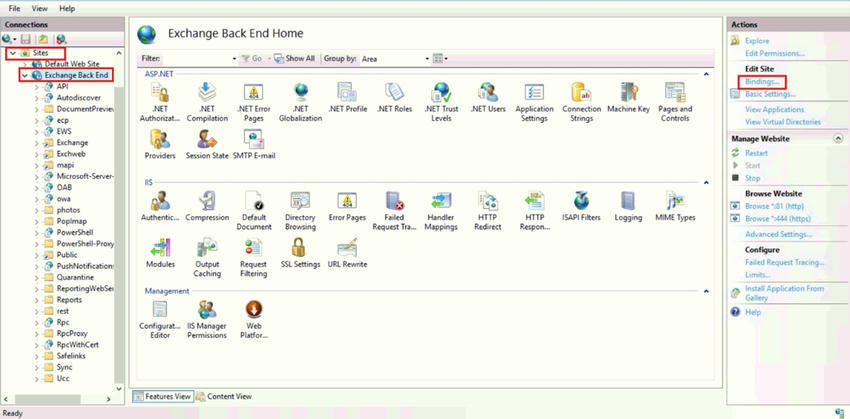

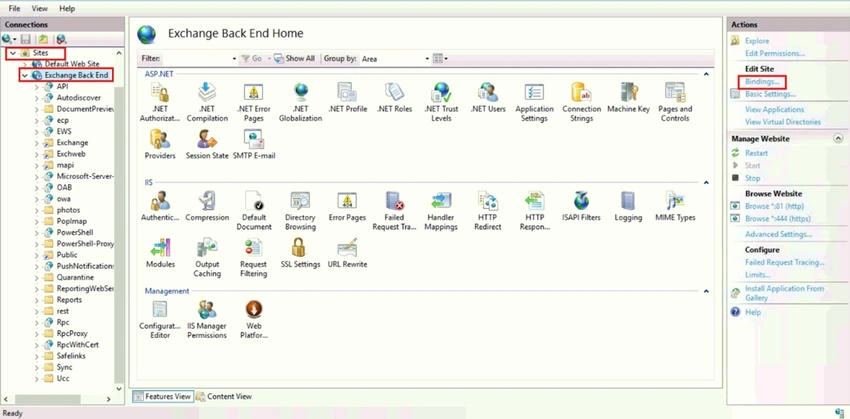

Expand the server node → expand Sites → select Exchange Back End. In the right-hand Actions pane, click Bindings.

sites

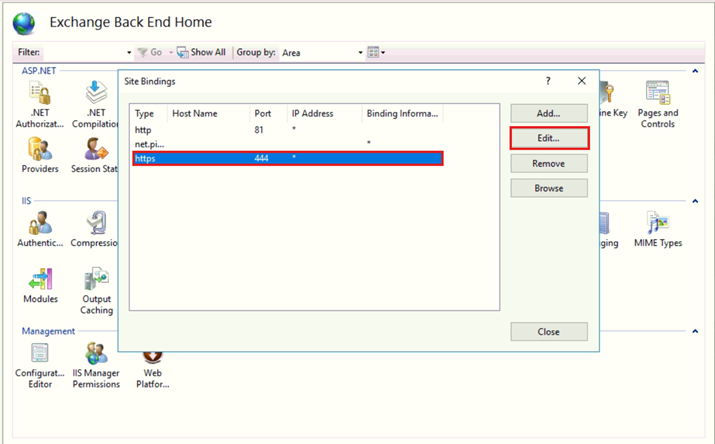

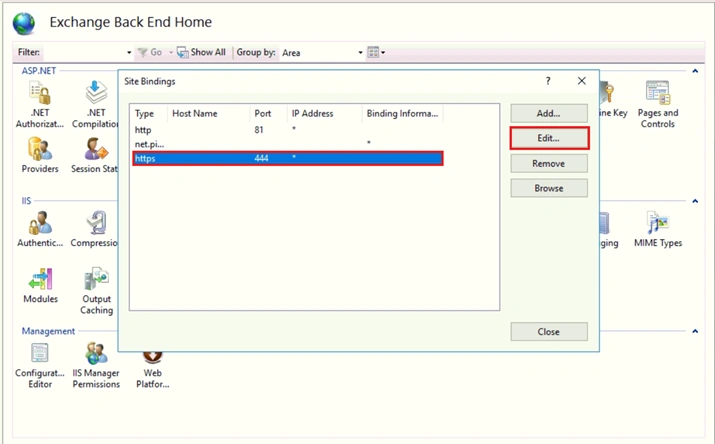

In the Site Bindings window, select the https binding (typically port 444) and click Edit .

Exchange SSL 3

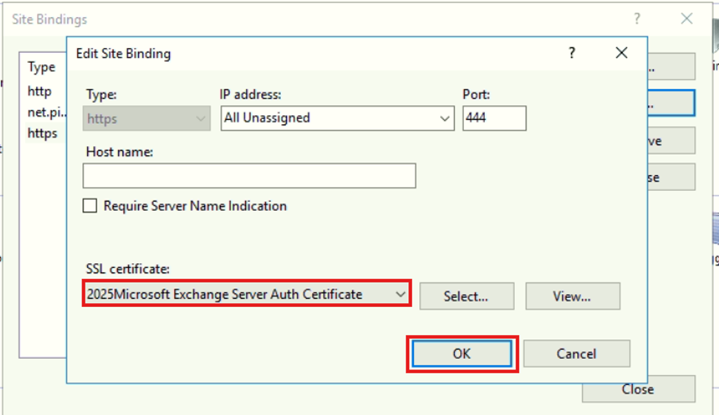

From the SSL certificate drop-down, select a valid certificate and click OK.

Exchange SSL 4

(Optional) Restart the MSExchangePowerShellAppPool in IIS Application Pools to apply changes immediately.

Outcome

Once a valid SSL certificate is bound to the Exchange Back End site , EMS will correctly connect to the server you’re logged into instead of redirecting to another Exchange server in the environment.

Conclusion

The Exchange Management Shell relies on PowerShell remoting over HTTPS to load cmdlets. If the backend IIS site (port 444) is missing a valid SSL certificate, EMS connections may redirect to other servers.

By ensuring that the Exchange Back End has a valid SSL certificate bound, you:

  • Guarantee secure communication

  • Prevent EMS from connecting to the wrong server

  • Reduce authentication and redirection errors

This small configuration change ensures your Exchange administration experience is both secure and predictable .
