Get Started Building With Form Processing AI Model - Power Platform AI Builder Series - Part Two

Overview


Welcome to the Power Platform with AI series. During this entire series, we will talk about one of the most  important components of AI Builder which is – “Form Processing”.

You are reading the second part of this article series.

I have divided this entire series into the following parts.
During this article, we will check how we can build a form processing AI model. The same article is available as an example. You can refer to this.

So, now let’s get started!
  • Open your Power Apps.
  • From AI Builder, select Form Processing.
Build With Form Processing AI Model - Power Platform AI Builder Series
  • Enter the name of your AI model.
Build With Form Processing AI Model - Power Platform AI Builder Series

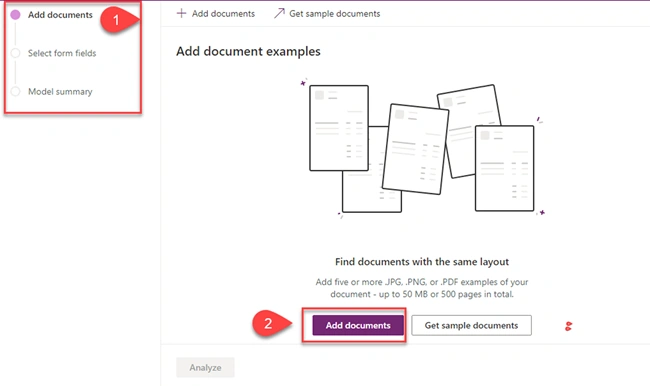

  • Add document examples.
  • Download the samples I provided to my GitHub. Upload those five documents here.
Click on Add documents. Select “Upload from local storage”.

Build With Form Processing AI Model - Power Platform AI Builder Series

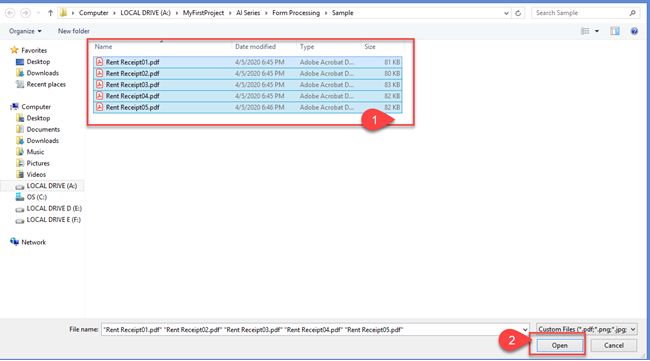

Select files from the explorer.

Build With Form Processing AI Model - Power Platform AI Builder Series

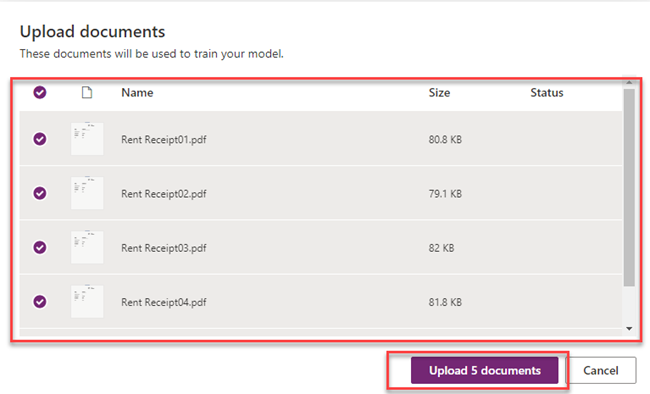

Click on Upload 5 documents.

Build With Form Processing AI Model - Power Platform AI Builder Series

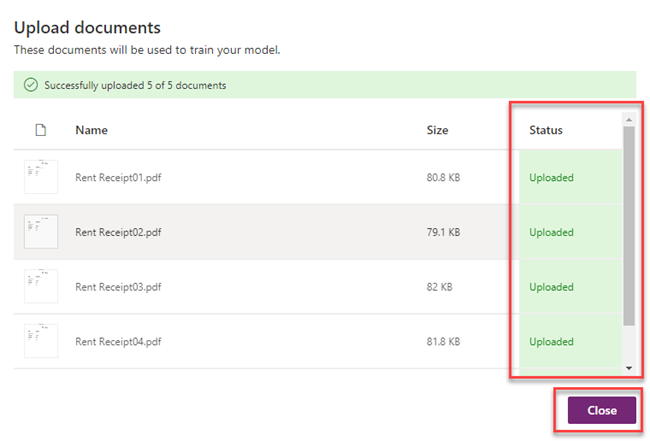

Click on Close.

Build With Form Processing AI Model - Power Platform AI Builder Series

Build With Form Processing AI Model - Power Platform AI Builder Series
  • Select any document and click on Analyze. This will show a loader like this.
Build With Form Processing AI Model - Power Platform AI Builder Series

Build With Form Processing AI Model - Power Platform AI Builder Series

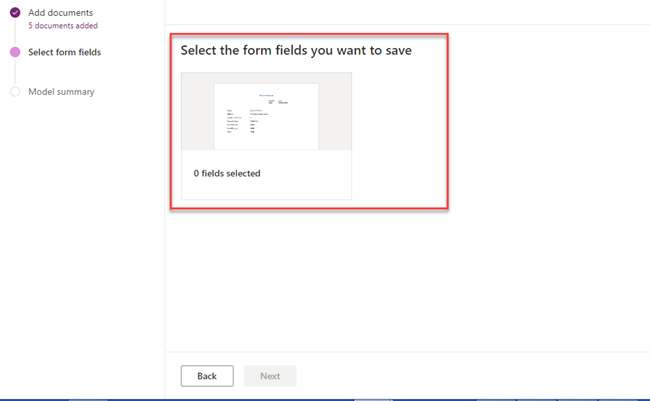

  • Now, we need to select the form fields which we wish to save. From the below screen click on the analyzed document.
Build With Form Processing AI Model - Power Platform AI Builder Series
  • You can see that the below form shows all the fields with the dotted box. Now, we need to manually select each field and select the fields from the form.
Build With Form Processing AI Model - Power Platform AI Builder Series

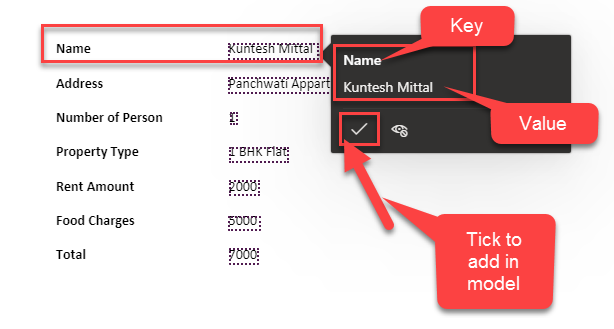

  • Let’s say if I select Name, this will show us Key-Value pair in the pop-up. Click on the tick to select the field for the AI model.
Build With Form Processing AI Model - Power Platform AI Builder Series
  • Once we add the field, we can see the field name to the right side of the section.
Build With Form Processing AI Model - Power Platform AI Builder Series
  • Repeat the same procedure for all the fields.
  • Once you select all the fields, the fields are converted to light green color.

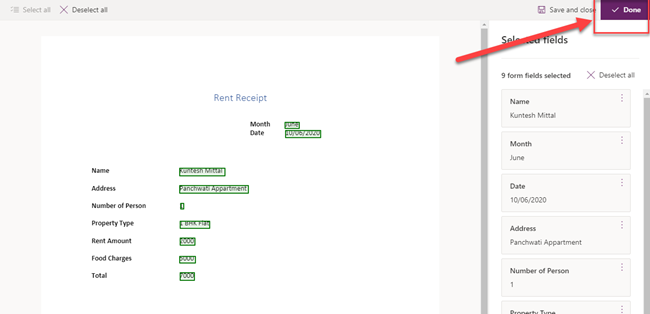

  • Click on Done.
Build With Form Processing AI Model - Power Platform AI Builder Series

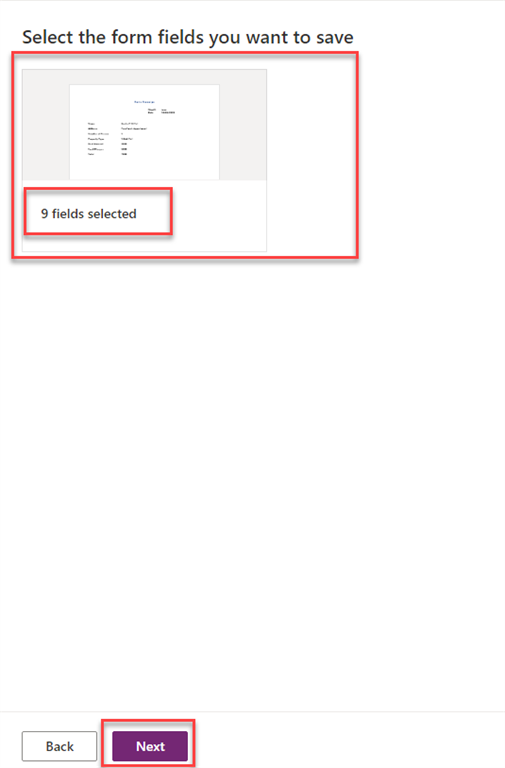

  • Click on Next.
Build With Form Processing AI Model - Power Platform AI Builder Series
  • Click on Save and Close.
Build With Form Processing AI Model - Power Platform AI Builder Series
  • This will show our created model under My Models section.
In my next article, we will train our model and Publish our AI model.


Conclusion


This is how we can create our model for Form Processing in Power Platform AI Builder.

Stay connected with me for more amazing articles!

Happy Power Apping!!
