Introduction
The way we test software is undergoing a fundamental transformation. For over a decade, test automation meant writing code — fragile selectors, brittle locators, and high-maintenance test suites that broke with every UI change. In 2024, Anthropic introduced the Model Context Protocol (MCP), and Microsoft's Playwright team quickly built an MCP server that changes the game entirely.
Playwright MCP lets AI agents control a real web browser using natural language. No test scripts. No CSS selectors. No page.click() calls. You simply tell an AI agent what to do, and it does it — navigating pages, filling forms, clicking buttons, and reporting results through structured accessibility snapshots rather than pixel-based screenshots.
This is Part 1 of a 2-part series on leveraging Playwright MCP as a new AI testing framework for your organization:
Part 1 (this article): Concepts, architecture, Playwright MCP vs CLI, setup, tools, workflow, and supported clients
Part 2: Building an organizational AI testing framework, CI/CD integration, best practices, and challenges
Table of Contents
What is Model Context Protocol (MCP)?
Understanding Playwright MCP
Playwright MCP vs Playwright CLI — Choosing the Right Tool
Architecture Deep Dive
Setting Up Playwright MCP
Available Tools & Capabilities
The AI Testing Workflow
Supported MCP Clients
1. What is Model Context Protocol (MCP)?
Model Context Protocol (MCP) is an open protocol developed by Anthropic that standardizes how AI applications provide context to Large Language Models (LLMs). Think of MCP as a USB-C port for AI applications — just as USB-C provides a universal way to connect devices to various peripherals, MCP provides a standardized two-way connection for how AI models integrate with different data sources, services, and external tools.
MCP Architecture
MCP follows a client-server architecture:
| Component | Description | Examples |
|---|
| Hosts | Applications the user interacts with | Claude Desktop, VS Code, Cursor IDE |
| Clients | Components that request and consume external context | GitHub Copilot, Windsurf, Claude.ai |
| Servers | External programs that expose tools, resources, and prompts via a standard API | Playwright MCP, Figma MCP, GitHub MCP |
| Local Data Sources | Files, databases, and services with secure local access | File system, SQLite, local APIs |
| Remote Services | External systems accessed over the internet | REST APIs, cloud services |
How MCP Client Interacts with MCP Server
Step 1: MCP Client creates a request for specific data or actions
↓
Step 2: Client sends request to MCP Server (when AI needs tools/data)
↓
Step 3: MCP Server processes the request and retrieves data
↓
Step 4: Server sends the response back to the Client for AI consumption

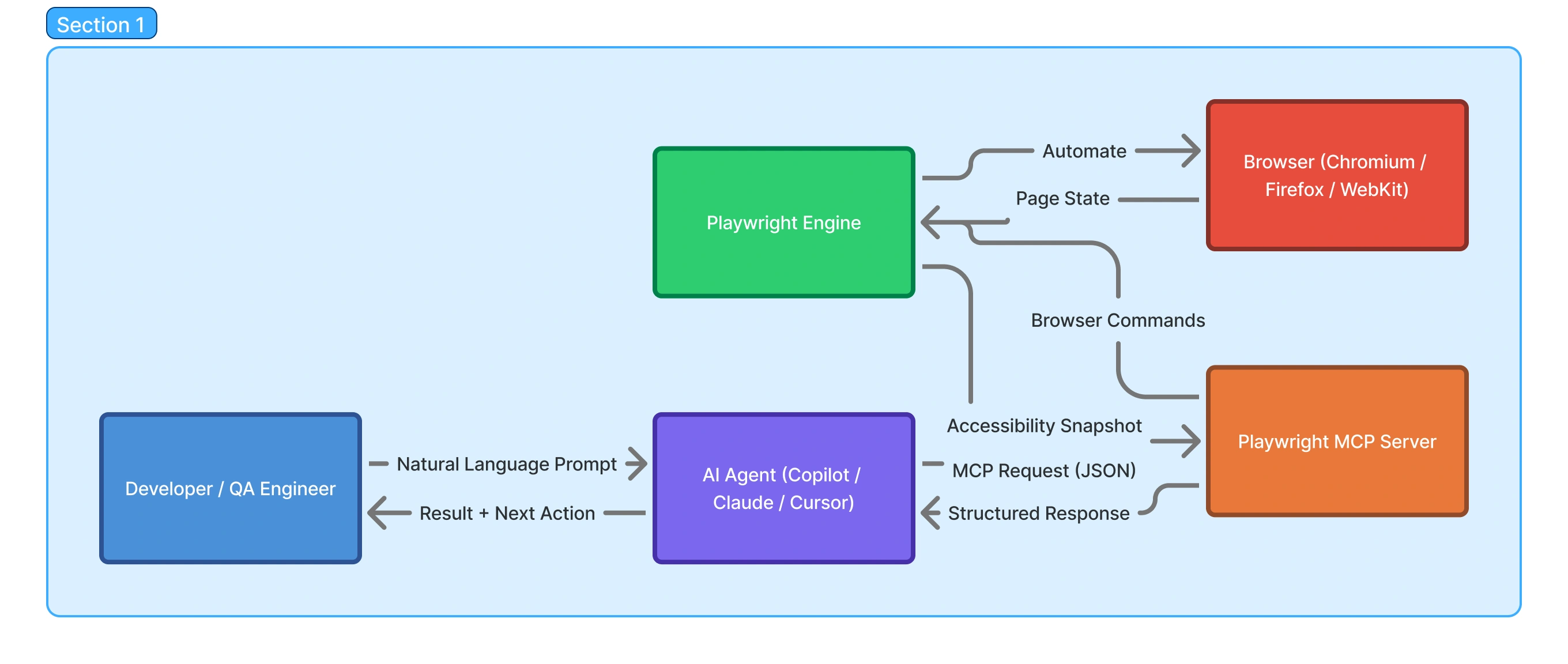

Diagram — Playwright MCP Architecture:
![Playwright MCP Architecture - How AI Agents Control the Browser]()
2. Understanding Playwright MCP
Playwright MCP is a Model Context Protocol server that provides browser automation capabilities using Playwright. It enables LLMs and AI agents to interact with web pages through structured accessibility snapshots, completely bypassing the need for screenshots or visually-tuned models.
What Makes It Different?
Traditional browser automation (Selenium, Cypress, even Playwright SDK) requires developers to write imperative code:
// Traditional Playwright SDK approach
await page.GotoAsync("https://example.com/login");
await page.FillAsync("#username", "testuser");
await page.FillAsync("#password", "password123");
await page.ClickAsync("button[type='submit']");
With Playwright MCP, the same flow becomes a natural language prompt:
Navigate to https://example.com/login, fill the username field with "testuser",
fill the password field with "password123", and click the Submit button.
The AI agent interprets your intent, maps it to MCP tool calls (browser_navigate, browser_fill, browser_click), and executes them against a real browser — no code required.
Key Features
| Feature | Description |
|---|
| Fast & Lightweight | Uses Playwright's accessibility tree, not pixel-based input |
| LLM-Friendly | No vision models needed — operates purely on structured data |
| Deterministic Tool Application | Avoids ambiguity common with screenshot-based approaches |
| Cross-Browser Support | Chromium, Firefox, WebKit, and Microsoft Edge |
| Code Generation | Can auto-generate Playwright test code from browser interactions |
| Self-Healing | AI adapts to UI changes using accessibility context, not brittle selectors |

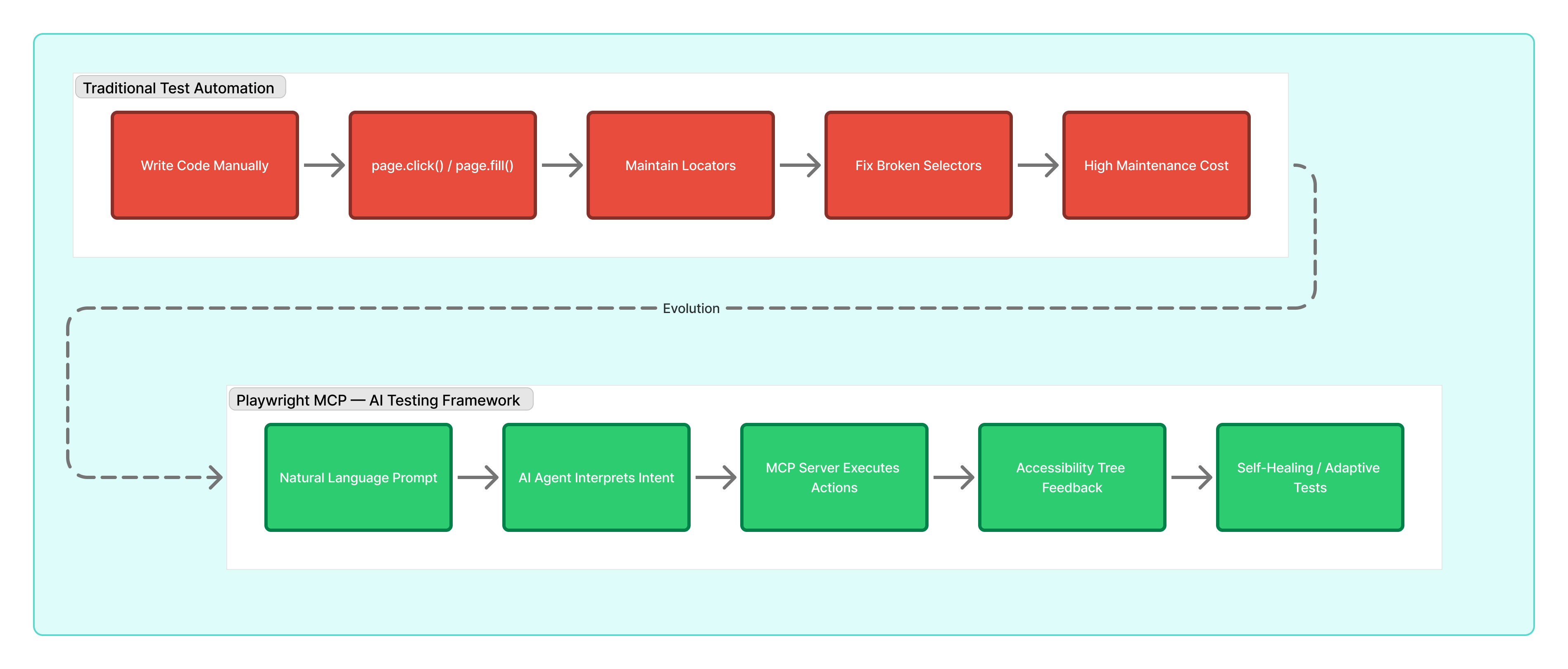

Diagram — Traditional vs Playwright MCP:
![Traditional vs Playwright MCP Testing Approach - Horizontal]()
3. Playwright MCP vs Playwright CLI — Choosing the Right Tool
Microsoft provides two interfaces for AI-driven Playwright automation. Understanding when to use each is critical.
Playwright MCP (@playwright/mcp)
An MCP server that exposes Playwright capabilities through the standardized Model Context Protocol. It maintains persistent browser state, provides rich page introspection, and enables iterative reasoning across complex workflows.
Best for:
Exploratory testing and self-healing tests
Long-running autonomous workflows
Scenarios requiring continuous browser context
Non-developers who need browser automation via natural language
Playwright CLI (@playwright/cli)
A command-line interface that exposes Playwright through shell commands and SKILLS. CLI invocations are more token-efficient because they avoid loading large tool schemas and verbose accessibility trees into the model context.
Best for:
High-throughput coding agents working with large codebases
Test generation and debugging within the IDE terminal
Scenarios where token efficiency matters (limited context windows)
Developers who prefer CLI-based workflows
Side-by-Side Comparison
| Aspect | Playwright MCP | Playwright CLI |
|---|
| Interface | MCP Protocol (JSON-RPC) | Shell commands |
| State Management | Persistent browser context | Session-based (in-memory by default) |
| Token Efficiency | Higher token cost (full schemas) | Lower token cost (concise commands) |
| Context Richness | Full accessibility tree snapshots | Snapshot files on disk |
| Use Case | Exploratory, self-healing, autonomous | Code generation, test running, debugging |
| Stars on GitHub | 30.1k ⭐ | 6.8k ⭐ |
| Latest Release | v0.0.70 | v0.1.3 |
CLI Commands Quick Reference
# Install globally
npm install -g @playwright/cli@latest
# Core commands
playwright-cli open https://example.com --headed
playwright-cli snapshot # Capture page state
playwright-cli click e15 # Click element by ref
playwright-cli fill e12 "test data" # Fill input field
playwright-cli screenshot # Take screenshot
playwright-cli type "Hello World" # Type text
# Session management
playwright-cli list # List all sessions
playwright-cli -s=mytest open # Named session
playwright-cli close-all # Close all browsers
# Advanced
playwright-cli console # View console messages
playwright-cli network # View network requests
playwright-cli tracing-start # Start trace recording
playwright-cli video-start # Start video recording
playwright-cli show # Visual dashboard
The playwright-cli show command opens a visual dashboard where you can see and control all running browser sessions — extremely useful when agents are running automation in the background.
4. Architecture Deep Dive
Understanding the architecture is essential for building a robust organizational framework.
End-to-End Flow
┌────────────────────────────────────────────────────────────────────┐
│ DEVELOPER / QA ENGINEER │
│ "Navigate to login and fill form" │
└─────────────────────────────┬──────────────────────────────────────┘
│ Natural Language Prompt
▼
┌────────────────────────────────────────────────────────────────────┐
│ AI AGENT (MCP CLIENT) │
│ VS Code Copilot / Claude / Cursor / Windsurf │
│ │
│ Interprets prompt → Generates MCP tool calls (JSON) │
└─────────────────────────────┬──────────────────────────────────────┘
│ MCP Request: browser_navigate(url)
▼
┌────────────────────────────────────────────────────────────────────┐
│ PLAYWRIGHT MCP SERVER │
│ │
│ ┌──────────┐ ┌──────────────┐ ┌──────────────────┐ │
│ │ Tool │ │ Session │ │ Snapshot │ │
│ │ Registry │ │ Manager │ │ Engine │ │
│ └──────────┘ └──────────────┘ └──────────────────┘ │
│ │
│ Transport: stdio (local) or HTTP/SSE (remote, --port 8931) │
└─────────────────────────────┬──────────────────────────────────────┘
│ Playwright API calls
▼
┌────────────────────────────────────────────────────────────────────┐
│ PLAYWRIGHT ENGINE │
│ │
│ Executes browser commands → Returns accessibility tree snapshot │
└─────────────────────────────┬──────────────────────────────────────┘
│
▼
┌────────────────────────────────────────────────────────────────────┐
│ BROWSER (Chromium / Firefox / WebKit / Edge) │
│ │
│ Real browser instance — headed or headless │
│ Renders pages, executes JS, handles network │
└────────────────────────────────────────────────────────────────────┘

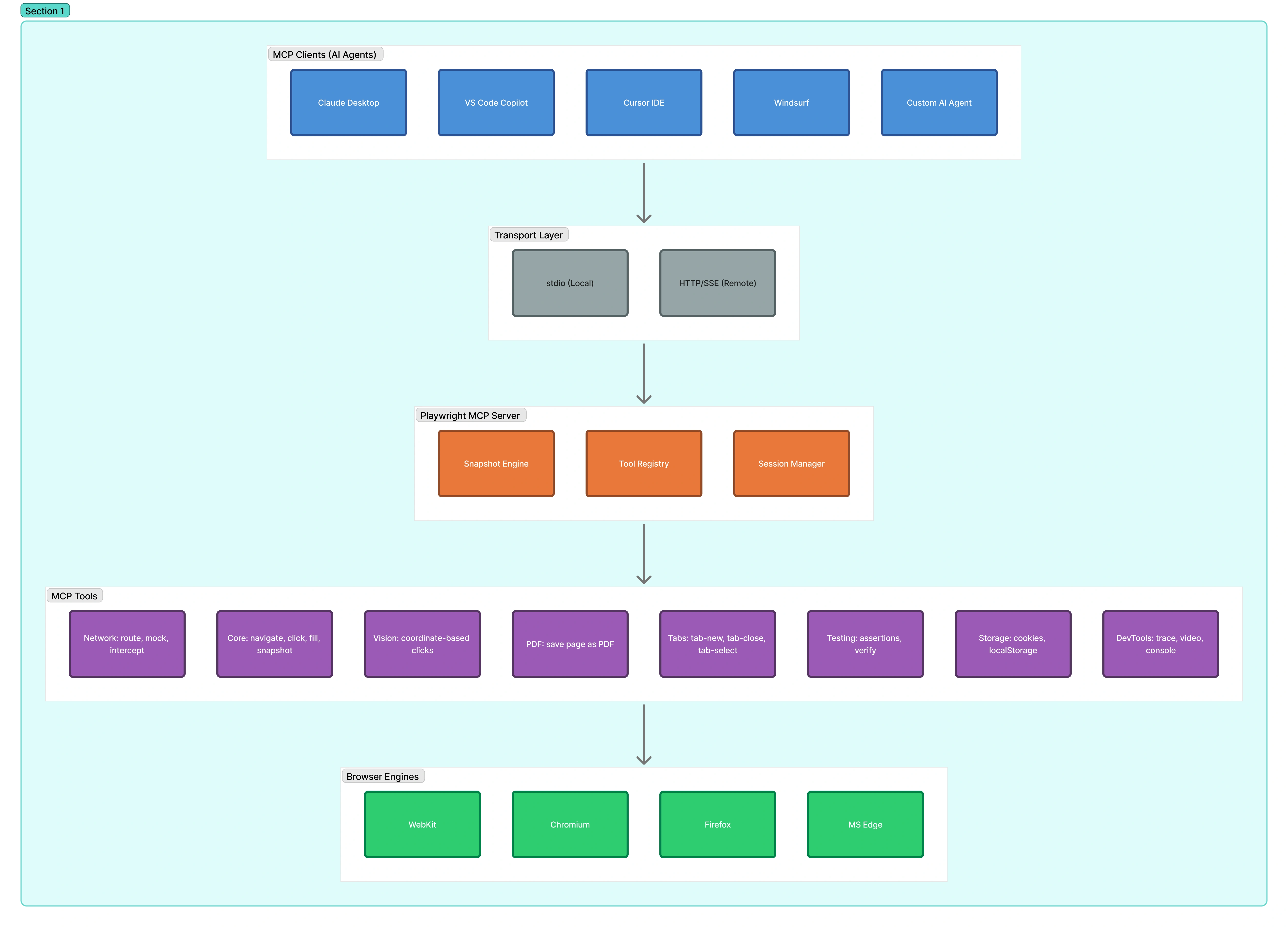

Diagram — Complete Ecosystem:
![Playwright MCP Complete Ecosystem - Clients Tools and Browsers]()
Diagram — Interaction Sequence:
![Playwright MCP Interaction Sequence - Step by Step Flow]()
Why Accessibility Snapshots Instead of Screenshots?
This is the architectural decision that makes Playwright MCP so powerful:
| Approach | How It Works | Drawback |
|---|
| Screenshot-based (e.g., browser-use) | Capture PNG → Send to vision model → Model guesses coordinates | Requires expensive vision models, slower, non-deterministic |
| Accessibility tree (Playwright MCP) | Capture structured DOM tree → AI reads element refs → Deterministic commands | No vision model needed, faster, more reliable |
The accessibility tree gives each element a unique reference (e.g., e15 for a button), which the AI uses to issue precise commands like browser_click(ref="e15").
5. Setting Up Playwright MCP
Prerequisites
| Requirement | Minimum Version | Check Command |
|---|
| Node.js | 18.x+ | node --version |
| VS Code | Latest stable | Help → About |
| GitHub Copilot | Installed & active | Extensions panel |
| npm / npx | Bundled with Node.js | npx --version |
Installation Options
Option 1: One-Click Install (Recommended)
Paste this URL in your browser — VS Code opens and auto-configures:
vscode:mcp/install?{"name":"playwright","command":"npx","args":["@playwright/mcp@latest"]}
Or from terminal:
code --add-mcp '{"name":"playwright","command":"npx","args":["@playwright/mcp@latest"]}'
Option 2: Manual — User Level (All Projects)
Press Ctrl+Shift+P → MCP: Edit User Configuration
Add:
{
"mcp": {
"servers": {
"playwright": {
"command": "npx",
"args": ["@playwright/mcp@latest"]
}
}
}
}
Option 3: Workspace Level (Shared with Team via Git)
Create .vscode/mcp.json in your project root:
{
"servers": {
"playwright": {
"command": "npx",
"args": ["@playwright/mcp@latest"]
}
}
}
Tip: Use Workspace config when you want to commit it to source control so the entire team gets it automatically.
Option 4: From npm (For Claude Desktop / Other Clients)
{
"mcpServers": {
"playwright": {
"command": "npx",
"args": ["@playwright/mcp@latest"]
}
}
}
Verification
Press Ctrl+Shift+P → MCP: List Servers
You should see: playwright ● Running
Open Copilot Chat → Agent mode → Check 🔧 tools icon for Playwright tools
Test with: "Navigate to https://www.google.com and take a screenshot"
6. Available Tools & Capabilities
Playwright MCP exposes a rich set of tools, organized into core (always available) and optional (opt-in via --caps) categories.
Core Tools (Always Available)
| Tool | Description |
|---|
| browser_navigate | Navigate to a URL |
| browser_click | Click any element (button, link, checkbox) |
| browser_fill | Type text into an input field |
| browser_fill_form | Fill multiple form fields at once |
| browser_snapshot | Capture the accessibility tree (structured page state) |
| browser_take_screenshot | Capture a visual PNG/JPEG screenshot |
| browser_press_key | Press keyboard keys (Enter, Tab, Escape) |
| browser_hover | Hover over an element |
| browser_select_option | Select a dropdown value |
| browser_navigate_back | Go back in browser history |
| browser_resize | Resize the browser window |
| browser_evaluate | Execute JavaScript on the page |
| browser_wait_for | Wait for text/element to appear or disappear |
| browser_tabs | Manage browser tabs (open, close, switch) |
| browser_file_upload | Upload files to file inputs |
| browser_handle_dialog | Accept/dismiss browser dialog boxes |
| browser_run_code | Execute a custom Playwright code snippet |
| browser_network_requests | List all HTTP requests the page has made |
| browser_console_messages | Retrieve browser console logs |
| browser_close | Close the browser |
Optional Capabilities (Opt-in via --caps)
| Capability | Flag | What It Unlocks |
|---|
| Network | --caps=network | Mock/intercept API requests, simulate offline mode |
| Storage | --caps=storage | Read/write cookies, localStorage, sessionStorage |
| DevTools | --caps=devtools | Record Playwright traces, record session video |
| Vision | --caps=vision | Coordinate-based clicks (X,Y pixels) |
| PDF | --caps=pdf | Save current page as PDF |
| Testing | --caps=testing | Assertion tools: verify element/text visibility |
| Config | --caps=config | Inspect resolved MCP config at runtime |
Enable all capabilities:
"args": ["@playwright/mcp@latest", "--caps", "vision,pdf,devtools,network,storage,testing"]
7. The AI Testing Workflow
A typical Playwright MCP testing session follows five phases:
Phase 1: Setup & Initialization
The MCP server starts and configures the browser instance. Connection is established between the AI client and the server.
Developer opens VS Code → Copilot Chat (Agent mode) → MCP server auto-starts
Phase 2: Capability Discovery
The AI client queries the MCP server to discover available tools and services. Whether it's navigating, clicking, typing, or snapshotting — the AI builds a mental model of what actions are possible.
Phase 3: Command Generation
Guided by the developer's natural language prompt, the AI model generates specific MCP tool calls in JSON format:
{
"tool": "browser_navigate",
"arguments": {
"url": "https://example.com/login"
}
}
Phase 4: Browser Execution
The MCP server receives the command and uses Playwright to execute it in a real browser. It interacts with the page — navigating URLs, filling forms, clicking buttons, capturing states.
Phase 5: Contextual Feedback & Iteration
After each action, the MCP server returns an accessibility tree snapshot — a structured representation of the page. The AI analyzes this feedback, generates the next command, and iterates until the task is complete.
Snapshot returned:
- page: "Login Page"
- [e1] heading "Welcome"
- [e5] textbox "Username" (focused)
- [e8] textbox "Password"
- [e12] button "Sign In"
AI decides: → browser_fill(ref="e5", value="testuser")
8. Supported MCP Clients
Playwright MCP works with a growing ecosystem of AI clients:
| Client | Type | Platform |
|---|
| VS Code + GitHub Copilot | IDE Extension | Windows, macOS, Linux |
| VS Code Insiders | IDE (early features) | Windows, macOS, Linux |
| Cursor IDE | AI-native IDE | Windows, macOS, Linux |
| Windsurf | AI-native IDE | Windows, macOS, Linux |
| Claude Desktop | Desktop app | Windows, macOS |
| Claude Code | CLI agent | Terminal |
| Gemini CLI | CLI agent | Terminal |
| Goose | AI agent framework | Terminal |
| Kiro | AI-native IDE | Windows, macOS, Linux |
| LM Studio | Local LLM runner | Windows, macOS, Linux |
| Amp | AI agent | Browser-based |
| Cline | VS Code extension | Windows, macOS, Linux |
| Codex | OpenAI agent | Terminal |
What's Next?
In Part 2, we'll focus on the enterprise angle — building a 4-phase organizational adoption roadmap, designing browser profile and authentication strategies, creating prompt template libraries, deploying to Docker/Kubernetes for CI/CD, and covering best practices, security considerations, and common challenges.
