Git For Absolute Beginners With Command Line Interface

Git

Git is a distributed version control system, developed by Linus Torvalds in 2005 and currently maintained by Junio C Hamano. There are many popular GUI tools and extensions are available to use git but originally git was developed as command line tool. It is still fun to use git using the command line. You will also understand under the hood magic done by GUI tools.

Why Version Control?

Version Control Systems are used for Time Travel by Developers.

Git

If you ever had your project copies like the above image, definitely you need a Version Control System. Version Control System maintains the versions of files without creating multiple copies. You need to commit the changes to store versions so you can go travel back and forth in commit history and get your files at any desired point of time. Now, you can relate why I used the word "Time Travel".

Git is not the only version control system; there are many, you can see a comparison on Wikipedia, There are many online services which provide git services. Popular ones are GitHub, GitLab, BitBucket & Visual Studio Team Services (Yes, they do provide git, along with VSTS).

Git

But you don't actually need any one of them to try out Git, because it is not just a Version Control System; it is a Distributed Version Control System which plays a major role in the popularity of Git.

Distributed Version Control System

As I mentioned above, we don't need any git service to try out Git, but only until we don't want to collaborate with other developers. Unlike distributed version control system in centralized version control systems, there will be one server, which will contain repository and if we need to commit any change, we have to connect to the server and make the commit. SVN was very popular version control system in which repository used to be central and developers used to have only working copy.

In distributed version control systems, each user has its own copy of the complete repository. Here, I'm using 2 terms "working copy" & "repository". Working copy refers to the current version of source code in a repository which mostly will be the latest version of source code, but not necessarily. Repository contains all the history of source code, you can traverse to any commit without contacting sever.

Git

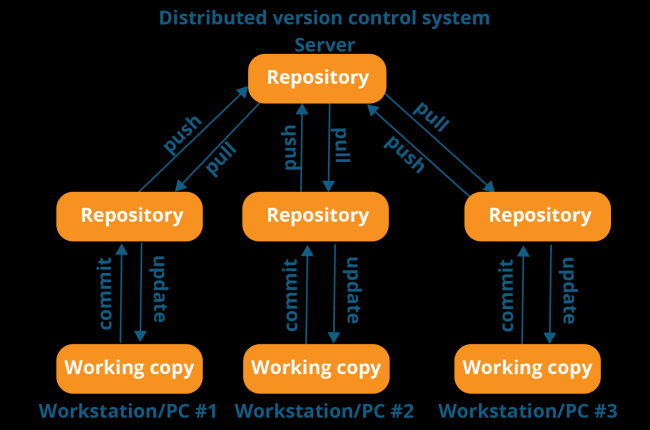

As you can see in the above image, 3 workstations are working on the same project, and each one of them has their own repository which talks to one remote repository located on some server. Here, each developer can work independently and can commit the source code in their local repository, he needs to push the code in remote repository only when he wants to share the code with other collaborators of the project. Once the code is pushed in the remote repository, others can pull this into their local repository.

One point you need to notice here is that your Local Repository can have a remote repository to push code in some server, but you can work locally as well without having any remote repository.

Installing Git

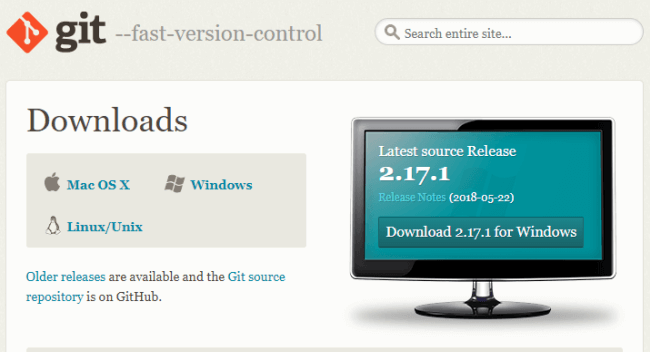

Download appropriate version of git according to your platform from https://git-scm.com/ and install.

Git

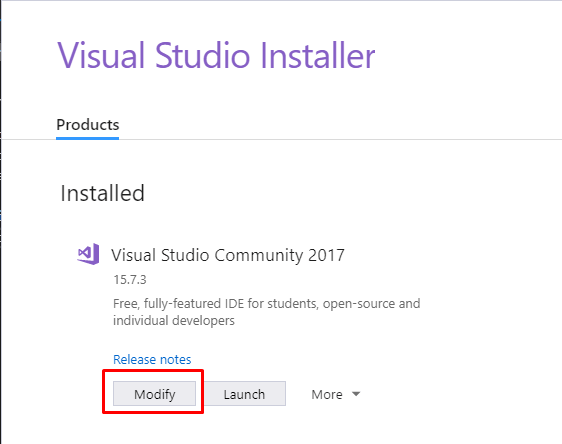

If you are using Visual Studio 2017 or higher, you can open Visual Studio Installer and click Modify.

Git

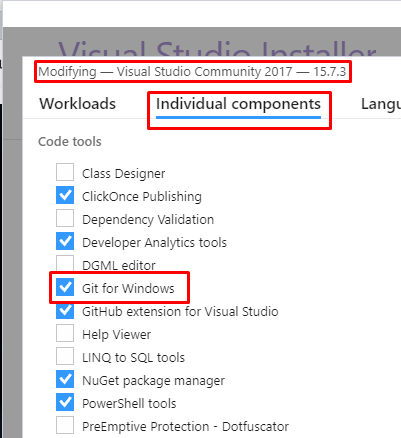

Select "Git for Windows" in individual components & modify to install git.

Git

Verifying Installation

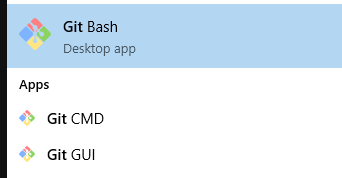

You will get Git Bash, Git CMD, & Git GUI after successful installation of git. You can use a command line in either Git Bash or Git CMD according to your preference. If Windows is your preferred OS, then Git CMD is a better choice and if you love Linux, go for Git Bash. You can also run git commands from Windows command prompt if the environment variable is set.

Git

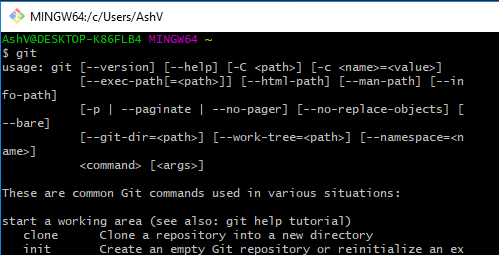

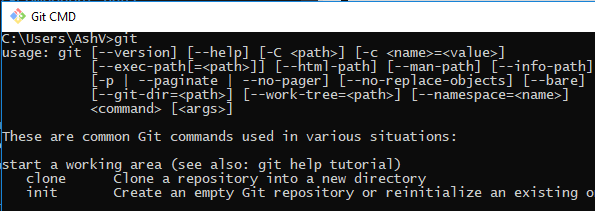

Run git command to verify successful installation. All git commands should be written in small letters compulsorily.

Git

Git

Configuring Git

After installing git, you have to set your name and email which will appear in your commit logs. If they are already set, you can also verify them.

$ git config

We can set or verify name & email using git config command.

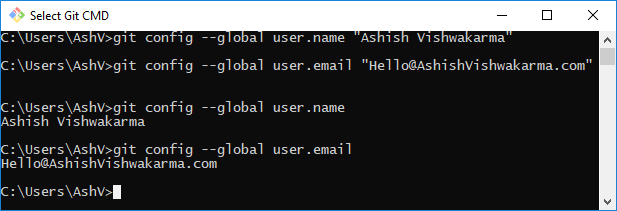

Set Username $ git config --global user.name "Ashish Vishwakarma" Set Email $ git config --global user.email "Hello@AshishVishwakarma.com" Verify Username $ git config --global user.name Verify Email $ git config --global user.email git config in action

Git

Git

Creating New Repository

As explained above, the repository is a place where source code is stored physically. Git init command does this job for us. You need to go to the folder which you want to make as a repository and run this command. No matter if the folder is empty or has files, you can make that a repository.

$ git init

Git

$ git init

Git

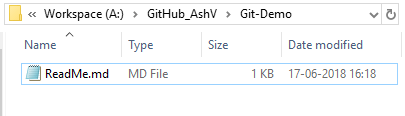

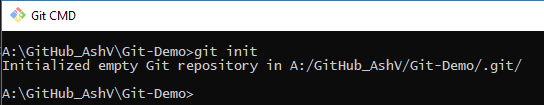

I created one folder in my file system with name Git-Demo & ran git init in this folder using the command line. You can see the message Initialized empty Git repository in A:/GitHub_AshV/Git-Demo/.git/. Did you observe .git in the message. Let's verify in the file system.

Git

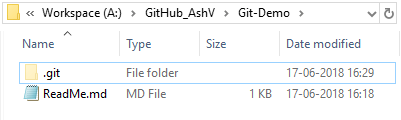

There is one hidden folder created with name .git, this folder is responsible for maintaining versions and other metadata related to the repository. (Hidden files & folder should be visible in your OS settings to see this folder).

Status of Repository

To get the current status of repository git status command is used. This command is very frequently used, let's see what is the status of our repository after git init.

  • $ git status
  • $ git status

Git

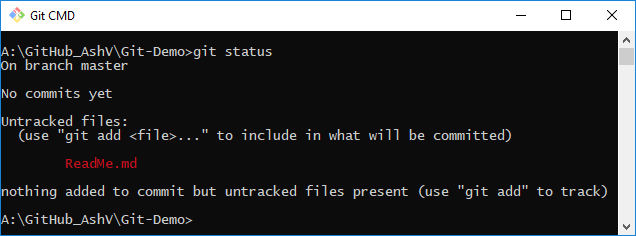

Hmmm, ReadMe.md is untracked 🤔, Untracked file means it will be there in the file system but git will not be aware of it. Let's add it to the repository.

Adding/Staging Files to Repository

If you have observed in the message of git init, it says "Initialized empty Git repository", git init initializes the repository with no files even if you have files present in that folder. To add files in repository 'git add' command is used.

$ git add

Let's add ReadMe.md file to git and check the status.

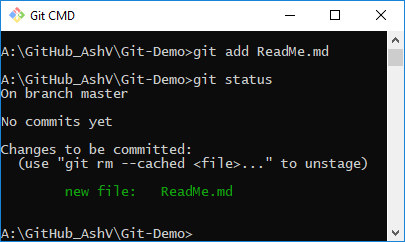

$ git add ReadMe.md

Git

If we have multiple files, then we have to run this command for each file, or we can add all files with git add . and remove/unstage unwanted files later.

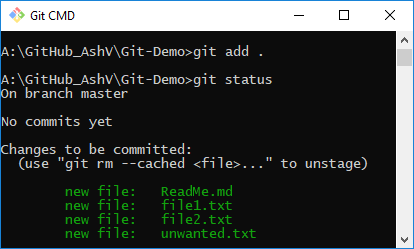

I created 3 more files in folder "file1.txt, file2.txt & unwanted.txt" and adding them to the repository with git add ..

$ git add .

Git

Removing/Unstaging Files in Repository

If you want to remove some staged file from repository 'git rm' command is used. If you wish to just unstage file from the repository but want to keep in the file system you need to use --cached in git rm command.

$ git rm --cached unwanted.txt

Git

Commiting the Changes

Add git command: Just add files to repository, but to log your changes/make versions you need to commit your changes using git commit command. So far we have created 3 files, let's commit them. While committing changes we should provide proper commit message which describes what change are made in this commit. -m is used to provide commit message.

$ git commit -m "adding 3 demo files"

Git

You can observe here before commit those 3 files were visible in green under "Changes to be committed" section, now they are committed, that's why they're not visible here.

Making Further Changes in Code & Committing Them

After commit if you make changes to existing files or new files, you need to again run git add to stage them & git commit to commit the changes. So far everything we did in repository is local in our machine. Let's see how to Push changes to server/remote repository.

Adding Remote Repository

Remote repository is the one which is located in the server, and different collaborators push changes to it, which can be taken by other collaborators.

To have a remote repository we can use any of the services including GitHub, GitLab, BitBucket & Visual Studio Team Services. Basically they all work in the same way, so if you are able work with one, you can wok with others too. We will take GitHub as example here.

Private vs Public Repository

Public repos are used by Open Source projects mostly, anyone can view their code and commit history e.g Selenium, .Net Core etc. Private repos are used when you don't want to make your code public e.g your client's code. Except GitHub, the above mentioned other services are providing private repositories for free. By the way you won't feel any difference between them while working with them.

Create Repository in GitHub

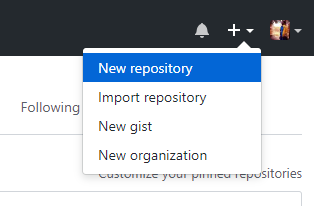

Navigate to (https://github.com)[https://github.com] login into your account or create one if don't have already. And click on create new repository.

Git

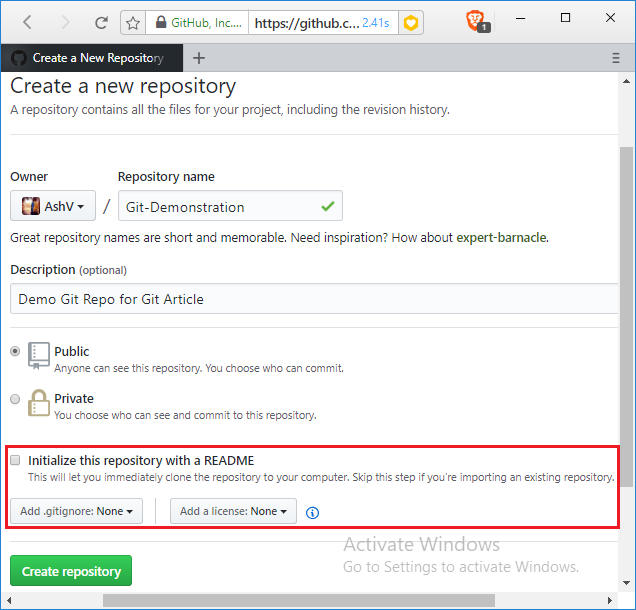

You can give any name here, it could be different than your folder name in local. I have given different name Git-Demonstration. Don't select anything in highlighted section those are for completely new repositories but here we have already created a repository locally.

Git

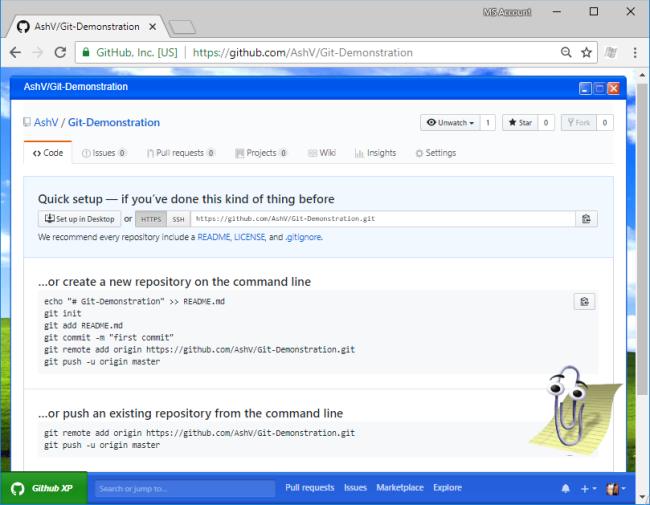

After click on "Create Repository" you will see a similar screen with command given.

Git
Link Remote Repository

You can observe git remote command in above image, copy and run it in your machine to add remote repository in your local repository.

$ git remote $ git remote add origin https://github.com/AshV/Git-Demonstration.git

Git

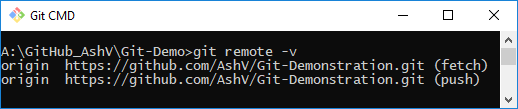

To verify remote URL you can run this command with -v

$ git remote -v

Git

Pushing Changes To Server

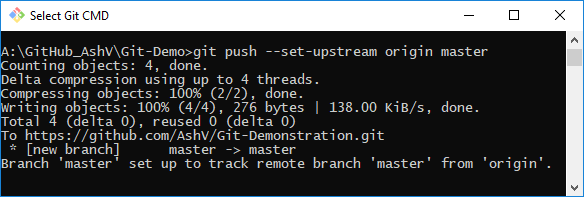

With git remote now our repository knows where our remote server is, but to push changes there we need to run git push, while pushing to remote for the first time we need to set remote as upstream for the current branch, which is master by default. (branching in git is very popular and useful feature, as this article is intended for beginners, so I will be covering them in further article). Run below command to set upstream.

$ git push --set-upstream origin master

Here is the short version of above with a  more descriptive command.

$ git push -u origin master

Git
Taking latest from Server

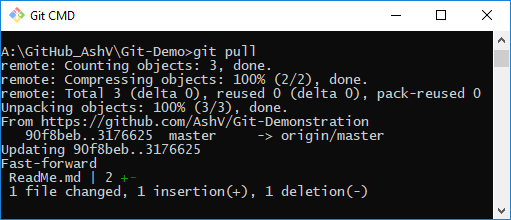

While working on a project with multiple collaborators, then it's always a good idea to take the latest before starting to make changes in the repository to avoid conflicts and warnings while pushing. 'git pull' does this job, I'm making some change in the remote repo to show demo, then I'll pull them in local.

$ git pull

Git

You can see the latest changes made --  ReadMe.md files are retrieved to local.

Conclusion

A quick recap, we have explored these commands in this article.

  1. git config
  2. git init
  3. git status
  4. git add
  5. git rm
  6. git commit
  7. git remote
  8. git push
  9. git pull

You can start using git with the command line with them. Further commands will be covered in upcoming articles. You can explore commits made in this article at https://github.com/AshV/Git-Demonstration/commits/master

Thanks for reading!
