Grid With Paging Using KnockoutJS

Grid with Paging Using KnockoutJS. In this article, we will learn how to display data into Grid using JQWidget library. In this demo, we are going to create a database and a table called customer which contains data. We will use Web API 2 and Entity Framework ORM in order to create Service. Finally, for client side, we are using knockout.js library. I hope you will like this.

Introduction

In this article, we will learn how to display data into Grid using JQWidget library. In this demo, we are going to create a database and a table called customer which contains data. We will use Web API 2 and Entity Framework ORM in order to create Service. Finally, for client side, we are using knockout.js library. I hope you will like this.

Let’s start.

Note

You can download zip file from JQWidget

Prerequisites

As I said before, we are going to use Web API 2 and Entity Framework. For this, you must have Visual Studio 2015 (.Net Framework 4.5.2) and SQL Server.

In this post, we are going to -
  • Create Database and table.
  • Create Web API application.
  • Configuring Entity Framework ORM.
  • Implementing the needed http service.
  • Using jqxWidget and knockout.js libraries.
SQL Database part

Here, you find the scripts to create database and table.

Create Database
  1. USE [master]
  2. GO
  3.
  4. /****** Object:  Database [DBCustomer]    Script Date: 3/12/2017 4:38:33 AM ******/
  5. CREATE DATABASE [DBCustomer]
  6.  CONTAINMENT = NONE
  7.  ON  PRIMARY
  8. NAME = N'DBCustomer', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\DBCustomer.mdf' , SIZE = 3072KB , MAXSIZE = UNLIMITED, FILEGROWTH = 1024KB )
  9.  LOG ON
  10. NAME = N'DBCustomer_log', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\DBCustomer_log.ldf' , SIZE = 1024KB , MAXSIZE = 2048GB , FILEGROWTH = 10%)
  11. GO
  12.
  13. ALTER DATABASE [DBCustomer] SET COMPATIBILITY_LEVEL = 110
  14. GO
  15.
  16. IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))
  17. begin
  18. EXEC [DBCustomer].[dbo].[sp_fulltext_database] @action = 'enable'
  19. end
  20. GO
  21.
  22. ALTER DATABASE [DBCustomer] SET ANSI_NULL_DEFAULT OFF
  23. GO
  24.
  25. ALTER DATABASE [DBCustomer] SET ANSI_NULLS OFF
  26. GO
  27.
  28. ALTER DATABASE [DBCustomer] SET ANSI_PADDING OFF
  29. GO
  30.
  31. ALTER DATABASE [DBCustomer] SET ANSI_WARNINGS OFF
  32. GO
  33.
  34. ALTER DATABASE [DBCustomer] SET ARITHABORT OFF
  35. GO
  36.
  37. ALTER DATABASE [DBCustomer] SET AUTO_CLOSE OFF
  38. GO
  39.
  40. ALTER DATABASE [DBCustomer] SET AUTO_CREATE_STATISTICS ON
  41. GO
  42.
  43. ALTER DATABASE [DBCustomer] SET AUTO_SHRINK OFF
  44. GO
  45.
  46. ALTER DATABASE [DBCustomer] SET AUTO_UPDATE_STATISTICS ON
  47. GO
  48.
  49. ALTER DATABASE [DBCustomer] SET CURSOR_CLOSE_ON_COMMIT OFF
  50. GO
  51.
  52. ALTER DATABASE [DBCustomer] SET CURSOR_DEFAULT  GLOBAL
  53. GO
  54.
  55. ALTER DATABASE [DBCustomer] SET CONCAT_NULL_YIELDS_NULL OFF
  56. GO
  57.
  58. ALTER DATABASE [DBCustomer] SET NUMERIC_ROUNDABORT OFF
  59. GO
  60.
  61. ALTER DATABASE [DBCustomer] SET QUOTED_IDENTIFIER OFF
  62. GO
  63.
  64. ALTER DATABASE [DBCustomer] SET RECURSIVE_TRIGGERS OFF
  65. GO
  66.
  67. ALTER DATABASE [DBCustomer] SET  DISABLE_BROKER
  68. GO
  69.
  70. ALTER DATABASE [DBCustomer] SET AUTO_UPDATE_STATISTICS_ASYNC OFF
  71. GO
  72.
  73. ALTER DATABASE [DBCustomer] SET DATE_CORRELATION_OPTIMIZATION OFF
  74. GO
  75.
  76. ALTER DATABASE [DBCustomer] SET TRUSTWORTHY OFF
  77. GO
  78.
  79. ALTER DATABASE [DBCustomer] SET ALLOW_SNAPSHOT_ISOLATION OFF
  80. GO
  81.
  82. ALTER DATABASE [DBCustomer] SET PARAMETERIZATION SIMPLE
  83. GO
  84.
  85. ALTER DATABASE [DBCustomer] SET READ_COMMITTED_SNAPSHOT OFF
  86. GO
  87.
  88. ALTER DATABASE [DBCustomer] SET HONOR_BROKER_PRIORITY OFF
  89. GO
  90.
  91. ALTER DATABASE [DBCustomer] SET RECOVERY SIMPLE
  92. GO
  93.
  94. ALTER DATABASE [DBCustomer] SET  MULTI_USER
  95. GO
  96.
  97. ALTER DATABASE [DBCustomer] SET PAGE_VERIFY CHECKSUM
  98. GO
  99.
  100. ALTER DATABASE [DBCustomer] SET DB_CHAINING OFF
  101. GO
  102.
  103. ALTER DATABASE [DBCustomer] SET FILESTREAM( NON_TRANSACTED_ACCESS = OFF )
  104. GO
  105.
  106. ALTER DATABASE [DBCustomer] SET TARGET_RECOVERY_TIME = 0 SECONDS
  107. GO
  108.
  109. ALTER DATABASE [DBCustomer] SET  READ_WRITE
  110. GO
Create Table
  1. USE [DBCustomer]
  2. GO
  3.
  4. /****** Object:  Table [dbo].[Customer]    Script Date: 3/12/2017 4:38:53 AM ******/
  5. SET ANSI_NULLS ON
  6. GO
  7.
  8. SET QUOTED_IDENTIFIER ON
  9. GO
  10.
  11. SET ANSI_PADDING ON
  12. GO
  13.
  14. CREATE TABLE [dbo].[Customer](
  15.     [CustID] [int] IDENTITY(1,1) NOT NULL,
  16.     [FirstName] [varchar](50) NULL,
  17.     [LastName] [varchar](50) NULL,
  18.     [Email] [varchar](50) NULL,
  19.     [Country] [varchar](50) NULL,
  20.  CONSTRAINT [PK_Customer] PRIMARY KEY CLUSTERED
  21. (
  22.     [CustID] ASC
  23. )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ONON [PRIMARY]
  24. ON [PRIMARY]
  25.
  26. GO
  27.
  28. SET ANSI_PADDING OFF
  29. GO

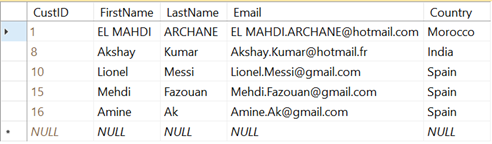

After creating the table, you can add some records as shown below.

create SQL Server table

Create your MVC application

Open Visual Studio and select File >> New Project.

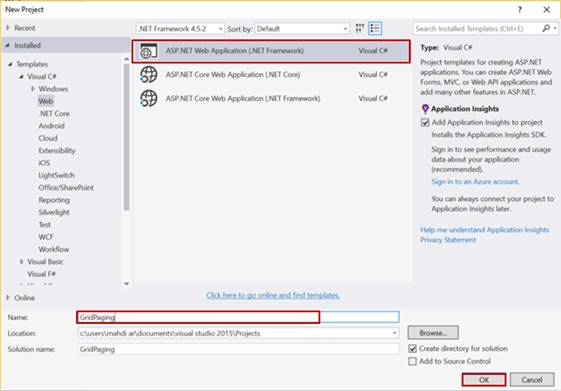

The "New Project" window will pop up. Select ASP.NET Web Application (.NET Framework), name your project, and click OK.

Create MVC application

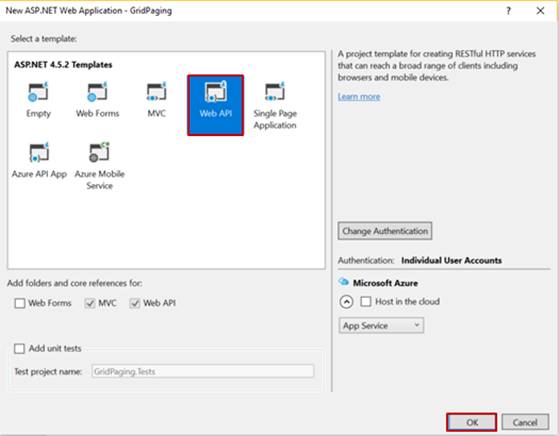

Next, new dialog will pop up for selecting the template. We are going choose Web API and click Ok.

create Web API

After creating our project, we are going to add ADO.NET Entity Data Model.

Adding ADO.NET Entity Data Model

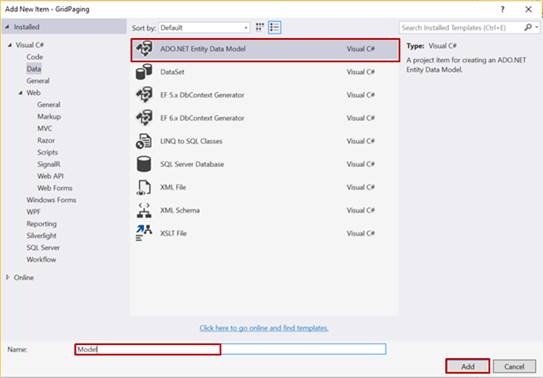

In order to ADO.NET Entity Data Model, right click on the project name, click Add > Add New Item. Dialog box will pop up, inside Visual C# select Data then ADO.NET Entity Data Model, and enter name for your Dbcontext model as Model, finally click Add.

ADO.NET Entity Data Model

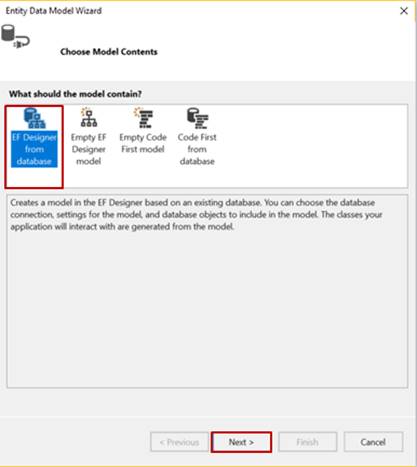

In this level, we are going to choose EF Designer from database as show below.

Entity Data Model Wizard

Next step, we need to choose a data connection which should be used to connect to the database. If the connection doesn’t exist, I will invite you to click on new connection button for creating the new one.

Entity Data Model Wizard

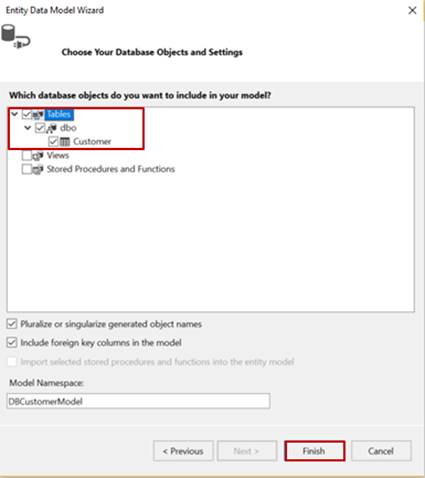

After clicking on next button, the dialog Entity Data Model Wizard will pop up for choosing the object which we want to use. In this demo we are going to choose customer table and click Finish button. Finally we see that EDMX model generates customer entity.

Entity Data Model Wizard

Create a Controller

Now, we are going to create a Controller. Right click on the Controllers folder > Add > Controller> selecting Web API 2 Controller – Empty > click Add.

Create MVC 5 Controller

Enter Controller name (‘CustomerController’).

Create MVC 5 Controller

CustomerController.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net;
  5. using System.Net.Http;
  6. using System.Web.Http;
  7.
  8. namespace GridPaging.Controllers
  9. {
  10.     public class CustomerController : ApiController
  11.     {
  12.
  13.         //Db Context
  14.         private DBCustomerEntities db = new DBCustomerEntities();
  15.
  16.         public IQueryable<Customer> GetCustomers()
  17.         {
  18.             return db.Customers;
  19.         }
  20.
  21.     }
  22. }
After creating our Controller, it’s time to implement GetCustomers() function which select all data from customer table.

Create HTML page

For doing this, right click on project name > Add > HTML Page.



Grid.html
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <title>.: Grid - KnockOut JS</title>
  5.     <meta charset="utf-8" />
  6.
  7.     <!-- CSS -->
  8.     <link href="Content/jqx.base.css" rel="stylesheet" />
  9.
  10. </head>
  11. <body>
  12.
  13.     <h3>Customer List</h3>
  14.     <div>
  15.         <div id="jqxgrid" data-bind="jqxGrid: { source: CustomerList,  columns: [
  16.                  { text: 'Customer ID', dataField: 'CustID', width: 60 },
  17.                  { text: 'First Name', dataField: 'FirstName', width: 100},
  18.                  { text: 'Last Name', dataField: 'LastName', width: 100 },
  19.                  { text: 'Email', dataField: 'Email', width: 250 },
  20.                  { text: 'Country', dataField: 'Country', width: 100 }
  21.              ], pageable: true, pagesize: 5, autoheight: true}">
  22.         </div>
  23.     </div>
  24.
  25.     <!-- JS  -->
  26.     <script src="Scripts/jquery-1.10.2.min.js"></script>
  27.     <script src="Scripts/knockout-3.4.0.js"></script>
  28.
  29.     <!-- JQXWidget -->
  30.     <script src="Scripts/jqxcore.js"></script>
  31.     <script src="Scripts/jqxdata.js"></script>
  32.     <script src="Scripts/jqxbuttons.js"></script>
  33.     <script src="Scripts/jqxscrollbar.js"></script>
  34.     <script src="Scripts/jqxmenu.js"></script>
  35.     <script src="Scripts/jqxlistbox.js"></script>
  36.     <script src="Scripts/jqxdropdownlist.js"></script>
  37.     <script src="Scripts/jqxgrid.js"></script>
  38.     <script src="Scripts/jqxgrid.selection.js"></script>
  39.     <script src="Scripts/jqxgrid.edit.js"></script>
  40.     <script src="Scripts/jqxgrid.pager.js"></script>
  41.     <script src="Scripts/jqxknockout.js"></script>
  42.     <script src="Scripts/demos.js"></script>
  43.     <script type="text/javascript">
  44.         $(document).ready(function () {
  45.             var viewModel = function () {
  46.                 var self = this;
  47.                 self.CustID = ko.observable();
  48.                 self.FirstName = ko.observable();
  49.                 self.LastName = ko.observable();
  50.                 self.Email = ko.observable();
  51.                 self.Country = ko.observable();
  52.                 self.CustomerList = ko.observableArray([]);
  53.                 function getCustomers() {
  54.                     $.ajax({
  55.                         type: 'GET',
  56.                         url: '/api/Customer',
  57.                         contentType: 'application/json',
  58.                         success: function (data) {
  59.                             self.CustomerList(data);
  60.                         },
  61.                         error: function () {
  62.                             alert('Something Wrong !');
  63.                         }
  64.                     });
  65.                 }
  66.                 getCustomers();
  67.             }
  68.             ko.applyBindings(new viewModel());
  69.         });
  70.     </script>
  71. </body>
  72. </html>
Output

Now, build your application and you can see the following output.

Grid using JQWidget library
