How to Add Two 3×3 Matrices in Python

Introduction
What Is Matrix Addition?
Why 3×3 Matrices Matter in Real Life
Step-by-Step Implementation
Complete Code with Test Cases
Performance and Best Practices
Conclusion

Introduction

Matrix addition is one of the most fundamental operations in linear algebra—and surprisingly common in real-world applications. While it may sound academic, adding two 3×3 matrices has practical uses in fields like computer graphics, robotics, and even medical imaging.

In this article, we’ll explore how to add two 3×3 matrices in Python using native lists, demonstrate its relevance through a compelling real-world scenario from MRI image processing, and provide clean, tested, and efficient code you can use right away.

What Is Matrix Addition?

Matrix addition involves adding corresponding elements from two matrices of the same dimensions. For two 3×3 matrices A and B, the resulting matrix C is computed as:

C[i][j] = A[i][j] + B[i][j]

This operation is only valid when both matrices have identical dimensions—in our case, 3 rows and 3 columns.

Why 3×3 Matrices Matter in Real Life

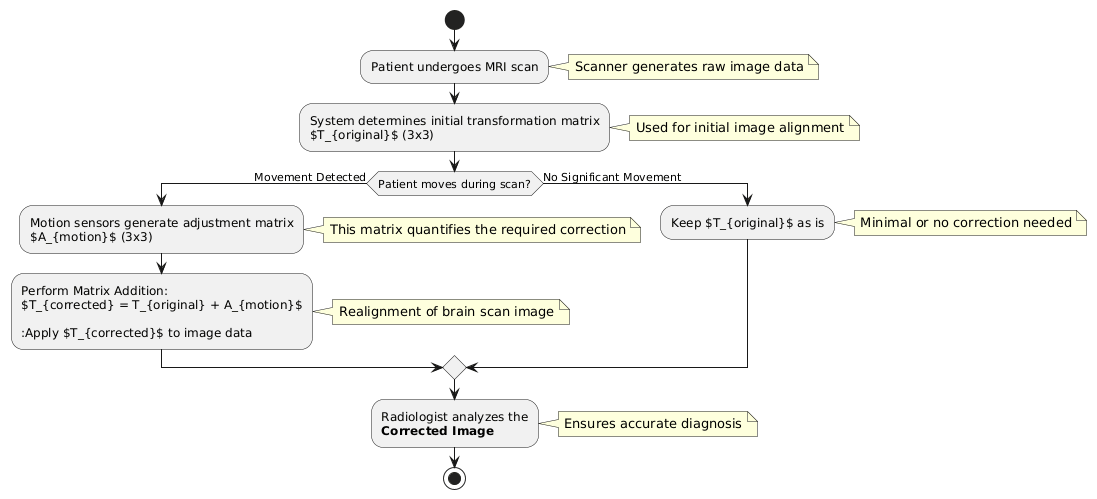

In medical imaging, particularly in MRI (Magnetic Resonance Imaging), small transformation matrices like 3×3 are used to correct image distortions caused by patient movement or magnetic field inhomogeneities.

Imagine a radiologist analyzing brain scans. If a patient slightly moves during the scan, the system applies a correction matrix to realign the image. This correction often involves adding a small adjustment matrix (derived from motion sensors) to the original transformation matrix—both typically 3×3.

Thus, fast and reliable 3×3 matrix addition isn’t just math—it’s part of delivering accurate diagnoses.

Step-by-Step Implementation

To add two 3×3 matrices in Python:

Validate that both inputs are 3×3.
Initialize a result matrix filled with zeros.
Iterate through each row and column, summing corresponding elements.

We’ll avoid NumPy to keep it lightweight and use only built-in Python features.

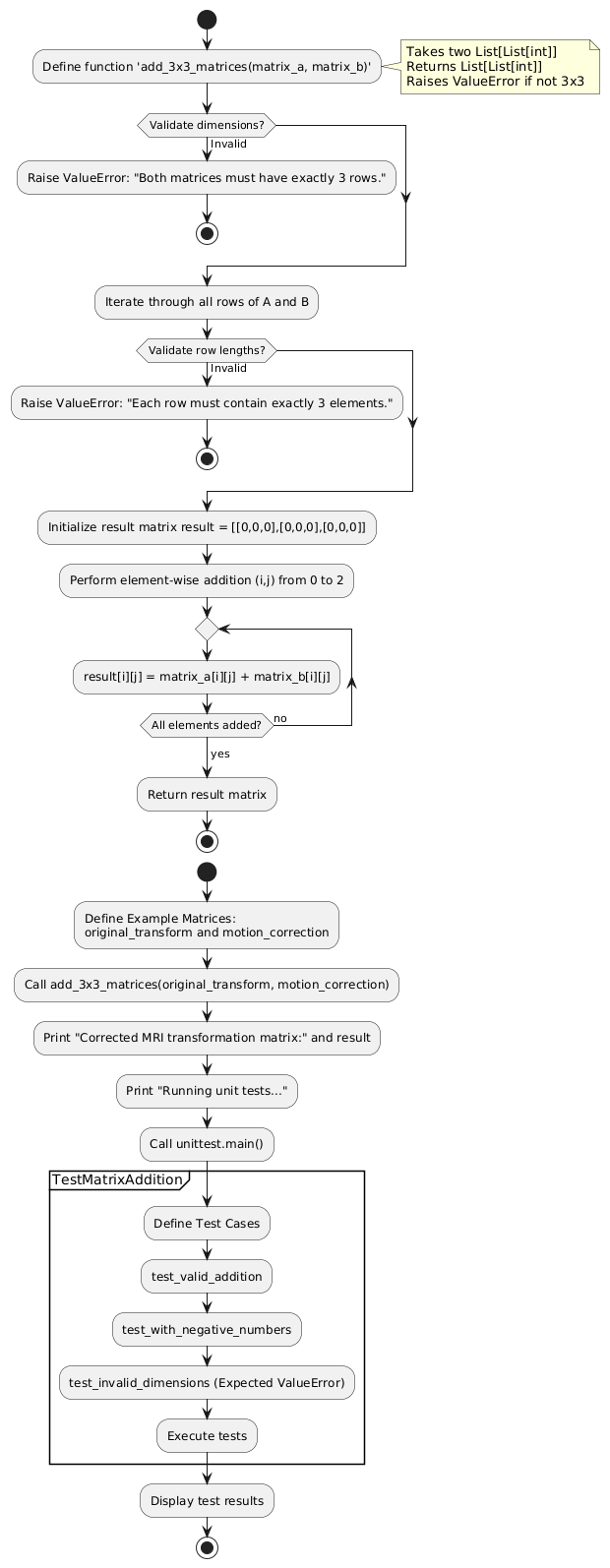

Complete Code with Test Cases

from typing import List
import unittest

def add_3x3_matrices(matrix_a: List[List[int]], matrix_b: List[List[int]]) -> List[List[int]]:
    """
    Adds two 3x3 matrices and returns the result.

    Raises:
        ValueError: If either matrix is not 3x3.
    """
    # Validate dimensions
    if len(matrix_a) != 3 or len(matrix_b) != 3:
        raise ValueError("Both matrices must have exactly 3 rows.")

    for row in matrix_a + matrix_b:
        if len(row) != 3:
            raise ValueError("Each row must contain exactly 3 elements.")

    # Initialize result matrix
    result = [[0 for _ in range(3)] for _ in range(3)]

    # Perform element-wise addition
    for i in range(3):
        for j in range(3):
            result[i][j] = matrix_a[i][j] + matrix_b[i][j]

    return result


class TestMatrixAddition(unittest.TestCase):
    def test_valid_addition(self):
        A = [[1, 2, 3],
             [4, 5, 6],
             [7, 8, 9]]
        B = [[9, 8, 7],
             [6, 5, 4],
             [3, 2, 1]]
        expected = [[10, 10, 10],
                    [10, 10, 10],
                    [10, 10, 10]]
        self.assertEqual(add_3x3_matrices(A, B), expected)

    def test_with_negative_numbers(self):
        A = [[-1, 0, 1],
             [2, -2, 0],
             [0, 0, 0]]
        B = [[1, 0, -1],
             [-2, 2, 0],
             [5, 5, 5]]
        expected = [[0, 0, 0],
                    [0, 0, 0],
                    [5, 5, 5]]
        self.assertEqual(add_3x3_matrices(A, B), expected)

    def test_invalid_dimensions(self):
        with self.assertRaises(ValueError):
            add_3x3_matrices([[1, 2]], [[1, 2]])  # Too few rows

        with self.assertRaises(ValueError):
            add_3x3_matrices([[1, 2, 3, 4]], [[1, 2, 3]])  # Row too long


if __name__ == "__main__":
    # Example: MRI correction matrices
    original_transform = [
        [1, 0, 2],
        [0, 1, -1],
        [0, 0, 1]
    ]
    motion_correction = [
        [0, 0, 0],
        [0, 0, 1],
        [0, 0, 0]
    ]

    corrected = add_3x3_matrices(original_transform, motion_correction)
    print("Corrected MRI transformation matrix:")
    for row in corrected:
        print(row)

    print("\nRunning unit tests...")
    unittest.main(argv=[''], exit=False, verbosity=2)

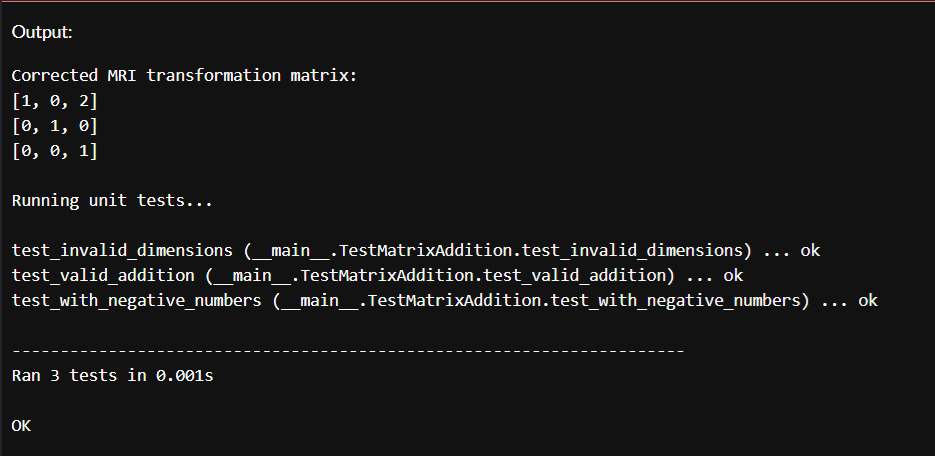

This shows how a small vertical motion (+1 in the y-direction) is compensated by adjusting the transformation matrix.

Performance and Best Practices

Time Complexity: O(1) — since the matrix size is fixed (9 elements), the operation runs in constant time.
Space Complexity: O(1) — we only create one new 3×3 matrix.
Use nested list comprehensions for conciseness if readability isn’t compromised:

result = [[matrix_a[i][j] + matrix_b[i][j] for j in range(3)] for i in range(3)]

Always validate input—especially in medical or safety-critical systems.
For large-scale or repeated operations, consider NumPy, but for single 3×3 additions, native Python is faster due to no import overhead.

Conclusion

Adding two 3×3 matrices may seem trivial, but in domains like medical imaging, it plays a quiet yet vital role in ensuring diagnostic accuracy. By understanding both the mechanics and the real-world context, you turn a simple coding task into a meaningful engineering solution. Whether you're building a game, processing sensor data, or helping doctors see clearer images, mastering small matrix operations builds the foundation for bigger innovations. Keep your code clean, tested, and purpose-driven—and even the smallest matrices can make a big difference.
