How to Build Your Own Simple Chatbot with n8n

Automating customer support and answering frequently asked questions can be a huge drain on time. While commercial chatbots are often complex and expensive, you can build your own simple yet functional chatbot using n8n in just a few minutes.

This article provides a step-by-step guide to creating a chatbot that understands a user's intent and provides an automated response, all without a single line of code.

The Blueprint: How the Chatbot Works

A chatbot's workflow is a simple loop: it listens for a message, processes it, and then sends a response. In n8n, this process is broken down into three key stages: the trigger, the brain, and the action.

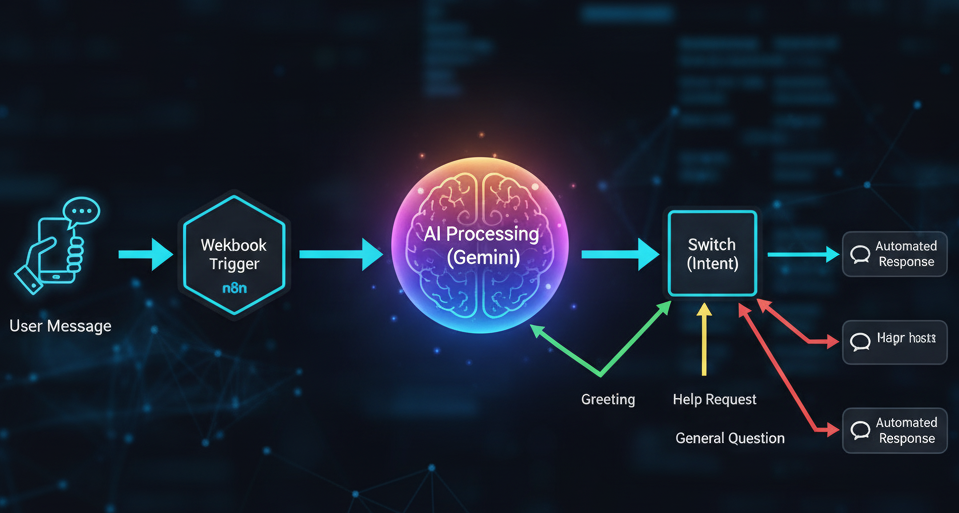

The workflow looks like this:

  • User Message: A user sends a message on a platform like Telegram or Discord.

  • Webhook Trigger: n8n's Webhook node receives the message and starts the workflow.

  • AI Processing: An AI node analyzes the message to understand the user's intent.

  • Conditional Logic: A Switch node directs the workflow based on the AI's analysis.

  • Automated Response: The bot sends an appropriate message back to the user.

    Gemini_Generated_Image_9u4tw59u4tw59u4t (1)

Building the Bot: A Step-by-Step Guide

Let's walk through how to create this workflow in n8n.

1. The Trigger: Listening for Messages

First, you need a way to receive messages from a user. The Webhook node is the perfect tool for this. It acts as a listener, waiting for an incoming message to start the workflow.

  • Add a Webhook node to your canvas.

  • Configure it to receive a POST request.

  • Copy the unique webhook URL generated by n8n. You will use this URL to connect your chatbot platform (like Telegram or Discord) to your n8n workflow.

Once configured, any message sent to that URL will trigger the workflow.

2. The Brain: Understanding Intent with AI

The real intelligence of your bot comes from an AI node. This node takes the user's message and processes it to figure out what the user wants.

  • Add a Language Model node (e.g., Gemini) right after the Webhook.

  • In the prompt, tell the AI to classify the user's message. For example, you can give it a simple instruction: "Classify the user's message as either 'greeting', 'help request', or 'general question'. Just respond with the classification."

The AI will read the user's message (like "Hi, I need help with my account") and output a simple classification (e.g., "help request").

3. The Logic: Making a Decision with a Switch

Now that the AI has classified the message, you need to tell the workflow what to do with that information. This is where the Switch node comes in.

  • Add a Switch node and connect it to the AI node.

  • Configure the switch to check the value of the AI's classification. You can create multiple "cases" for each possible classification.

    • Case 1: greeting

    • Case 2: help request

    • Case 3: general question

    • Default: The path for any classification that doesn't match a case.

The Switch node acts as a traffic controller, sending the workflow down the correct path based on the AI's response.

image (1)

4. The Response: Sending a Reply

The final step is to send a message back to the user. You'll add a Response node at the end of each path from the Switch node.

  • For the 'greeting' path, the response can be a simple "Hello! How can I help you today?"

  • For the 'help request' path, the response might be "Please describe your issue in more detail, and a human will assist you shortly."

  • For the 'general question' path, you can use a more generic response.

This modular approach allows you to customize the bot's response for every type of user query.

Why This Workflow is a Game-Changer

  • No-Code Intelligence: You get the power of AI without needing to write any code.

  • Scalability: You can easily add more cases to the Switch node to handle more complex queries as your needs grow.

  • Customization: You can easily swap out the AI model or change the responses in each node.

Building a chatbot with n8n is more than just a project; it's an introduction to a new way of thinking about automation. It teaches you how to break down complex processes into simple, interconnected steps and leverage powerful tools to build intelligent solutions.
