How to Compute the Shannon Entropy of a Data Stream Using Python

Tuhin Paul
10h
136
0
1

Article

Table of Contents

Introduction
What Is Shannon Entropy?
Why Entropy Matters in Real-Time Cybersecurity
Streaming Entropy: The Challenge
Efficient Entropy Computation for Live Data
Complete Implementation with Real-World Test Cases
Best Practices and Performance Tips
Conclusion

Introduction

In today’s hyperconnected world, data streams flow continuously—from financial transactions and IoT sensors to social media feeds and network traffic. One powerful way to understand the unpredictability or randomness of such streams is through Shannon entropy, a concept from information theory pioneered by Claude Shannon in 1948.

This article shows you how to compute Shannon entropy on the fly for live data streams, using a compelling real-world example: detecting malware beaconing in enterprise network traffic.

What Is Shannon Entropy?

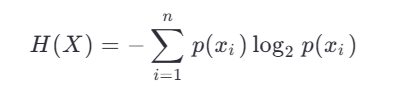

Shannon entropy quantifies the average level of "surprise" or information content in a data source. Formally, for a discrete random variable X with possible outcomes x1,x2,...,xn and probabilities p(xi) , entropy H(X) is:

Low entropy → predictable, repetitive data (e.g., "AAAAA")
High entropy → random, complex data (e.g., "k9#Lm2")

In cybersecurity, attackers often use domain generation algorithms (DGAs) to create seemingly random domain names for command-and-control servers. These domains have abnormally high entropy compared to legitimate domains like "google.com" or "microsoft.com".

Why Entropy Matters in Real-Time Cybersecurity

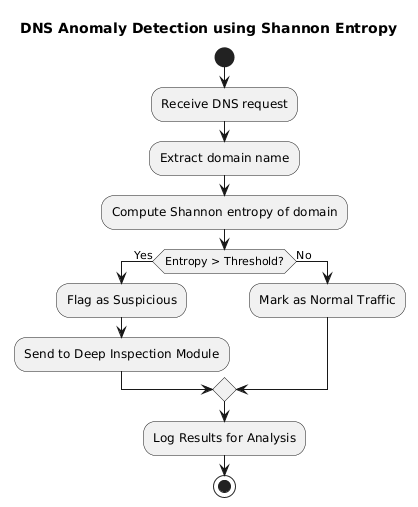

Imagine you're a security analyst at a large bank. Your intrusion detection system (IDS) processes millions of DNS requests per hour. Most are normal—but some might be malware "phoning home" using DGA-generated domains like xk92mzla3nqf.biz.

By computing the Shannon entropy of each domain name in real time, you can flag suspiciously random-looking domains for deeper inspection—without prior knowledge of malware signatures.

This is anomaly detection powered by information theory.

Streaming Entropy: The Challenge

Traditional entropy calculation requires knowing the full probability distribution upfront. But in a data stream, you receive symbols (e.g., characters) one by one. You can’t store the entire stream—only a compact summary.

The solution? Maintain a frequency counter and update entropy incrementally.

Efficient Entropy Computation for Live Data

We’ll compute entropy character-by-character as a domain name arrives. Using a dictionary to track character frequencies, we update probabilities on the fly and calculate entropy in O(1) per character after the initial setup.

Here’s the implementation:

import math
from typing import Iterator, Tuple

def _calculate_entropy(freq: dict[str, int], total: int) -> float:
    """Helper function to calculate Shannon entropy from frequencies and total."""
    if total == 0:
        return 0.0

    entropy = 0.0
    for count in freq.values():
        # Frequency is count / total
        # The entropy formula is: -sum(p * log2(p))
        # Note: log2(p) = log2(count / total) = log2(count) - log2(total)
        # Using the direct formula with division is often clearer
        prob = count / total
        # We check if prob > 0 is technically redundant since we iterate over
        # values from the freq dictionary, so count > 0 is guaranteed.
        entropy -= prob * math.log2(prob)

    return entropy

def shannon_entropy_interactive(data_stream: Iterator[str]) -> Iterator[Tuple[str, float]]:
    """
    Compute and yield the running Shannon entropy for a live data stream.

    Args:
        data_stream: Iterator yielding symbols (e.g., characters).

    Yields:
        Tuple[str, float]: The current symbol and the current Shannon entropy
                           of all symbols seen up to and including that symbol.
    """
    # Use a standard dictionary for frequency counting
    freq: dict[str, int] = {}
    total = 0

    # Process the stream symbol by symbol
    for symbol in data_stream:
        # Update counts
        freq[symbol] = freq.get(symbol, 0) + 1
        total += 1

        # Calculate the current running entropy
        current_entropy = _calculate_entropy(freq, total)

        # Yield the symbol just processed and the new entropy
        yield symbol, current_entropy

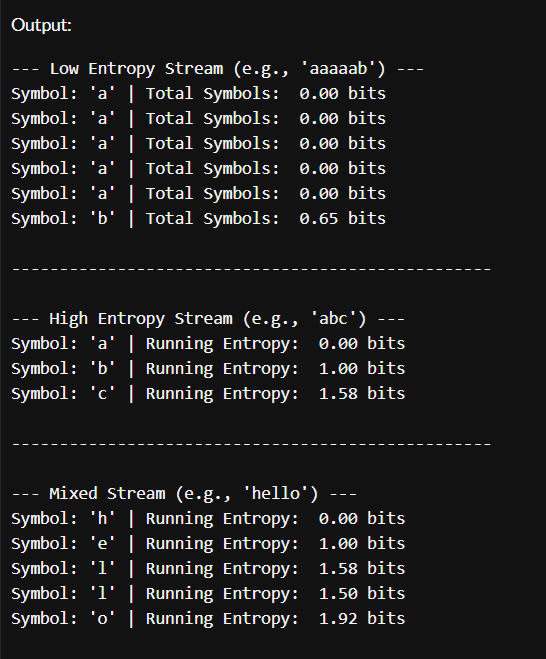

# --- Example Usage ---

# 1. Example with low randomness (mostly 'a's)
print("--- Low Entropy Stream (e.g., 'aaaaab') ---")
stream1 = iter("aaaaab")
# The function returns an iterator, so we loop over it
for symbol, running_entropy in shannon_entropy_interactive(stream1):
    print(f"Symbol: '{symbol}' | Total Symbols: {running_entropy:5.2f} bits")

print("\n" + "-"*50 + "\n")

# 2. Example with high randomness (max entropy for 3 symbols: 'abc')
print("--- High Entropy Stream (e.g., 'abc') ---")
stream2 = iter("abc")
for symbol, running_entropy in shannon_entropy_interactive(stream2):
    print(f"Symbol: '{symbol}' | Running Entropy: {running_entropy:5.2f} bits")

print("\n" + "-"*50 + "\n")

# 3. Example of how entropy changes as symbols repeat and then diversify
print("--- Mixed Stream (e.g., 'hello') ---")
stream3 = iter("hello")
for symbol, running_entropy in shannon_entropy_interactive(stream3):
    print(f"Symbol: '{symbol}' | Running Entropy: {running_entropy:5.2f} bits")

This function works for any discrete stream—characters, bytes, tokens, etc.

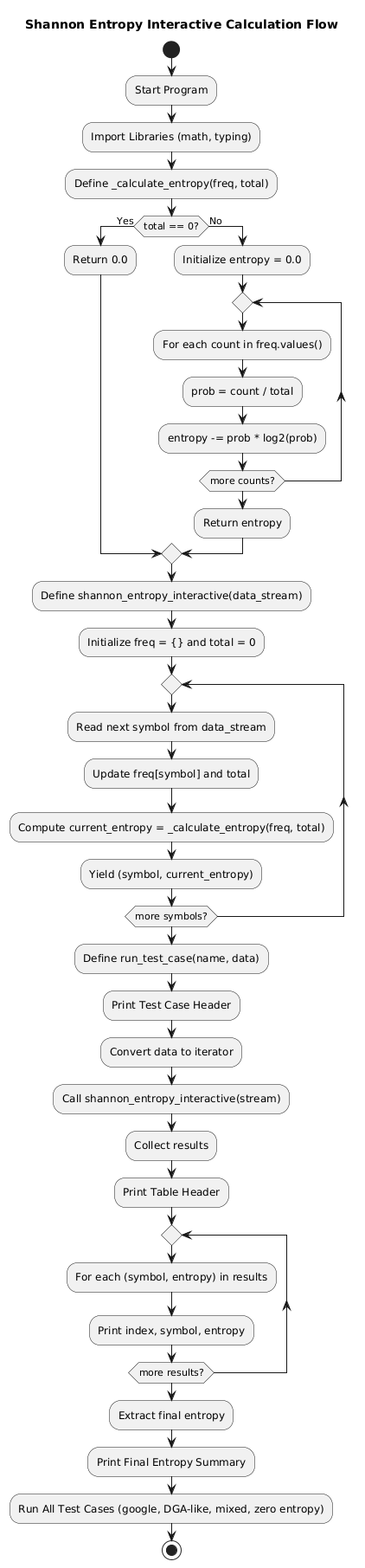

Complete Implementation with Real-World Test Cases

import math
from typing import Iterator, Tuple

def _calculate_entropy(freq: dict[str, int], total: int) -> float:
    """Helper function to calculate Shannon entropy from frequencies and total."""
    if total == 0:
        return 0.0

    entropy = 0.0
    for count in freq.values():
        # count must be > 0 here
        prob = count / total
        # Shannon Entropy Formula: H = -sum(p * log2(p))
        entropy -= prob * math.log2(prob)

    return entropy

def shannon_entropy_interactive(data_stream: Iterator[str]) -> Iterator[Tuple[str, float]]:
    """
    Compute and yield the running Shannon entropy for a live data stream.

    This function acts as a generator, providing the entropy calculation after
    each new symbol is processed.

    Args:
        data_stream: Iterator yielding symbols (e.g., characters of a string).

    Yields:
        Tuple[str, float]: The current symbol and the current Shannon entropy
                           of all symbols seen up to and including that symbol.
    """
    # Initialize frequency count and total symbols seen
    freq: dict[str, int] = {}
    total = 0

    # Process the stream symbol by symbol
    for symbol in data_stream:
        # Update counts
        freq[symbol] = freq.get(symbol, 0) + 1
        total += 1

        # Calculate the current running entropy
        current_entropy = _calculate_entropy(freq, total)

        # Yield the symbol just processed and the new entropy
        yield symbol, current_entropy

# ====================================================================
# REAL-WORLD TEST CASES (DOMAIN NAME ANALYSIS)
# ====================================================================

# Max entropy for 26 lowercase letters is log2(26) ≈ 4.7 bits.

def run_test_case(name: str, data: str):
    """Utility function to run a test and print the results clearly."""
    print(f"---  Test Case: {name} (Input: '{data}') ---")
    stream = iter(data)

    # Run the interactive entropy calculation
    results = list(shannon_entropy_interactive(stream))

    print(f"{'Index':>5} | {'Symbol':>6} | {'Entropy (bits)':>15}")
    print("-" * 30)
    for i, (symbol, running_entropy) in enumerate(results):
        print(f"{i+1:>5} | {symbol:>6} | {running_entropy:15.6f}")

    # The final entropy is the last value in the results list
    final_entropy = results[-1][1] if results else 0.0
    print("-" * 30)
    print(f" Final Entropy: {final_entropy:.6f} bits\n")

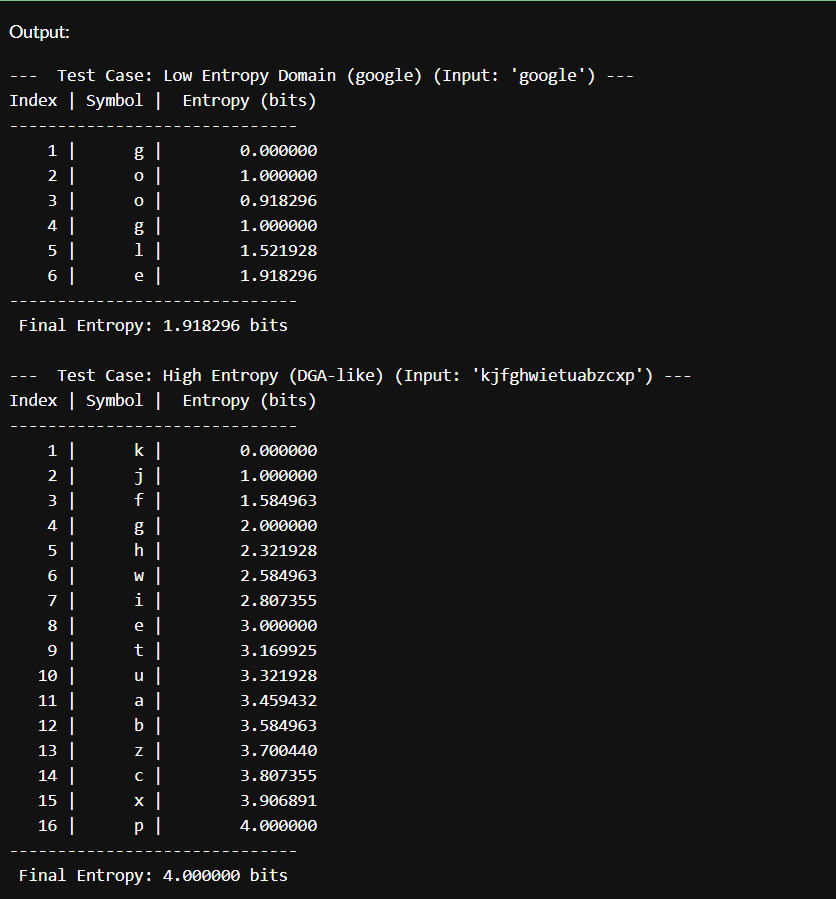

# 1. Low Entropy (Typical/Simple Domain Name)
#   - Repetitive characters ('o', 'l')
#   - Expected: Relatively low final entropy (e.g., around 2.5-3.0)
run_test_case(
    name="Low Entropy Domain (google)",
    data="google"
)

# 2. High Entropy (Potential Domain Generation Algorithm - DGA)
#   - Random string (e.g., used by malware C2 domains)
#   - Expected: High final entropy (e.g., above 4.0, close to log2(26) ≈ 4.7)
run_test_case(
    name="High Entropy (DGA-like)",
    data="kjfghwietuabzcxp"
)

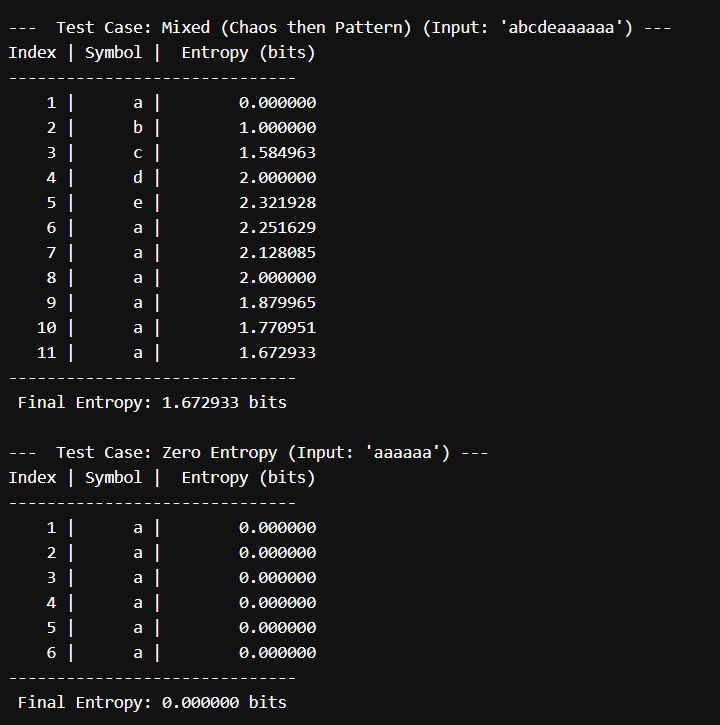

# 3. Mixed Entropy (Initial Chaos, then Repetition)
#   - Starts randomly, then repeats a common letter ('a')
#   - Expected: Entropy will spike high initially and then decrease significantly
run_test_case(
    name="Mixed (Chaos then Pattern)",
    data="abcdeaaaaaa"
)

# 4. Zero Entropy (All same characters)
#   - Expected: Entropy remains 0.0 throughout
run_test_case(
    name="Zero Entropy",
    data="aaaaaa"
)

Best Practices and Performance Tips

Preprocess data: Remove dots, hyphens, or case variations (domain.lower().replace(".", "")) for consistent analysis.
Use sliding windows: For long streams (e.g., network packets), compute entropy over the last N symbols using a deque.
Avoid recomputation: Cache entropy for repeated domains.
Set adaptive thresholds: Legitimate domains in some languages (e.g., Chinese Pinyin) may have higher baseline entropy.
Combine with other signals: Use entropy as one feature in a broader anomaly detection system.

Conclusion

Shannon entropy is a lightweight, mathematically sound tool for spotting anomalies in live data streams. In cybersecurity, it helps uncover stealthy malware communication that evades traditional signature-based detection. By computing entropy on the fly with minimal memory and CPU overhead, you can embed this technique directly into high-throughput systems—turning information theory into real-world defense. Master streaming entropy, and you’ll add a powerful lens for seeing randomness where others see only noise.
