Introduction

In mathematics and engineering, certain matrix structures unlock powerful computational shortcuts. One such structure is the Toeplitz matrix—a matrix where every descending diagonal from left to right is constant. This pattern appears naturally in time-series analysis, signal processing, and control systems.

In this article, we’ll show you how to construct a Toeplitz matrix from just one column and one row, explore its real-world impact in 5G wireless communication, and provide clean, tested Python code you can use in production.

What Is a Toeplitz Matrix?

A Toeplitz matrix is defined by the property:

T[i][j] = T[i-1][j-1] for all valid i, j.

This means each diagonal (top-left to bottom-right) has identical values.

Given

First column: [a, b, c]
First row: [a, d, e] (note: the first element must match the column’s first element)

The resulting 3×3 Toeplitz matrix is:

[a, d, e]
[b, a, d]
[c, b, a]

Only the first row and column are needed—the rest is determined by the diagonal rule.

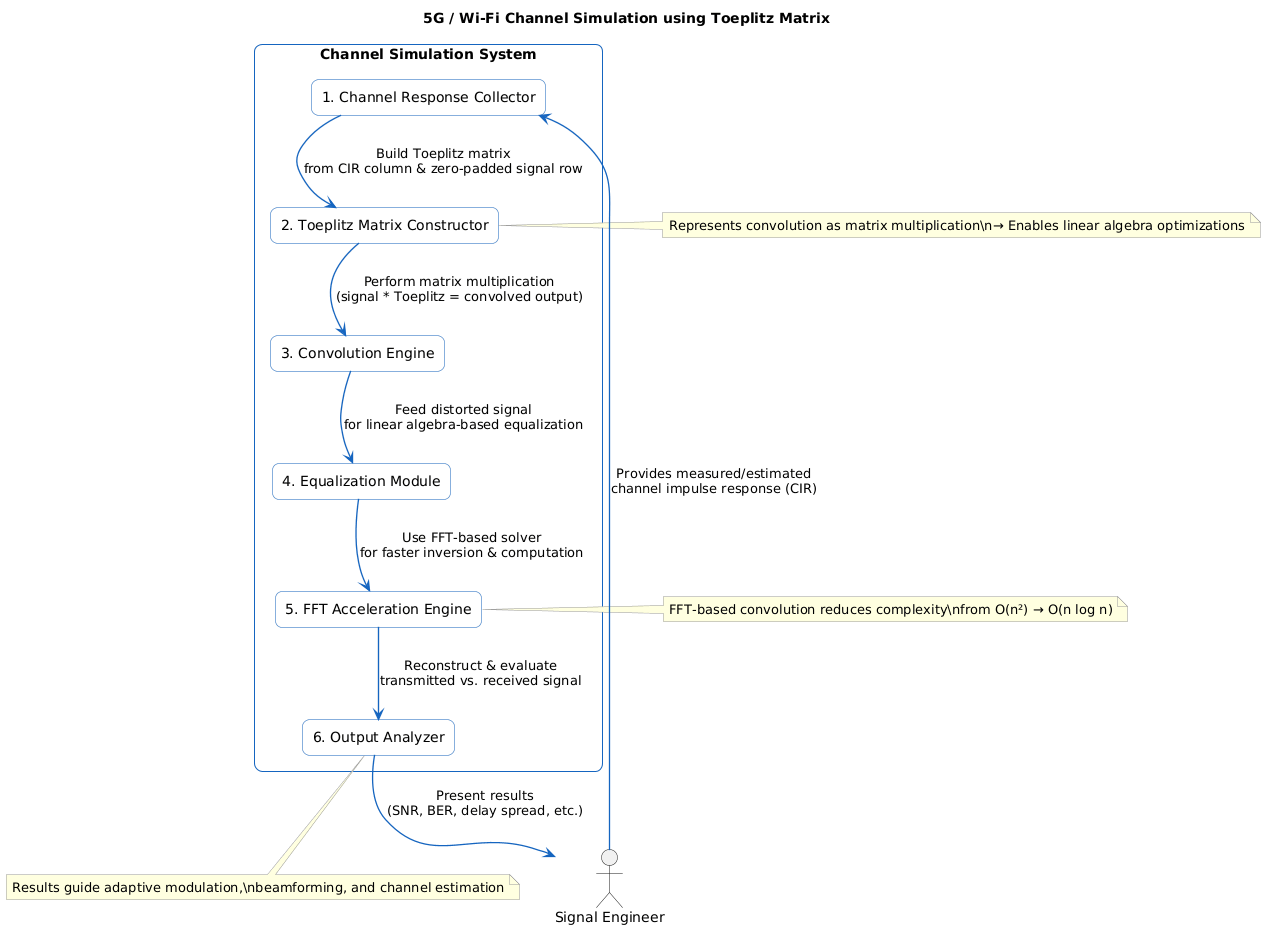

Real-World Scenario: Signal Processing in Wireless Communication Systems

In 5G and Wi-Fi 6 systems, engineers model how radio signals propagate through space using channel impulse responses. These responses are often convolved with transmitted data to simulate real-world distortion.

Convolution can be represented as matrix multiplication—but only if you embed the signal into a Toeplitz matrix. By constructing this matrix from a single channel response (the column) and zero-padded input (the row), engineers can:

Simulate signal transmission efficiently
Apply linear algebra solvers for equalization
Accelerate computations using FFT-based methods

This turns a complex time-domain operation into a clean matrix problem—enabling faster, more reliable wireless communication.

Methods to Build a Toeplitz Matrix

1. Pure Python (Nested Loops)

def toeplitz_python(col, row):
    if col[0] != row[0]:
        raise ValueError("First element of column and row must be equal")
    m, n = len(col), len(row)
    return [[col[i - j] if i >= j else row[j - i] for j in range(n)] for i in range(m)]

2. Using SciPy (Recommended)

from scipy.linalg import toeplitz

def toeplitz_scipy(col, row):
    return toeplitz(col, row).tolist()

scipy.linalg.toeplitz is optimized, robust, and handles edge cases automatically.

Complete Implementation with Test Cases

from scipy.linalg import toeplitz
import unittest

def create_toeplitz_matrix(first_col, first_row):
    """
    Constructs a Toeplitz matrix from the first column and first row.
    The first element of both must be identical.
    Returns a standard Python list of lists.
    """
    if not first_col or not first_row:
        return []
    if first_col[0] != first_row[0]:
        raise ValueError("First element of column and row must match")
    return toeplitz(first_col, first_row).tolist()

class TestToeplitzMatrix(unittest.TestCase):
    def test_basic_3x3(self):
        col = [1, 2, 3]
        row = [1, 4, 5]
        expected = [
            [1, 4, 5],
            [2, 1, 4],
            [3, 2, 1]
        ]
        self.assertEqual(create_toeplitz_matrix(col, row), expected)

    def test_single_element(self):
        self.assertEqual(create_toeplitz_matrix([7], [7]), [[7]])

    def test_mismatched_first_element_raises_error(self):
        with self.assertRaises(ValueError):
            create_toeplitz_matrix([1, 2], [3, 4])

    def test_rectangular_matrix(self):
        col = [1, 2]
        row = [1, 3, 4, 5]
        expected = [
            [1, 3, 4, 5],
            [2, 1, 3, 4]
        ]
        self.assertEqual(create_toeplitz_matrix(col, row), expected)

    def test_empty_input(self):
        self.assertEqual(create_toeplitz_matrix([], []), [])

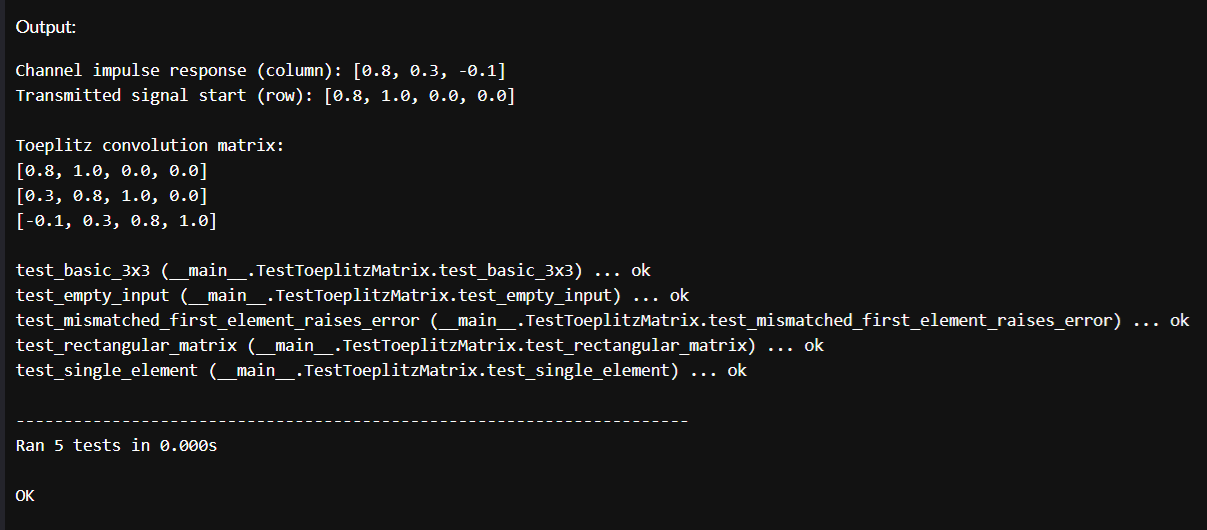

if __name__ == "__main__":
    # Example: Wireless channel response
    channel_impulse = [0.8, 0.3, -0.1]      # First column (channel taps)
    transmitted_signal = [0.8, 1.0, 0.0, 0.0]  # First row (zero-padded signal start)

    print("Channel impulse response (column):", channel_impulse)
    print("Transmitted signal start (row):", transmitted_signal)

    toeplitz_mat = create_toeplitz_matrix(channel_impulse, transmitted_signal)
    print("\nToeplitz convolution matrix:")
    for row in toeplitz_mat:
        print(row)

    # Run tests
    unittest.main(argv=[''], exit=False, verbosity=2)

Best Practices and Performance Tips

Always use scipy.linalg.toeplitz—it’s battle-tested and handles rectangular matrices gracefully.
Validate that col[0] == row[0] to avoid silent logical errors.
Avoid manual nested loops for large matrices—they’re slow and error-prone.
For very large Toeplitz systems, consider FFT-based convolution instead of explicit matrix construction.
In signal processing, pad your row with zeros to match the desired output length.

Conclusion

The Toeplitz matrix is a bridge between abstract algebra and real-world engineering. By constructing it from just two vectors, you unlock efficient solutions in communications, control theory, and beyond.

With SciPy’s built-in support, generating Toeplitz matrices is trivial—but understanding why and where to use them is what separates good engineers from great ones. In wireless systems, this simple structure helps deliver the high-speed, low-latency connections we rely on every day.
