How To Create A Small App Engine Application Deployment On Google Cloud Platform

In this article, you will learn how to create a small app engine application deployment on the Google cloud platform.

Overview


In this article, I’m going to describe how to create a small App Engine application deployment on Google Cloud Platform.

In this session you will:
  • Download starter code from a GitHub.
  • Run your application locally from a Cloud Shell.
  • Deploy your application with Google App Engine.
Prerequisites
  • Google cloud platform subscription.
Step 1

Login to here.

Step 2

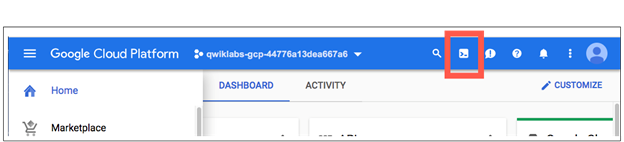

Activate Cloud shell.

Click the right corner of the cloud shell button.

How To Create A Small App Engine Application Deployment On Google Cloud Platform

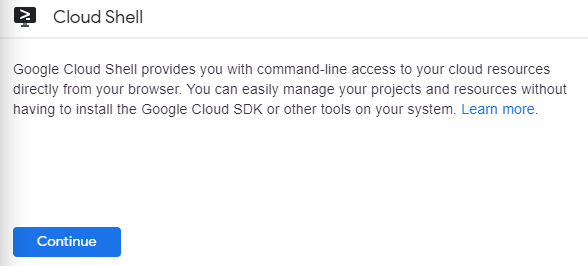

Click Continue.

How To Create A Small App Engine Application Deployment On Google Cloud Platform

Step 3

Enable Google App Engine Admin API,
  1. Click  Navigation Menu > APIs & Services > Library.

    How To Create A Small App Engine Application Deployment On Google Cloud Platform

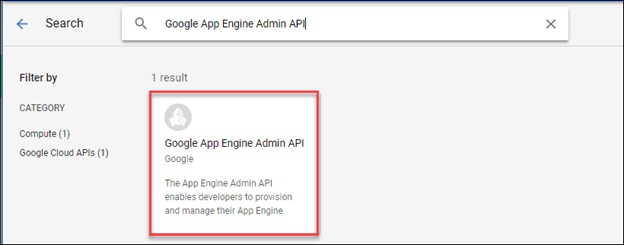

  2. Type "App Engine Admin API" in the search box.
  3. Click App Engine Admin API.

    How To Create A Small App Engine Application Deployment On Google Cloud Platform

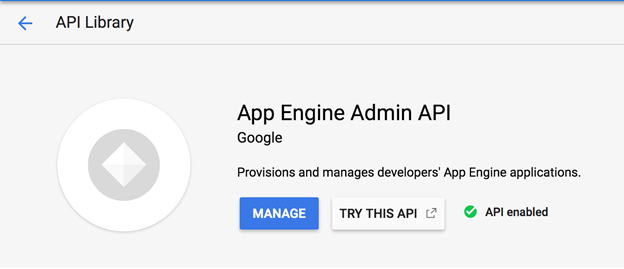

  4. Enabled window

    How To Create A Small App Engine Application Deployment On Google Cloud Platform
Step 4

Download the Hello world app

Run the following command in cloud shell


Step 5

Then go to the directory in the following command

d getting-started-java/appengine-standard-java8/helloworld

Step 6

Test the application using the application development server

Maven command to download and install Maven and run the app in the following command in cloud shell:

mvn.appengine:run

Output

[INFO]GCLOUD : INFO dev app server is now running.

View the app Click Web preview button > Preview on port 8080

How To Create A Small App Engine Application Deployment On Google Cloud Platform

Page should reassemble the following,

How To Create A Small App Engine Application Deployment On Google Cloud Platform

Step 7 - Deploy the app

Create an application on an App Engine with the following command

gcloud app create

Output

How To Create A Small App Engine Application Deployment On Google Cloud Platform

Do not use gcloud app deploy command as begun in the output to deploy the app, instead, run the following command to deploy the application.

mvn:appengine:deploy

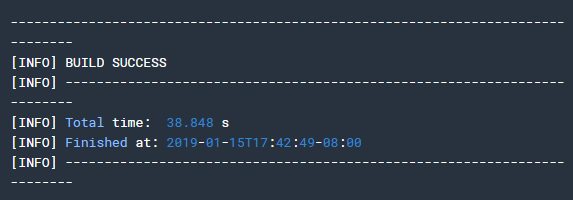

You should get the following output,

How To Create A Small App Engine Application Deployment On Google Cloud Platform

Step 8 - View the application

Launch the browser in the following command,

gcloud app browse

OUTPUT

How To Create A Small App Engine Application Deployment On Google Cloud Platform

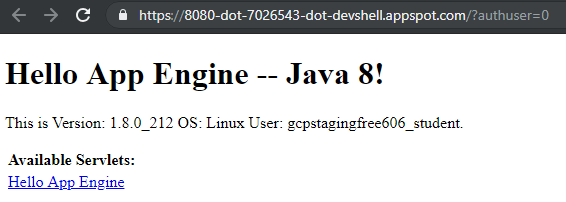

The application is deployed and displays the short message in the browser.

How To Create A Small App Engine Application Deployment On Google Cloud Platform
