How To Create Segments Using Ant Design UI In ReactJS

Introduction

An enterprise-class UI design language and React UI library with high-quality React components, one of the best React UI libraries for enterprises.

Segmented Controls are used when displaying multiple options, and the user can select a single option, and when switching the selected option, the content of the associated area changes.

Preconditions

• Javascript
• Basic knowledge of React JS
• Node.js
• V.S. Code,Visual Studio
• typescript

We cover the below things in this article,

• Create React application
• Installation of Ant Design UI
• How to create segmented Ant Design UI in React js.

Here we will follow the steps for creating a segment.

Step 1. Run the below command to create a React.js project.

npx create-react-app my-app --template typescript

Step 2. Run the below command to install Ant Design UI.

npm i @ant-design/icons
npm i antd

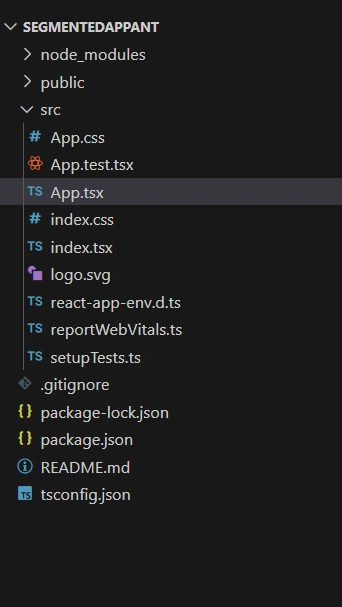

Create the files according to the below image.



Step 3. Add the below code in the App.tsx.

import React from 'react';
import logo from './logo.svg';
import './App.css';
import { Segmented } from 'antd';

function App() {
  return (
    <div className="App">
      <Segmented options={['Daily', 'Weekly', 'Monthly', 'Quarterly', 'Yearly']} />
    </div>
  );
}

export default App;

Step 4. Add the below code in package.json

{
  "name": "segmentedappant",
  "version": "0.1.0",
  "private": true,
  "dependencies": {
    "@ant-design/icons": "^5.1.4",
    "@testing-library/jest-dom": "^5.16.5",
    "@testing-library/react": "^13.4.0",
    "@testing-library/user-event": "^13.5.0",
    "@types/jest": "^27.5.2",
    "@types/node": "^16.18.34",
    "@types/react": "^18.2.8",
    "@types/react-dom": "^18.2.4",
    "antd": "^5.5.2",
    "react": "^18.2.0",
    "react-dom": "^18.2.0",
    "react-scripts": "5.0.1",
    "typescript": "^4.9.5",
    "web-vitals": "^2.1.4"
  },
  "scripts": {
    "start": "react-scripts start",
    "build": "react-scripts build",
    "test": "react-scripts test",
    "eject": "react-scripts eject"
  },
  "eslintConfig": {
    "extends": [
      "react-app",
      "react-app/jest"
    ]
  },
  "browserslist": {
    "production": [
      ">0.2%",
      "not dead",
      "not op_mini all"
    ],
    "development": [
      "last 1 chrome version",
      "last 1 firefox version",
      "last 1 safari version"
    ]
  }
}

Step 5. Run the below command to run the application.

npm start

After running this command, we will get these segmented.

Summary

This article taught us how to create segments using Ant Design UI with React JS and Typescript.
