How To Create Splitter Using PrimeReact/Primefaces In ReactJS

Introduction

The PRIMEREACT UI framework has Over 80 React UI Components with top-notch quality to help you implement all your UI requirements in style.

Splitter is utilized to separate and resize panels.Splitters can be configured as stateful so that when the user visits the page again, the adjusted sizes can be restored

Preconditions

  • Javascript
  • Basic knowledge of React js
  • Node.js
  • V.S. Code,Visual Studi

We cover the below things,

  • Create React application
  • Installation of Primeface
  • How to Apply Splitter of Primeface in React js

Step 1

npx create-react-app prime-app
cd prime-app
npm start

Step 2

Run the below command  for installing PrimeReact

npm install primereact primeicons

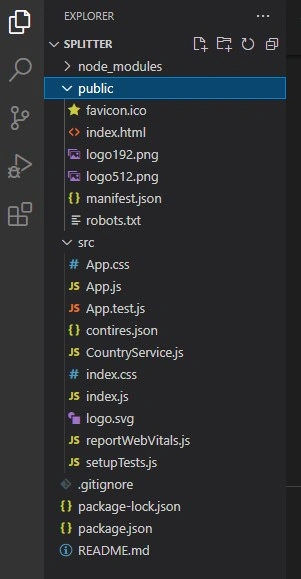

Create files according to the below image

Step 3

import 'primeicons/primeicons.css';
import 'primereact/resources/themes/lara-light-indigo/theme.css';
import 'primereact/resources/primereact.css';
import React from 'react';
import { Splitter, SplitterPanel } from 'primereact/splitter';

function App() {

    return (
        <div className="App">
         <div className="card">
                    <h5>Horizontal</h5>
                    <Splitter style={{height: '300px'}} className="mb-5">
                        <SplitterPanel className="flex align-items-center justify-content-center">
                            Panel 1
                        </SplitterPanel>
                        <SplitterPanel className="flex align-items-center justify-content-center">
                            Panel 2
                        </SplitterPanel>
                    </Splitter>
                </div>

                <div className="card">
                    <h5>Vertical</h5>
                    <Splitter style={{height: '300px'}} layout="vertical">
                        <SplitterPanel className="flex align-items-center justify-content-center">
                            Panel 1
                        </SplitterPanel>
                        <SplitterPanel className="flex align-items-center justify-content-center">
                            Panel 2
                        </SplitterPanel>
                    </Splitter>
                </div>

                <div className="card">
                    <h5>Nested</h5>
                    <Splitter style={{height: '300px'}}>
                        <SplitterPanel className="flex align-items-center justify-content-center" size={20} minSize={10}>
                            Panel 1
                        </SplitterPanel>
                        <SplitterPanel size={80}>
                            <Splitter layout="vertical">
                                <SplitterPanel className="flex align-items-center justify-content-center" size={15}>
                                    Panel 2
                                </SplitterPanel>
                                <SplitterPanel size={85}>
                                    <Splitter>
                                        <SplitterPanel className="flex align-items-center justify-content-center" size={20}>
                                            Panel 3
                                        </SplitterPanel>
                                        <SplitterPanel className="flex align-items-center justify-content-center" size={80}>
                                            Panel 4
                                        </SplitterPanel>
                                    </Splitter>
                                </SplitterPanel>
                            </Splitter>
                        </SplitterPanel>
                    </Splitter>
                </div>
        </div>
      );
}
export default App;

Step 4

Add the below code in index.html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <link rel="icon" href="%PUBLIC_URL%/favicon.ico" />
    <meta name="viewport" content="width=device-width, initial-scale=1" />
    <meta name="theme-color" content="#000000" />
    <meta
      name="description"
      content="Web site created using create-react-app"
    />
    <link rel="apple-touch-icon" href="%PUBLIC_URL%/logo192.png" />

     <!-- PrimeReact -->
     <link rel="stylesheet" href="https://unpkg.com/primeicons/primeicons.css" />
     <link rel="stylesheet" href="https://unpkg.com/primereact/resources/themes/lara-light-indigo/theme.css" />
     <link rel="stylesheet" href="https://unpkg.com/primereact/resources/primereact.min.css" />
     <link rel="stylesheet" href="https://unpkg.com/primeflex@3.1.2/primeflex.min.css" />

     <!-- Dependencies -->
     <script src="https://unpkg.com/react/umd/react.production.min.js"></script>
     <script src="https://unpkg.com/react-dom/umd/react-dom.production.min.js"></script>
     <script src="https://unpkg.com/@babel/standalone/babel.min.js"></script>
     <script src="https://unpkg.com/react-transition-group@4.4.2/dist/react-transition-group.js"></script>

     <!-- Demo -->
     <script src="https://unpkg.com/primereact/core/core.min.js"></script>
     <script src="https://unpkg.com/primereact/slidemenu/slidemenu.min.js"></script>

    <!--
      manifest.json provides metadata used when your web app is installed on a
      user's mobile device or desktop. See https://developers.google.com/web/fundamentals/web-app-manifest/
    -->
    <link rel="manifest" href="%PUBLIC_URL%/manifest.json" />

    <!--
      Notice the use of %PUBLIC_URL% in the tags above.
      It will be replaced with the URL of the `public` folder during the build.
      Only files inside the `public` folder can be referenced from the HTML.

      Unlike "/favicon.ico" or "favicon.ico", "%PUBLIC_URL%/favicon.ico" will
      work correctly both with client-side routing and a non-root public URL.
      Learn how to configure a non-root public URL by running `npm run build`.
    -->
    <link rel="stylesheet" href="https://unpkg.com/primeicons@5.0.0/primeicons.css">
    <script src="https://unpkg.com/primereact/core/core.min.js"></script>
    <script src="https://unpkg.com/primereact/slidemenu/slidemenu.min.js"></script>

    <title>React App</title>
  </head>
  <body>

    <noscript>You need to enable JavaScript to run this app.</noscript>
    <div id="root"></div>
    <!--
      This HTML file is a template.
      If you open it directly in the browser, you will see an empty page.

      You can add webfonts, meta tags, or analytics to this file.
      The build step will place the bundled scripts into the <body> tag.

      To begin the development, run `npm start` or `yarn start`.
      To create a production bundle, use `npm run build` or `yarn build`.
    -->
  </body>
</html>

Step 5

Add the below code in App.css

.App {
  text-align: center;
}

.App-logo {
  height: 40vmin;
  pointer-events: none;
}

@media (prefers-reduced-motion: no-preference) {
  .App-logo {
    animation: App-logo-spin infinite 20s linear;
  }
}

.App-header {
  background-color: #282c34;
  min-height: 100vh;
  display: flex;
  flex-direction: column;
  align-items: center;
  justify-content: center;
  font-size: calc(10px + 2vmin);
  color: white;
}

.App-link {
  color: #61dafb;
}

@keyframes App-logo-spin {
  from {
    transform: rotate(0deg);
  }
  to {
    transform: rotate(360deg);
  }
}

Step 6

Add the following code in package.json

{
  "name": "prime-demo",
  "version": "0.1.0",
  "private": true,
  "dependencies": {
    "@testing-library/jest-dom": "^5.16.4",
    "@testing-library/react": "^13.3.0",
    "@testing-library/user-event": "^13.5.0",
    "primeicons": "^5.0.0",
    "primereact": "^8.1.1",
    "react": "^18.1.0",
    "react-dom": "^18.1.0",
    "react-redux": "^8.0.2",
    "react-scripts": "^2.1.3",
    "redux": "^4.2.0",
    "web-vitals": "^2.1.4",
    "primeflex": "^3.1.0",
    "react-transition-group": "^4.4.1"
  },
  "scripts": {
    "start": "react-scripts start",
    "build": "react-scripts build",
    "test": "react-scripts test",
    "eject": "react-scripts eject"
  },
  "eslintConfig": {
    "extends": [
      "react-app",
      "react-app/jest"
    ]
  },
  "browserslist": {
    "production": [
      ">0.2%",
      "not dead",
      "not op_mini all"
    ],
    "development": [
      "last 1 chrome version",
      "last 1 firefox version",
      "last 1 safari version"
    ]
  }
}

Step 7

Run the following commands

npm i
npm start

Step 8

How to create splitter using PrimeReact/Primefaces in React js

Summary

In this article, we learned how to create react project, set PrimeReact UI, and add splitter UI widgets.
