How to Determine Whether a Matrix Is Symmetric in Python

Tuhin Paul
10h
149
0
0

Article

Introduction
What Makes a Matrix Symmetric?
Real-World Scenario: Structural Integrity Analysis in Civil Engineering
Approaches to Check Matrix Symmetry
Robust Implementation with Test Coverage
Practical Tips for Production Code
Final Thoughts

1. Introduction

In linear algebra, symmetry isn’t just a visual property—it’s a powerful mathematical feature that simplifies computation, reveals hidden structure, and enables algorithmic optimizations. A symmetric matrix appears frequently in physics, engineering, machine learning, and graph theory.

This article explains how to programmatically verify matrix symmetry in Python, grounded in a compelling real-world use case from civil engineering, and delivers clean, production-ready code with full test coverage.

2. What Makes a Matrix Symmetric?

A square matrix A is symmetric if it is equal to its transpose:

A = Aᵀ

This means for every element:

A[i][j] == A[j][i]

For example:

[1, 2, 3]
[2, 4, 5]
[3, 5, 6]

This matrix is symmetric because the element at (0,1) = 2 equals the one at (1,0) = 2, and so on for all off-diagonal pairs.

Crucially, only square matrices can be symmetric—rectangular matrices are automatically disqualified.

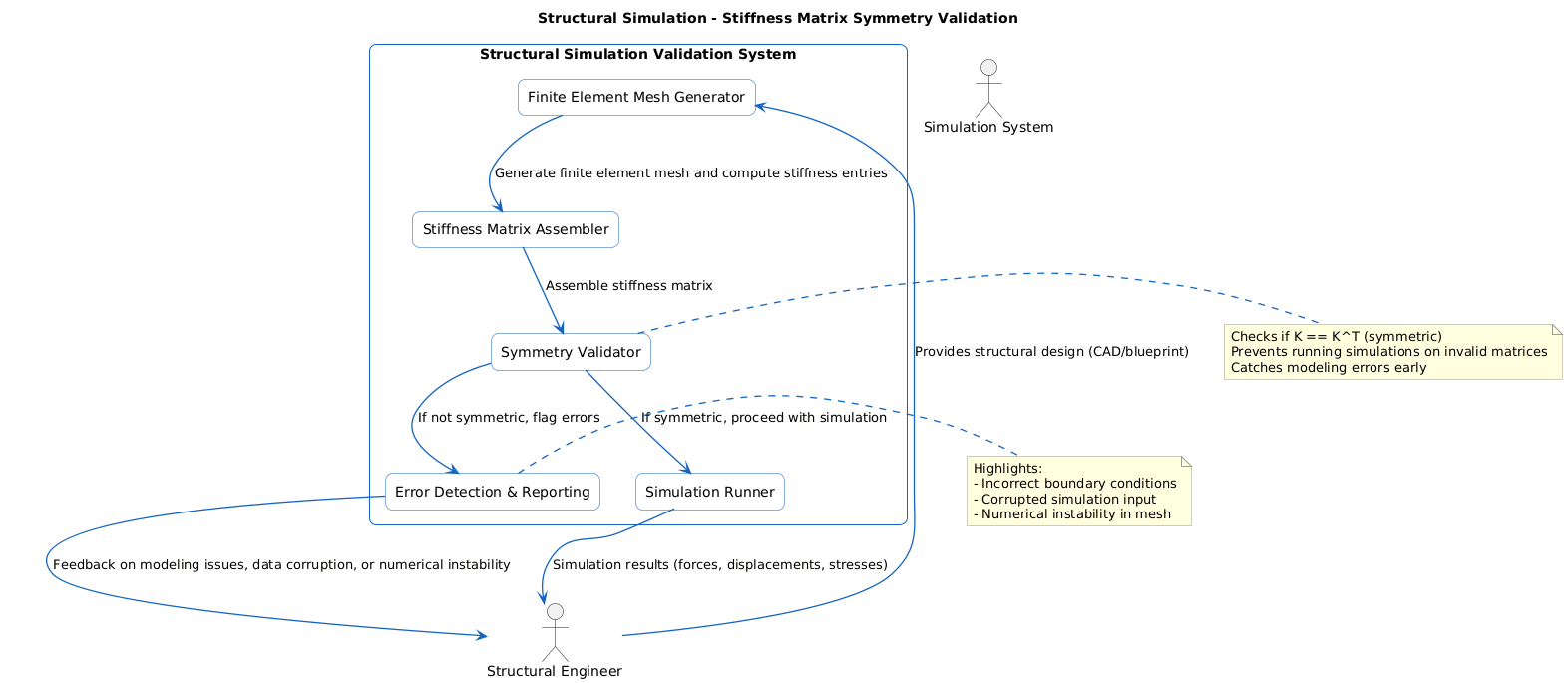

3. Real-World Scenario: Structural Integrity Analysis in Civil Engineering

When engineers design bridges or skyscrapers, they model the structure as a finite element mesh. The stiffness of the entire system is represented by a stiffness matrix—a large, sparse, square matrix where each entry quantifies how one part of the structure influences another.

Due to Newton’s third law (for every action, there is an equal and opposite reaction), this stiffness matrix must be symmetric. If it isn’t, it indicates:

A modeling error (e.g., incorrect boundary conditions)
Data corruption in the simulation input
Numerical instability in mesh generation

Automatically validating symmetry before running expensive simulations prevents wasted compute time and catches bugs early—saving millions in failed prototypes.

4. Approaches to Check Matrix Symmetry

Method 1. Element-wise Comparison (Safe & Clear)

Compare each matrix[i][j] with matrix[j][i] for all i < j. Stop early on a mismatch.

Method 2. Using NumPy (Fast & Concise)

Leverage vectorized operations: (A == A.T).all()

Avoid converting to transpose and comparing full matrices for large inputs—use early exit for efficiency.

5. Robust Implementation with Test Coverage

import numpy as np
import unittest

def is_symmetric(matrix):
    """
    Checks if a given matrix is symmetric.
    Supports nested lists and NumPy arrays.
    Returns False for non-square or empty inputs.
    """
    # Handle completely empty or None inputs
    if matrix is None:
        return False

    # Convert to NumPy array for uniform handling
    arr = np.array(matrix)

    # Must be 2D and square
    if arr.ndim != 2 or arr.shape[0] == 0 or arr.shape[1] == 0:
        return False
    if arr.shape[0] != arr.shape[1]:
        return False

    # Compare with its transpose
    return np.array_equal(arr, arr.T)

class TestSymmetricMatrix(unittest.TestCase):
    def test_symmetric_matrix(self):
        mat = [[1, 2, 3], [2, 4, 5], [3, 5, 6]]
        self.assertTrue(is_symmetric(mat))

    def test_non_symmetric_matrix(self):
        mat = [[1, 2], [3, 4]]
        self.assertFalse(is_symmetric(mat))

    def test_single_element(self):
        self.assertTrue(is_symmetric([[5]]))

    def test_empty_matrix(self):
        self.assertFalse(is_symmetric([]))
        self.assertFalse(is_symmetric([[]]))

    def test_rectangular_matrix(self):
        mat = [[1, 2, 3], [4, 5, 6]]
        self.assertFalse(is_symmetric(mat))

    def test_numpy_array_input(self):
        arr = np.array([[2, 1], [1, 2]])
        self.assertTrue(is_symmetric(arr))

if __name__ == "__main__":
    # Example: Stiffness matrix from structural simulation
    stiffness = [
        [10, -2,  0],
        [-2,  8, -1],
        [ 0, -1,  5]
    ]

    print("Stiffness matrix:")
    for row in stiffness:
        print(row)

    if is_symmetric(stiffness):
        print("\n Matrix is symmetric — simulation can proceed.")
    else:
        print("\n Matrix is NOT symmetric — check model for errors!")

    # Run tests
    unittest.main(argv=[''], exit=False, verbosity=2)

6. Practical Tips for Production Code

Early termination: Stop comparing as soon as a mismatch is found—saves time on large matrices.
Handle edge cases: Empty, non-square, or malformed inputs should return False, not crash.
Use NumPy internally for consistent numeric comparison, but accept Python lists for flexibility.
Avoid floating-point pitfalls: For real-world engineering data, consider using np.allclose() instead of == if values are floats.
Log diagnostics: In critical systems, log which (i,j) pair failed symmetry—helps engineers debug.

7. Final Thoughts

Symmetry checking is a small operation with massive implications. In civil engineering, it’s a gatekeeper for simulation validity. In machine learning, symmetric kernels ensure stable optimization. In graph theory, it confirms undirected relationships. By implementing a robust, efficient symmetry validator, you embed mathematical rigor into your software—turning abstract linear algebra into real-world reliability. Remember: in engineering, symmetry isn’t optional—it’s physics.
