How To Dynamically Bind ASP.NET Server Control From Database

Introduction

In this article, I will demonstrate how to dynamically bind asp.net server control from the database. I will bind DropdowList, RadioButtonList, CheckBoxList, ListBox, and BulletedList.

Step 1

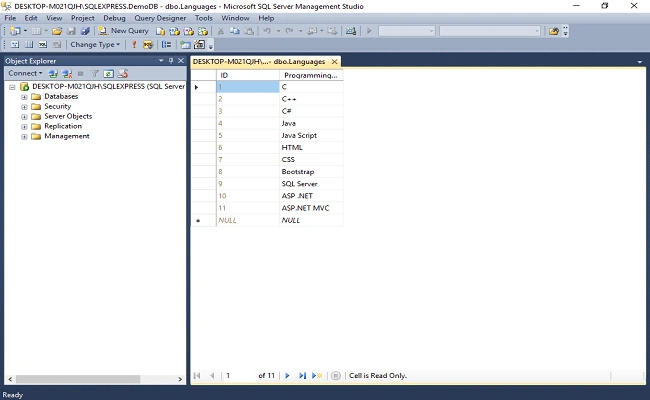

Create database table in sql server 2014.

  1. CREATE TABLE [dbo].[Languages](
  2.     [ID] [int] IDENTITY(1,1) NOT NULL,
  3.     [Programming_Language] [nvarchar](50) NULL,
  4.  CONSTRAINT [PK_Languages] PRIMARY KEY CLUSTERED
  5. (
  6.     [ID] ASC
  7. )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
  8. ) ON [PRIMARY]
  9.
  10. GO
  11.
  12.
  13. CREATE procedure spGetAllProgrammingLanguage
  14. as
  15. begin
  16. select ID,Programming_Language from [dbo].[Languages]
  17. end
ASP.NET

Step 2

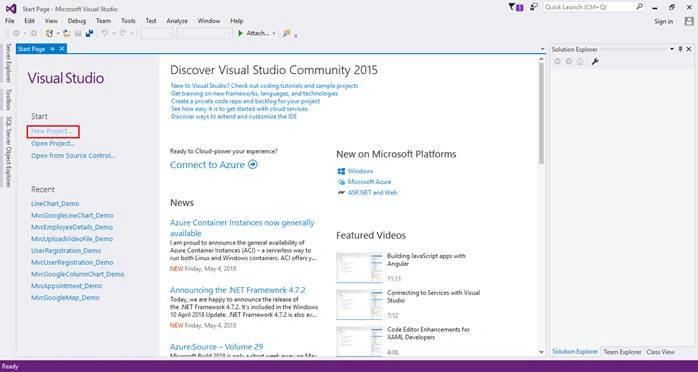

Open Visual Studio 2015 click on New Project and create an empty web application project.

Screenshot for creating new project 1

ASP.NET

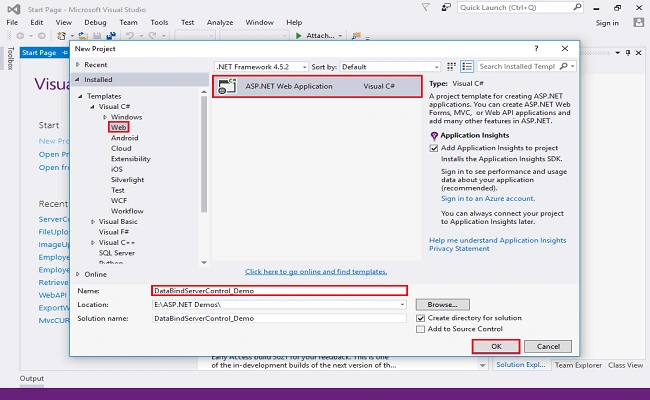

After clicking on New Project one window will appear; select Web from left panel, choose ASP.NET Web Application and give a meaningful name to your project then click on OK as shown in below screenshot.

Screenshot for creating new project 2

ASP.NET

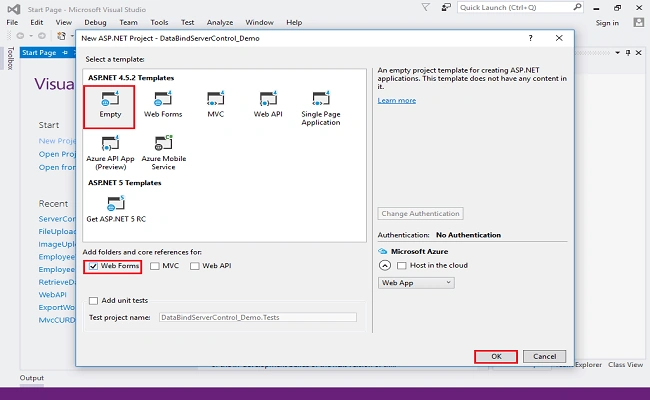

After clicking on OK one more window will appear. Choose empty, check on the Web Forms checkbox and click on OK.

Screenshot for creating new project 3

ASP.NET

Step 3

Double click on webconfig file and database connections. Write the  following line of code.

  1. <connectionStrings>
  2.   <add name="DBCS" connectionString="data source=DESKTOP-M021QJH\SQLEXPRESS; database=DemoDB; integrated security=true;"/>
  3. </connectionStrings>

Step 4

Right click on project and web form and give it a meaningful name.

Step 5

Add script and styles of bootstrap in the head section of web form.

  1. <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/css/bootstrap.min.css">
  2. <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.3.1/jquery.min.js"></script>
  3. <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/js/bootstrap.min.js"></script>

Step 6

Design web form, and drag and drop DropdowList control

  1. <!DOCTYPE html>
  2.
  3. <html>
  4. <head runat="server">
  5.     <title></title>
  6.     <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/css/bootstrap.min.css">
  7.     <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.3.1/jquery.min.js"></script>
  8.     <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/js/bootstrap.min.js"></script>
  9. </head>
  10. <body>
  11.     <form id="form1" runat="server">
  12.         <div class="container py-4">
  13.             <h4 class="text-uppercase text-center">HOW TO DYNAMICALLY BIND ASP.NET DROPDOWNLIST CONTROL FROM DATABASE</h4>
  14.             <div class="row">
  15.                 <div class="col-md-6">
  16.                     <div class="form-group">
  17.                         <label>Choose Programming Language</label>
  18.                         <asp:DropDownList ID="DropDownList1" runat="server" CssClass="custom-select"></asp:DropDownList>
  19.                     </div>
  20.                 </div>
  21.             </div>
  22.         </div>
  23.     </form>
  24. </body>
  25. </html>

Step 7

Right click on web form choose view code. Write following code to bind DropdowList control.

  1. using System;
  2. using System.Configuration;
  3. using System.Data;
  4. using System.Data.SqlClient;
  5.
  6. namespace ServerControlBinding_Demo
  7. {
  8.     public partial class DropDownList : System.Web.UI.Page
  9.     {
  10.         protected void Page_Load(object sender, EventArgs e)
  11.         {
  12.             if (!IsPostBack)
  13.             {
  14.                 BindDropdowList();
  15.             }
  16.         }
  17.
  18.         private void BindDropdowList()
  19.         {
  20.             string CS = ConfigurationManager.ConnectionStrings["DBCS"].ConnectionString;
  21.             using (SqlConnection con = new SqlConnection(CS))
  22.             {
  23.                 SqlCommand cmd = new SqlCommand("spGetAllProgrammingLanguage", con);
  24.                 cmd.CommandType = CommandType.StoredProcedure;
  25.                 con.Open();
  26.                 DropDownList1.DataSource = cmd.ExecuteReader();
  27.                 DropDownList1.DataTextField = "Programming_Language";
  28.                 DropDownList1.DataValueField = "ID";
  29.                 DropDownList1.DataBind();
  30.                 DropDownList1.Items.Insert(0, "Choose Programming Language");
  31.             }
  32.         }
  33.     }
  34. }

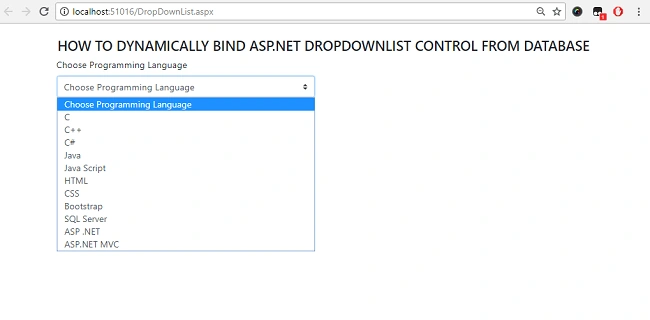

Output for DropdowList

ASP.NET

Step 8

Design web form drag and drop RadioButtonList control

  1. <!DOCTYPE html>
  2.
  3. <html>
  4. <head runat="server">
  5.     <title>RadioButtonLis</title>
  6.     <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/css/bootstrap.min.css">
  7.     <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.3.1/jquery.min.js"></script>
  8.     <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/js/bootstrap.min.js"></script>
  9. </head>
  10. <body>
  11.     <form id="form1" runat="server">
  12.         <div class="container py-4">
  13.             <h5 class="text-uppercase text-center">HOW TO DYNAMICALLY BIND ASP.NET RADIOBUTTONLIST CONTROL FROM DATABASE</h5>
  14.             <div class="row">
  15.                 <div class="col-md-6">
  16.                     <div class="form-group">
  17.                         <label>Choose Programming Language</label>
  18.                         <asp:RadioButtonList ID="RadioButtonList1" runat="server" CssClass="custom-radio"></asp:RadioButtonList>
  19.                     </div>
  20.                 </div>
  21.             </div>
  22.         </div>
  23.     </form>
  24. </body>
  25. </html>

Step 9

Write the following code to bind DropdowList control.

  1. using System;
  2. using System.Data;
  3. using System.Data.SqlClient;
  4. using System.Configuration;
  5.
  6. namespace ServerControlBinding_Demo
  7. {
  8.     public partial class RadioButtonList : System.Web.UI.Page
  9.     {
  10.         protected void Page_Load(object sender, EventArgs e)
  11.         {
  12.             if (!IsPostBack)
  13.             {
  14.                 BindRadioButtonList();
  15.             }
  16.         }
  17.
  18.         private void BindRadioButtonList()
  19.         {
  20.             string CS = ConfigurationManager.ConnectionStrings["DBCS"].ConnectionString;
  21.             using (SqlConnection con = new SqlConnection(CS))
  22.             {
  23.                 SqlCommand cmd = new SqlCommand("spGetAllProgrammingLanguage", con);
  24.                 cmd.CommandType = CommandType.StoredProcedure;
  25.                 con.Open();
  26.                 RadioButtonList1.DataSource = cmd.ExecuteReader();
  27.                 RadioButtonList1.DataTextField = "Programming_Language";
  28.                 RadioButtonList1.DataValueField = "ID";
  29.                 RadioButtonList1.DataBind();
  30.
  31.             }
  32.         }
  33.     }
  34. }

Output for RadioButtonList

ASP.NET

Step 10

Design web form drag and drop ListBox control

  1. <!DOCTYPE html>
  2.
  3. <html>
  4. <head runat="server">
  5.     <title>ListBox</title>
  6.     <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/css/bootstrap.min.css">
  7.     <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.3.1/jquery.min.js"></script>
  8.     <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/js/bootstrap.min.js"></script>
  9. </head>
  10. <body>
  11.     <form id="form1" runat="server">
  12.         <div class="container py-5">
  13.             <h4 class="text-uppercase text-center">HOW TO DYNAMICALLY BIND ASP.NET LISTBOX CONTROL FROM DATABASE</h4>
  14.             <div class="row">
  15.                 <div class="col-md-6">
  16.                     <div class="form-group">
  17.                         <label>Choose Programming Language</label>
  18.                         <asp:ListBox ID="ListBox1" runat="server" CssClass="form-control"></asp:ListBox>
  19.                     </div>
  20.                 </div>
  21.             </div>
  22.         </div>
  23.     </form>
  24. </body>
  25. </html>

Step 11

Write the following code to bind ListBox control.

  1. using System;
  2. using System.Data;
  3. using System.Data.SqlClient;
  4. using System.Configuration;
  5.
  6. namespace ServerControlBinding_Demo
  7. {
  8.     public partial class ListBox : System.Web.UI.Page
  9.     {
  10.         protected void Page_Load(object sender, EventArgs e)
  11.         {
  12.             if (!IsPostBack)
  13.             {
  14.                 BindListBox();
  15.             }
  16.         }
  17.         private void BindListBox()
  18.         {
  19.             string CS = ConfigurationManager.ConnectionStrings["DBCS"].ConnectionString;
  20.             using (SqlConnection con = new SqlConnection(CS))
  21.             {
  22.                 SqlCommand cmd = new SqlCommand("spGetAllProgrammingLanguage", con);
  23.                 cmd.CommandType = CommandType.StoredProcedure;
  24.                 con.Open();
  25.                 ListBox1.DataSource = cmd.ExecuteReader();
  26.                 ListBox1.DataTextField = "Programming_Language";
  27.                 ListBox1.DataValueField = "ID";
  28.                 ListBox1.DataBind();
  29.
  30.             }
  31.         }
  32.     }
  33. }

Output for RadioButtonList

ASP.NET

Step 12

Design web form drag and drop CheckBoxList control

  1. <!DOCTYPE html>
  2.
  3. <html>
  4. <head runat="server">
  5.     <title>CheckBoxList</title>
  6.     <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/css/bootstrap.min.css">
  7.     <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.3.1/jquery.min.js"></script>
  8.     <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/js/bootstrap.min.js"></script>
  9. </head>
  10. <body>
  11.     <form id="form1" runat="server">
  12.         <div class="container py-5">
  13.             <h5 class="text-uppercase text-center">HOW TO DYNAMICALLY BIND ASP.NET CHECKBOXLIST CONTROL FROM DATABASE</h5>
  14.             <div class="row">
  15.                 <div class="col-md-6">
  16.                     <div class="form-group">
  17.                         <label>Choose Programming Language</label>
  18.                         <asp:CheckBoxList ID="CheckBoxList1" runat="server" CssClass="custom-checkbox"></asp:CheckBoxList>
  19.                     </div>
  20.                 </div>
  21.             </div>
  22.         </div>
  23.     </form>
  24. </body>
  25. </html>

Step 13

Write the following code to bind CheckBoxList control.

  1. using System;
  2. using System.Data;
  3. using System.Data.SqlClient;
  4. using System.Configuration;
  5.
  6. namespace ServerControlBinding_Demo
  7. {
  8.     public partial class CheckBoxLIst : System.Web.UI.Page
  9.     {
  10.         protected void Page_Load(object sender, EventArgs e)
  11.         {
  12.             if (!IsPostBack)
  13.             {
  14.                 BindCheckBoxList();
  15.             }
  16.         }
  17.         private void BindCheckBoxList()
  18.         {
  19.             string CS = ConfigurationManager.ConnectionStrings["DBCS"].ConnectionString;
  20.             using (SqlConnection con = new SqlConnection(CS))
  21.             {
  22.                 SqlCommand cmd = new SqlCommand("spGetAllProgrammingLanguage", con);
  23.                 cmd.CommandType = CommandType.StoredProcedure;
  24.                 con.Open();
  25.                 CheckBoxList1.DataSource = cmd.ExecuteReader();
  26.                 CheckBoxList1.DataTextField = "Programming_Language";
  27.                 CheckBoxList1.DataValueField = "ID";
  28.                 CheckBoxList1.DataBind();
  29.
  30.             }
  31.         }
  32.     }
  33. }

Output for CheckBoxList

ASP.NET

Step 14

Design web form drag and drop BulletedList control,

  1. <!DOCTYPE html>
  2.
  3. <html>
  4. <head runat="server">
  5.     <title>BulletedList</title>
  6.     <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/css/bootstrap.min.css">
  7.     <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.3.1/jquery.min.js"></script>
  8.     <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/js/bootstrap.min.js"></script>
  9. </head>
  10. <body>
  11.     <form id="form1" runat="server">
  12.         <div class="container py-5">
  13.             <h5 class="text-uppercase text-center">HOW TO DYNAMICALLY BIND ASP.NET BULLETEDLIST CONTROL FROM DATABASE</h5>
  14.             <div class="row">
  15.                 <div class="col-md-6">
  16.                     <div class="form-group">
  17.                         <label>Choose Programming Language</label>
  18.                         <asp:BulletedList ID="BulletedList1" runat="server"></asp:BulletedList>
  19.                     </div>
  20.                 </div>
  21.             </div>
  22.         </div>
  23.     </form>
  24. </body>
  25. </html>

Step 15

Write the following code to bind BulletedList control.

  1. using System;
  2. using System.Data;
  3. using System.Data.SqlClient;
  4. using System.Configuration;
  5.
  6. namespace ServerControlBinding_Demo
  7. {
  8.     public partial class BulletedList : System.Web.UI.Page
  9.     {
  10.         protected void Page_Load(object sender, EventArgs e)
  11.         {
  12.             if (!IsPostBack)
  13.             {
  14.                 BindBulletedList();
  15.             }
  16.         }
  17.
  18.         private void BindBulletedList()
  19.         {
  20.             string CS = ConfigurationManager.ConnectionStrings["DBCS"].ConnectionString;
  21.             using (SqlConnection con = new SqlConnection(CS))
  22.             {
  23.                 SqlCommand cmd = new SqlCommand("spGetAllProgrammingLanguage", con);
  24.                 cmd.CommandType = CommandType.StoredProcedure;
  25.                 con.Open();
  26.                 BulletedList1.DataSource = cmd.ExecuteReader();
  27.                 BulletedList1.DataTextField = "Programming_Language";
  28.                 BulletedList1.DataValueField = "ID";
  29.                 BulletedList1.DataBind();
  30.
  31.             }
  32.         }
  33.     }
  34. }

Output for BulletedList

ASP.NET



Conclusion

In this article, I have explained data binding with ASP.NET server control like DropdowList, RadioButtonList, CheckBoxList, ListBox, and BulletedList. I hope you have understood all the controls.


Similar Articles
