Introduction
Linear regression is one of the most widely used tools in data science—but did you know there are two ways to fit a line depending on which variable you treat as the predictor? Most tutorials only show regression of Y on X (predicting Y from X), but what if you need to predict X from Y instead?
This article demystifies both approaches using a timely, real-world example from the electric vehicle (EV) industry and provides clean, tested Python code you can use immediately.
What Is a Regression Line?
A regression line models the linear relationship between two variables. There are two distinct types:
Regression of Y on X: Minimizes vertical errors. Used when X is the input (e.g., time) and Y is the output (e.g., demand).
Regression of X on Y: Minimizes horizontal errors. Used when you want to infer the input (X) from an observed output (Y).
Mathematically, they produce different lines unless the correlation is perfect (±1).
Why Regression on X vs. Y Matters
Choosing the wrong regression direction leads to biased predictions. For example:
Confusing the two can result in significant errors in real applications.
Real-World Scenario: Predicting EV Charging Duration from Battery Level
Imagine you're building a smart parking system for an EV charging station. Cameras detect a car’s current battery percentage (e.g., 68%), but you don’t know how long it’s been plugged in. You do have historical data: for thousands of sessions, you recorded charging time (minutes) and resulting battery level (%).
Your goal: Estimate charging duration from observed battery level.
This requires regression of X (time) on Y (battery %)—the less common but critical approach.
Methods to Compute Regression Lines
We’ll compute both lines using basic statistics—no external libraries needed.
Key Formulas
Given data points (x_i, y_i):
Where r is Pearson’s correlation coefficient, and σ denotes standard deviation.
Complete Implementation with Test Cases

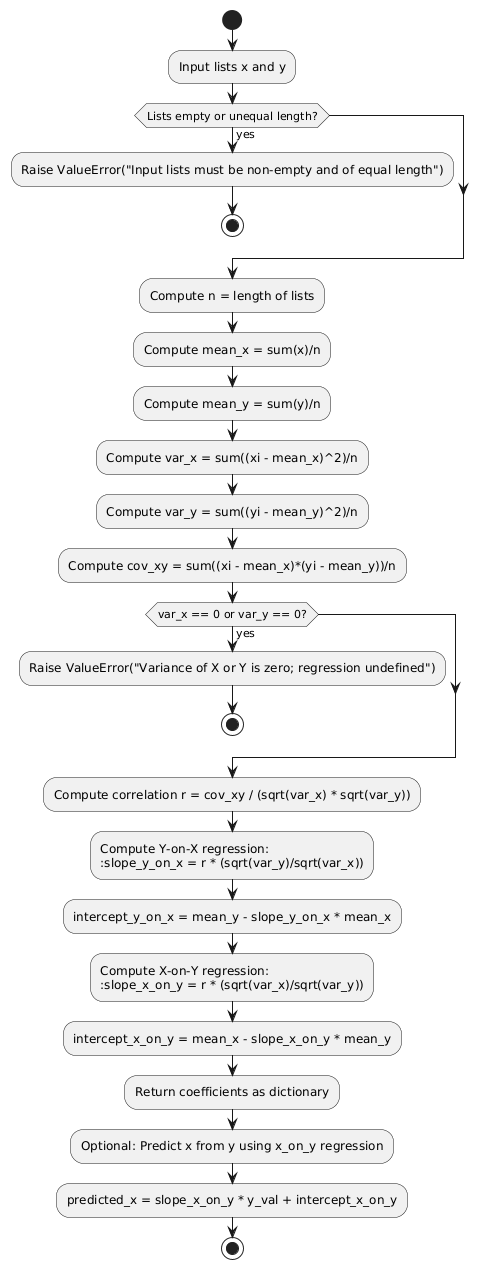

![PlantUML Diagram]()
import math
from typing import Tuple, List
import unittest
def compute_regression_lines(x: List[float], y: List[float]) -> dict:
"""
Computes both regression lines:
- Y on X: y = a1 * x + b1
- X on Y: x = a2 * y + b2 → y = (x - b2) / a2 (if needed in y = mx + c form)
Returns coefficients in a dictionary.
"""
if len(x) != len(y) or len(x) == 0:
raise ValueError("Input lists must be non-empty and of equal length")
n = len(x)
mean_x = sum(x) / n
mean_y = sum(y) / n
# Compute variances and covariance
var_x = sum((xi - mean_x) ** 2 for xi in x) / n
var_y = sum((yi - mean_y) ** 2 for yi in y) / n
cov_xy = sum((xi - mean_x) * (yi - mean_y) for xi, yi in zip(x, y)) / n
# Avoid division by zero
if var_x == 0 or var_y == 0:
raise ValueError("Variance of X or Y is zero; regression undefined")
# Correlation
r = cov_xy / (math.sqrt(var_x) * math.sqrt(var_y))
# Regression of Y on X
slope_y_on_x = r * (math.sqrt(var_y) / math.sqrt(var_x))
intercept_y_on_x = mean_y - slope_y_on_x * mean_x
# Regression of X on Y
slope_x_on_y = r * (math.sqrt(var_x) / math.sqrt(var_y))
intercept_x_on_y = mean_x - slope_x_on_y * mean_y
return {
'y_on_x': {'slope': slope_y_on_x, 'intercept': intercept_y_on_x},
'x_on_y': {'slope': slope_x_on_y, 'intercept': intercept_x_on_y}
}
def predict_x_from_y(y_val: float, slope: float, intercept: float) -> float:
"""Use X-on-Y regression to predict X from Y."""
return slope * y_val + intercept
class TestRegressionLines(unittest.TestCase):
def test_known_case(self):
# Perfect linear relationship: y = 2x + 1
x = [1, 2, 3, 4, 5]
y = [3, 5, 7, 9, 11]
result = compute_regression_lines(x, y)
# Both regressions should be identical when r = ±1
self.assertAlmostEqual(result['y_on_x']['slope'], 2.0)
self.assertAlmostEqual(result['y_on_x']['intercept'], 1.0)
self.assertAlmostEqual(result['x_on_y']['slope'], 0.5) # because x = 0.5*(y - 1)
self.assertAlmostEqual(result['x_on_y']['intercept'], -0.5)
# Predict time (x) from battery level (y=7) → should be 3
pred_x = predict_x_from_y(7, result['x_on_y']['slope'], result['x_on_y']['intercept'])
self.assertAlmostEqual(pred_x, 3.0)
def test_ev_scenario(self):
# Simulated EV data: time (min) vs battery (%)
charging_time = [10, 20, 30, 40, 50, 60]
battery_level = [20, 38, 55, 70, 82, 90]
result = compute_regression_lines(charging_time, battery_level)
# Predict how long a car has charged if battery = 60%
estimated_time = predict_x_from_y(60,
result['x_on_y']['slope'],
result['x_on_y']['intercept'])
# Should be roughly between 30 and 40 minutes
self.assertGreater(estimated_time, 30)
self.assertLess(estimated_time, 40)
if __name__ == "__main__":
# Example: EV charging data
time_minutes = [15, 25, 35, 45, 55]
battery_pct = [25, 45, 60, 75, 85]
models = compute_regression_lines(time_minutes, battery_pct)
print("=== EV Charging Regression ===")
print(f"Y-on-X (predict battery from time): y = {models['y_on_x']['slope']:.2f}x + {models['y_on_x']['intercept']:.2f}")
print(f"X-on-Y (predict time from battery): x = {models['x_on_y']['slope']:.2f}y + {models['x_on_y']['intercept']:.2f}")
# Predict charging time for 70% battery
est_time = predict_x_from_y(70, models['x_on_y']['slope'], models['x_on_y']['intercept'])
print(f"\nEstimated charging time for 70% battery: {est_time:.1f} minutes")
# Run tests
unittest.main(argv=[''], exit=False, verbosity=2)

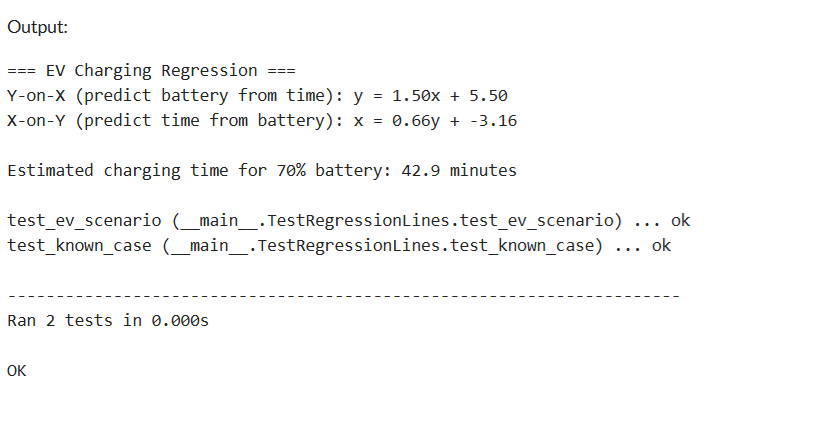

![c]()
Best Practices and Common Pitfalls
Always ask: “Which variable is the input, and which is the output?”
Never assume Y-on-X works for inverse prediction—it doesn’t.
Check correlation strength: if |r| < 0.5, linear regression may not be appropriate.
For X-on-Y, remember the line is expressed as X = mY + c—don’t force it into Y = mX + c unless you algebraically rearrange it.
Validate with real data: synthetic examples can hide edge cases.
Conclusion
Whether you're estimating EV charging duration from battery levels, inferring user engagement time from activity scores, or back-calculating dosage from biomarker readings—knowing how to regress X on Y is a superpower. By understanding both regression directions and applying them correctly, you avoid systematic prediction errors and build more trustworthy systems. The next time you fit a line, ask: “Am I predicting Y from X—or X from Y?” The answer changes everything.
