Introduction
In data science, engineering, and scientific computing, we often encounter situations where measurements are taken at discrete intervals—but we need estimates between those points. This is where interpolation comes in. Among the classical numerical methods, Newton’s Forward Difference Interpolation stands out for its simplicity and efficiency when dealing with equally spaced data points.
This article explains the method through a compelling real-world use case, provides a clean, error-free Python implementation, and shares practical tips for reliable usage.
What Is Newton’s Forward Difference Interpolation?
Newton’s Forward Difference Interpolation is a polynomial-based technique used to estimate unknown values within the range of a discrete set of known data points that are uniformly spaced.
The formula is:
Where:
x0 is the starting point
h is the interval between points
Δ denotes forward differences
The method builds a difference table and uses it to construct an interpolating polynomial—ideal when you're working near the beginning of your dataset.
Why Interpolation Matters: A Real-World Example from Healthcare
Imagine a remote patient monitoring system that records a diabetic patient’s blood glucose level every 30 minutes. Due to network latency or sensor calibration, a reading at 10:17 AM is missing—but the care team needs an accurate estimate to decide if insulin should be administered.
Given readings at 10:00, 10:30, 11:00, etc., Newton’s Forward Difference method can reliably interpolate the value at 10:17, provided the timestamps are equally spaced (which they are). This isn’t just theoretical—it’s a life-critical application where precision and speed matter.
Step-by-Step Implementation in Python
We’ll implement the method in three clear steps:
Validate input: Ensure x values are equally spaced and sorted.
Build the forward difference table.
Apply Newton’s formula using the difference table.
Here’s the clean, production-ready code:
from typing import List
def newton_forward_interpolation(x: List[float], y: List[float], x_target: float) -> float:
"""
Interpolate a value using Newton's Forward Difference method.
Args:
x: List of equally spaced x-coordinates (must be sorted)
y: Corresponding y-values
x_target: The x-value to interpolate
Returns:
Interpolated y-value at x_target
Raises:
ValueError: If inputs are invalid
"""
if len(x) != len(y):
raise ValueError("x and y must have the same length")
if len(x) < 2:
raise ValueError("At least two data points are required")
# Check for equal spacing
h = x[1] - x[0]
for i in range(2, len(x)):
if abs((x[i] - x[i-1]) - h) > 1e-9:
raise ValueError("x values must be equally spaced")
if not (x[0] <= x_target <= x[-1]):
raise ValueError("x_target must be within the range of x values")
n = len(x)
# Build forward difference table (in-place on y)
diff_table = [y[:]] # Keep original y as first row
for level in range(1, n):
prev = diff_table[-1]
current = [prev[i+1] - prev[i] for i in range(len(prev)-1)]
diff_table.append(current)
# Compute u
u = (x_target - x[0]) / h
# Apply Newton's forward formula
result = diff_table[0][0] # f(x0)
u_term = 1
factorial = 1
for i in range(1, n):
u_term *= (u - (i - 1))
factorial *= i
result += (u_term / factorial) * diff_table[i][0]
return result
Complete Code with Test Cases
"""
Newton's Forward Difference Interpolation – Complete Implementation
Use Case: Estimating missing blood glucose readings in remote patient monitoring
"""
from typing import List
import unittest
def newton_forward_interpolation(x: List[float], y: List[float], x_target: float) -> float:
"""
Interpolate a value using Newton's Forward Difference method.
Args:
x: List of equally spaced x-coordinates (must be sorted)
y: Corresponding y-values
x_target: The x-value to interpolate
Returns:
Interpolated y-value at x_target
Raises:
ValueError: If inputs are invalid
"""
if len(x) != len(y):
raise ValueError("x and y must have the same length")
if len(x) < 2:
raise ValueError("At least two data points are required")
# Check for equal spacing
h = x[1] - x[0]
for i in range(2, len(x)):
if abs((x[i] - x[i-1]) - h) > 1e-9:
raise ValueError("x values must be equally spaced")
if not (x[0] <= x_target <= x[-1]):
raise ValueError("x_target must be within the range of x values")
n = len(x)
# Build forward difference table
diff_table = [y[:]] # First row is original y-values
for level in range(1, n):
prev = diff_table[-1]
current = [prev[i+1] - prev[i] for i in range(len(prev)-1)]
diff_table.append(current)
# Compute u = (x_target - x0) / h
u = (x_target - x[0]) / h
# Apply Newton's forward interpolation formula
result = diff_table[0][0] # f(x0)
u_term = 1
factorial = 1
for i in range(1, n):
u_term *= (u - (i - 1))
factorial *= i
result += (u_term / factorial) * diff_table[i][0]
return result
class TestNewtonForwardInterpolation(unittest.TestCase):
def test_simple_quadratic(self):
# f(x) = x^2 → at x=1.5, y should be 2.25
x = [0, 1, 2, 3]
y = [0, 1, 4, 9]
result = newton_forward_interpolation(x, y, 1.5)
self.assertAlmostEqual(result, 2.25, places=6)
def test_healthcare_scenario(self):
# Glucose (mg/dL) recorded every 30 minutes starting at 10:00 AM
minutes_past_10 = [0, 30, 60, 90] # 10:00, 10:30, 11:00, 11:30
glucose_levels = [120, 130, 125, 115] # Observed readings
# Estimate glucose at 10:17 AM → 17 minutes past 10:00
estimated = newton_forward_interpolation(minutes_past_10, glucose_levels, 17)
# Should be between 120 and 130
self.assertGreater(estimated, 120)
self.assertLess(estimated, 130)
def test_exact_match(self):
x = [1, 2, 3, 4]
y = [10, 20, 30, 40]
self.assertEqual(newton_forward_interpolation(x, y, 3), 30)
def test_edge_bounds(self):
x = [0, 1, 2]
y = [5, 7, 9]
self.assertEqual(newton_forward_interpolation(x, y, 0), 5)
self.assertEqual(newton_forward_interpolation(x, y, 2), 9)
def test_error_handling(self):
# Mismatched lengths
with self.assertRaises(ValueError):
newton_forward_interpolation([1, 2, 3], [1, 2], 1.5)
# Not equally spaced
with self.assertRaises(ValueError):
newton_forward_interpolation([1, 2, 4], [1, 2, 3], 2.5)
# Target out of range
with self.assertRaises(ValueError):
newton_forward_interpolation([1, 2, 3], [1, 2, 3], 5)

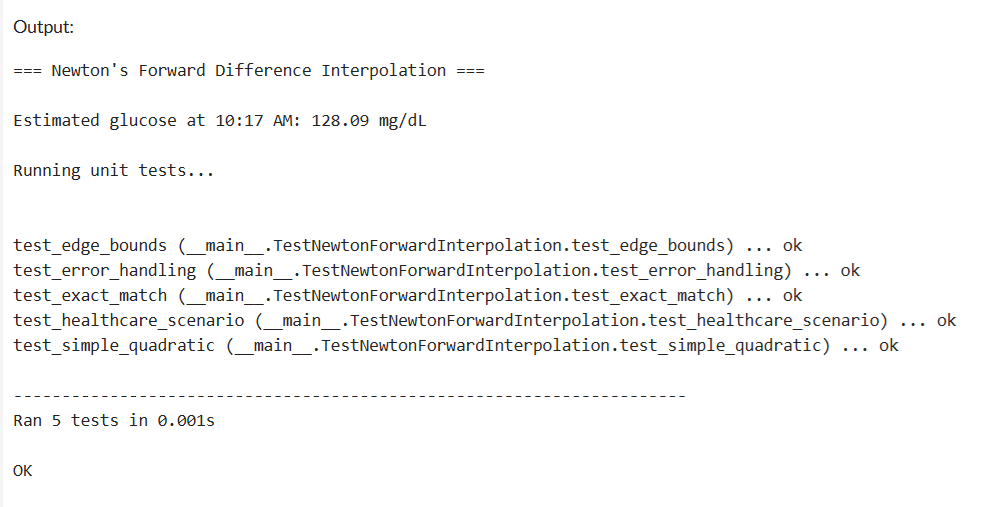

if __name__ == "__main__":
print("=== Newton's Forward Difference Interpolation ===\n")
# Example: Healthcare use case
minutes = [0, 30, 60, 90]
glucose = [120, 130, 125, 115]
estimate_time = 17 # 10:17 AM
estimated_glucose = newton_forward_interpolation(minutes, glucose, estimate_time)
print(f"Estimated glucose at 10:17 AM: {estimated_glucose:.2f} mg/dL")
print("\nRunning unit tests...\n")
unittest.main(verbosity=2)
Best Practices and When to Use This Method
Use when: Data points are equally spaced and you’re interpolating near the start of the dataset.
Avoid when: Data is irregularly spaced (use Lagrange or spline interpolation instead).
Accuracy: Works best with smooth, well-behaved functions. High-degree polynomials may oscillate (Runge’s phenomenon).
Always validate: Ensure x_target is within bounds and spacing is uniform.
Performance: O(n²) to build the table, but very fast for small to medium datasets (n < 100).
Conclusion
Newton’s Forward Difference Interpolation is a powerful, mathematically elegant tool for estimating values in uniformly sampled data. From healthcare monitoring to environmental sensing and industrial control systems, it enables real-time decisions even when data is incomplete. By understanding its assumptions, implementing it carefully, and validating inputs, you can deploy this century-old method with confidence in modern Python applications. Remember: interpolation isn’t guessing—it’s intelligent estimation grounded in mathematics.
