How to Find the Lower Triangular of a Matrix in Python

Table of Contents

  • Introduction

  • What Is a Lower Triangular Matrix?

  • Real-World Scenario: Fraud Detection in Financial Transaction Networks

  • Methods to Extract the Lower Triangular Part

  • Complete Implementation with Test Cases

  • Best Practices and Performance Tips

  • Conclusion

Introduction

In linear algebra and data science, matrices are more than just grids of numbers—they represent relationships, transformations, and systems. One powerful way to simplify or analyze a matrix is by extracting its lower triangular part. This technique is widely used in numerical computing, graph algorithms, and machine learning.

In this article, we’ll explore how to compute the lower triangular of a matrix in Python, using a compelling real-world use case from financial fraud detection, and provide clean, tested, and efficient code you can use immediately.

What Is a Lower Triangular Matrix?

A lower triangular matrix is a square matrix where all elements above the main diagonal are zero. The main diagonal runs from the top-left to the bottom-right.

For example, given matrix A:

[1, 2, 3]
[4, 5, 6]
[7, 8, 9]

Its lower triangular form is:

[1, 0, 0]
[4, 5, 0]
[7, 8, 9]

Only elements at positions where row >= column are retained; everything else becomes zero.

Real-World Scenario: Fraud Detection in Financial Transaction Networks

Imagine a bank monitoring transactions between accounts over a week. Each account is a node, and each transaction is a directed edge. You can represent this as an adjacency matrix, where matrix[i][j] = amount sent from account i to account j.

Now, suppose auditors want to analyze only historical or self-contained flows—for example, transactions from earlier accounts to later ones in a sorted ledger (e.g., by account creation date). By extracting the lower triangular part, they isolate transactions that flow “backward” or “within” a trusted sequence, helping flag anomalies like circular money laundering loops that appear above the diagonal.

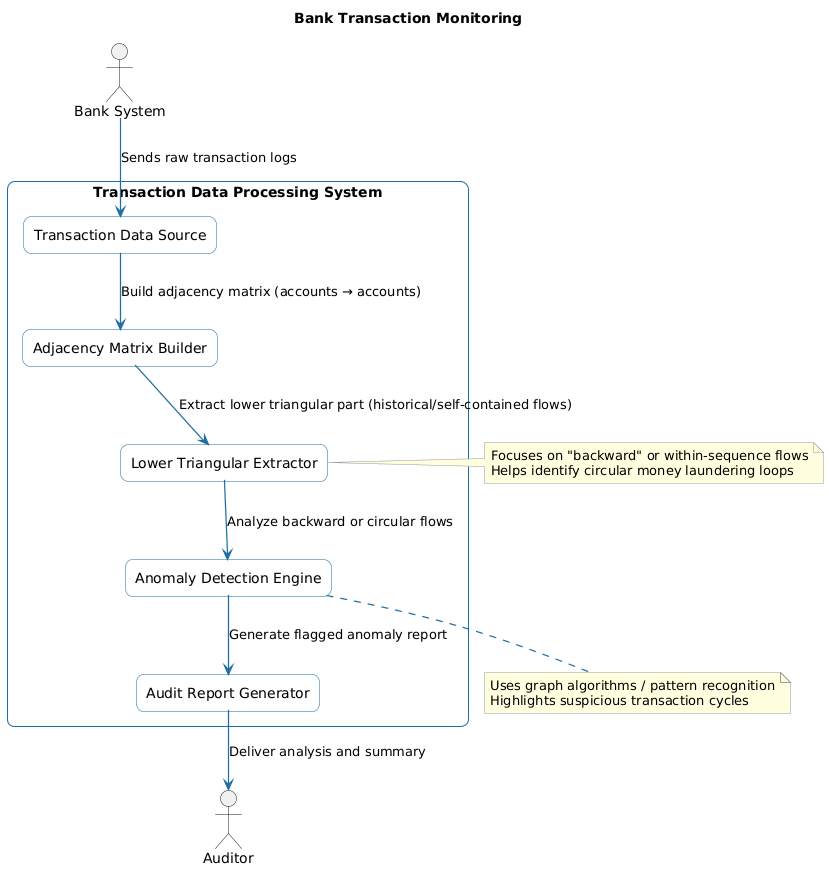

PlantUML Diagram

This simplification reduces noise, speeds up analysis, and focuses detection on high-risk patterns.

Methods to Extract the Lower Triangular Part

1. Using Pure Python (Nested Loops)

def lower_triangular_python(matrix):
    if not matrix:
        return []
    n = len(matrix)
    result = [[0] * n for _ in range(n)]
    for i in range(n):
        for j in range(i + 1):
            result[i][j] = matrix[i][j]
    return result

2. Using List Comprehension (Pythonic)

def lower_triangular_comprehension(matrix):
    n = len(matrix)
    return [
        [matrix[i][j] if j <= i else 0 for j in range(n)]
        for i in range(n)
    ]

3. Using NumPy (Recommended for Performance)

import numpy as np

def lower_triangular_numpy(matrix):
    arr = np.array(matrix)
    return np.tril(arr)

np.tril() is the standard, optimized function for this task—fast, readable, and battle-tested.

Complete Implementation with Test Cases

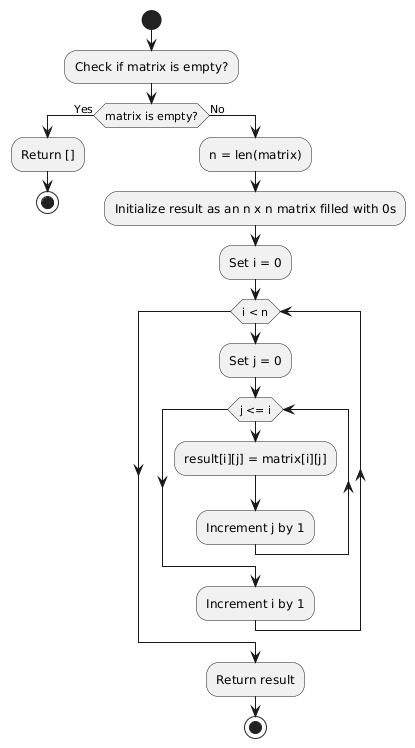

PlantUML Diagram
import numpy as np
import unittest

def lower_triangular(matrix):
    """
    Returns the lower triangular part of a square matrix.
    Uses NumPy for efficiency and correctness.
    """
    if not matrix:
        return []
    arr = np.array(matrix)
    if arr.ndim != 2 or arr.shape[0] != arr.shape[1]:
        raise ValueError("Input must be a square matrix")
    return np.tril(arr).tolist()

class TestLowerTriangular(unittest.TestCase):
    def test_basic_case(self):
        matrix = [[1, 2, 3], [4, 5, 6], [7, 8, 9]]
        expected = [[1, 0, 0], [4, 5, 0], [7, 8, 9]]
        self.assertEqual(lower_triangular(matrix), expected)

    def test_single_element(self):
        self.assertEqual(lower_triangular([[5]]), [[5]])

    def test_empty_matrix(self):
        self.assertEqual(lower_triangular([]), [])

    def test_zeros_above_diagonal(self):
        matrix = [[1, 0, 0], [2, 3, 0], [4, 5, 6]]
        # Already lower triangular
        self.assertEqual(lower_triangular(matrix), matrix)

    def test_non_square_raises_error(self):
        with self.assertRaises(ValueError):
            lower_triangular([[1, 2], [3, 4, 5]])

if __name__ == "__main__":
    # Example usage
    transactions = [
        [0, 500, 200],   # Account 0 → others
        [100, 0, 300],   # Account 1 → others
        [0, 0, 0]        # Account 2 → others
    ]
    print("Original transaction matrix:")
    for row in transactions:
        print(row)

    lower = lower_triangular(transactions)
    print("\nLower triangular (trusted historical flows):")
    for row in lower:
        print(row)

    # Run tests
    unittest.main(argv=[''], exit=False, verbosity=2)

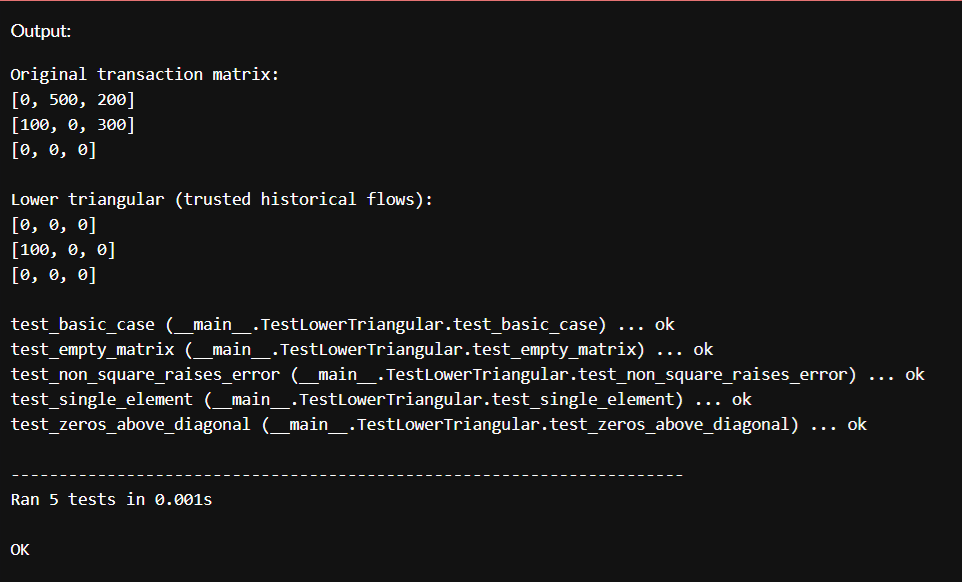

1

Best Practices and Performance Tips

  • Use np.tril() for any serious numerical work—it’s implemented in C and handles edge cases.

  • Always validate that your input is a square matrix before processing.

  • Avoid the [row] * n anti-pattern for 2D arrays—it creates shared references.

  • For large matrices (>10k x 10k), consider sparse matrices (scipy.sparse) if most values are zero.

  • In fraud detection, combine lower triangular extraction with thresholding (e.g., ignore transactions < $10).

Conclusion

Finding the lower triangular of a matrix is a simple yet powerful operation with real impact—from optimizing algorithms to uncovering financial crime. By leveraging NumPy’s tril() function, you get performance, correctness, and clarity in one line. Whether you’re building a fraud detection system, solving linear equations, or analyzing networks, mastering this technique will make your code smarter and faster. Remember: sometimes, the most valuable insights lie below the diagonal.
