Here I will explain how to open a second from using a first form in Windows Forms. Before that I will explain group boxes and picture boxes in Windows Forms.

Step 1: Login form

There is a login from when I enter a password and username and then the page goes directly to another page named form2.

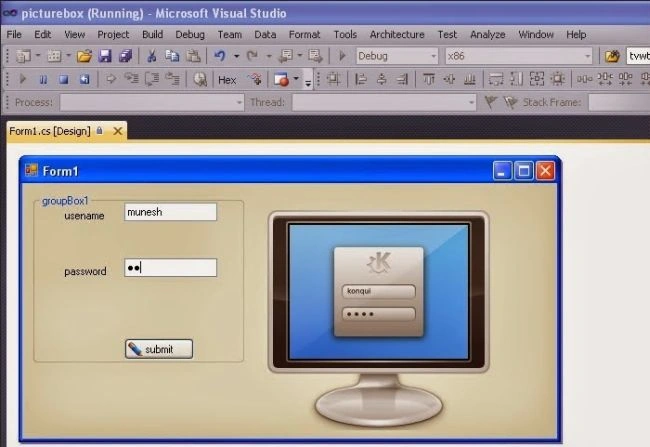

Login from


Step 2: Add a new form

Now go to Solution Explorer and select your project and right-click on it and select a new Windows Forms form and provide the name for it as form2.

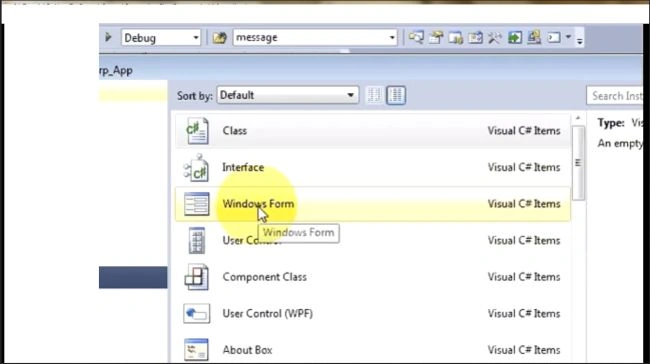

Add a new form


And the new form is:

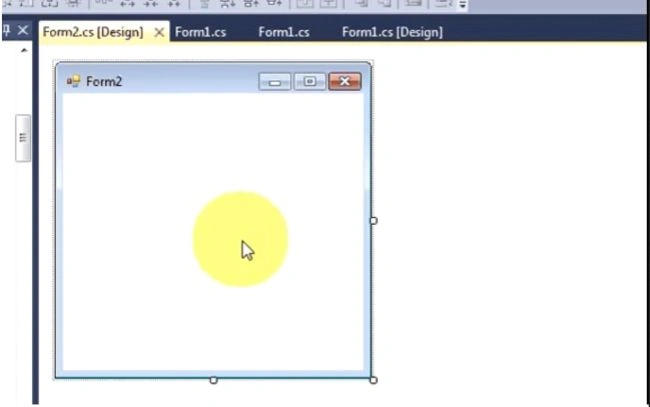

new form


Step 3: Coding

Now click the submit button and write the code.

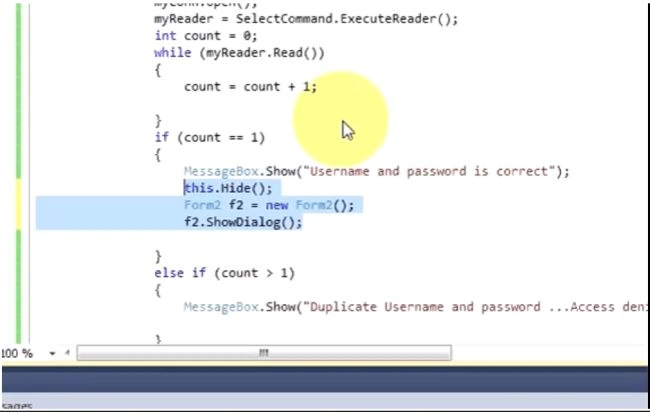

Coding
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel;
  4. using System.Data;
  5. using System.Drawing;
  6. using System.Text;
  7. using System.Windows.Forms;
  8. using System.Data.SqlClient;
  9. namespace First_Csharp_app
  10. {
  11. public partial class Form1 : Form
  12. {
  13. public Form1()
  14. {
  15. InitializeComponent();
  16. }
  17. private void button1_Click(object sender, EventArgs e)
  18. {
  19. try
  20. {
  21. if (!(usertxt.Text == string.Empty))
  22. {
  23. if (!(passtxt.Text == string.Empty))
  24. {
  25. String str = "server=MUNESH-PC;database=windowapp;UID=sa;password=123";
  26. String query = "select * from data where username = '" + usertxt.Text + "'and password = '" + this.passtxt.Text + "'";
  27. SqlConnection con = new SqlConnection(str);
  28. SqlCommand cmd = new SqlCommand(query, con);
  29. SqlDataReader dbr;
  30. con.Open();
  31. dbr = cmd.ExecuteReader();
  32. int count = 0;
  33. while (dbr.Read())
  34. {
  35. count = count + 1;
  36. }
  37. if (count == 1)
  38. {
  39. this.hide();
  40. Form2 f2 = new form2(); //this is the change, code for redirect
  41. f2.ShowDialog();
  42. }
  43. else if (count > 1)
  44. {
  45. MessageBox.Show("Duplicate username and password", "login page");
  46. }
  47. else
  48. {
  49. MessageBox.Show(" username and password incorrect", "login page");
  50. }
  51. }
  52. else
  53. {
  54. MessageBox.Show(" password empty", "login page");
  55. }
  56. }
  57. else
  58. {
  59. MessageBox.Show(" username empty", "login page");
  60. }
  61. // con.Close();
  62. }
  63. catch (Exception es)
  64. {
  65. MessageBox.Show(es.Message);
  66. }
  67. }
  68. }
  69. }
Step 4: Output

When you click on the submit button a new form will be opened named form2.
