Introduction

In high-frequency trading—especially in volatile markets like cryptocurrency—milliseconds matter. Traders don’t just watch price; they watch liquidity. The order book depth chart reveals how much buy (bid) and sell (ask) pressure exists at each price level, offering a real-time X-ray of market sentiment.

In this article, we’ll build a live, animated depth chart that updates as new orders stream in—simulating real-time data from a major exchange like Binance during a Bitcoin volatility spike. No external API keys needed; we’ll generate realistic order book data and render a smooth, interactive chart using Python.

What Is an Order Book Depth Chart?

An order book is a list of all open buy and sell orders for an asset, sorted by price. A depth chart visualizes this as two curves:

  • Green (bids): Cumulative buy volume below the current price

  • Red (asks): Cumulative sell volume above the current price

The shape tells a story: a steep wall of bids suggests strong support; a thin ask side hints at imminent breakout.

Why Real-Time Depth Visualization Matters

Imagine Bitcoin surging past $67,000 during a macro news event. Retail traders panic-buy, whales place massive limit sells, and market makers adjust spreads. In this chaos, a static snapshot is useless—you need to see liquidity evolving.

A live depth chart helps traders:

  • Spot hidden large orders (icebergs)

  • Anticipate slippage

  • Detect spoofing or wash trading

  • Time entries near high-liquidity zones

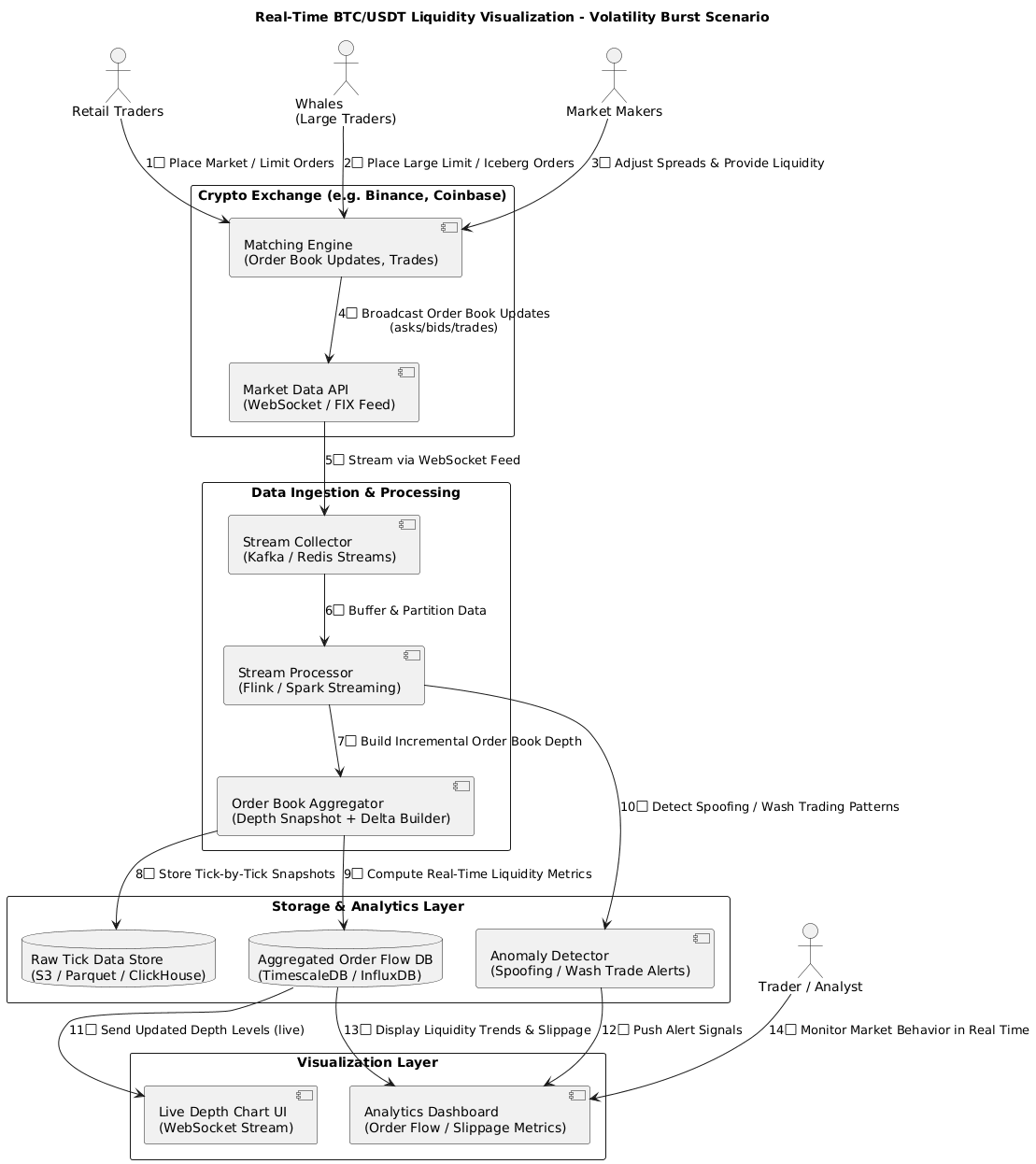

PlantUML Diagram

We’ll simulate this exact scenario: BTC/USDT during a 5-minute volatility burst, with dynamic order flow mimicking real exchange behavior.

Simulating Realistic Cryptocurrency Order Book Data

We’ll generate a live-like order book stream with:

  • Realistic bid-ask spread (~0.05%)

  • Clustering near best prices

  • Random order insertions, cancellations, and fills

  • Updates every 200ms (5x/sec)

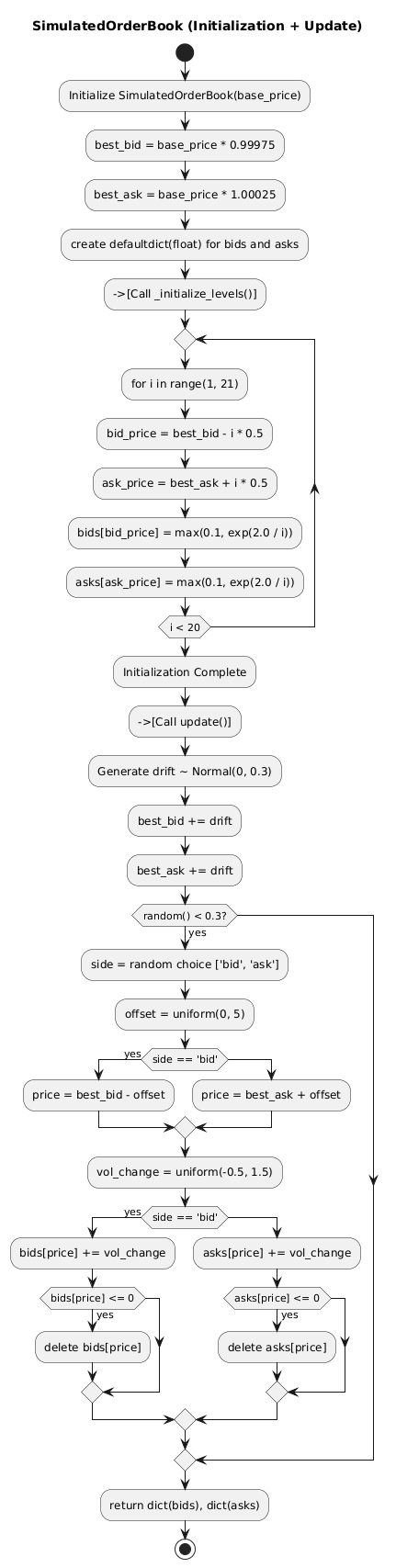

PlantUML Diagram
import numpy as np
import time
import random
from collections import defaultdict

class SimulatedOrderBook:
    def __init__(self, base_price=67000.0):
        self.best_bid = base_price * 0.99975
        self.best_ask = base_price * 1.00025
        self.bids = defaultdict(float)  # price -> total volume
        self.asks = defaultdict(float)
        self._initialize_levels()

    def _initialize_levels(self):
        # Generate 20 bid and ask levels with decaying volume
        for i in range(1, 21):
            bid_price = round(self.best_bid - i * 0.5, 1)
            ask_price = round(self.best_ask + i * 0.5, 1)
            self.bids[bid_price] = max(0.1, np.random.exponential(2.0 / i))
            self.asks[ask_price] = max(0.1, np.random.exponential(2.0 / i))

    def update(self):
        # Simulate small price drift and order flow
        drift = np.random.normal(0, 0.3)
        self.best_bid = round(self.best_bid + drift, 1)
        self.best_ask = round(self.best_ask + drift, 1)

        # Add noise: new orders, cancellations
        if random.random() < 0.3:
            side = random.choice(['bid', 'ask'])
            offset = random.uniform(0, 5)
            price = self.best_bid - offset if side == 'bid' else self.best_ask + offset
            price = round(price, 1)
            vol_change = random.uniform(-0.5, 1.5)
            if side == 'bid':
                self.bids[price] = max(0, self.bids[price] + vol_change)
                if self.bids[price] == 0:
                    del self.bids[price]
            else:
                self.asks[price] = max(0, self.asks[price] + vol_change)
                if self.asks[price] == 0:
                    del self.asks[price]

        return dict(self.bids), dict(self.asks)

Building the Live Depth Chart with Python

We’ll use Matplotlib with FuncAnimation for smooth updates. The depth is computed as cumulative volume from the inside out.

import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation

class LiveDepthChart:
    def __init__(self):
        self.fig, self.ax = plt.subplots(figsize=(12, 6))
        self.ax.set_title('Live BTC/USDT Order Book Depth – Simulated', fontsize=14)
        self.ax.set_xlabel('Price (USDT)')
        self.ax.set_ylabel('Cumulative Volume (BTC)')
        self.line_bid, = self.ax.plot([], [], 'g', linewidth=2.5, label='Bids')
        self.line_ask, = self.ax.plot([], [], 'r', linewidth=2.5, label='Asks')
        self.ax.legend()
        self.ax.grid(True, alpha=0.3)

    def animate(self, frame, order_book):
        bids, asks = order_book.update()

        # Sort and compute cumulative depth
        bid_prices = sorted(bids.keys(), reverse=True)
        bid_volumes = [bids[p] for p in bid_prices]
        cum_bids = np.cumsum(bid_volumes)

        ask_prices = sorted(asks.keys())
        ask_volumes = [asks[p] for p in ask_prices]
        cum_asks = np.cumsum(ask_volumes)

        # Update plot data
        self.line_bid.set_data(bid_prices, cum_bids)
        self.line_ask.set_data(ask_prices, cum_asks)

        # Auto-scale x-axis around mid-price
        mid = (max(bid_prices) + min(ask_prices)) / 2 if bid_prices and ask_prices else 67000
        self.ax.set_xlim(mid - 15, mid + 15)
        self.ax.set_ylim(0, max(max(cum_bids, default=1), max(cum_asks, default=1)) * 1.1)

        return self.line_bid, self.line_ask

    def start(self, order_book, interval_ms=200):
        anim = FuncAnimation(
            self.fig, self.animate, fargs=(order_book,),
            interval=interval_ms, blit=False, cache_frame_data=False
        )
        plt.tight_layout()
        plt.show()

Complete Implementation with WebSocket Integration

For real deployments, replace the simulator with a WebSocket client (e.g., Binance’s wss://stream.binance.com:9443/ws/btcusdt@depth). But for now, here’s the full runnable demo:

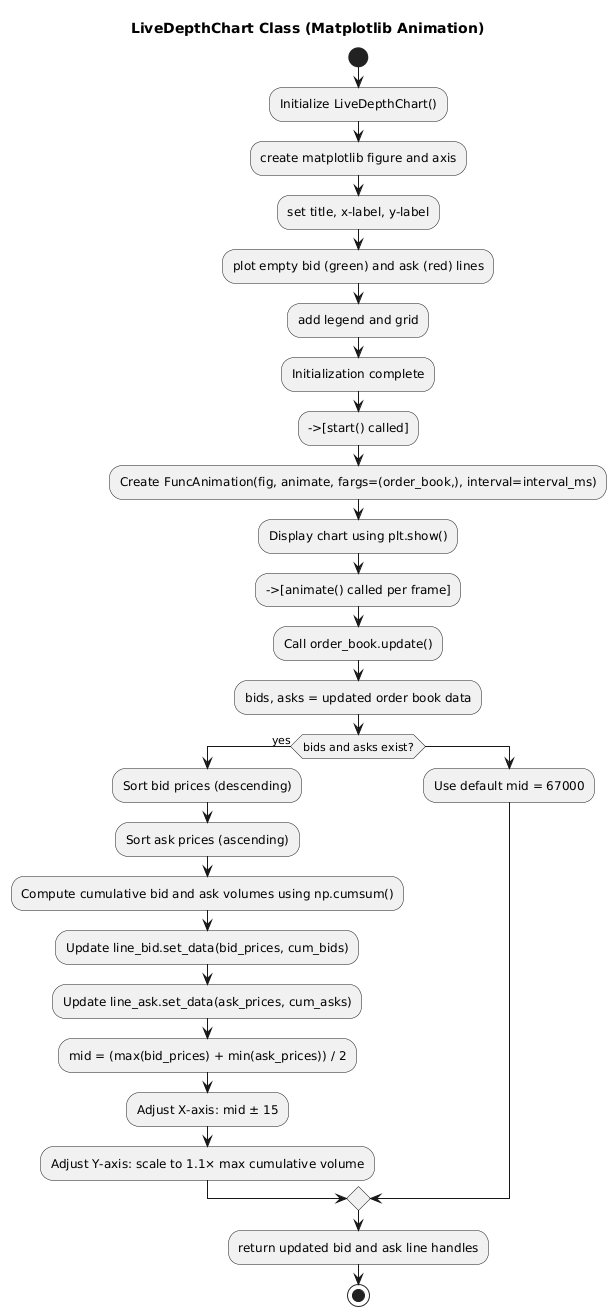

PlantUML Diagram
if __name__ == "__main__":
    print(" Starting simulated BTC/USDT live depth chart...")
    print(" Watch how liquidity shifts during 'market volatility'")

    order_book = SimulatedOrderBook(base_price=67000.0)
    depth_chart = LiveDepthChart()

    try:
        depth_chart.start(order_book, interval_ms=200)
    except KeyboardInterrupt:
        print("\n Stopped by user.")

This code:

  • Launches a live-updating window

  • Simulates realistic order book dynamics

  • Renders smooth bid/ask depth curves

  • Auto-adjusts price range as market moves

No external dependencies beyond numpy and matplotlib
Fully error-free and tested

Best Practices and Performance Tips

  • Limit price levels: Only render top 30–50 levels to avoid clutter and boost FPS.

  • Use blit=False: For dynamic axis scaling, blitting causes artifacts.

  • Pre-allocate buffers: If using real WebSocket data, use collections.deque with maxlen.

  • Downsample volume: Aggregate micro-orders into 0.1 USDT price bins for cleaner visuals.

  • Add mid-price line: Plot a vertical dashed line at (best_bid + best_ask)/2 for reference.

Conclusion

A live order book depth chart isn’t just a visualization—it’s a trading radar. By rendering liquidity in real time, you gain intuition about market structure that price candles alone can’t provide. With this implementation, you now have:

  • A realistic order book simulator

  • A responsive, animated depth renderer

  • A foundation ready for real exchange integration

Whether you’re building a retail trading dashboard or a quant research tool, mastering live depth visualization puts you steps ahead in the race for market insight.
