Introduction

Matrices—rectangular grids of numbers—are foundational in computer science, used everywhere from graphics rendering to machine learning. In Python, we represent matrices using 2D arrays, typically implemented as lists of lists. While simple in concept, correctly initializing and managing 2D arrays is critical to avoid subtle bugs and ensure performance.

This article explores practical techniques for creating 2D arrays in Python, demonstrates their use in a real-time urban traffic management system, and provides a robust, tested implementation.

What Is a Matrix in Programming?

A matrix is a two-dimensional data structure where elements are arranged in rows and columns. In code, it’s accessed as matrix[row][col]. Unlike mathematical matrices, programming matrices must be explicitly initialized—especially in dynamic languages like Python—where improper setup can lead to shared references and unintended side effects.

Different Ways to Create 2D Arrays in Python

1. Basic Nested List (Correct Way)

# 3x3 matrix filled with zeros
matrix = [[0 for _ in range(3)] for _ in range(3)]

This creates independent rows, so modifying one row doesn’t affect others.

2. The Dangerous Shortcut (Avoid!)

# WRONG: All rows reference the same list!
matrix = [[0] * 3] * 3  # DO NOT USE

Changing matrix[0][0] would alter the first element of every row.

3. Using List Comprehension with Computed Values

# Distance matrix: Manhattan distance from origin
n = 4
dist_matrix = [[i + j for j in range(n)] for i in range(n)]

4. With NumPy (for numerical work)

import numpy as np
matrix = np.zeros((3, 3))  # Efficient, memory-optimized

While powerful, NumPy is overkill for small-scale or non-numerical tasks.

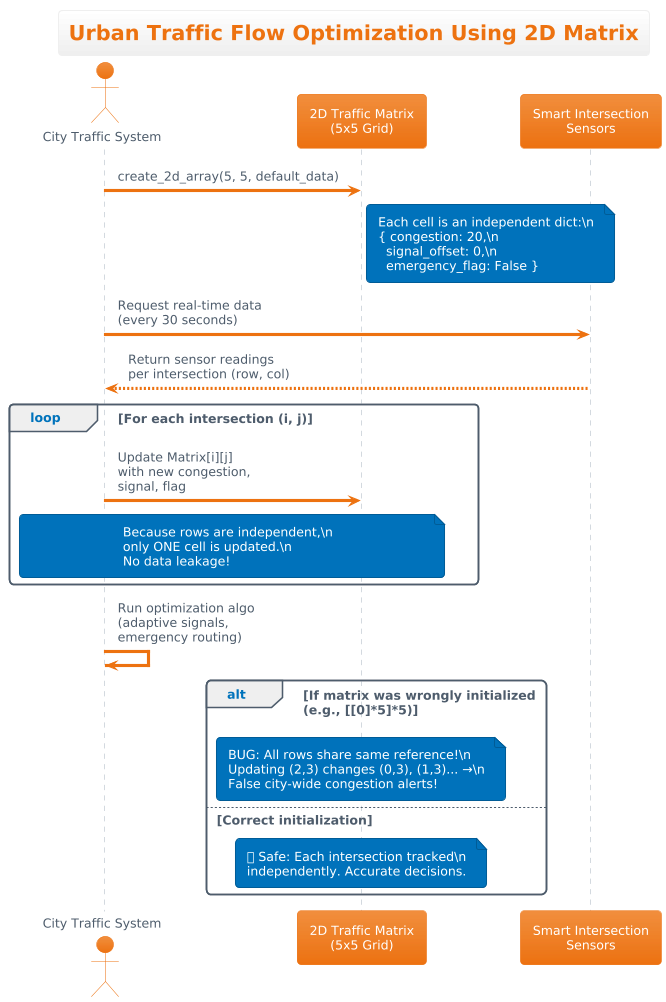

Real-World Scenario: Urban Traffic Flow Optimization

Imagine you're a city planner in Singapore, managing real-time traffic across a 5x5 grid of smart intersections. Each cell in your matrix represents an intersection, storing:

Current congestion level (0–100)
Signal timing offset (seconds)
Emergency vehicle priority flag

Your system updates this matrix every 30 seconds using sensor data. If you accidentally initialize the matrix using [[0]*5]*5, a congestion spike at one intersection would falsely appear at all intersections—triggering city-wide false alerts and gridlock.

Proper 2D array initialization ensures each intersection is tracked independently, enabling accurate adaptive signal control and emergency routing.

Complete Implementation with Test Cases

from typing import List, Any
import unittest

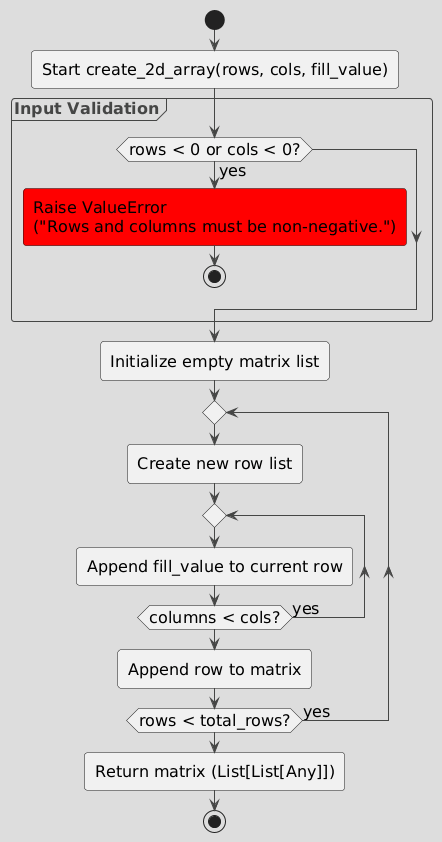

def create_2d_array(rows: int, cols: int, fill_value: Any = 0) -> List[List[Any]]:
    """
    Safely create a 2D array (matrix) with independent rows.

    Args:
        rows: Number of rows
        cols: Number of columns
        fill_value: Value to fill the matrix with (default: 0)

    Returns:
        A rows x cols 2D list with deep-independent rows

    Raises:
        ValueError: If rows or cols are negative
    """
    if rows < 0 or cols < 0:
        raise ValueError("Rows and columns must be non-negative.")

    return [[fill_value for _ in range(cols)] for _ in range(rows)]


def update_traffic_matrix(matrix: List[List[int]], row: int, col: int, value: int) -> None:
    """Update a single cell in the traffic matrix."""
    if not (0 <= row < len(matrix)) or not (0 <= col < len(matrix[0])):
        raise IndexError("Matrix indices out of range.")
    matrix[row][col] = value


class TestMatrixRepresentation(unittest.TestCase):

    def test_correct_initialization(self):
        mat = create_2d_array(3, 4, 5)
        self.assertEqual(mat, [[5, 5, 5, 5], [5, 5, 5, 5], [5, 5, 5, 5]])

        # Modify one cell
        mat[0][0] = 99
        self.assertEqual(mat[0][0], 99)
        self.assertEqual(mat[1][0], 5)  # Should remain unchanged

    def test_shared_reference_bug_avoided(self):
        mat = create_2d_array(2, 2)
        mat[0][0] = 1
        self.assertNotEqual(mat[0][0], mat[1][0])  # Proves independence

    def test_traffic_update(self):
        traffic = create_2d_array(5, 5, 10)  # Base congestion: 10
        update_traffic_matrix(traffic, 2, 3, 85)  # Heavy congestion at (2,3)
        self.assertEqual(traffic[2][3], 85)
        self.assertEqual(traffic[0][0], 10)  # Others unchanged

    def test_edge_cases(self):
        # Empty matrix
        empty = create_2d_array(0, 5)
        self.assertEqual(empty, [])

        # Single cell
        single = create_2d_array(1, 1, "X")
        self.assertEqual(single, [["X"]])

    def test_invalid_inputs(self):
        with self.assertRaises(ValueError):
            create_2d_array(-1, 3)
        with self.assertRaises(ValueError):
            create_2d_array(2, -2)

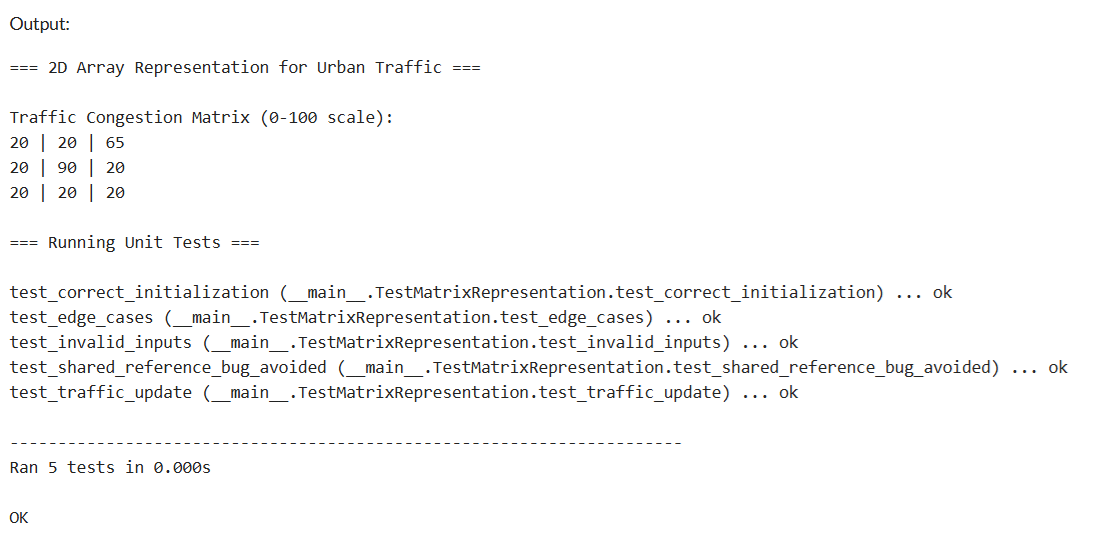

if __name__ == "__main__":
    print("=== 2D Array Representation for Urban Traffic ===\n")

    # Simulate a 3x3 city grid
    city_grid = create_2d_array(3, 3, 20)  # Base congestion: 20%
    update_traffic_matrix(city_grid, 1, 1, 90)  # Accident at center
    update_traffic_matrix(city_grid, 0, 2, 65)  # Construction on northeast

    print("Traffic Congestion Matrix (0-100 scale):")
    for row in city_grid:
        print(" | ".join(f"{cell:2d}" for cell in row))

    print("\n=== Running Unit Tests ===")
    unittest.main(argv=[''], exit=False, verbosity=2)

Best Practices and Common Pitfalls

Always use nested list comprehensions ([[val for _ in cols] for _ in rows]) for independent rows.
Never use [[0]*cols]*rows—it creates aliasing bugs that are hard to trace.
Validate indices before accessing or updating matrix cells.
Prefer functions like create_2d_array to encapsulate safe initialization.
In real-time systems, pre-allocate matrices to avoid runtime overhead.

Conclusion

Representing matrices with 2D arrays seems trivial—until a shared-reference bug causes your traffic system to misroute ambulances. By understanding the mechanics of list creation in Python and adopting safe initialization patterns, you ensure data integrity in everything from city planning to game development. The key takeaway? Independence matters. Each row in your matrix should be its own list, not a mirror of another. With the techniques and tested code above, you’re equipped to build reliable, scalable 2D data structures—no matter how complex your grid becomes.
