HTML Graphics With SVG

SVG is used in HTML5 for Drawing Shapes using various methods. It stands for Scalable Vector Graphics. SVG follows different methods of drawing basic shapes like, Circle, Rectangle, Rounded Rectangle, Line, Polyline, and Polygon

Facts About SVG

  • The main challenging drawing program for SVG is FLASH.
  • Flash depends on other technologies like XSL and DOM. In that case, SVG plays a role like an open source drawing program.
  • SVG images are scalable, zoomable and  can be printed with high quality at any resolution.
  • SVG files are complete XML files, so it can be easily developed with the help of HTML and Basic XML knowledge.
  • SVG can be created with any text editor, but Inkscape is a more convenient drawing program for it.

How to Code SVG?


An SVG image begins with <svg> tag and closing with </svg> tag. Make sure all the elements in SVG can be closed properly because it is written in XML.


Example 1 - DRAW A CIRCLE


Let’s draw a circle with SVG element,

Firstly, to draw any shape we need to create an SVG element with two attributes: width and height.
  1. <html>
  2.    <head>
  3.       <title> Draw a Circle Using SVG</title>
  4.    </head>
  5.    <body>
  6.       <svg width=”1050” height=”1050”>
  7.       </svg>
  8.    </body>
  9. </html>
Still there is nothing going to be applied on an output screen.

Add a <circle> tag,
  1. <html>
  2.    <head>
  3.       <title> Draw a Circle Using SVG</title>
  4.    </head>
  5.    <body>
  6.       <svg width="2050" height="2050">
  7.       <circle cx"80" cy="80" r="50" fill="blue" stroke="red"/></svg>
  8.    </body>
  9. </html>
Note
In SVG file there is every element and any attribute can be animated.

In this code, there are a few attributes which are new for us,
  • cx:x coordinate, cy:y coordinate, r:radius , fill, stroke
  • cx: it defines the center of the circle from the right of the screen
  • cy: it defines the center of the circle from the top the screen
  • r: it is the radius of the circle
  • fill: it is used to color the circle
  • stroke: it is used to give an outline to the circle.

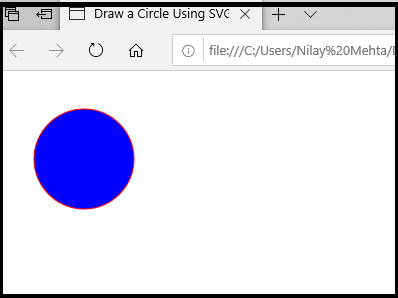

Output


HTML Graphics With SVG

Note
With the use of<ellipse> element, we can create an oval shape.


Example 2 - DRAW A RECTANGLE


In this example, we will see two more attributes of the rectangle shape: width and height. It defines the width and height of the rectangle.

Add a <rect> tag,

Let’s draw a rectangle with SVG element,
  1. <html>
  2.    <head>
  3.       <title> Draw a Rectangle Using SVG</title>
  4.    </head>
  5.    <body>
  6.       <svg width="2050" height="2050">
  7.       <rect width="250" height="100" fill="blue" stroke="red"/></svg>
  8.    </body>
  9. </html>
Output

HTML Graphics With SVG


Example 3 - DRAW A ROUNDED RECTANGLE


In the previous example, we have seen attributes of rectangle shapes: width and height. It defines the width and height of the rectangle. Now, we will see two more attributes: rx: horizontal radius and ry: vertical radius, to draw rounded corners of the rectangle.

Add a <rect> tag,

Let’s draw a rounded rectangle with SVG element,
  1. <html>
  2.    <head>
  3.       <title> Draw a Rounded Rectangle Using SVG</title>
  4.    </head>
  5.    <body>
  6.       <svg width="2000" height="2000">
  7.          <rect x="70" y="20" rx="20" ry="20" width="210" height="140"
  8.          style="fill:blue;stroke:red;stroke-width:3;opacity:0.5" />
  9.       </svg>
  10.    </body>
  11. </html>
Output

HTML Graphics With SVG

Note
With the help of <rect> element we can also draw a square shape.


Example 4 - DRAW A LINE


To draw a line on a screen  we have to focus on the coordinates of the screen with the measurements: (x1,y1) these are the start coordinates of the line, and (x2,y2) are the end coordinates of the line.

Add a <line> tag,

Let’s draw a line with <line> SVG element,
  1. <html>
  2.    <head>
  3.       <title> Draw a Line Using SVG</title>
  4.    </head>
  5.    <body>
  6.       <svg width="500" height="500">
  7.          <line x1="30" y1="10" x2="200" y2="100"
  8.          style="stroke:#0000ff; stroke-linecap:round; stroke-width:20" />
  9.       </svg>
  10.    </body>
  11. </html>
Output

HTML Graphics With SVG


Example 5 - DRAW A POLYLINE


Polyline is a shape that is built from multiple lines. Polyline seems like a check sign. In this element, we will introduce an attribute point: which is polyline’s coordinates.

Add a <polyline> tag,

Let’s draw a polyline with <polyline> SVG element,
  1. <html>
  2.    <head>
  3.       <title> Draw a Polyline Using SVG</title>
  4.    </head>
  5.    <body>
  6.       <svg width="2000" height="2000">
  7.          <polyline style="fill:none;stroke:blue;stroke-width:10;stroke-linejoin:miter"
  8.          points="90 110, 160 160, 200 100" />
  9.       </svg>
  10.    </body>
  11. </html>
Output

HTML Graphics With SVG


Example 6 - DRAW A STAR


As we saw in the previous SVG <ployline> element, with the help of Points of the <polygon> element we can create a star shape according to our assumptions and requirements of choices. Again Points are the coordinates of the star.

Add a <polygon> tag,

Let’s draw a star with <polylgon> SVG element,
  1. <html>
  2.    <head>
  3.       <title> Draw a Star Using SVG</title>
  4.    </head>
  5.    <body>
  6.       <svg width="2000" height="2000">
  7.          <polygon points="100,9 50,200 180,75 10,75 160,200"
  8.          style="fill:blue;stroke:red;stroke-width:5;fill-rule:evenodd;" />
  9.       </svg>
  10.    </body>
  11. </html>
Output

HTML Graphics With SVG


Summary


In this article, we learned about the HTML Graphics: SVG with different shapes using the different elements of SVG.
