Image View Animation in Android Studio

Introduction

In this article, you will learn animation using Image View in Android Studio.

Animation

Animation is anything that moves on your screen like a cartoon character.

In this article, you will use Scale Animation which is a sub class of animation that controls the scale of an object. In this, you will create an object of scale animation and that object to the startAnimation() method.

Translate animation is a subclass of Animation that controls the position of an object. In this, you will create the object of translate animation and that object to the startAnimation() method.

Rotate animation is a subclass of Animation that controls the rotation of an object. In this you will create the object of rotate animation and that object to the startAnimation() method.

is a subclass of Animation that controls the alpha level of an object. It is used to fade things in and out. In this you will create the object of alpha animation and that object to the startAnimation() method.

Step 1

Create an XML file and write this:

Step 2

Create a Java file and write this:

package com.androidanimation;
import android.content.DialogInterface;
import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.view.View;
import android.view.animation.AlphaAnimation;
import android.view.animation.RotateAnimation;
import android.view.animation.ScaleAnimation;
import android.view.animation.TranslateAnimation;
import android.widget.Button;
import android.widget.ImageView;
public class MainActivity extends Activity implements View.OnClickListener {
Button btn1, btn2, btn3, btn4;
ImageView img_view;
ScaleAnimation scale;
TranslateAnimation trans;
RotateAnimation rotate;
AlphaAnimation alpha;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
btn1 = (Button) findViewById(R.id.button1);
btn2 = (Button) findViewById(R.id.button2);
btn3 = (Button) findViewById(R.id.button3);
btn4 = (Button) findViewById(R.id.button4);
img_view = (ImageView) findViewById(R.id.imageView);
btn1.setOnClickListener(this);
btn2.setOnClickListener(this);
btn3.setOnClickListener(this);
btn4.setOnClickListener(this);
}
@Override
public void onClick(View v) {
switch (v.getId()) {
case R.id.button1:
scale = new ScaleAnimation(0, 2, 0, 2);
scale.setDuration(500);
img_view.startAnimation(scale);
break;
case R.id.button2:
trans = new TranslateAnimation(0, 100, 0, 100);
trans.setDuration(500);
img_view.startAnimation(trans);
break;
case R.id.button3:
rotate = new RotateAnimation(0, 300);
rotate.setDuration(500);
img_view.startAnimation(rotate);
break;
case R.id.button4:
alpha = new AlphaAnimation(0, 100);
alpha.setDuration(500);
img_view.startAnimation(alpha);
break;
}
}
}

Step 3

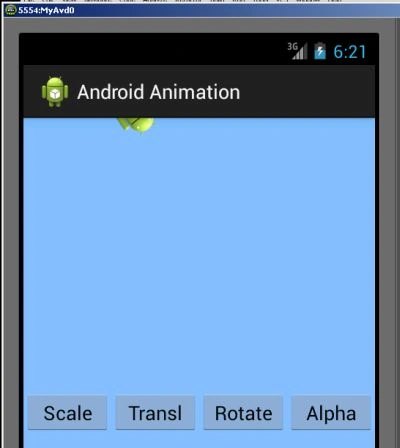

Output screen:

Step 4

When you click on the scale button:

Step 5

When you click on the rotate button:

Step 6

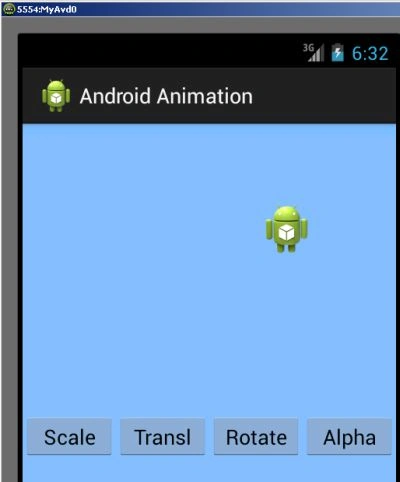

When you click on the Translate button:

Step 7

When you click on the alpha button:
