Improve Your Copilot Studio Experience with Optimized Canvas

📌 Introduction

If you're building complex conversational flows in Copilot Studio, you've probably experienced some performance lag when your topic becomes large, especially when you start adding tons of branches, conditions, and actions. I recently ran into this while working on a chatbot for a customer support use case. The flow became so huge that the canvas was almost dragging!

That’s when I discovered this nifty little feature called Optimized Canvas.

In this article, I’ll explain what the Optimized Canvas is, why it matters, and how you can make the most of it, especially if you're working on node-heavy topics.

🧭 What Is the Optimized Canvas?

Optimized Canvas is a performance enhancement option inside Copilot Studio’s Authoring Canvas. It’s designed to help when you're working with large, complex topics — you know, those mind-map-style conversational flows with multiple decision trees and actions.

Once your topic reaches a certain size (in terms of the number of nodes), the regular canvas can start to slow down. That’s where this feature kicks in — it helps your canvas stay responsive, clean, and easy to work with, even as your flow grows.

🧩 Why Is It Called "Authoring Canvas" but the Settings Are About "Optimized Canvas"?

If you’re wondering why the settings page says “Authoring Canvas”, but all the options talk about “Optimized Canvas” — you’re not alone. I had the same question at first.

Here’s the catch:

The Authoring Canvas is the main design surface in Copilot Studio — the place where you build your topics visually using nodes like messages, questions, conditions, etc.
The Optimized Canvas is not a separate tool — it’s a feature within the Authoring Canvas that improves performance and usability when your topic becomes large or complex.
So the settings are grouped under “Authoring Canvas” because that’s what you’re configuring — how the canvas behaves. The Optimized Canvas settings are just one part of it, specifically focused on enhancing performance for bigger flows.
It’s like tuning your IDE or editor settings — you're still in the same environment, just tweaking how it works when things get heavy.

🚀 Why Do We Need It?

Let’s be honest — no one likes a laggy UI when building bots.

Here are two major pain points Optimized Canvas solves:

✅ 1. Performance Improvement

When you’re working with 100+ nodes (conditions, messages, actions), your browser has to render all of them at once. This puts a lot of load on memory and slows down the whole authoring experience.

The Optimized Canvas uses smart techniques like:

Lazy Loading: Only renders what’s visible on the screen.
Simplified visuals: Reduces fancy effects to save performance.
Dynamic rendering: Focuses on active areas instead of the entire canvas.

✅ 2. Better Usability

Big flows can become visually cluttered — you lose track of where you are, and it gets harder to make edits.

With optimization on, the canvas stays smooth, and you can scroll, zoom, and pan without frustration. It just feels lighter and easier to manage.

⚙️ Key Settings Explained

Inside Copilot Studio Settings, you’ll find the following options under Authoring Canvas:

Settings

🔘 Optimized Canvas - On/Off

This is a toggle switch. You can enable or disable it globally.

ON: It automatically activates when a topic crosses a certain size.
OFF: You’ll be using the standard (non-optimized) canvas even for large topics.

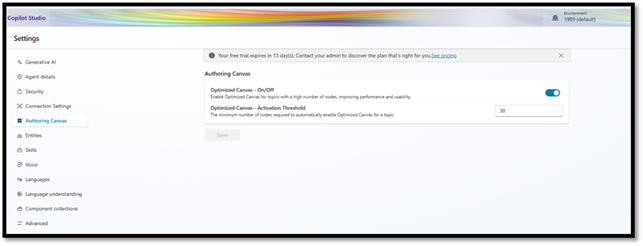

Optimized canvas

📊 Activation Threshold

This is the magic number.

It defines the minimum number of nodes required for the optimized mode to trigger automatically.
Example: If you set the threshold to 200, any topic with 200+ nodes will switch to Optimized Canvas mode.

You can adjust this based on your project size. For small topics, you won’t notice a big difference. But for large flows, trust me — it’s a game-changer.

🧪 When Should You Enable Canvas Optimized?

Here's my personal rule of thumb:

Topic Size	Recommended Setting
50 nodes	Standard Canvas is fine
50–200 nodes	Optional — depends on your flow design.
200+ nodes	Highly recommended to use Optimized Canvas

If you’re building chatbots for enterprise scenarios, where logic can get very complex, enable it from day one. It’ll save you time and frustration later.

🎯 Final Thoughts

Optimized Canvas is one of those behind-the-scenes features that doesn’t get much attention but can make a huge difference in your productivity inside Copilot Studio.

If you’re someone who likes building structured, decision-based flows — especially in customer service, internal tools, or even form-filling agents — definitely try it out.

Also, keep tweaking the activation threshold as your project grows. It’s not a one-size-fits-all setting.

Let me know if you've faced performance issues in your Copilot Flows and whether enabling Optimized Canvas helped. Happy building! 🚀
