Install HyperV On Windows Server And Setup A Virtual Machine

This post will help you out in installing Hyper-V on your Windows Server and teach you how to set up a Virtual Machine. So, let’s get started.

You should have Administrator right on the Windows Server to install Hyper-V

Steps

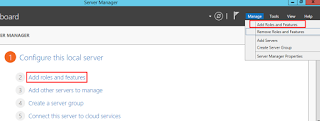

  1. In Server Manager, click on Manage > Add Roles and Feature.

    install Hyper V on Windows Server

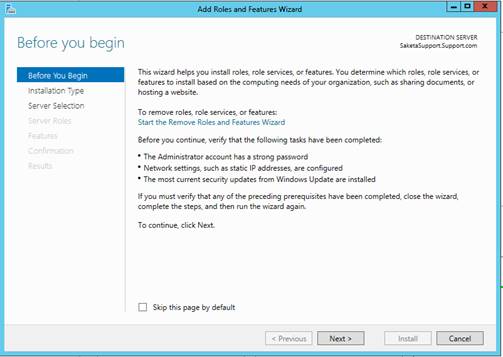

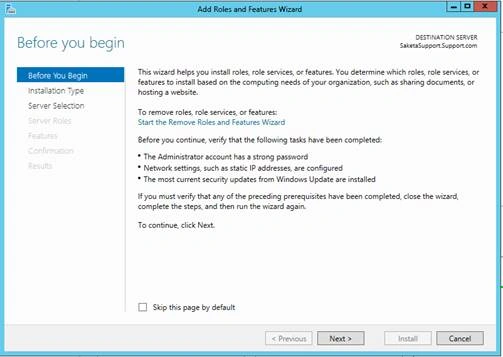

  2. Assuming all the pre-requisites have been completed, click Next.

    install Hyper V on Windows Server

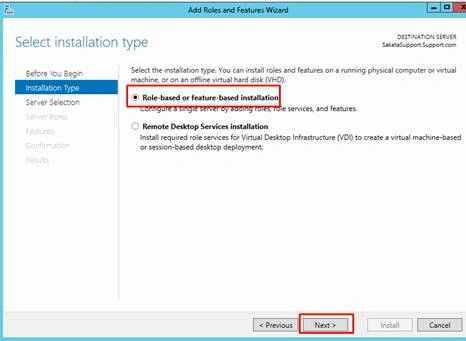

  3. Select "Role-based or feature based installation" and click Next.

    install Hyper V on Windows Server

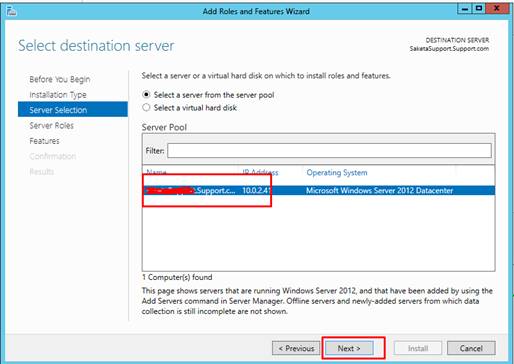

  4. Select the computer name and click Next.

    install Hyper V on Windows Server

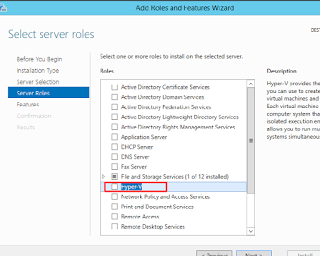

  5. Select Hyper-V and click on "Add features".

    install Hyper V on Windows Server

  6. Click Next, Next and Install

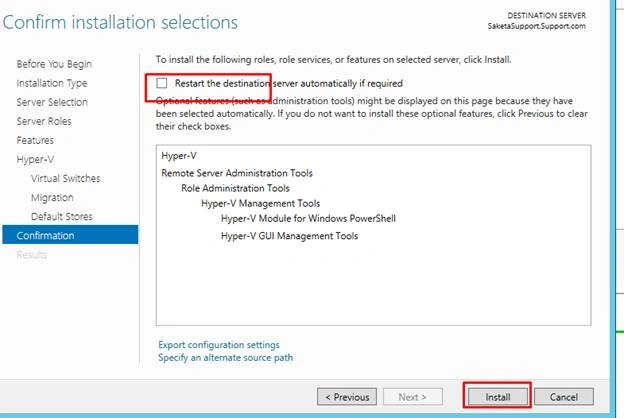

  7. Select the "Restart the server automatically if required" option.

    install Hyper V on Windows Server

Now, Hyper-V feature has been installed. It is time to set-up a Virtual Machine on it.

Steps to Set-up VM

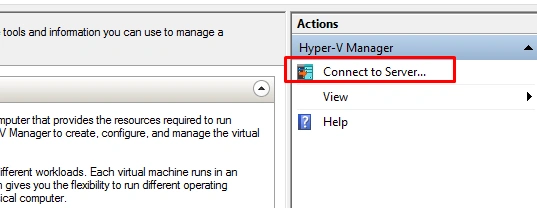

  1. Open Hyper-V Manager and click Action >> Connect to Server.

    Virtual Machine setup

  2. Select Local computer and click OK.

    Virtual Machine setup

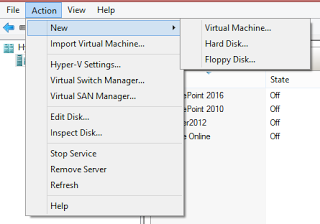

  3. Once you get connected, click "Action" and select Virtual Machine or on right hand side of your screen, you can see a new option; click on it and select Virtual Machine.

    Virtual Machine setup

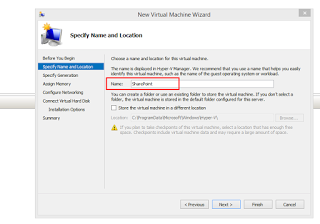

  4. Click Next, specify a name for your virtual machine, and location to store it. Click Next.

    Virtual Machine setup

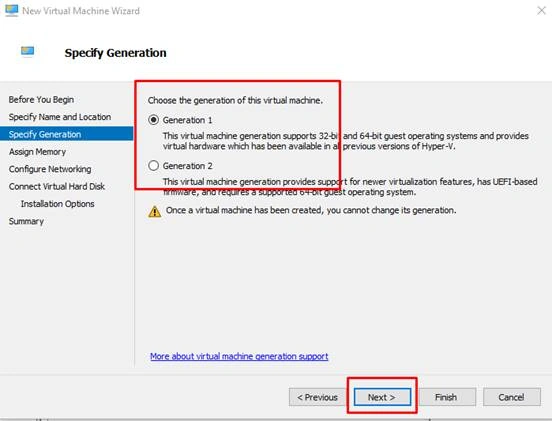

  5. Select the generation accordingly and click Next.

    Virtual Machine setup

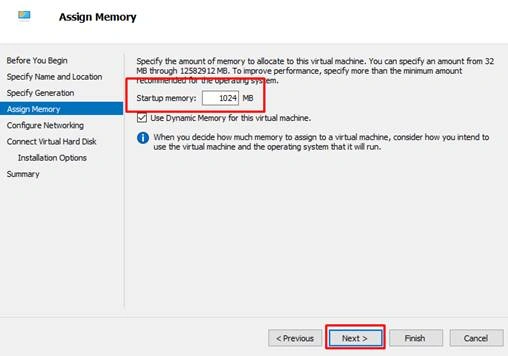

  6. Assign the memory that will be utilized by Virtual Machine. Click Next.

    Virtual Machine setup

  7. Select the connection accordingly, you can choose internal or external. Click Next

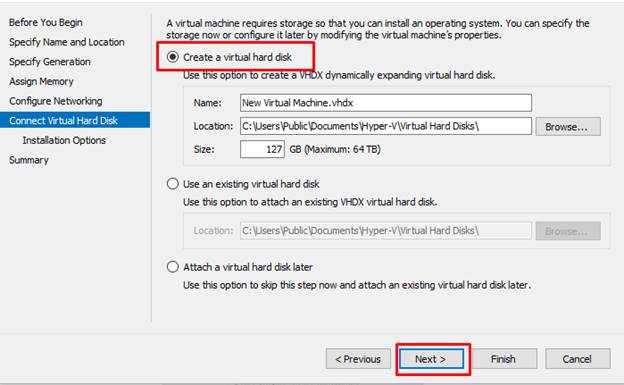

  8. Select the option Create Virtual Disk and its location.

    Virtual Machine setup

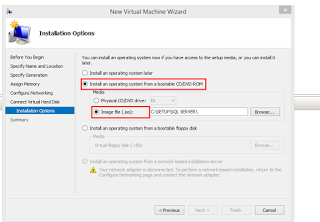

  9. Select Option on how to install O/S. Better to have an ISO file on window server.

    Virtual Machine setup

  10. Click Next, Check the summary and Click Finish.

A Virtual Machine will be created in your Hyper-V Manager. Open that VM, and it will start booting the O/S from ISO you have selected.

Hope it helps.
