Label Distribution Protocol (LDP)

Pre-requisite to understand this

• IP Routing Basics: Understanding how routers forward packets using IP addresses

• Multiprotocol Label Switching (MPLS): A technique that forwards packets based on labels instead of IP lookups

• Interior Gateway Protocol (IGP): Protocols like OSPF/IS-IS used to build routing tables

• Label Switching Concept: Packets are assigned short labels for fast forwarding

• TCP/IP Communication: Knowledge of session establishment and message exchange

Introduction

Label Distribution Protocol (LDP) is a protocol used in MPLS networks to distribute labels between routers. It allows routers (called Label Switch Routers - LSRs) to establish label switched paths (LSPs) by mapping network routes to labels. LDP works alongside IGPs and uses TCP sessions to exchange label bindings between neighboring routers. This enables efficient packet forwarding using labels instead of performing full IP routing table lookups at every hop.

What problem we can solve with this?

In traditional IP routing, every router independently performs a longest prefix match lookup, which can be computationally expensive and slower in large networks. LDP solves this by pre-establishing label mappings so that routers can forward packets quickly using simple label lookups. It simplifies forwarding decisions and improves performance, especially in service provider networks. LDP also helps in creating scalable MPLS infrastructures without manually configuring paths. By automating label exchange, it reduces operational complexity. It ensures consistent forwarding behavior across routers. Additionally, it integrates seamlessly with existing routing protocols.

• Eliminates repeated IP lookups: Uses labels for faster forwarding

• Automates label distribution: No need for manual configuration

• Improves scalability: Handles large networks efficiently

• Enables MPLS forwarding: Supports traffic engineering foundations

• Reduces CPU overhead: Simplifies forwarding operations

• Ensures consistent path selection: Aligns with IGP routes

How to implement/use this?

To implement LDP, MPLS must first be enabled on routers, followed by enabling an IGP like OSPF or IS-IS to establish routing reachability. Once basic connectivity is ensured, LDP is activated on interfaces. Routers discover neighbors using LDP Hello messages (UDP), then establish TCP sessions for reliable communication. They exchange label mappings for network prefixes learned via IGP. Each router builds a Label Information Base (LIB) and Label Forwarding Information Base (LFIB). These tables are then used to forward packets based on labels. The process is automatic and dynamically adapts to network changes.

• Enable MPLS on routers: Activates label switching capability

• Configure IGP: Provides routing information for label mapping

• Enable LDP: Starts label distribution process

• Neighbor discovery: Uses Hello messages over UDP

• Session establishment: Uses TCP for reliable communication

• Label exchange: Shares label-to-prefix mappings

• Forwarding setup: Builds LFIB for packet forwarding

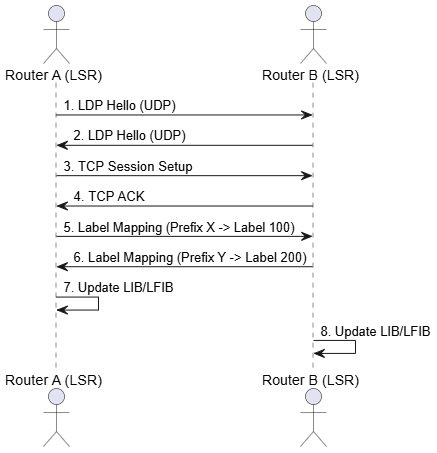

Sequence Diagram

The sequence diagram shows how two routers establish an LDP relationship. Initially, routers exchange Hello messages to discover each other. Once discovered, they establish a TCP session to ensure reliable communication. After the session is established, routers exchange label mappings for known prefixes. Each router assigns labels to routes and shares them with its neighbor. These mappings are stored in the Label Information Base. The forwarding table (LFIB) is then updated for fast packet forwarding. This process continues dynamically as routes change.

• Step 1-2: Neighbor discovery using Hello messages

• Step 3-4: Establish reliable TCP session

• Step 5-6: Exchange label mappings

• Step 7-8: Update forwarding tables

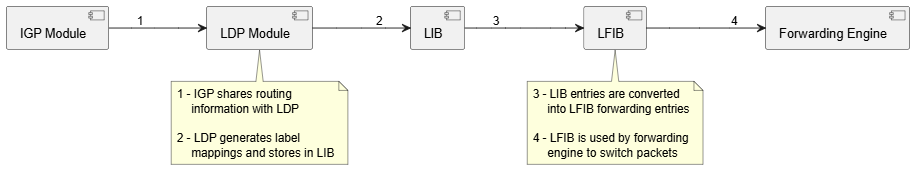

Component Diagram

This component diagram illustrates how different modules inside a router interact during LDP operation. The IGP module provides routing information to the LDP module. LDP uses this information to generate label mappings and stores them in the LIB. The LIB is then used to populate the LFIB, which is optimized for forwarding decisions. Finally, the forwarding engine uses LFIB entries to forward packets efficiently. This modular architecture ensures separation of control and data planes. It also allows scalability and easier troubleshooting. Each component plays a distinct role in label-based forwarding.

• 1: IGP shares routing information with LDP

• 2: LDP stores label mappings in LIB

• 3: LIB populates LFIB for forwarding

• 4: LFIB drives actual packet forwarding

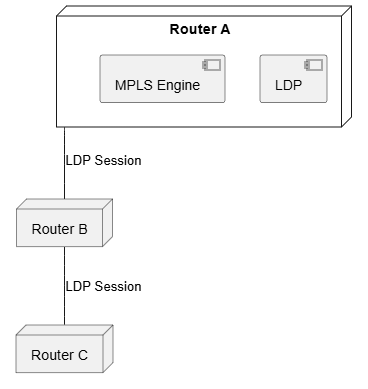

Deployment Diagram

The deployment diagram shows how LDP operates across multiple routers in a network. Each router runs LDP and MPLS components. Routers form LDP sessions with directly connected neighbors. These sessions allow them to exchange label mappings and establish label-switched paths across the network. The chain of routers forms an end-to-end MPLS path. Each router only communicates with its neighbors, ensuring scalability. The distributed nature of LDP makes it robust and adaptable. As routers join or leave, the network dynamically updates label paths.

• Routers run LDP locally: Each node participates independently

• Neighbor sessions: Established between directly connected routers

• Label propagation: Happens hop-by-hop across network

• End-to-end path: Built through chained LDP sessions

Advantages

1. Fast forwarding: Uses labels instead of IP lookups

2. Scalability: Suitable for large service provider networks

3. Automation: Dynamically distributes labels

4. Integration: Works seamlessly with IGPs

5. Reduced complexity: No need for manual path setup

6. Reliability: Uses TCP for message exchange

Summary

Label Distribution Protocol (LDP) is a fundamental component of MPLS networks that enables efficient and scalable packet forwarding by distributing label mappings between routers. It works in conjunction with IGPs to automatically establish label-switched paths, reducing the need for complex routing decisions at every hop. By leveraging simple label-based forwarding, LDP improves performance and simplifies network operations. Its modular architecture, dynamic behavior, and seamless integration make it a widely used protocol in modern service provider and enterprise MPLS deployments.
